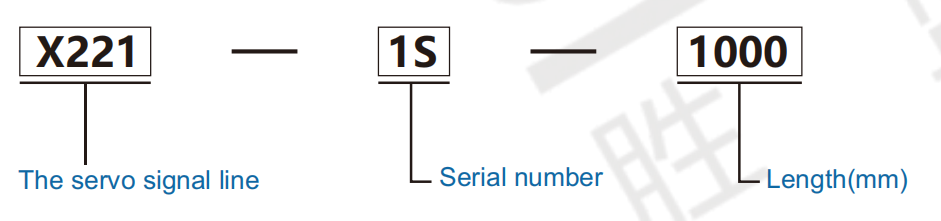

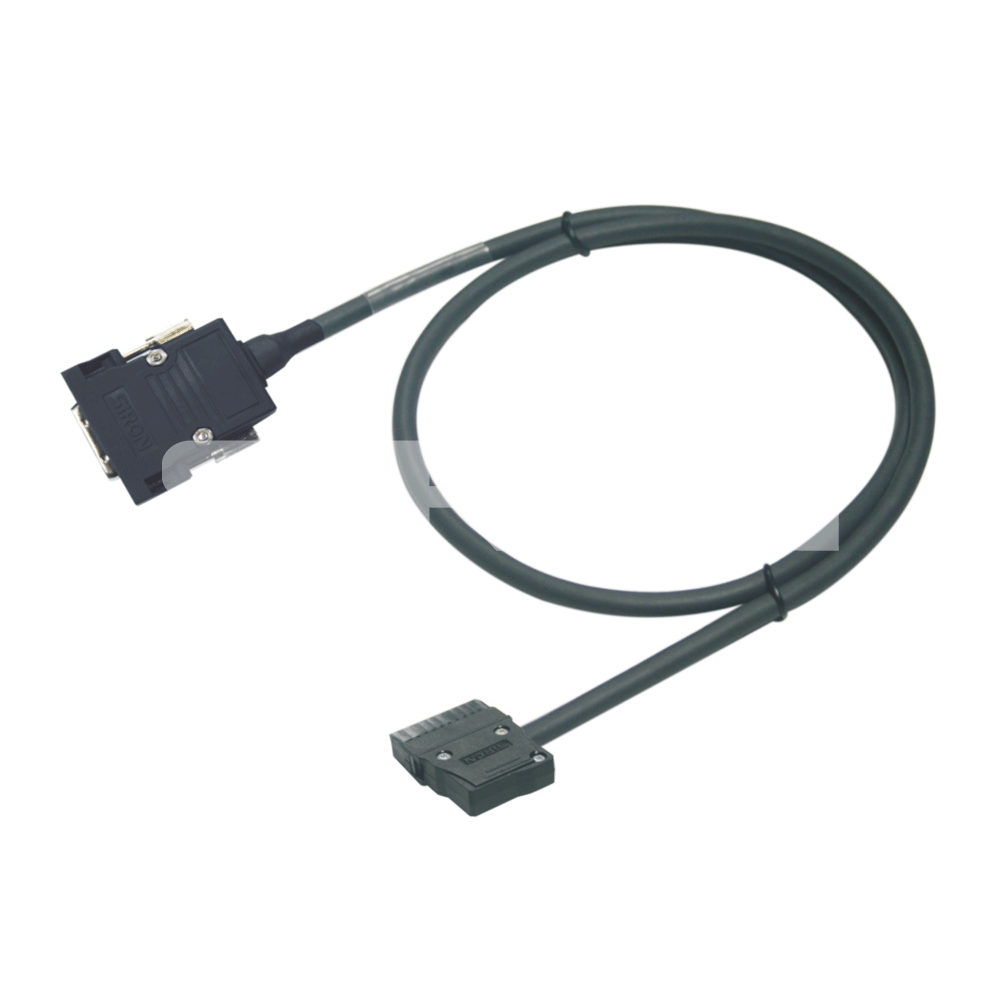

X221
SiRON
8544421100
Order
Specification
| Wire specifications and composition | AWG28;7/0.127 |
| Conductors and insulators material | Conductor: Soft copper wire; Insulator :PE |
| Twist and polishing | Filling: Cotton thread; Bag strap Paper tape |
| Appearance condition coating | PVC |
| Conductor resistance and insulation resistance | Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn |
| Voltage resistance (air) | AC500V/min |
Port corresponding list
| Model | Corresponding to CN1 | Corresponding to CN2 | Note | |
| Brand | Servo drive | Terminal Blocks | ||
| X221-1S | MITSUBISHI | "J3 Series" JE Series *1 | T066 T067 T021 | Differential Drive Mode |
| X221-2S | Open collector mode | |||
| X221-3S | E S series | Diferential Drive Mode | ||
| X221-4S | Open collector mode | |||
| X221-5S | J3series | T022 T032 | —— | |
| X222-1S | PANASONIC | MINAS A4/A5series | T066 T067 T021 | Differential Drive Mode |
| X222-2S | Colecior724Vpulse mode | |||
| X222-3S | Differential Drive Mode | |||
| X222-4S | J3series | T022 T032 | 一 | |
