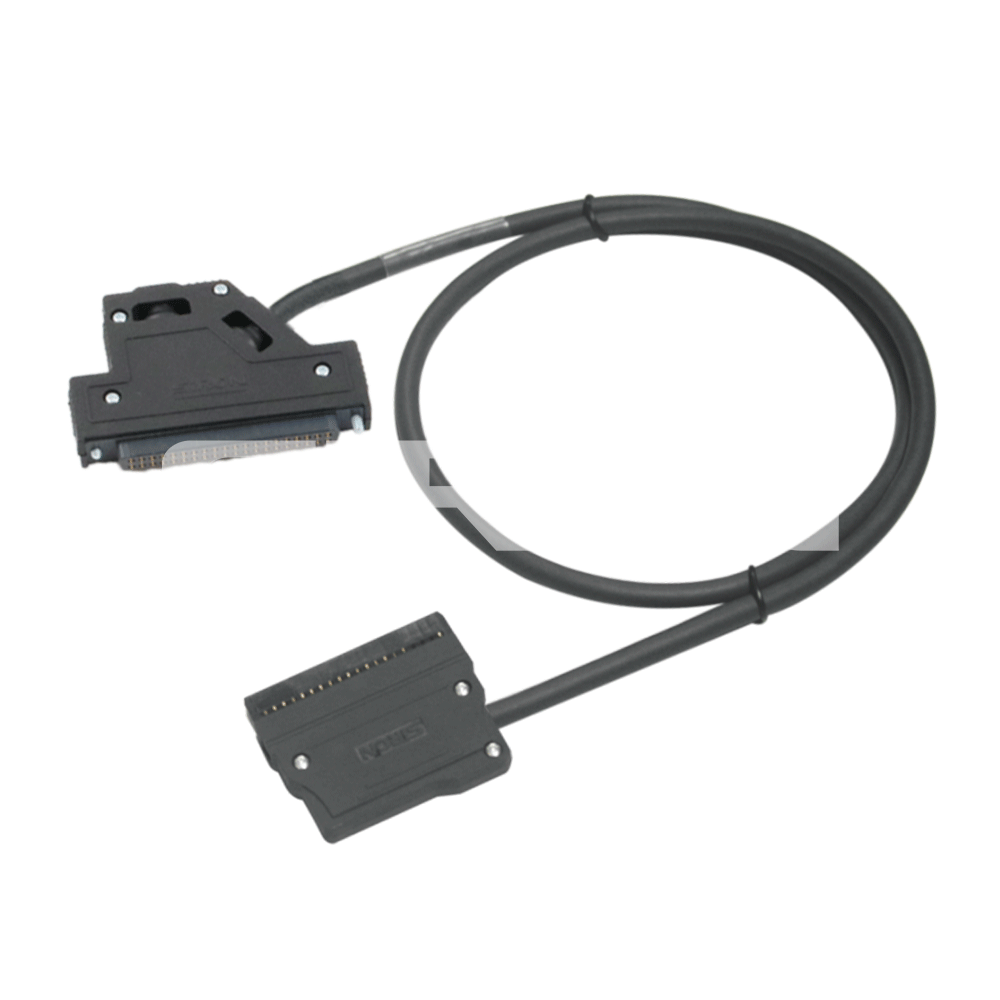

SiRON X212 Series Mitsubishi Q Series of Corresponding Cable

Name: SiRON X212 Series Mitsubishi Q Series of Corresponding Cable
Brand: SiRON
Rating: 5.0 (65 reviews)

Features

X212-1 for Q series of I/O module port design; Corresponding T008,T009 terminal station;
Corresponding T063 conversion module, can be realized from the PLC to signal betweenterminal all pluggable, the maximum limit reduced pick the wrong line the probability of occurrence in a;

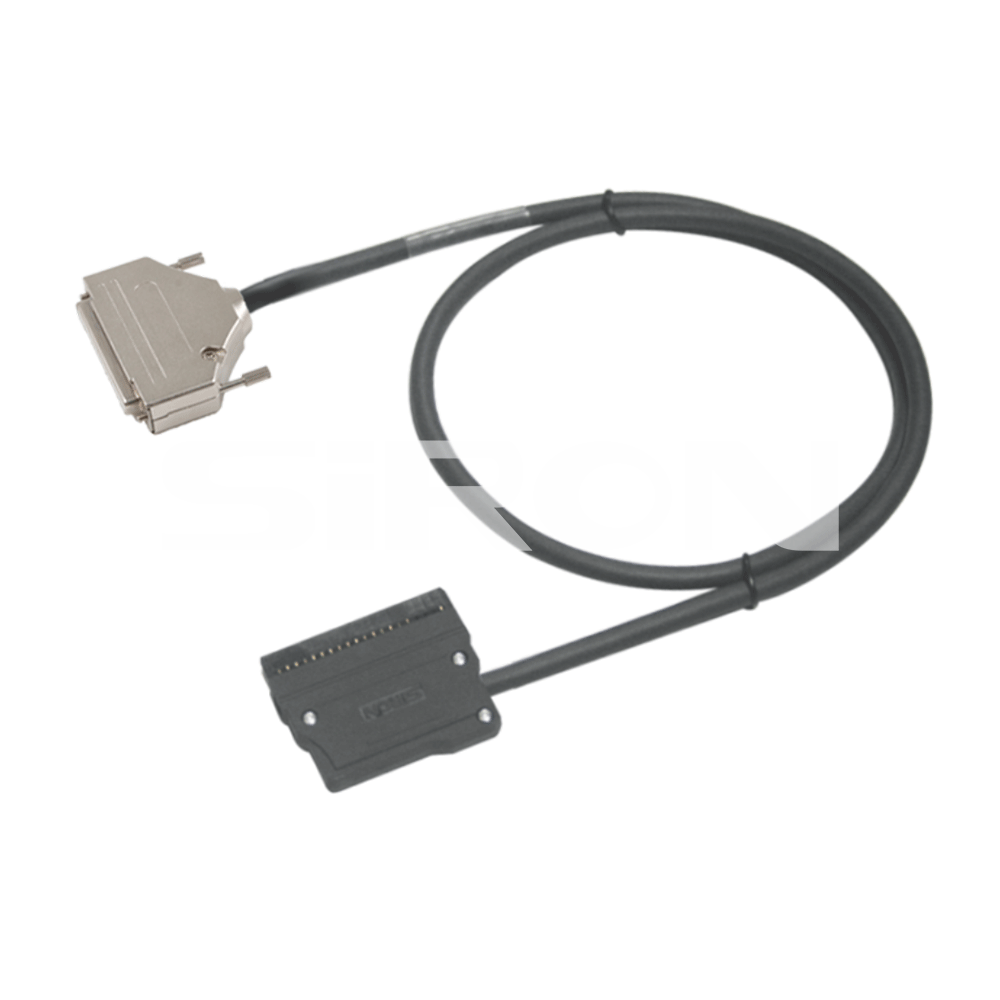

X212-2/3 X212 - for QD70P a control module design;
X212-4 ~ X212-7 QD75P according to a control moduledesign;
Back in six corresponding T066, T067 a control terminal station use, realize a control module to drive between the whole pluggable, the maximum limit reduced pick the wrong line the probability of occurrence in a.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

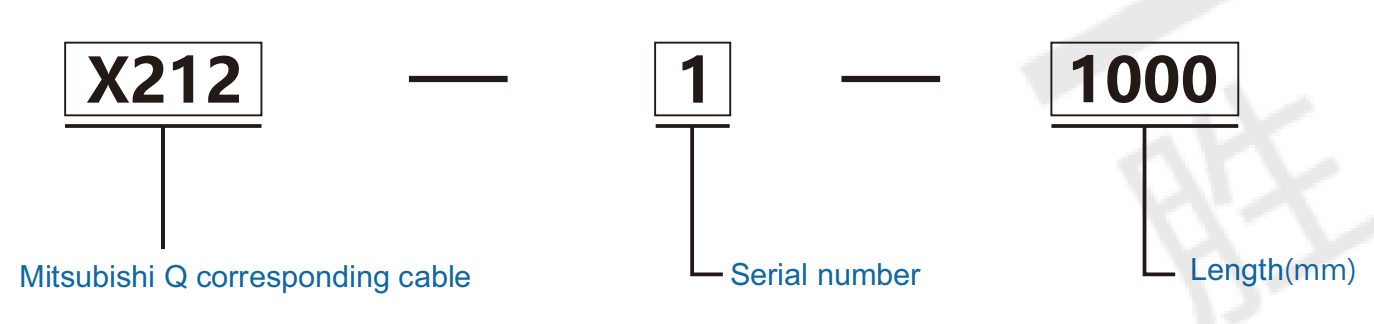

Order

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details.

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1		Corresponding to CN2	Note
Model	Manufacturers	Module	Terminal Biocks	Note
X212-1	MITSUBISHI (Q/L/IQ-R series)	QX41 LX41C4 LY42NT1P QX42 LX42C4 QX41Y41P QX71 RX41C4 RY42NT2P QX72 RX42C4 RY42PT2P QY41P QX41-S1 RH42C4NT2P QY42P QX41-S2 QH42P QX42-S1	T008 T009 T063 Y445 Y449 Y319 T011	NPN
X212-1	MITSUBISHI (Q/L/IQ-R series)	QY82P	T009-P	PNP
X212-2	MITSUBISHI	QD70P4/8	T066 T067	Utlizes external original
X212-3		QD70P4/8		Utizes Z+/-Signal
X212-4		QD75P1/2 LD75P1/2		Utlizes external onginal
X212-5		QD75P4 LD75P4		Utizes Z+/-Signal
X212-6		QD75D1/2 LD75D1/2		Dilferential Drive
X212-7		QD75D4 LD75D4		UtizesA+/-Signal
X212-8		QX81 QX81-S2	T008-P T009-P T063 T011
X212-9		QY81P	T008-P T009-P T063 Y445 Y449 Y319 T011
X212-10		QX82	T008-P
