SiRON X21F Series Inovance PLC Corresponding Cable

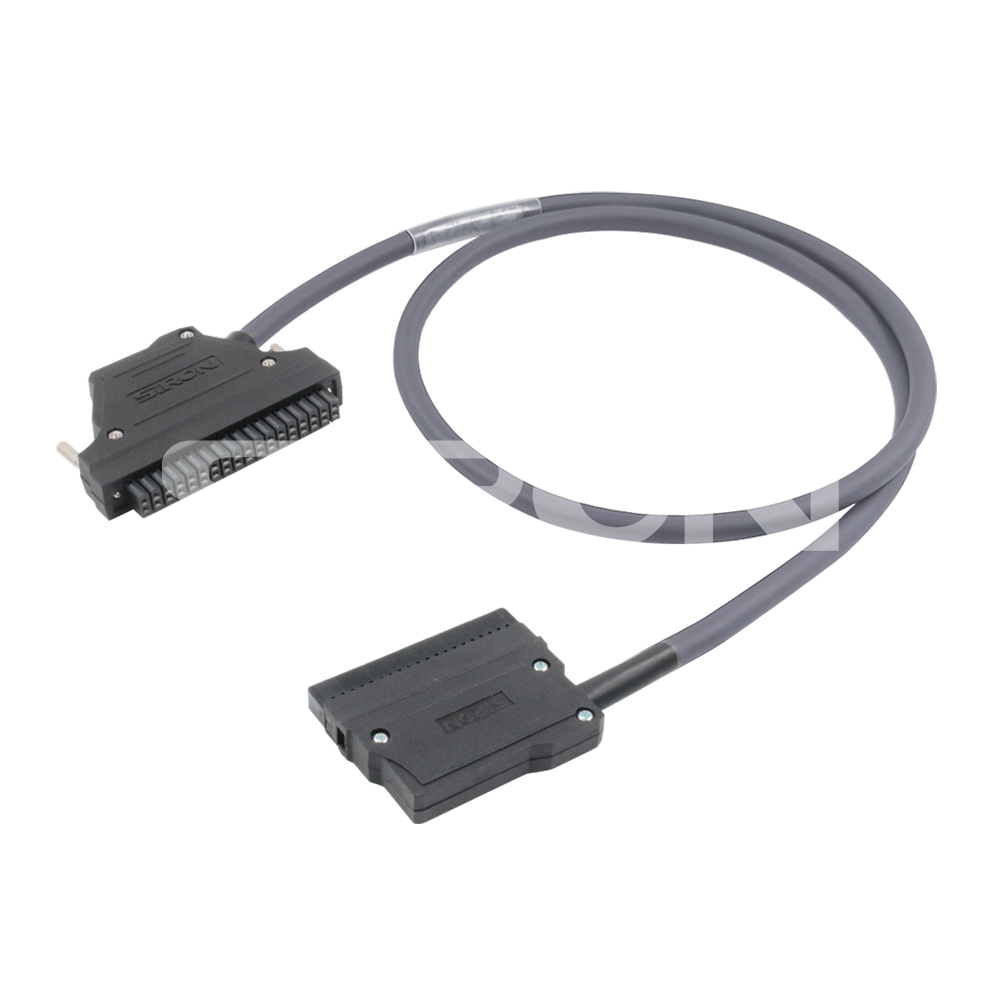

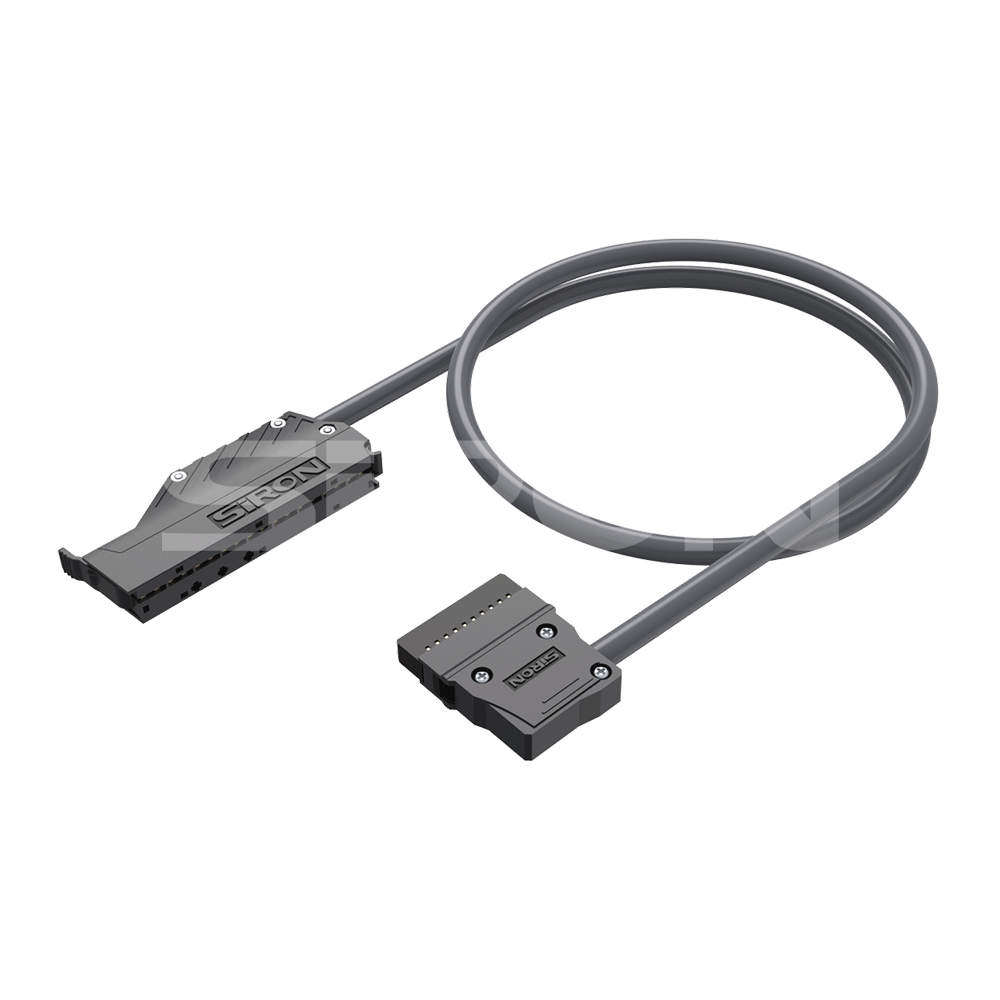

Name: SiRON X21F Series Inovance PLC Corresponding Cable
Brand: SiRON
Rating: 5.0 (79 reviews)

Features

Used path conductor and cable is covered by soft materials, also with good flexural performance.
With standard plug cover, and all colors march together and beautiful.
Supplies single cable and double cable which can be applicable to many different situations.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

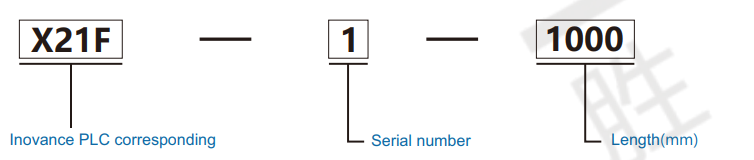

Order

e6e3e08382ee9aeb65c33d6876c4cd17

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	coresponding to CN1		Coresponding to CN2	Note
Model	Brand	Module	Terminal Blocks	Note
X21F-1	Inovance	AM600-3200END	T011	PNP
X21F-2		AM600-3200END	T011	NPN
X21F-3		AM600-0032ETN	Y449,T011	1
X21F-4		36Pin Kymmene shrapnel interface module	T024	/
X21F-5		GL10-3200END	T011	NPN
X21F-5P		GL10-3200END	T011	PNP
X21F-7		GL10-0032ETN	Y449,T011	1
X21F-15		GL20-0032ETN-M/GL20-3232ETN	Y449	1
X21F-17		GL20-3200END-M/GL20-3232ETN	T011	NPN
X21F-17P		GL20-3200END-M/GL20-3232ETN	T011	PNP
X21F-25		GL20-3200END 18Pin Kymmene shrapnel interface module	T022	1
X21F-26			T060	NPN
X21F-27			T060	PNP
X21F-28			T060	/
