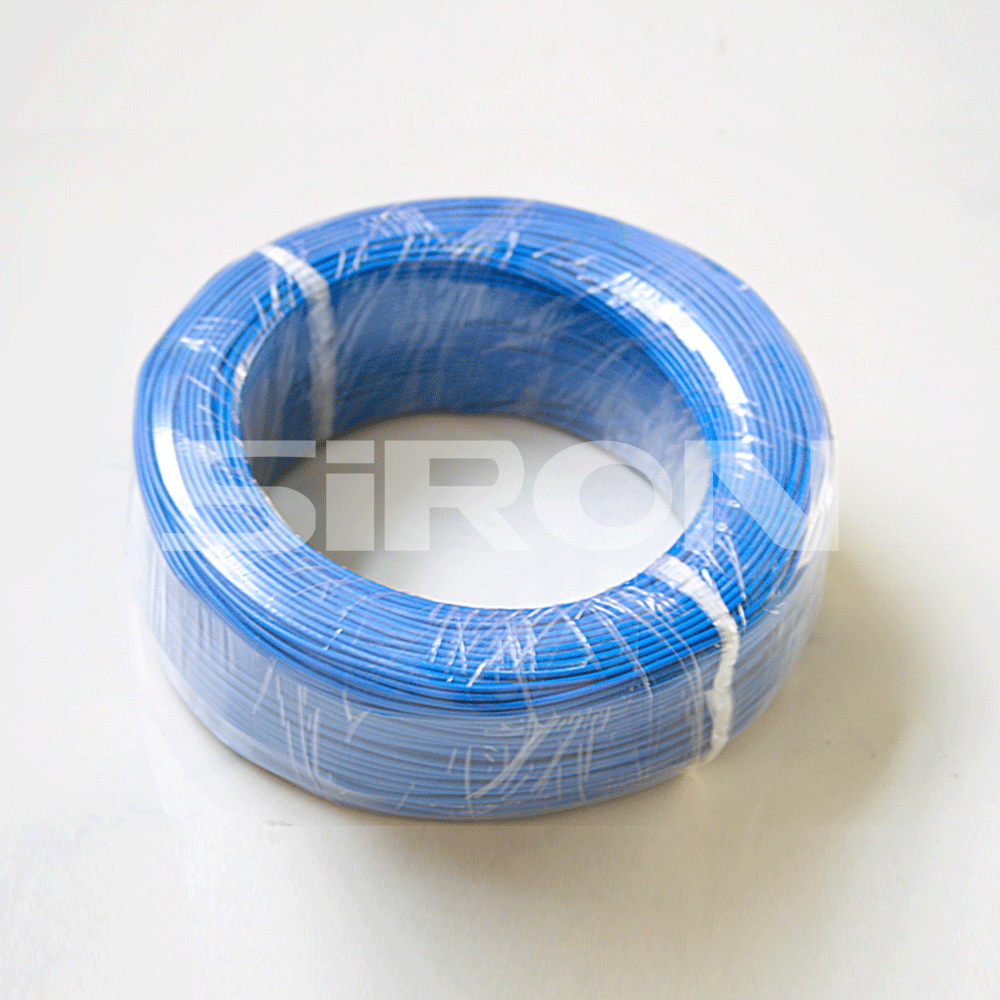

SiRON X020 Series UL Single Core Electronic Wire

Features
  • Applicable to electric and electronic equipment then realize internal wiring and instrument wiring.
  • Complies with the standard of Ul 758 and CSA C22.2 NO.210.2.
  • Rated voltage is 300V and rated temperature is 80'C.
  • With lead-free PVC insulated, and passes the flame retardant test which indicated in VW-1 and CSA Ft1.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X020

  • SiRON

  • 8544421100

Single Core Electronic Wire Rated voltage is 300V cable PVC/PUR sheath cable
Product Description

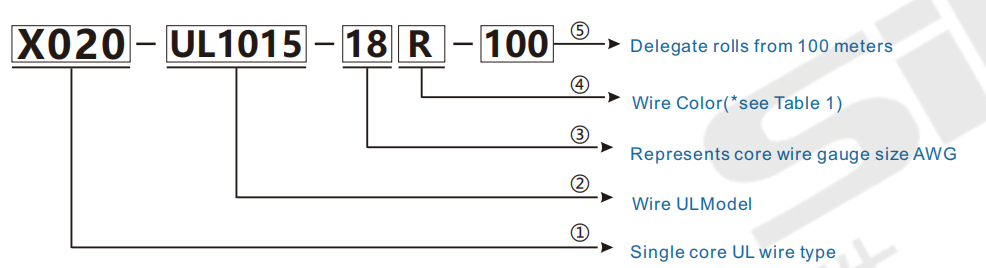

Order

f5c5727c596a7f69b097c9c8d9fb4a6c

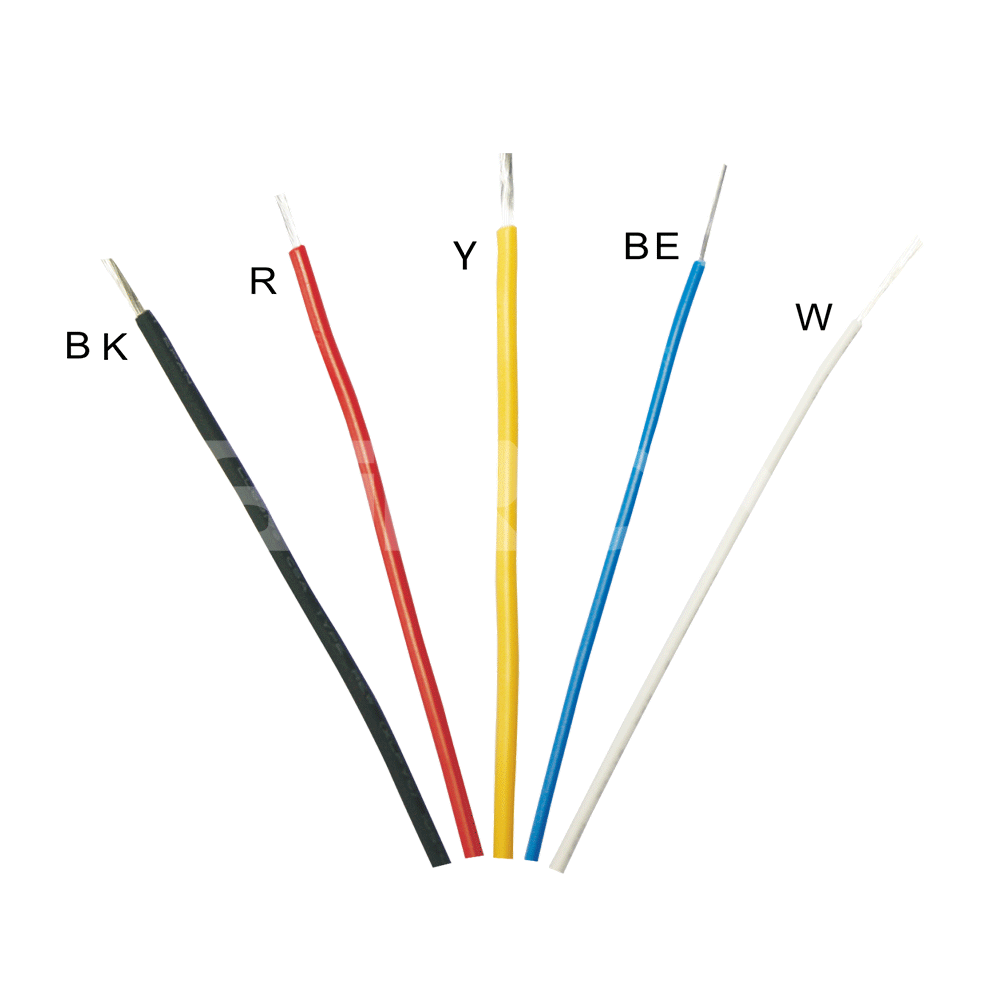

Table 1:Wire Color

Code BK BN R O Y GN BE P GY W YG
Colour Black Brown Red Orange Yellow Green Blue Purple Grey White Yellow/Green


Specification

Wire number Wire diameter Wire diameter
(AWG) mm² in CM mm mil
28 0.08046 0.0001247 158.6 0.3200 12.6
27 0.1022 0.0001584 201.6 0.3607 14.2
26 0.1281 0.0001986 252.8 0.4039 15.9
25 0.1624 0.0002517 320.4 0.4547 17.9
24 0.2047 0.0003173 404.0 0.5105 20.1
23 0.2589 0.0004012 510.8 0.5740 22.6
22 0.3243 0.0005027 640.1 0.6426 25.3
21 0.4116 0.0006379 812.3 0.7239 28.5
20 0.5189 0.0008042 1024 0.8128 32.0
19 0.6529 0.001012 1289 0.9119 35.9
18 0.8233 0.001276 1624 1.024 40.3
17 1.040 0.001612 2052 1.151 45.3
16 1.3 0.002027 2581 1.290 50.8
15 1.65 0.002561 3260 1.450 57.1
14 2.1 0.003227 4109 1.628 64.1
13 2.63 0.004072 5184 1.829 72.0
12 3.3 0.005128 6529 2.052 80.8
11 4.17 0.006461 8226 2.304 90.7
10 5.3 0.008155 10380 2.588 101.9
9 6.63 0.01028 13090 2.906 114.4
