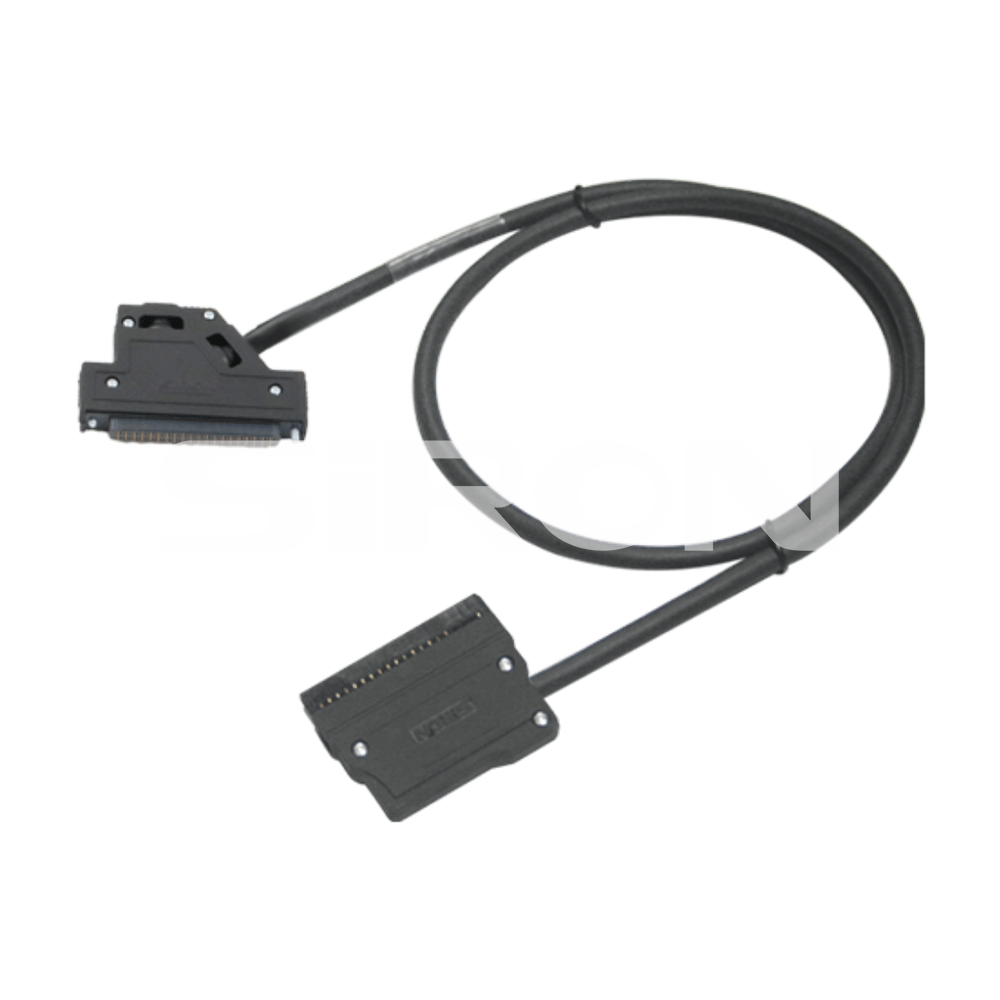

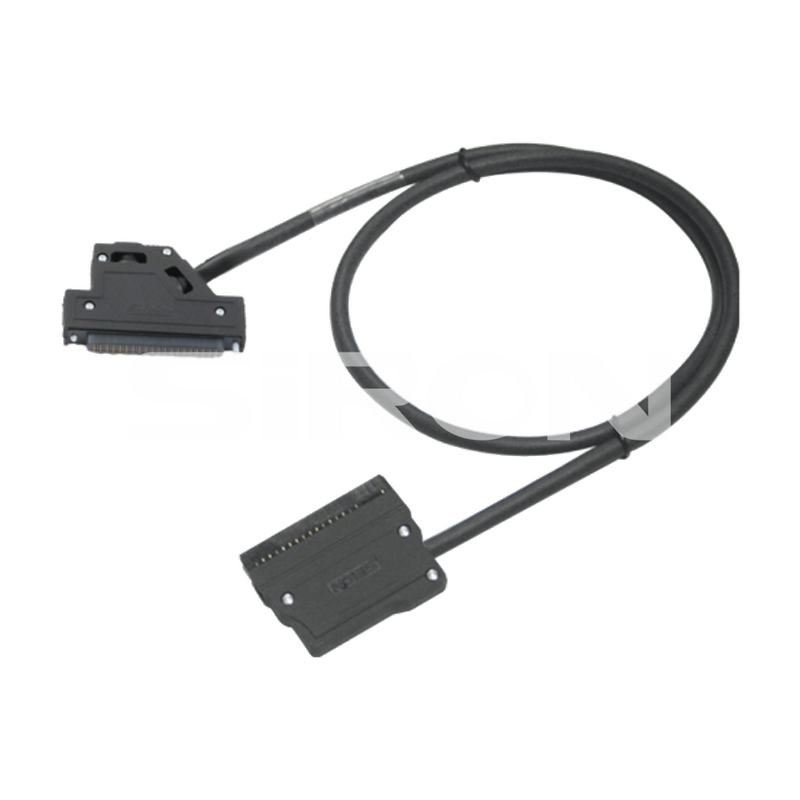

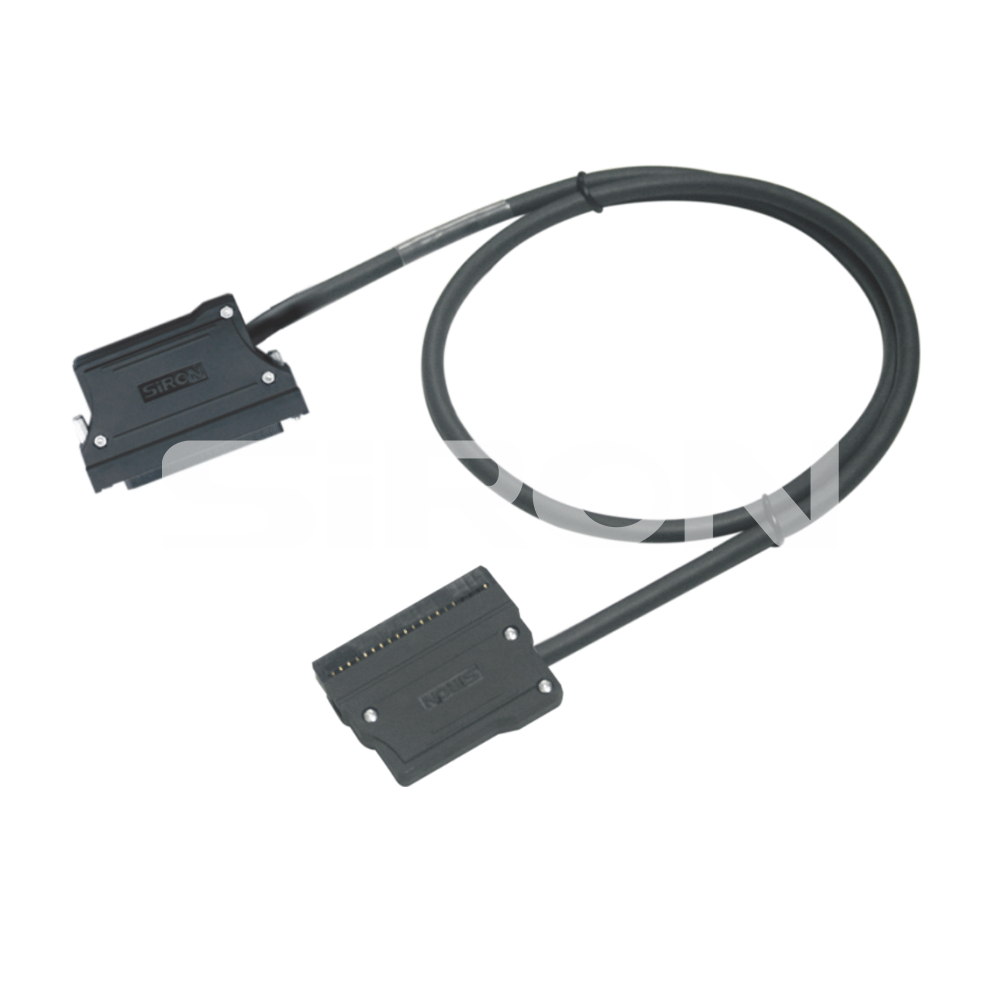

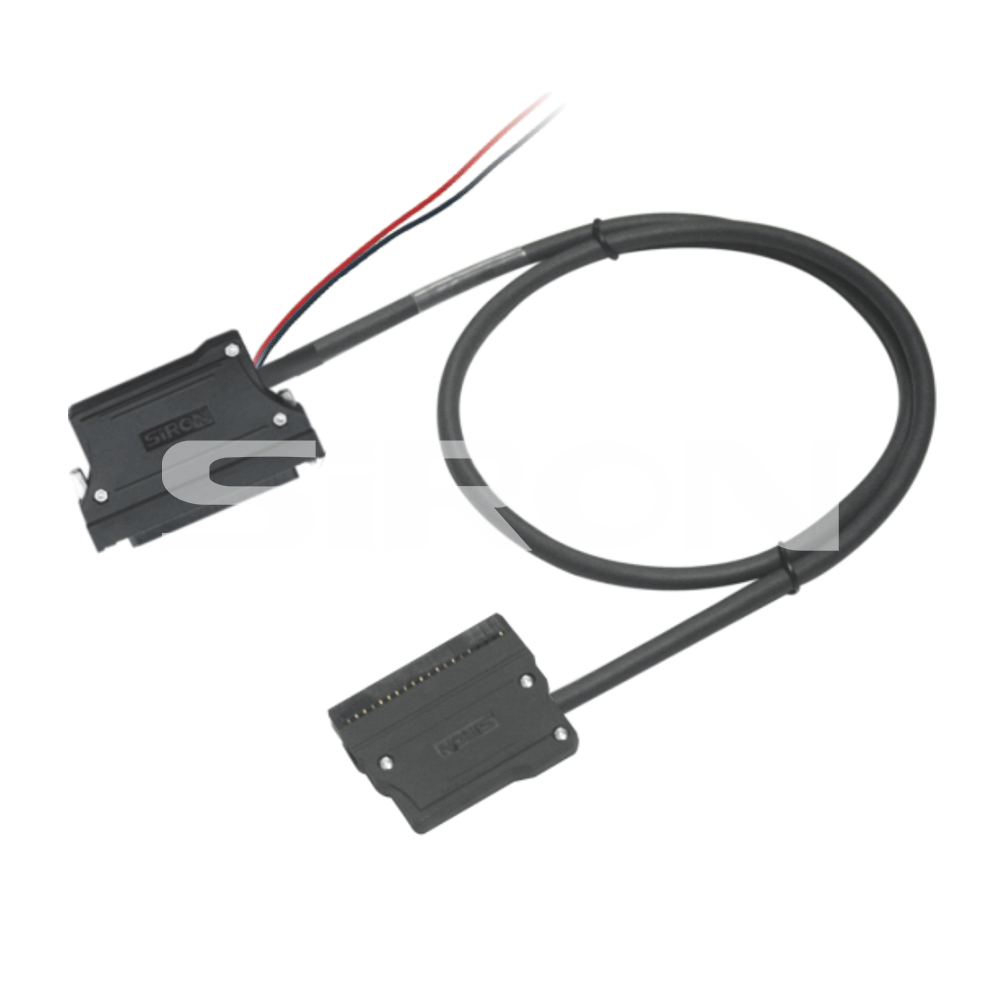

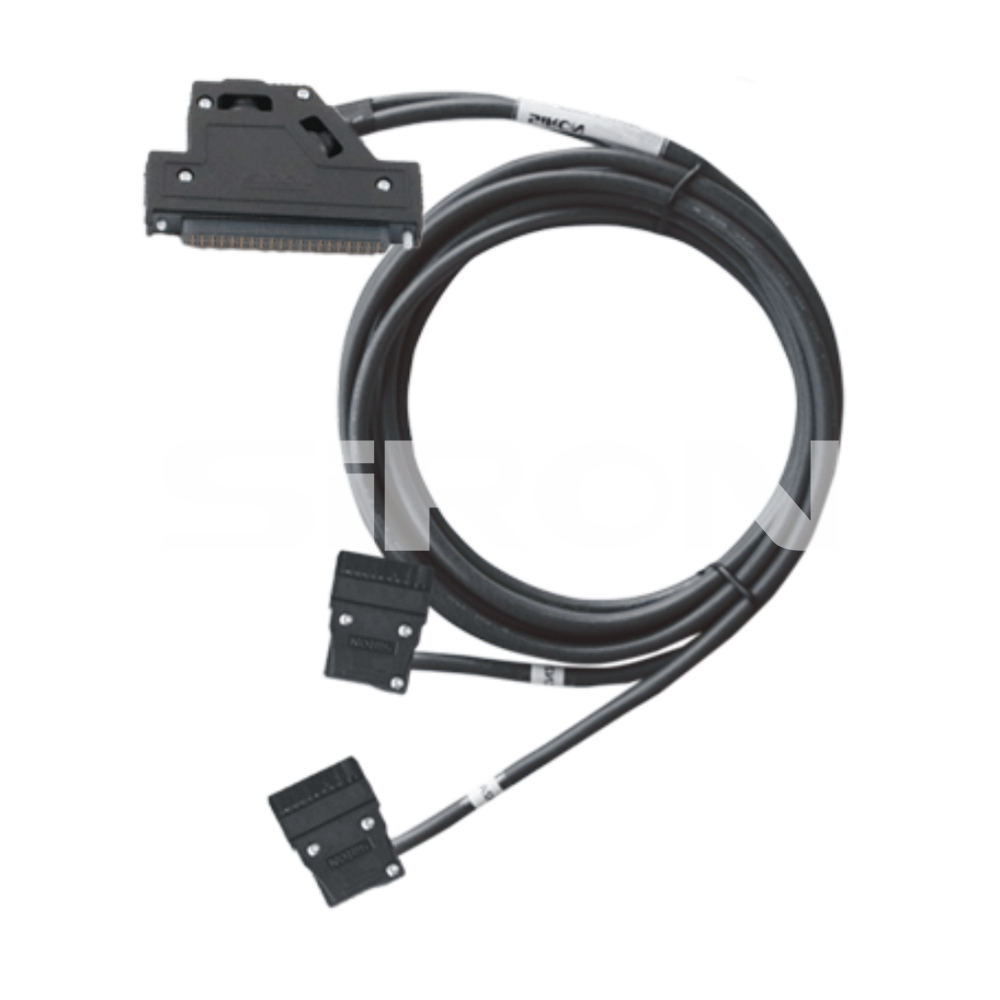

X219
SiRON
8544421100
Order

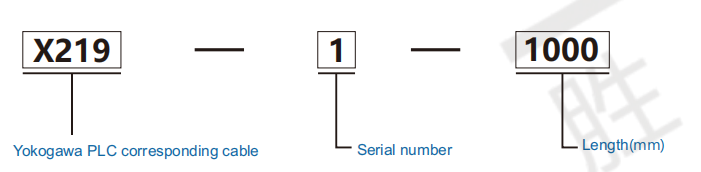

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details
Port corresponding list
| Cable specification | AWG28 |
| Wire constitute | 7/0.127 |
| Conductors and insulators material | Conductor: Soft copper wire; Insulator: PE |
| Twist and polishing | Filling: Cotton thread; Bag strap Paper tape |
| Appearance condition coating | PVC |
| (20℃) Conductor resistance and insulation resistance | Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn |
| Voltage resistance(air) AC500V/min | |
Port corresponding list
| Model | Corresponding to CN1 | Corresponding to CN2 | Note | |
| Manufacturers | Module | Terminal Blocks | ||
| X219-1 | Yokogawa (FA-M3Series) | F3WD64-3N(IN) F3WD64-3F(IN) | T007 T008 T063 T011 | |
| X219-2 | F3WD64-3N(OUT) F3WD64-3F(OUT) | T007 T009 T063 Y445 Y319 T011 Y449 | ||
| X219-3 | F3WD32-3NF | T005 T006 T060 T010 | ||
Position Control Module
| X219-4 | Yokogawa (PLCFA-M3 Series) | F3YPO4/08/14/18-ON | T024 T034 | |
| X219-5 | Yokogawa | F3NC11(12)-ON | T066 T067 | Diferental drive |
| X219-6 | Open-cllector bus driver | |||
| X219-7 | F3NC32(34)-ON | Customized for position control module | ||
| X219-8 | F3YP04/08/14/18-ON |
