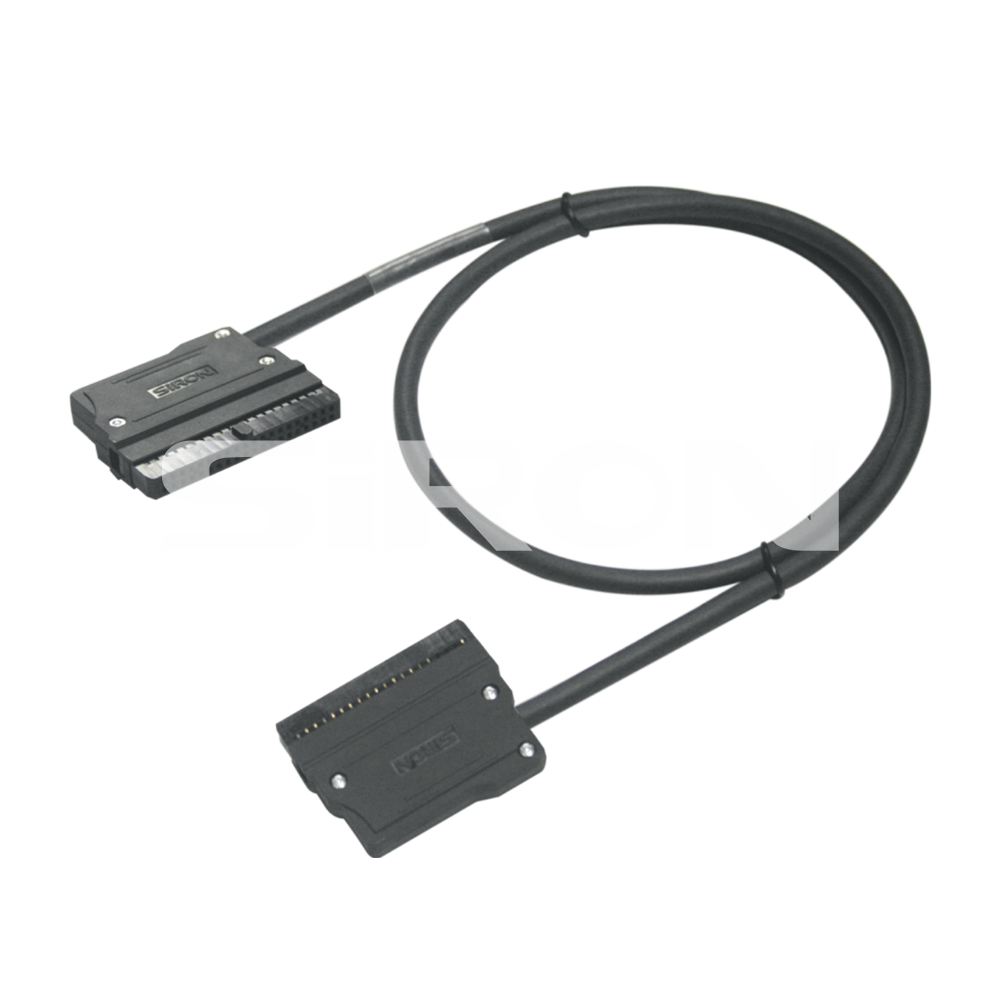

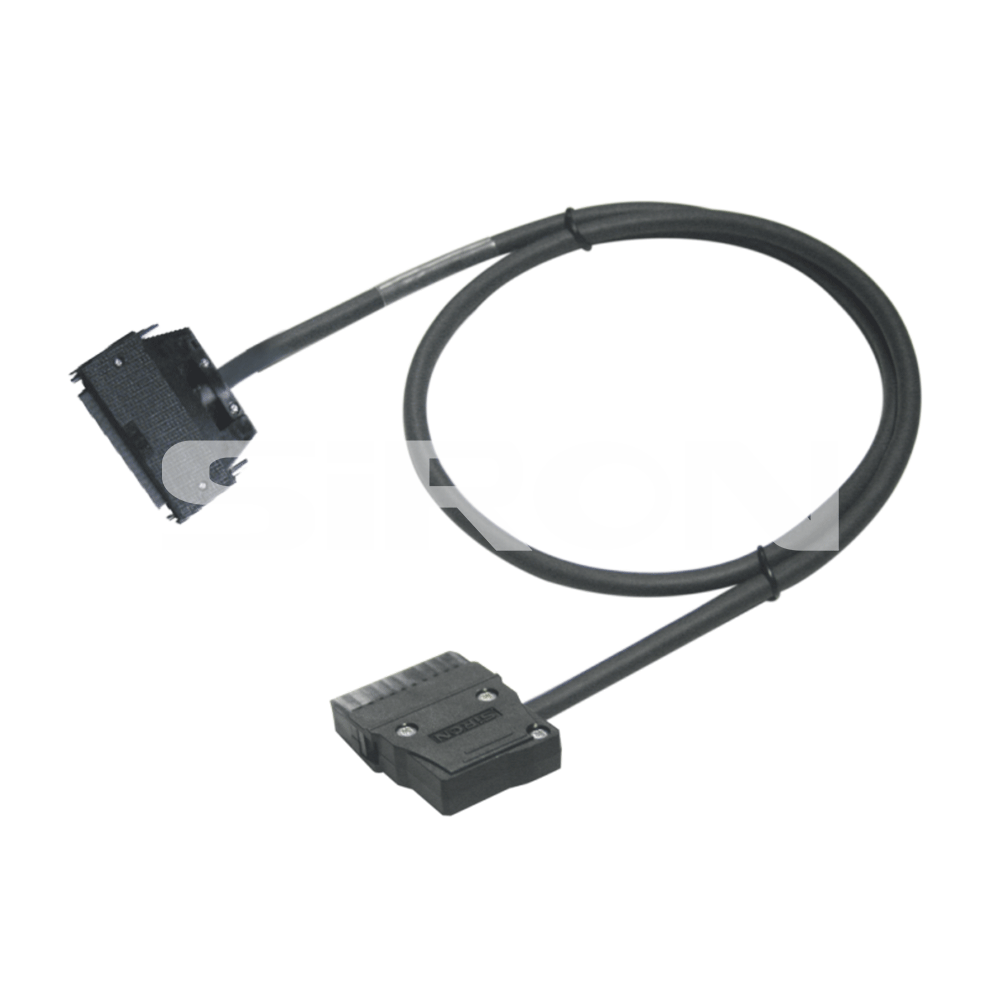

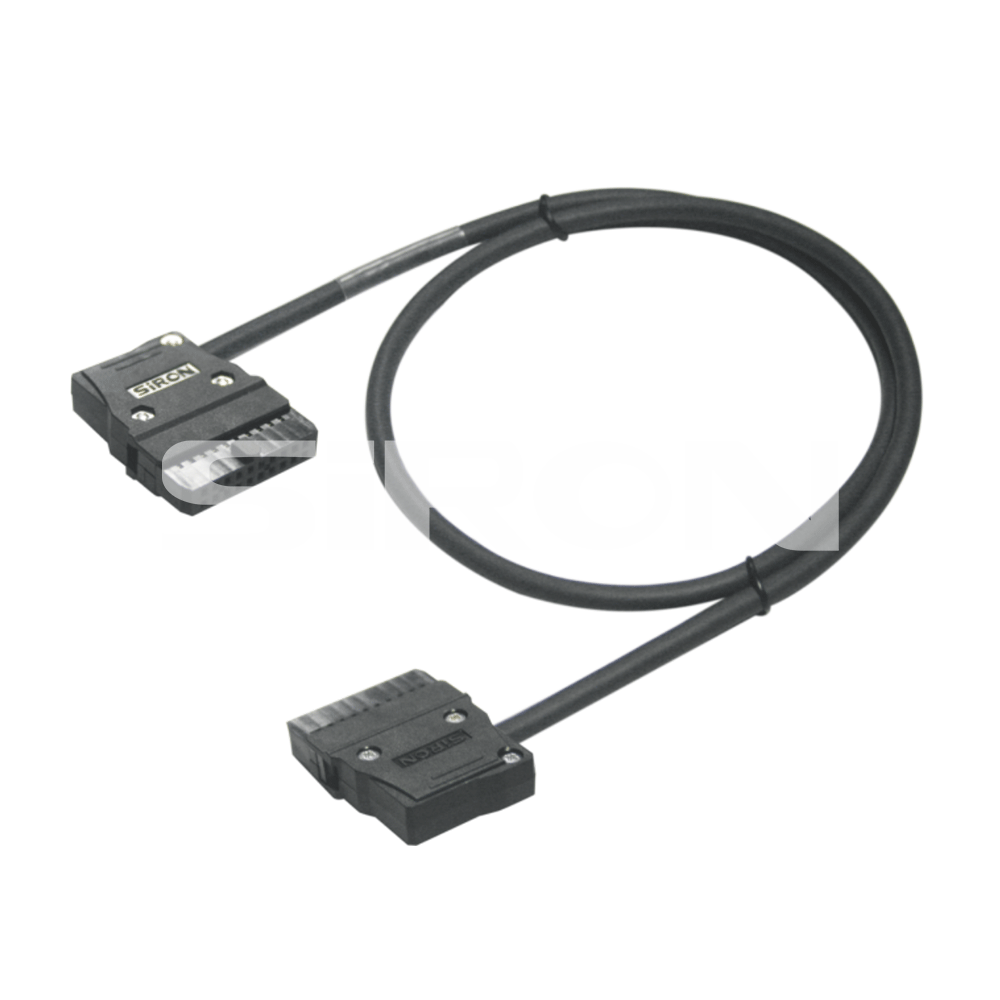

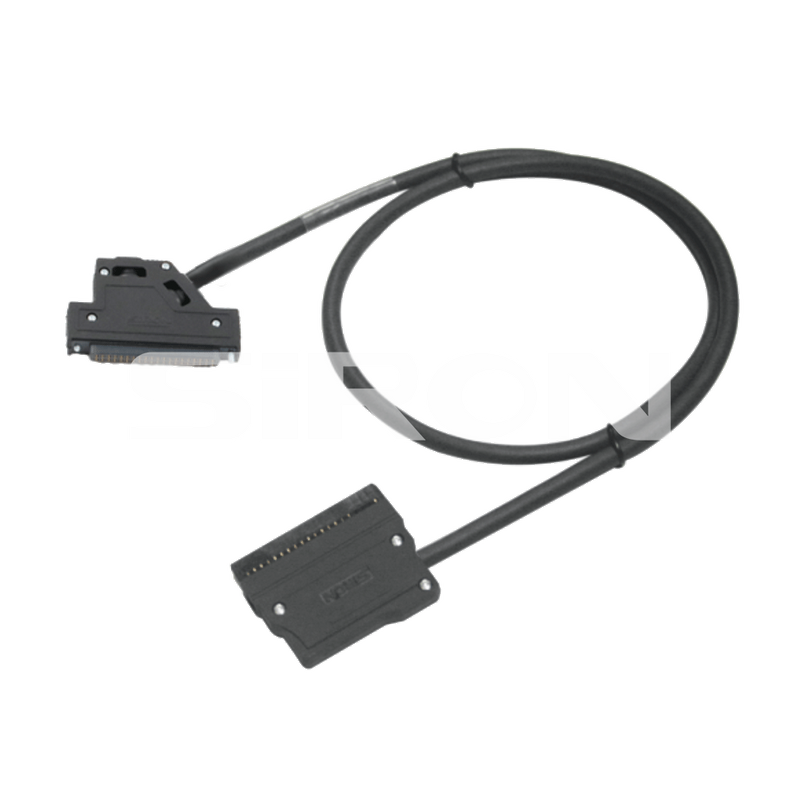

SiRON X215 Series Omron CJ1 Series Corresponding Cable

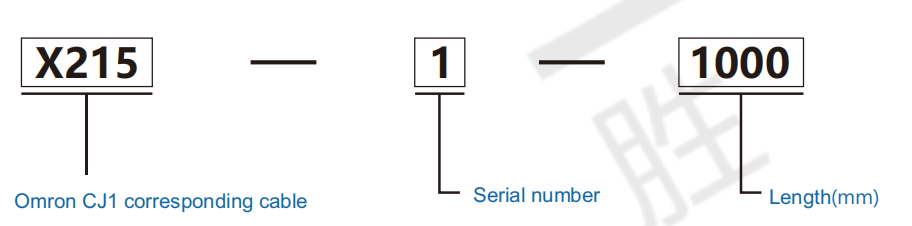

Order

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details.

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air)              AC500V/min

Port corresponding list

Model	Corresponding to CN1					Corresponding to CN2	Note
	Manufacturers	Module				Terminal Blocks
X215-1	OMRON	CJ1W-MD232(IN)    CJ1W-MD233(IN)				T004 T060 T010 Y318 Y444 Y448	NPN connection
X215-2		CJ1-MD233(OUT)    NX-OD5121-5
X215-3	OMRON	CJ1W-ID232                CJ1      W-ID262    CJ1W-MD263(IN) CJ1W-MD563(IN)            NX-ID6142-5         CJ1W-ID233				T007 T063 T011	NPN connection
X215-3P	OMRON	CJ1W-ID232               CJ1     W-ID262    CJ1W-MD263(IN) CJ1W-MD563(IN)    NX-ID6142-5        CJ1W-ID233				T007-P T063 T011	PNP connection
X215-4	OMRON	CJ1W-OD233 CJ1W-MD563(OUT)	CJ1W-OD263 CJ2W-OD234	CJ1W-MD263(OUT)  NX-OD6121-5		T007  T063 Y445  Y319 Y445	NPN connection
		CJ1W-OD232        CJ1W-OD262        006256-5				T007-P T063  Y319 Y445    Y449  T011	PNP connection
X215-5	OMRON	CJ1W-MD231(IN)				T004  T060 T010	NPN connection
X215-6	OMRON	CJ1W-MD231(OUT)				T004  T060  Y444 Y318  Y010 Y448	NPN connection
X215-7	OMRON					T007   T063 T011	NPN connection
X215-7-P	OMRON	CS1W-ID231 CJ⊃1;W-ID261 CJ1W-ID231	CS1W-MD261(IN) CS1W-MD262		CS1W-MD561 NX-D6142-6	T007 T063 T011	PNP connection
X215-8	OMRON	CJ1      W-OD231 CS1W-MD261(OUT) CJ1      W-OD261	CS1      W-OD231 CS1W-OD261 CS1      W-MD561		CJ1W-MD261(OUT) NX-OD6121-6	T007 T063    Y319 Y445 T011	NPN connection
		CS1W-OD262         CS1W-MD262         CS1W-OD232					PNP connection
X215-9	OMRON	CJ1W-NC113/213/413				T066 T067	Utlizes external ornginal
							Collector outpnt
X215-10		CJ1 W-NC133/233/433					Utlizes external original
							D   erental drwo ougd
