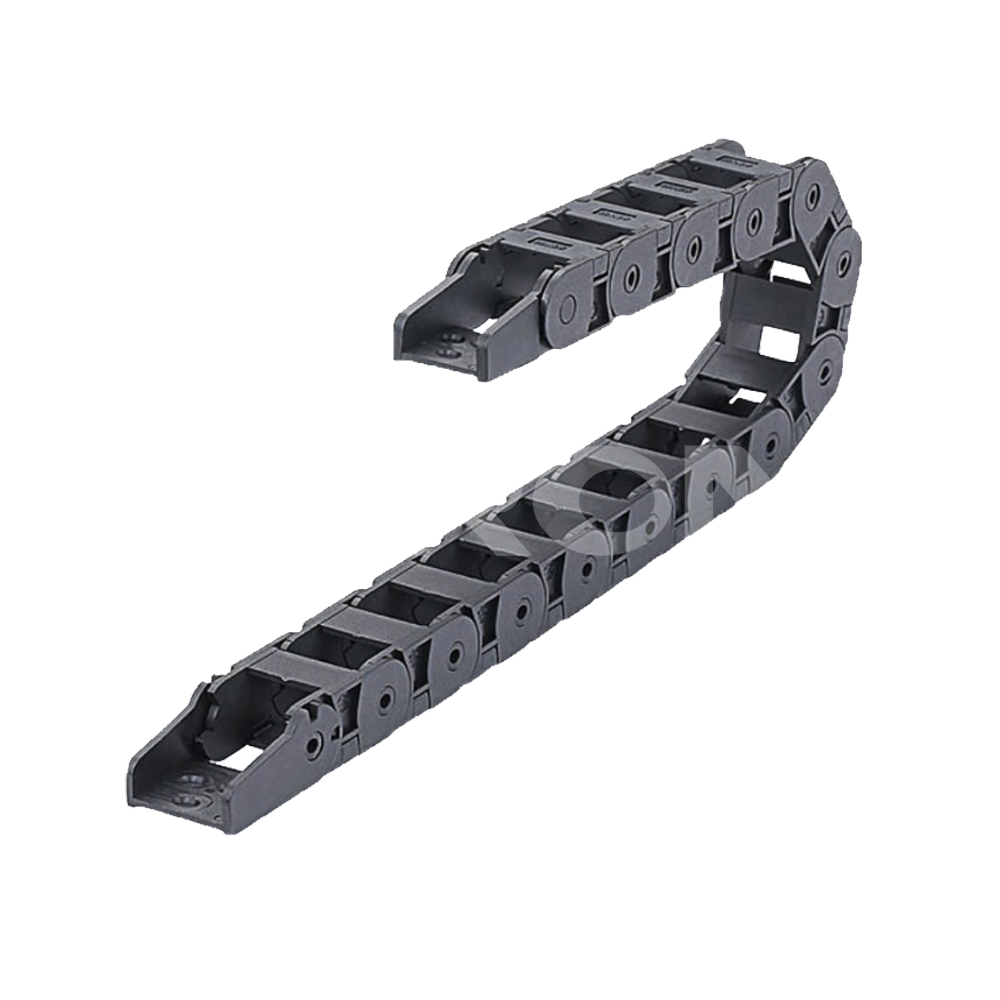

SiRON X72 Series Inner Height: 15/18- Bridge Type Cannot Be Opened Drag Chain

Features
  • High tensile load and wear resistance, oil and saltresistance;
  • High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
  • Mainly used in industrial automation field and machine tool machinery and other industries
  • Material: New PA plus Pa66;
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X72

  • SiRON

  • 8544421100

X72 Series New PA plus Pa66 Drag Chain X72 Series Bridge type cannot be opened Drag Chain X72 Series Inner height:15/18- Bridge Type
Product Description

Order

815f1ecc-7ece-4d6b-bce9-38a2e06d74c5

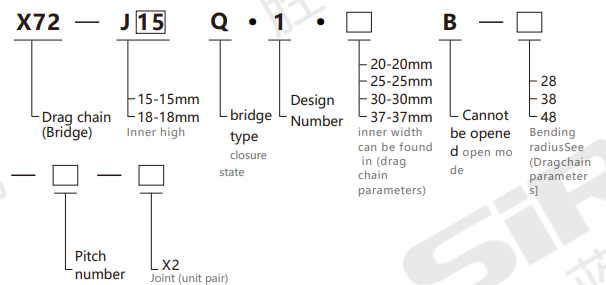

Selection example: X72-J15Q.1.20B-28-50-X2 represents the X72 series drag chain, with an inner height of 15mm and a bridge type.

Inner width: 20mm, non-openable, bending radius: 28mm, 50 sections, 2 joints (1 pair).
Order the connector model separately: X72-J15Q.1.20B-X2 1 pair


Towing chain size table

model Bending radius
R		 Inner high inner width
 Outside High outer width J J1 P Pitch Per meter
Number of sections

 Actual safety
Installation height
H.		 Maximum line
Cable diameter
Q(mm)		 load
(kg/m)		 Installation dimensions of drag chains
H D K
X72-J15Q.1.20B 28 15 20 20 28 14 14 / 20 50 H+20 12 0.3 76 58 140
38 96 68 160
X72-J15Q.1.30B 28 30 38 76 58 140
