SiRON X216 Series Panasonic FP0R/ FP∑series Corresponding Cable

Name: SiRON X216 Series Panasonic FP0R/ FP∑series Corresponding Cable
Brand: SiRON
Rating: 5.0 (51 reviews)

Features

X216-1~X216-4 I/O port designs for Panasonic FP0/FP∑ PLC.
X216-1~X216-3 correspond to modules of T/Y series, can realize a comprehensive connection between PLC and signal terminal, then minimize the probability to connect cables in wrong way.
X216-4 correspond to terminal blocks Y401. 8 bit output will be divided separated and controlled by two outputs of 8 bit relay modules.
X216-5 CPU unit designs for Panasonic FP0 PLC. The CPU 4 interface signal will be classified as 16 input/output two way signal. Corresponding to terminal blocks T005、T006、T022

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

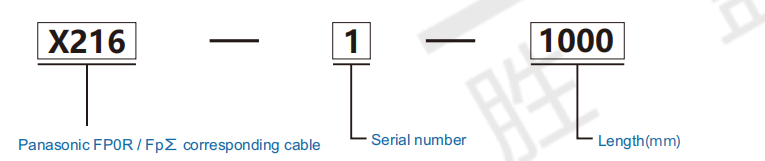

Order

b2aa52ccaeb7eadca41d4559588f7d2b

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details.

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1			Corresponding to CN2
	Manufacturers	Module		Terminal Blocks
X216-1	Panasonic (Fp0.FpZseries)	FPOR-C16T/C16CT(IN) FPOR-C16P/C16CP(IN) FPOR-C32T/C32CT/T32CT(IN) FPOR-C32P/C32CP/T32CP(IN) FPOR-E16T/P(IN) FP0R-E32T	FPOR-E32T/P(IN) FPOR-E8X FPOR-E16X FPZ-C28(IN) FPZ-C32(IN) FPOR-E32P	T003_T080 T003-D
X216-2		FPOR-C16T/C16CT(OUT) FPOR-C16P/C16CP(OUT) FPOR-C32T/C32CT/T32CT(OUT) FPOR-C32P/C32CP/T32CP(OUT)	FPOR-E32T/P(OUT) FPOR-E16T/P(OUT) FPOR-E8YT FPOR-E16YT FPZ-C32(OUT)	Y412 Y421 T082 T084 T415	Y413 T003 T003-D T031
X216-3	Panasonic (FpZseries)	FPZ-C28(OUT)
X216-4	Panasonic (Fp0.FpZseries)	FPOR-C16T/C16CT(OUT) FPOR-C16P/C16CP(OUT) FP0R-C32T/C32CT/T32CT(OUT) FPOR-C32P/C32CP/T32CP(OUT)	FPOR-E16T/P(OUT) FPOR-E32T/P(OUT) FPOR-E8YT FPOR-E16YT FPZ-C32(OUT)	---
X216-5	Panasonic (FpO series)	FPOR-C16T/C16CTP/CP FPOR-C32T/C32CT/P/CP FPOR-E32T/P		T004 TO06 T010 Y448	T005 TO60 Y444 Y318
