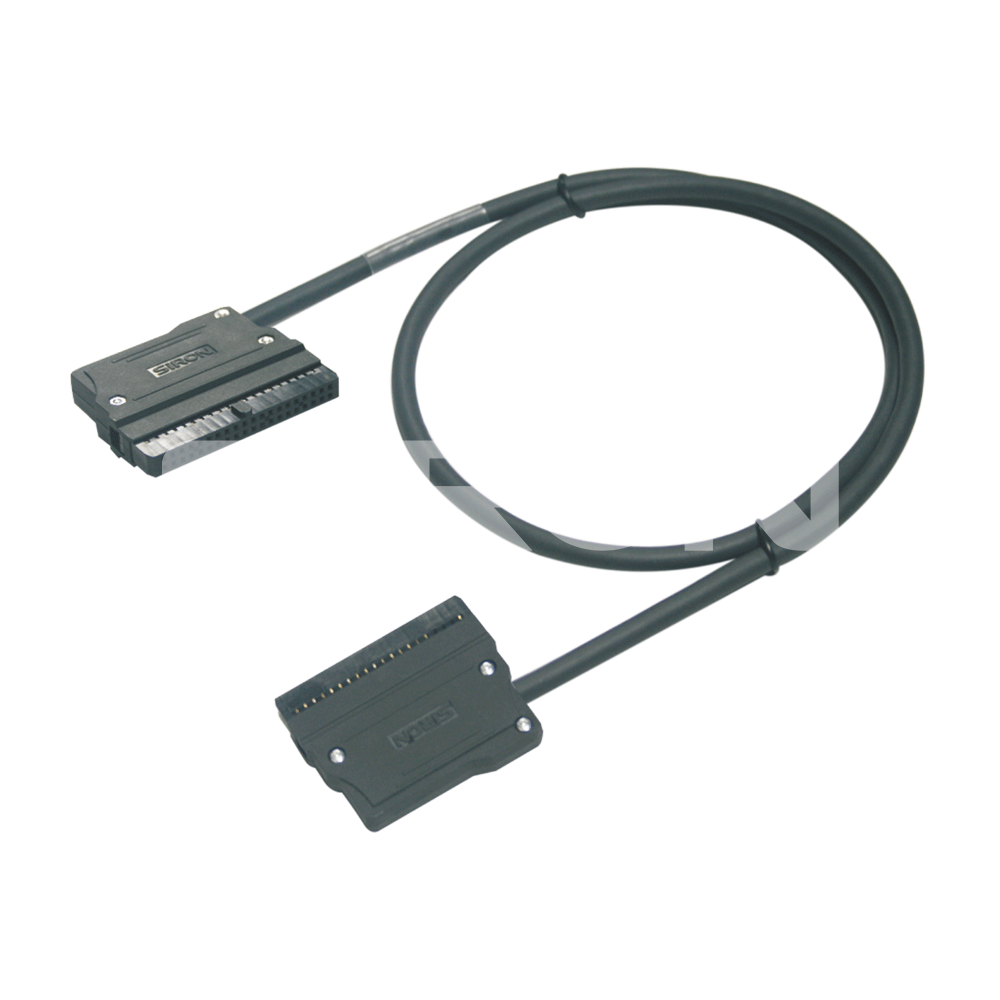

SiRON X21E Series Cable Corresponding To Delta PLC

Features
  • Used path conductor and cable is covered by soft materials, also with good flexural performance.
  •  With standard plug cover, and all colors march together and beautiful.
  • Supplies single cable and double cable which can be applicable to many different situations.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X21E

  • SiRON

  • 8544421100

AWG28 Cable Suitable Delta PLC of cable PVC Soft copper wire
Product Description

Order

63df2df0841a19188d858dcfcbda7d73

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details


Port corresponding list

Cable specification AWG28
Wire constitute 7/0.127
Conductors and insulators material Conductor: Soft copper wire; Insulator: PE
Twist and polishing Filling: Cotton thread; Bag strap Paper tape
Isolation No
Appearance condition coating PVC
(20℃)
Conductor resistance and insulation resistance		 Below 239Ω/Kn
Insulation resistance(20℃) Above 50MΩ/Kn
 Voltage resistance(air)              AC500V/min


Port corresponding list


Model
Corresponding to CN1
Brand Module
Output
X21E-1 Delta DVP32SN11TN PNP
X21E-2 DVP32SM11N NPN input
AS32AM10N-A
X21E-2P DVP32SM11N PNP
AS32AM10N-A
AS32AN02T-A NPN
