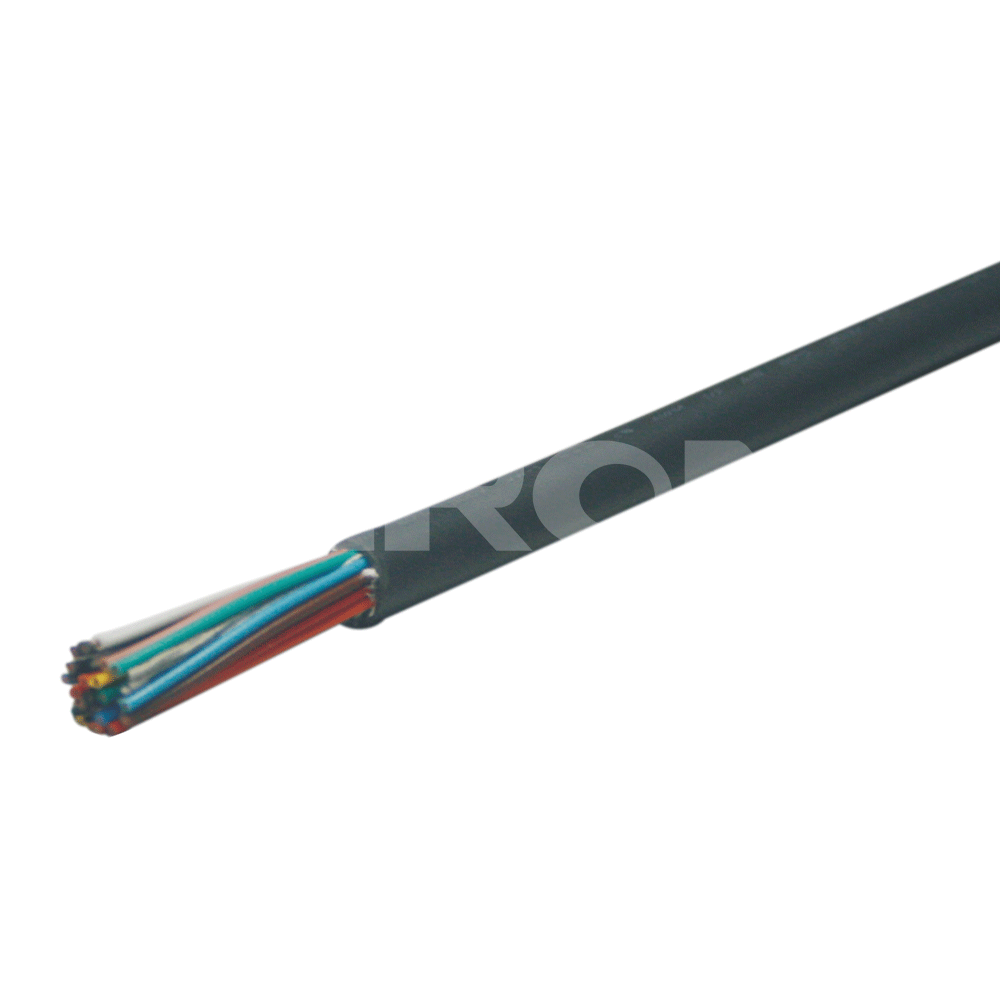

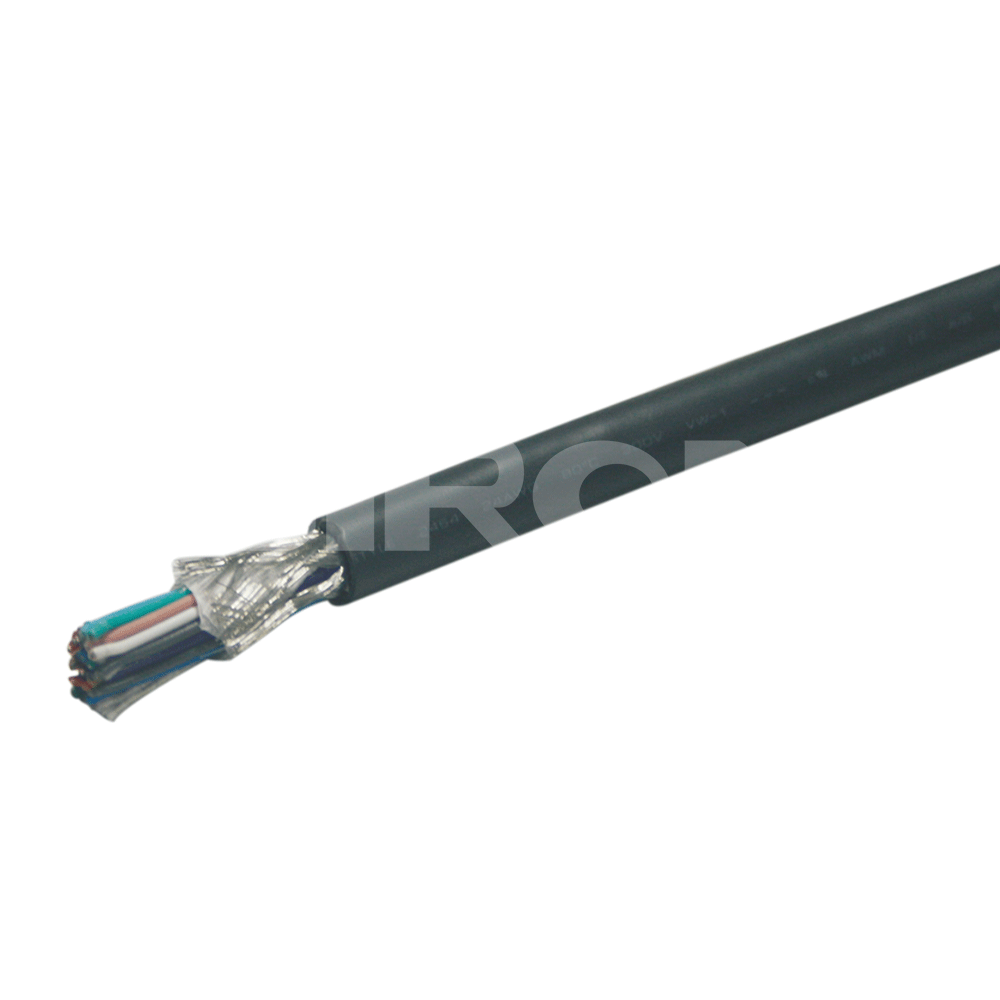

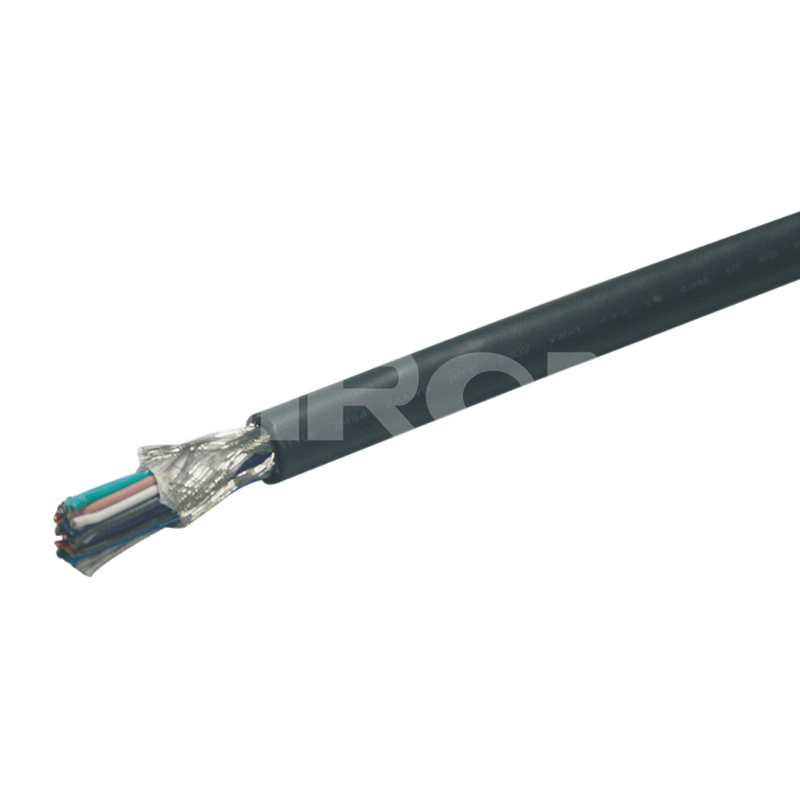

SiRON X024 Series National Standard Multi-core Cable

Features
  • Applicable to: Connecting cable for computer and data transmission system，
  • Places which need analog signal and high anti-interference requirements，
  • Applicable to electric and electronic equipment then realize internal and external wiring.
  • Makes of tin or bare copper wire, also has over 80% of coverage，Passes the flame retardant test which indicated in VW-1 and CSA Ft1.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X024

  • SiRON

  • 8544421100

National Standard Multi-core Cable Connecting cable flame retardant cable
Product Description

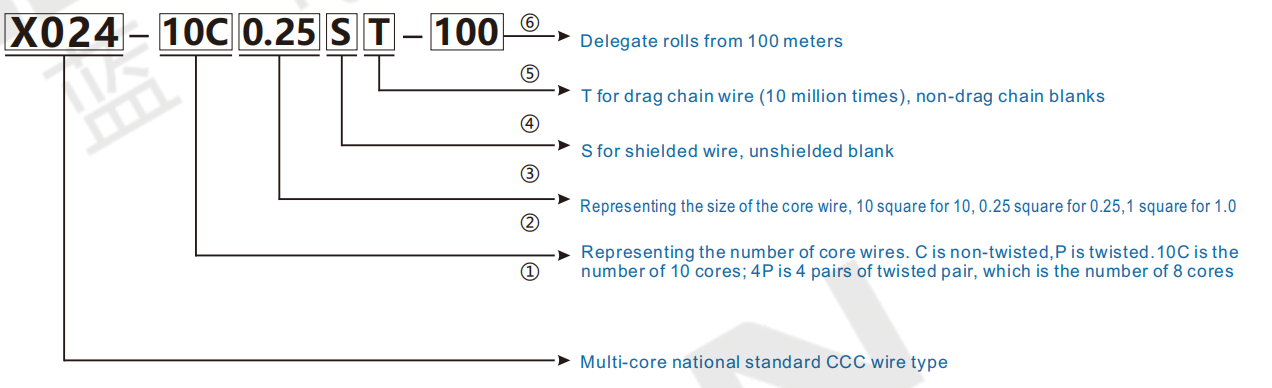

Order

2be77748be604ec6d06634f15397e7fa

Note: The color of the multi-core wire core refers to the "P034~P035 page Shenglan multi-core cable core color table".


Factor for current decrease

Ambient Temperature (℃) 30 40 50 60 70
Current Reduce Coefficient 1.00 0.89 0.77 0.63 0.44

Specifications of current factor：Multiplies the above current factors with allowance current when around temperature exceeds 30℃


Drag chain parameters

Radius Number Speed
≥10OD(10"Multiple cable diameter) ≥1000One million time ≤2m/s
