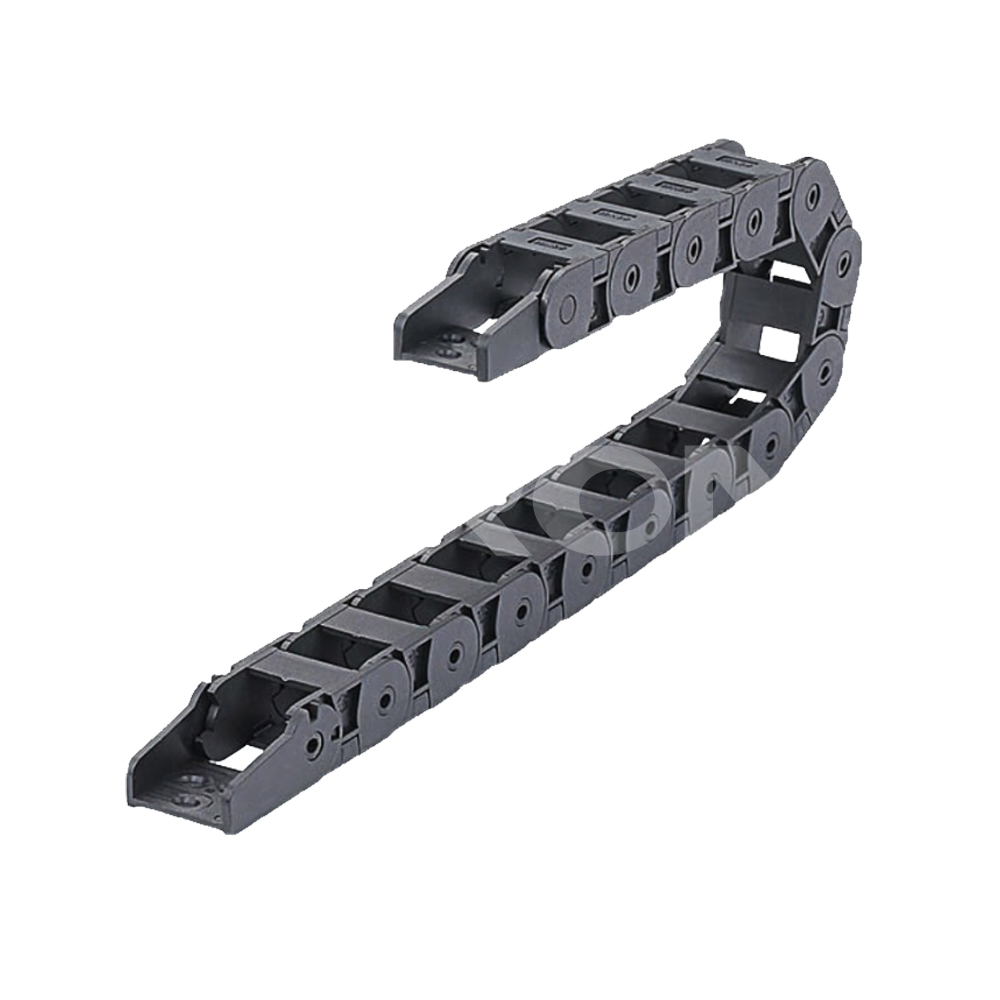

SiRON X72 Series Inner Height: 10/15/18-bridge Type Cannot Be Opened Drag Chain

Name: SiRON X72 Series Inner Height: 10/15/18-bridge Type Cannot Be Opened Drag Chain
Brand: SiRON
Rating: 5.0 (88 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Product Description

Order

e1e2c57f-f012-4345-b0b6-df4cbb7f08da

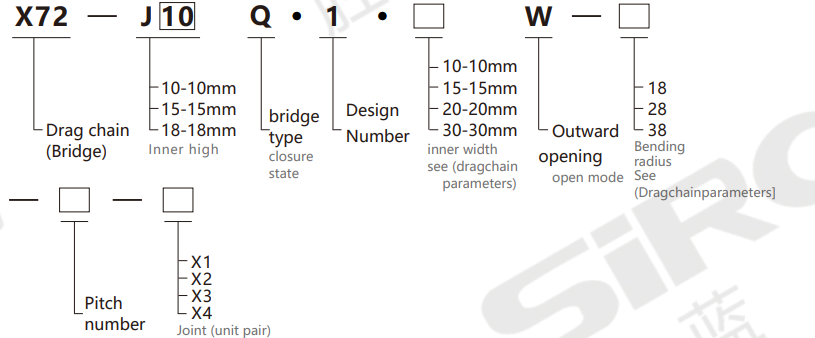

Selection example: X72-J10Q.1.10W-18-60-X1 indicates the X72 series drag chain, with an inner height of 10mm and a bridge type.

Inner width 10mm, outer opening, bending radius 18mm, 60 sections, joint X1(1 pair).

Individual order of connector model: X72-J10Q.1.10W-X1 1 pair

Towing chain size table

model	Bending radius R	Inner high	inner width	Outside High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H.	Maximum line Cable diameter Q(mm)	load (kg/m)	Installation dimensions of drag chains
													H	D	K
X72-J10Q.1.10W	18	10	10	14.5	17	14	14	16.7	60	H+14	9	0.2	51	42	100
	28												71	52	134
	38												91	62	167
	48												111	72	200
X72-J10Q.1.15W	18		15		22								51	42	100
	28												71	52	134
	38												91	62	167
	48												111	72	200
X72-J10Q1.20W	18		20		27								51	42	100
	28												71	52	134
	38												91	62	167
	48												111	72	200
X72-J10Q.1.30W	18		30		37								51	42	100
	28												71	52	134
	38												91	62	167
	48												111	72	200
