SiRON X218 Series Siemens Series Corresponding Cable

Name: SiRON X218 Series Siemens Series Corresponding Cable
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

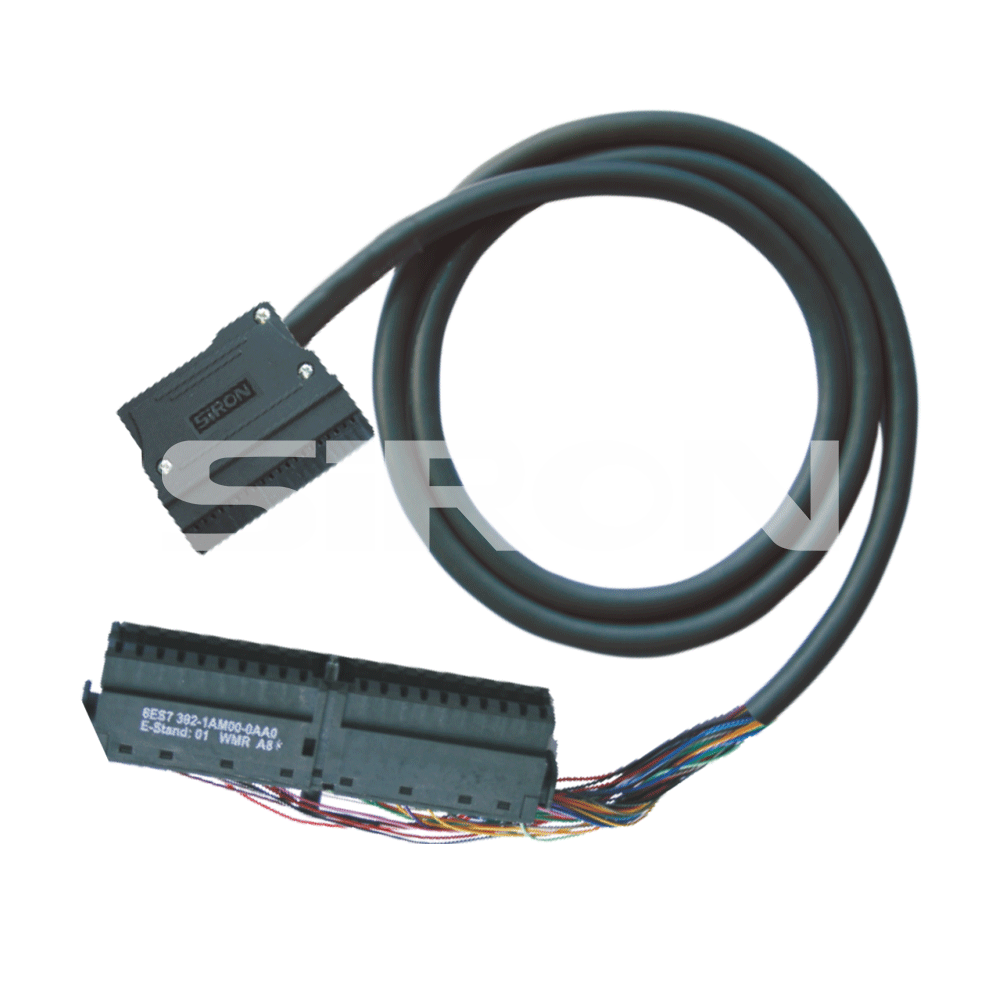

The X218-1/X218-5 is designed for Siemens 20P port modules and corresponds to T022, T032, and T004-P terminal blocks. Compatible with T060 conversion module, make wiring more square Convenient and intuitive;

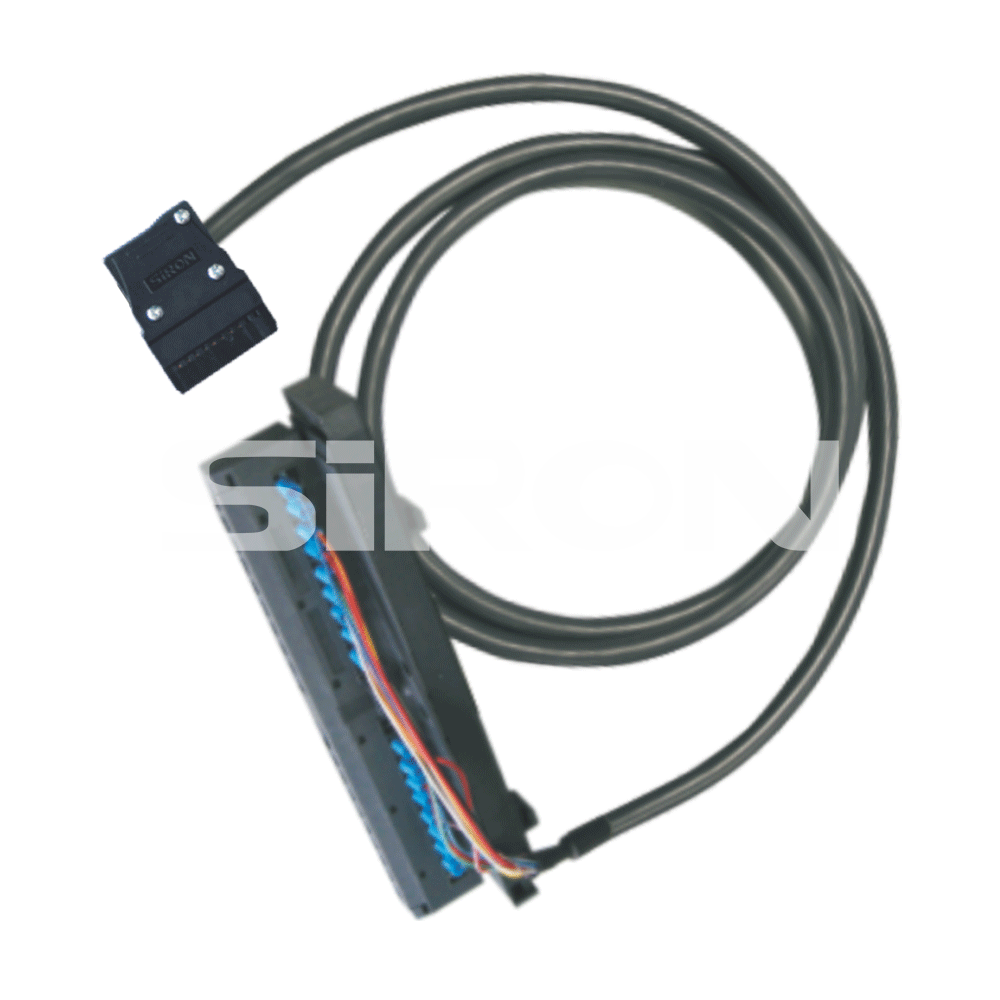

X218-6~X218-8 is designed for Siemens 40P port module; Corresponding to T024, T034, T007-P terminal blocks, corresponding to T063 conversion module;

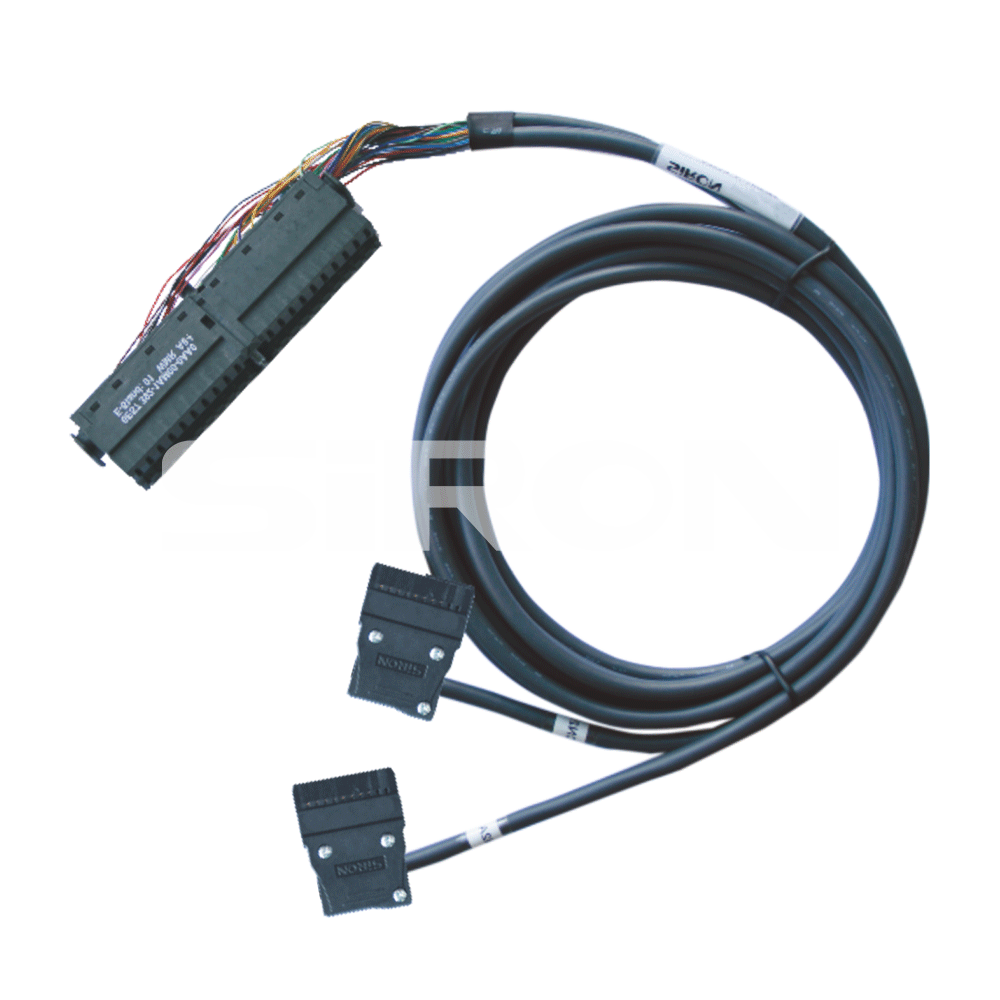

X218-9 is designed for Siemens 40P port module, divides the 40P signal into 2 groups of signals and leads out with two wires, corresponding to T022 and T023 terminal blocks;
It can realize the full plug-in connection from the PLC to the signal terminal, and minimize the probability of misconnection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X218
Brand:
SiRON
Code:
8544421100

AWG28 Cable Suitable Siemens series of cable PVC Soft copper wire

Product Description

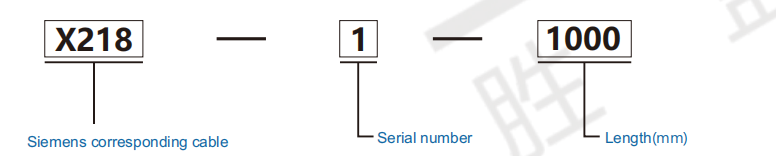

Order

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1		Corresponding to CN2
Model	Manufacturers	Module	Terminal Biocks
X218-1	SIEMENS (S7-300Series)	20PPlug with a full range of general-purpose	T022 T032 T042 T052
X218-2	SIEMENS (S7-300Series)	6ES7321-1BH02-0AA0 6ES7323-1BL00-0AA0(IN) 6ES7321-1BH00-0AA0 6AG1321-1BH02-2AA0	T004-P T060 T005-P T010
X218-3	SIEMENS (S7-300Series)	6ES7321-1BH01-0AB0 6ES7321-7BH01-0AB0 6AG1321-7BH01-2AB0	T004-P T060 T005-P T010
X218-4		6ES7321-1BH50-0AA0	T004 T005 T060 T010
X218-5		6ES7322-1BH01-0AA0 6ES7322-1BH10-0AA0 6ES7322-1BF01-0AA0 6ES7323-1BL00-0AA0(OUT) 6AG1322-1BH01-2AA0	T004-P T060 Y444 Y448 Y318 T010
X218-6	SIEMENS (S7-300Series)	40PPlug with a full range of general-purpose	T024 T034 T044 T054
X218-7		6ES7321-1BL00-0AA0	T007-P T063 T008-P T011
X218-8		6ES7322-1BL00-0AA0	T007-P T063 T008-P T011
X218-9		6ES7321-1BL00-0AA0 6AG1322-1BH01-2AA0 6ES7322-1BL00-0AA0	T022 T032 T042 T052
X218-10 X218-11 X218-12	SIEMENS (S7-1500Series)	25mm 40P Push-in plug module	T024 T034 T044 T058
		35mm 40P Screw terminal plug mode
		35mm 40P Push-in plug module

All the products mentioned on the table are owned by Shenglan Company, and please refer to the comprehensive catalogue for the relative specifications of T series products.
