SiRON X217 Series Panasonic FP2 / FP∑series Corresponding Cable

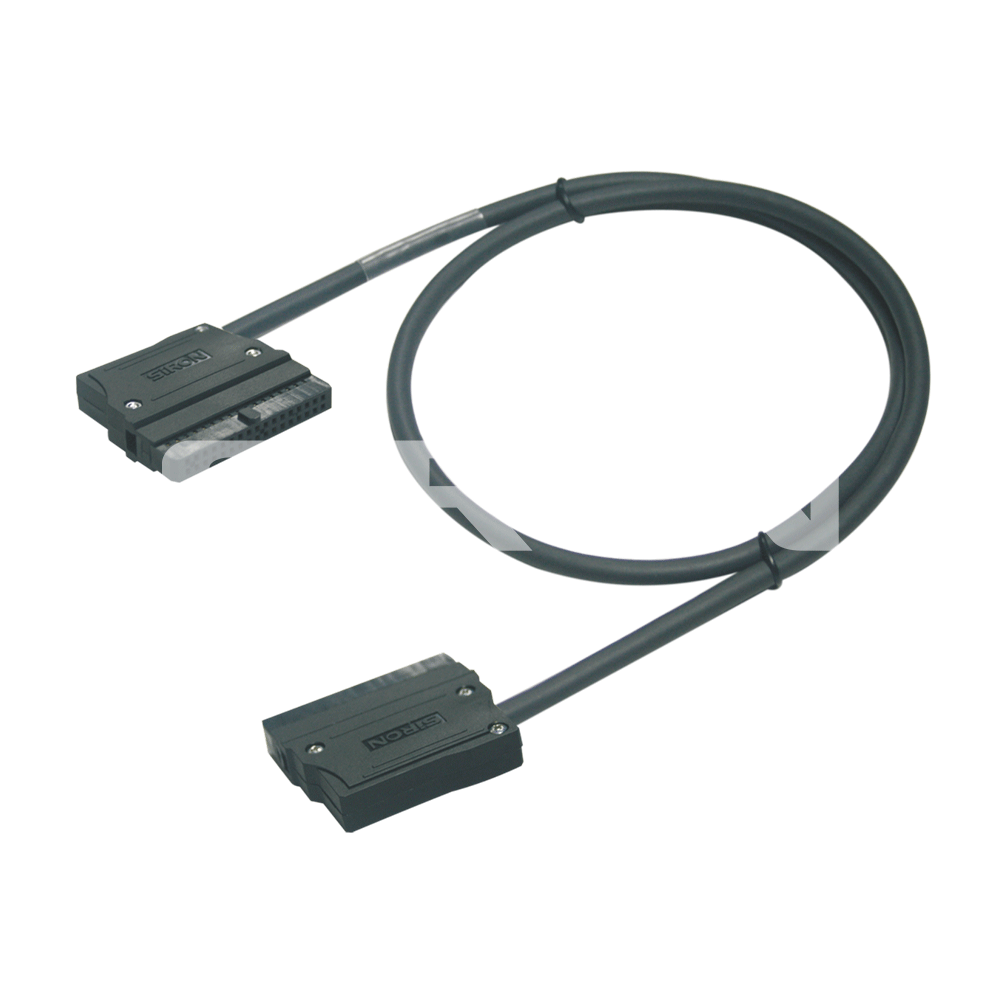

Name: SiRON X217 Series Panasonic FP2 / FP∑series Corresponding Cable
Brand: SiRON
Rating: 5.0 (66 reviews)

Features

X217-1/X217-2 I/O port designs for Panasonic FP2/FP∑ PLC. Corresponding to wiring terminal blocks T008& T009.Corresponding to conversion module T063, can realize a comprehensive connection between PLC and signal terminal.
X217-3/X217-4 position control module designs for Panasonic FP2/FP∑ PLC.corresponding to position control module T066/T007, can realize a comprehensiveconnection between position control module and drive.
Then minimize the probability to connect cables in wrong way.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

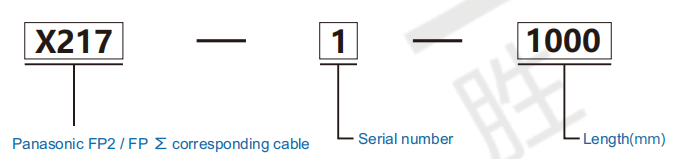

Order

10e036d5efdb31b9c7807fbea553266b

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1			Corresponding to CN2		Note
	Manufacturers	Module		Terminal Blocks
X217-1	Panasonic (Fp2.FpG series)	FP2-C1D(IN) FP2-X32D2 FP2-Y64D2 FP2-XY64D2P AFP7X32D2 AFP7X64D2	FP2-XY64DT FP2-XY64D7T(IN) FPG-XY64D2T(IN) AFP7XY64D2T(IN) AFP7XY64D2P(IN) FP7-X32D2 FP7-X64D2	T008	T063
X217-2		FP2-C1D(OUT) FP2-Y32T FP2-Y64T FP2-Y32P FP2-Y64P AFP7Y32T AFP7Y64T FP7-Y64t	FP2-XY64DT FP2-XY64D7T(OUT) FPG-XY64D2T(OUT) FP2-XY64D2P FP2-XY64D7P AFP7Y32P AFP7Y64P B84D2P8UF	T007 Y063 Y449 T011	T009 Y445 Y319
