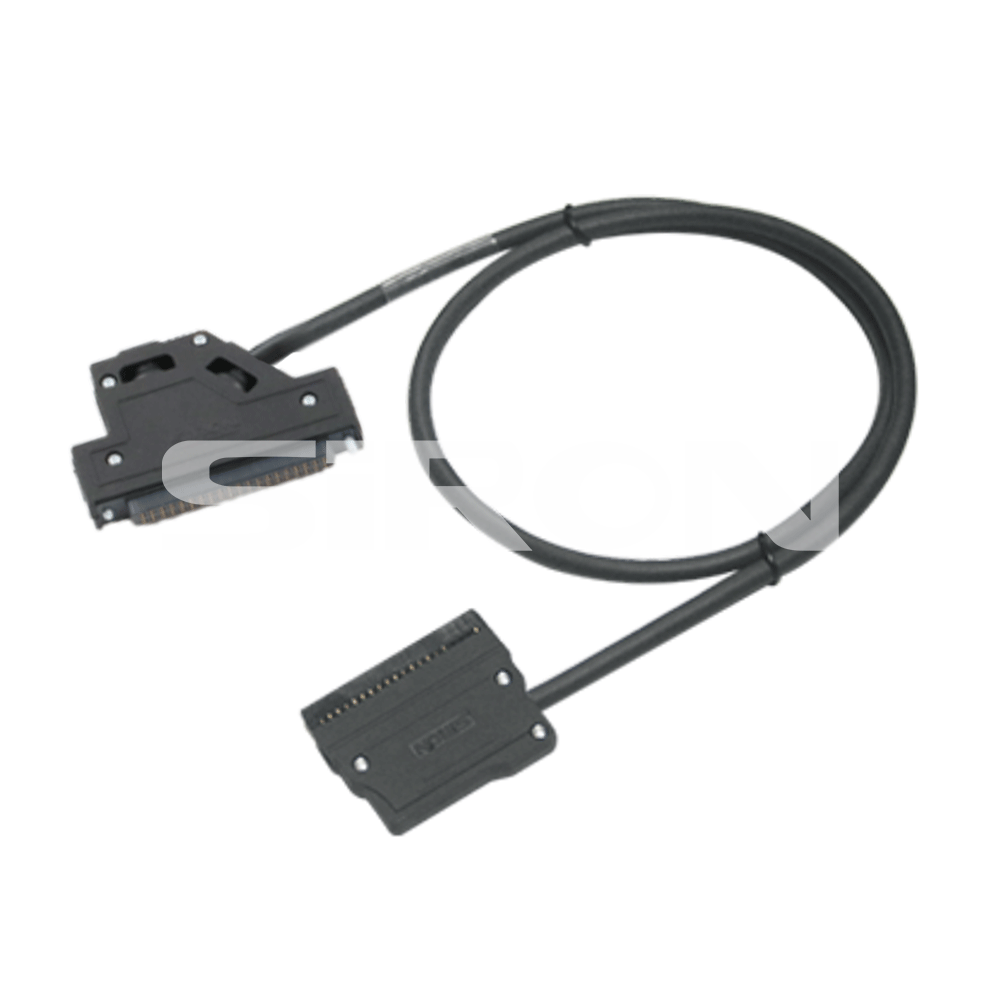

SiRON X21A Series 40P FCN cable corresponding to KOYO series

Name: SiRON X21A Series 40P FCN cable corresponding to KOYO series
Brand: SiRON
Rating: 5.0 (47 reviews)

Features

I/O port designs for DL205/SU series,Corresponding to wiring terminal blocks T007&T008&T009.
Corresponding to conversion module T063, can realize a comprehensive connection between PLC and signal terminal, then minimize the probability to connect cables in wrong way.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X21A
Brand:
SiRON
Code:
8544421100

AWG28 Cable Suitable 40P FCN cable PVC Soft copper wire

Product Description

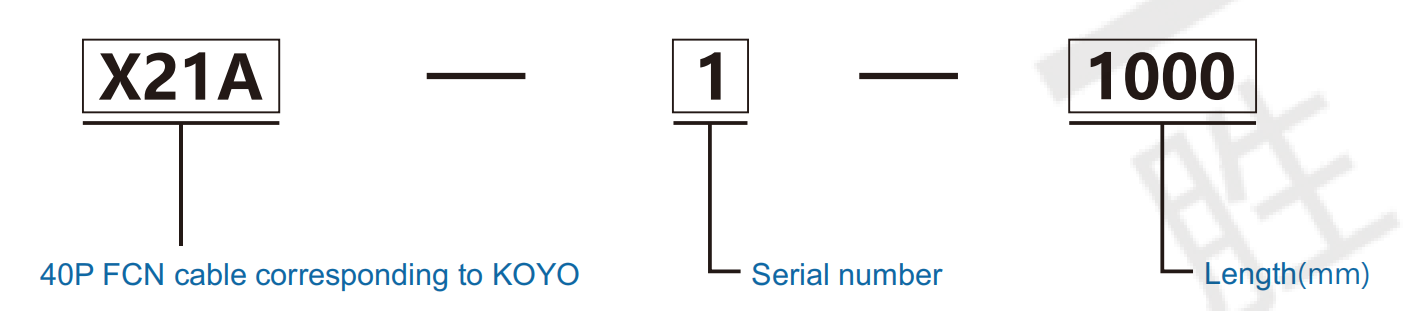

Order

55ac057b120f54a6d33bd1ae71211c5e

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1		Corresponding to CN2	Remarks
	Manufacturers	Module	Terminal Blocks
X21A-1	Yoko (DL205.SU Series)	D2-32ND3 D2-32ND3-2 U-08N U-09N U-38N	T007 T063 T008 T011	NPN
X21A-3			T011	PNP
X21A-2		D2-32TD1 D2-32TD2 U-18T U-19T U-38T	T007 T063 T009 T011 Y445 Y319

All the products mentioned on the table are owned by Shenglan Company, and please refer to the comprehensive catalogue for the relative specifications of T series products.
