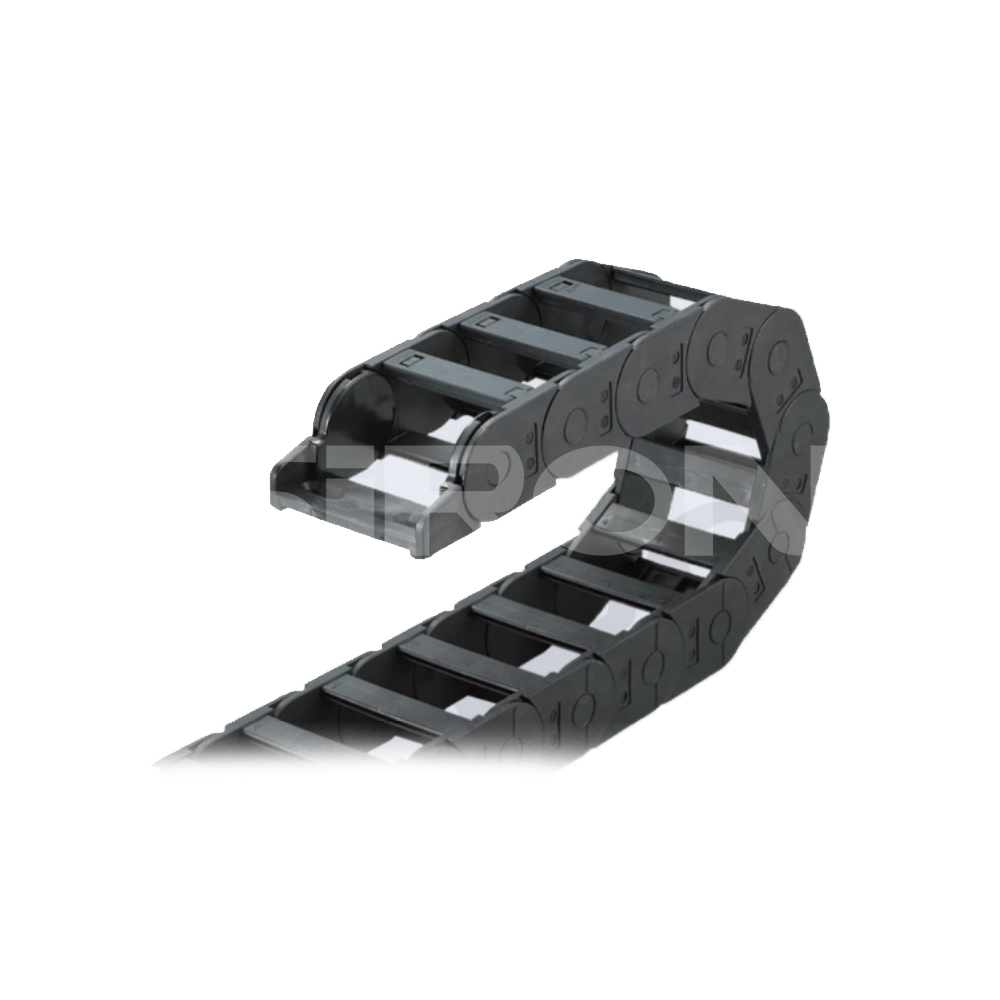

SiRON X72 Series Inner height: 35-Drag Chain (Siamese) - Bridge type outside opening

Features
  • High tensile load and wear resistance, oil and saltresistance;
  • High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
  • Mainly used in industrial automation field and machine tool machinery and other industries
  • Material: New PA plus Pa66;
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X72

  • SiRON

  • 8544421100

X72 Series New PA plus Pa66 Drag Chain X72 Series Bridge type cannot be opened Drag Chain X72 Series Inner height: 35-Drag Chain (Siamese)
Product Description

Order

39e3deb94fddb137418c586bb11e7515

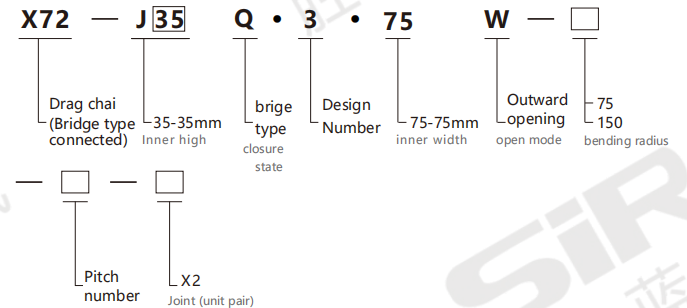

Selection example: X72-J35Q.3.75W-75-18-X2 represents the X72 series drag chain, with an inner height of 35mm and a bridge type.

Inner width 75mm, outer opening, bending radius 75mm, 18 sections, 2 joints (1 pair).

Individual order of connector model: X72-J35Q.3.75W-X2 1 pair


Towing chain size table


Model bending radius
R		 Inner height Inner  width Outer height outer width J J1 P pitch Per meter
Number of sections		 Actual safety
Installation height
H.		 Maximum line
Cable diameter


Q(mm)		 load
(kg/m)		 Installation dimensions of drag chains
H D K
X72-J35Q.3.75W 75 35 75 50 92 50 50 55 56 18 H+50 32 3 200 156 392
150 350 231 616
