SiRON X023 Series National Standard Single Core Electronic Wire

Features
  •  Applicable to electric equipment then realize internal and external wiring；
  •  Weaving shielding layer coverage rate of 85%; * Complies with the standard of UL 758 and CSA C22.2 NO.210.2;
  • Rated voltage is 600V and rated temperature is 105℃;
  • With lead-free PVC insulated, and passes the flame retardant test which indicated in VW-1 and CSA Ft1.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X023

  • SiRON

  • 8544421100

National Standard Single Core cable Rated voltage is 300V cable PVC sheath cable
Product Description

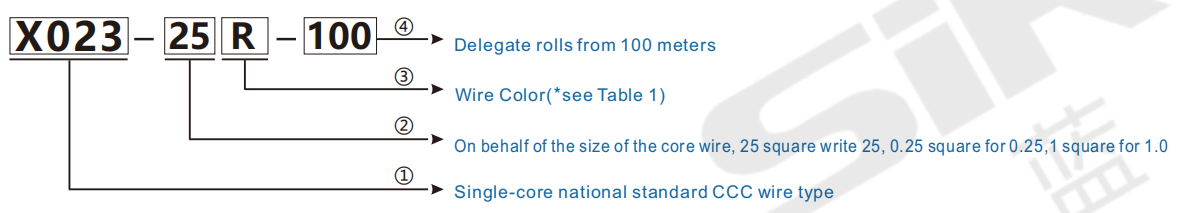

Order

6c491eeeded0257a237cbd81979da08f

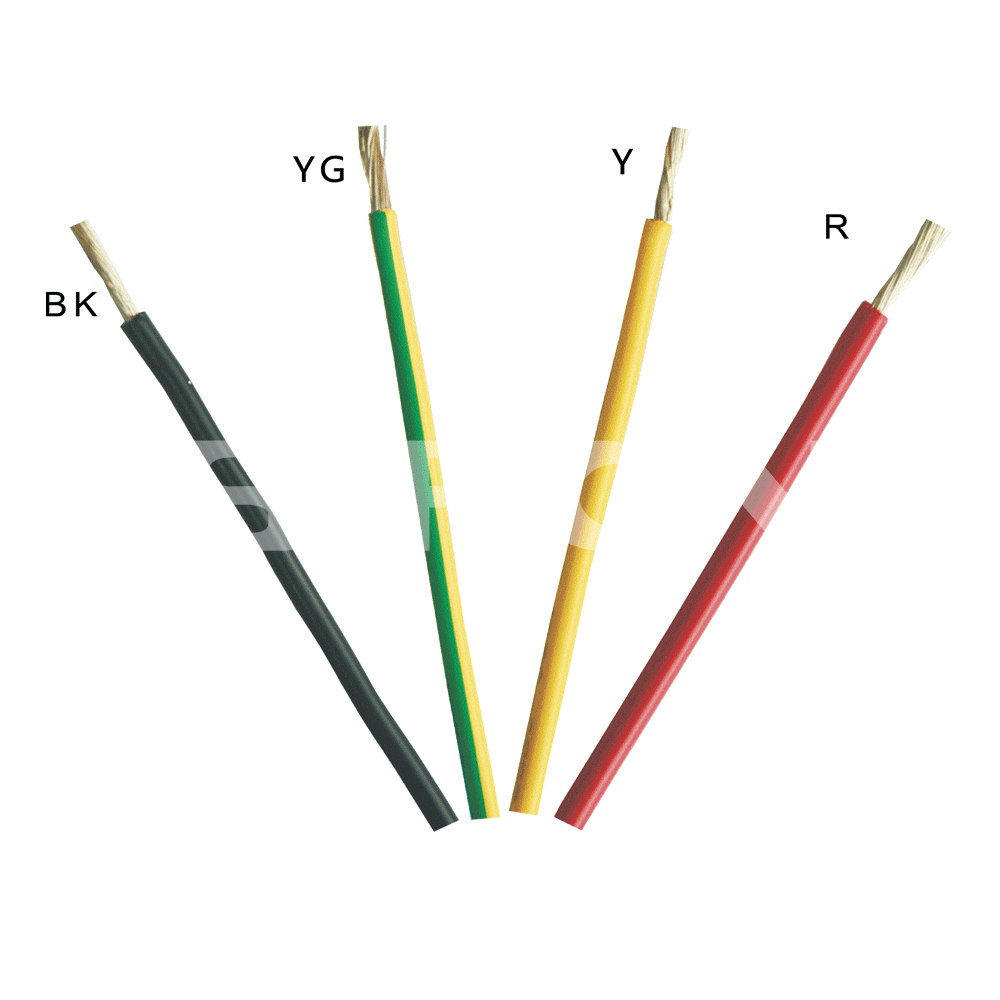

Table 1:Wire Color


Code BK BN R O Y GN BE P GY W YG
Colour Black Brown Red Orange Yellow Green Blue Purple Grey White Yellow/Green


Reference Table for Wire Diameter

Wire diameler Wire  diameter
mm² in CM mm mil
0.1 0.0001247 158.6 0.3200 12.6
0.2 0.0003173 404.0 0.5105 20.1
0.25 0.0004012 510.8 0.5740 22.6
0.5 0.0008042 1024 0.8128 32.0
0.75 0.001276 1624 1.024 40.3
1.0 0.001612 2052 1.151 45.3
1.5 0.002561 3260 1.450 57.1
2.50 0.004072 5184 1.829 72.0
4.0 0.006461 8226 2.304 90.7
6.0 0.01028 13090 2.906 114.4
10 0.01635 20820 3.655 144.3
15 0.02599 33090 4.620 181.9
20 0.03278 41740 5.189 204.3
25 0.04133 52620 5.827 229.4
30 0.05212 66360 6.543 257.6
