SiRON X213 Series Mitsubishi FX Series of Corresponding Cable

Name: SiRON X213 Series Mitsubishi FX Series of Corresponding Cable
Brand: SiRON
Rating: 5.0 (30 reviews)

Features

X213-1/X213-2 for mitsubishi FX series PLC I/O port design;Corresponding T005,T006 terminal station;
Corresponding T060 conversion module,can be realized from the PLC to signal between terminal all pluggable, the maximumlimit reduced pick the wrong line the probability of occurrence in a;
X213-3/X213-4/X213-7 for mitsubishi FX - 10 gm a control module design;
X213-5/X213-6 in mitsubishi FX - 20 gm a control module design;
Back in five corresponding T066, T007 a control terminal station use,realize a control module to drive all between pluggable, the maximum limit reduced pick the wrong line the prob

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

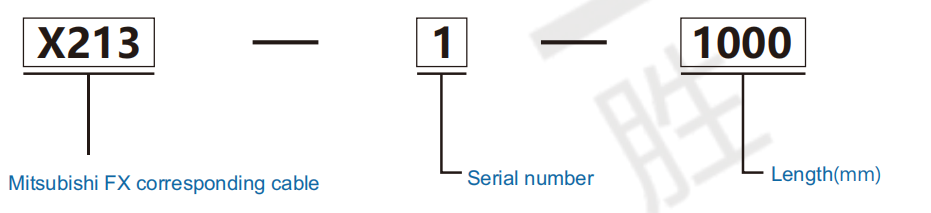

Order

a11cd25911b677ec05ab3f227118e167

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details.

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1			Corresponding to CN2
	Manufacturers	Module		Terminal Blocks
X213-1 X213-1P	MITSUBISHI (FXseries)	FX3UC-32MT/D FX3UC-64MT/D FX3UC-16MT/DSS FX3UC-32MT/DSS FX3UC-64MT/DSS FX3UC-96MT/DSS FX3UC-32MT/DSS FX3UC-32MT/DSS FX3UC-32MT/DSS FX3UC-32MT/DSS	FX5UC-32MT/D	T005 T006 T060 T010 Y444 Y448 Y318FX5UC-64MT
			FX5UC-C32EX/D FX5UC-C32EX/DS
			FX5UC-C32EYT/DSS
			FX5UC-C32ET/DSS FX5UC-C32EYT/D FX5UC-64MT/D

Position Control Module
