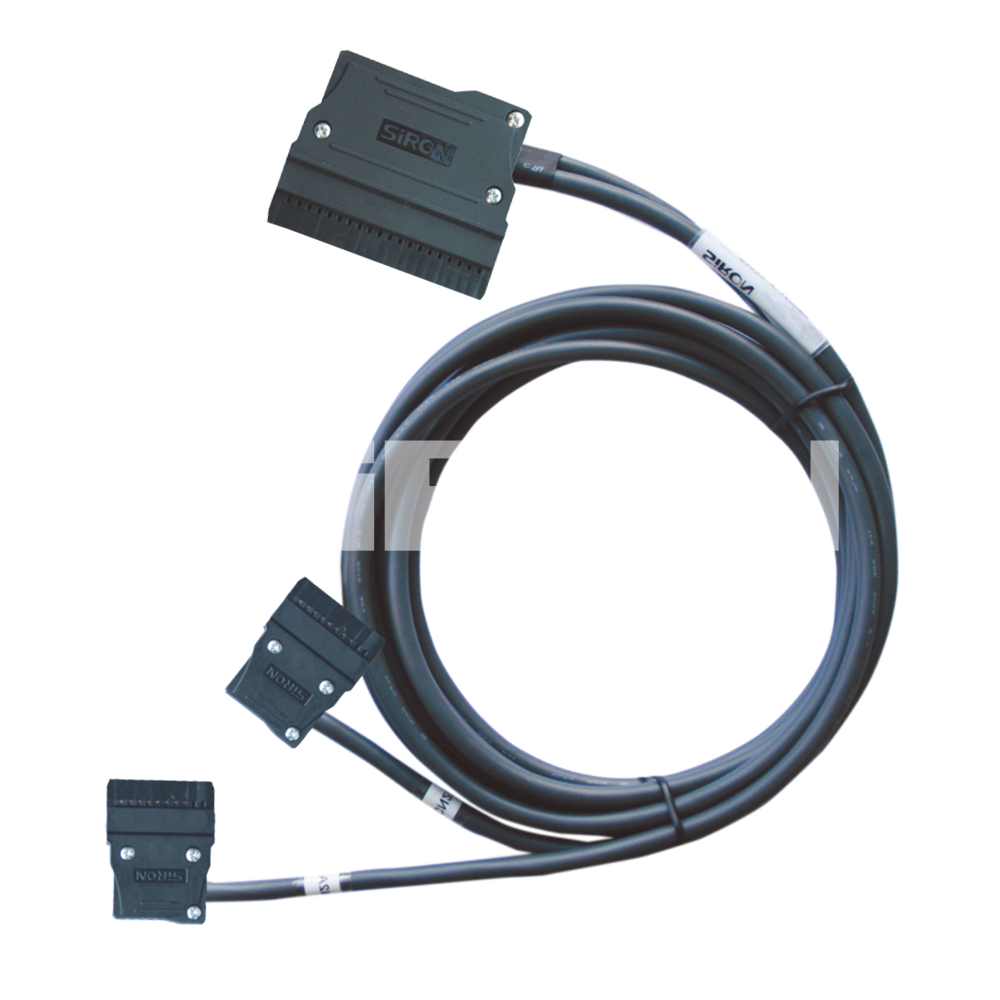

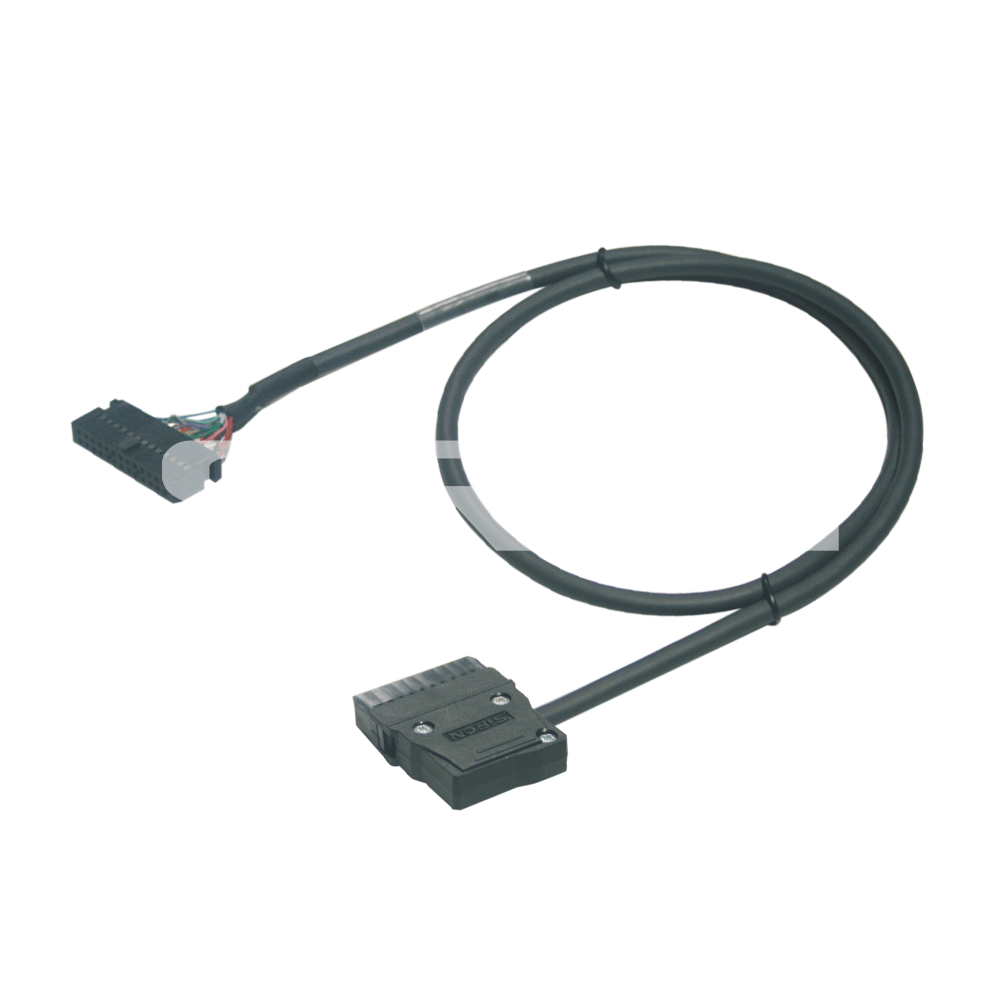

SiRON X211 Series MIL Cable Corresponding To KEYENCE KL/KV Series

Name: SiRON X211 Series MIL Cable Corresponding To KEYENCE KL/KV Series
Brand: SiRON
Rating: 5.0 (34 reviews)

Features

Expansion module designs for KV100/3000 series.
Corresponding to wiring terminal blocks T007.
Corresponding to conversion module T063, can realize a comprehensive connection between PLC \ and signal terminal. Minimize the probability to connect cables in wrong way.

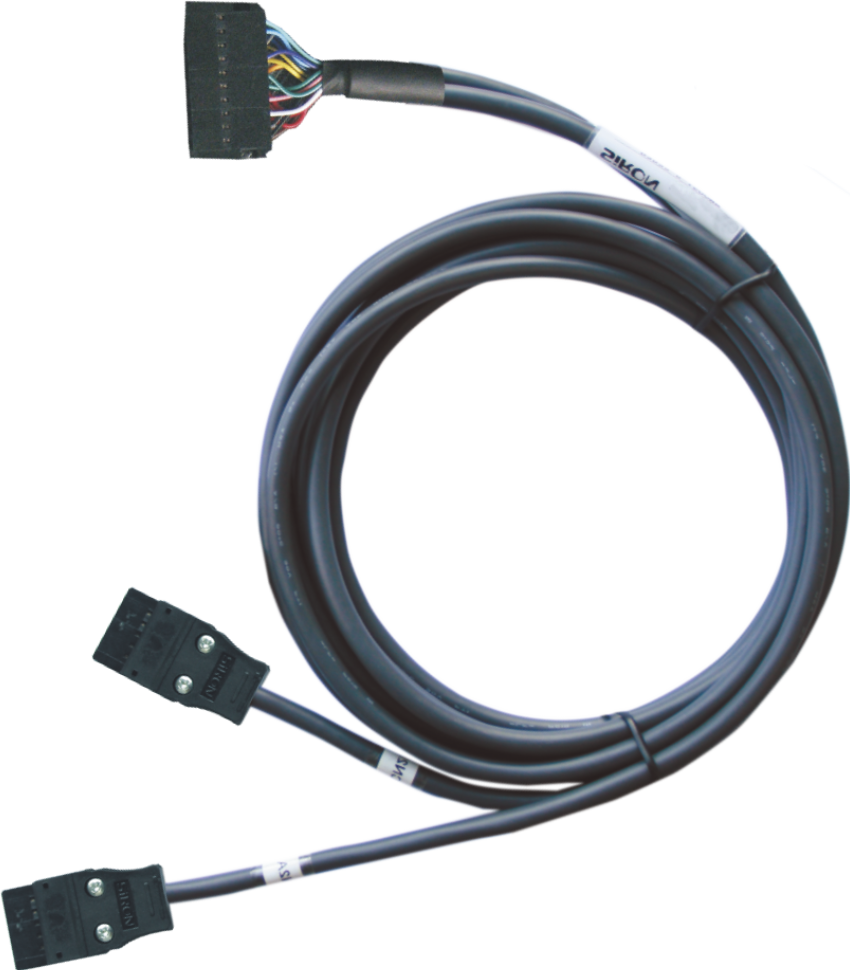

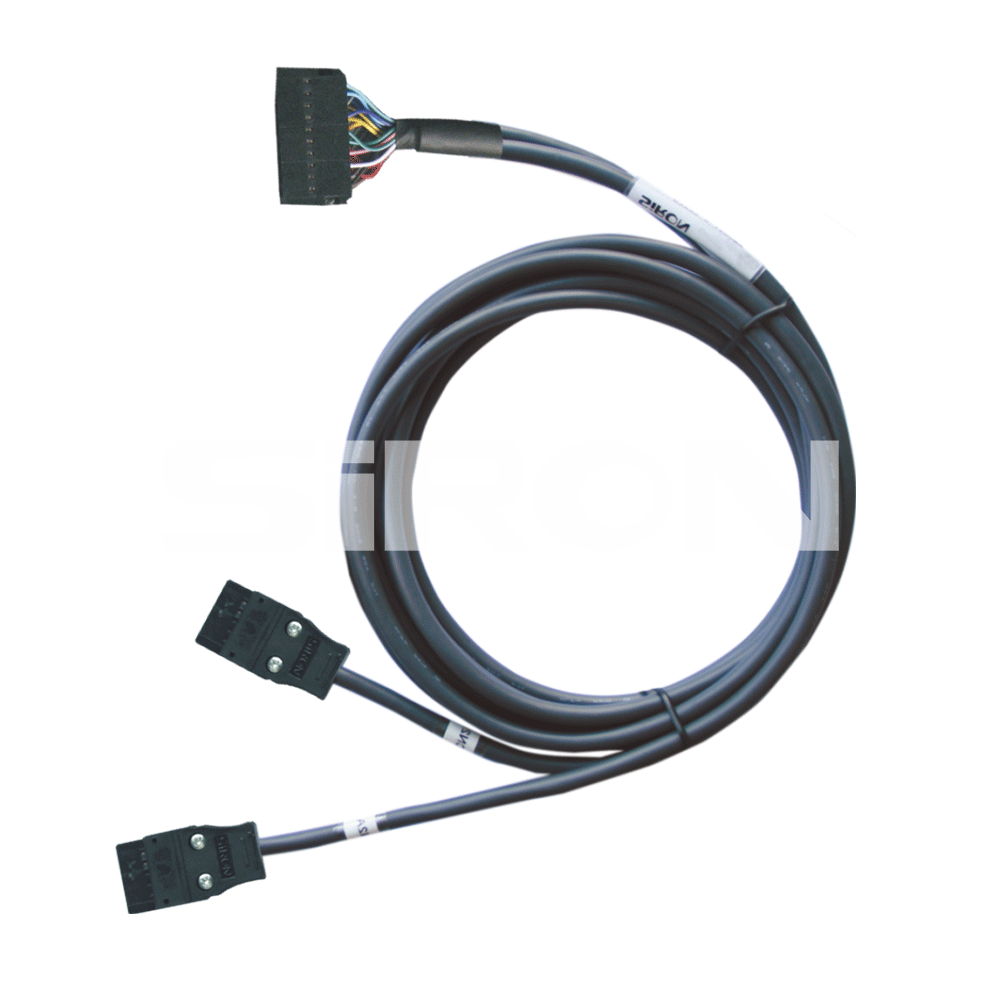

X211-4 and X211-5 will be 16 signal is divided into 2 groups of 8, respectively eduction.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

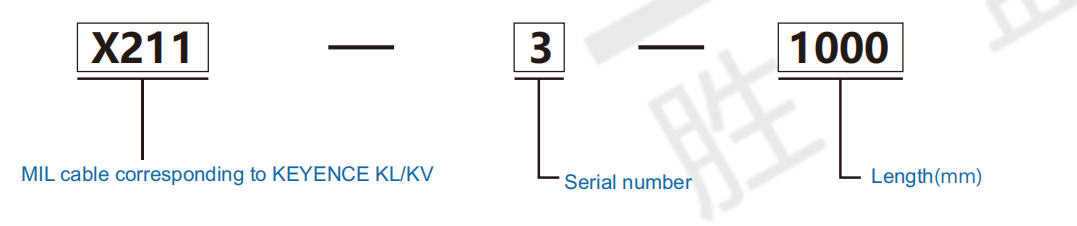

Order

9f525e60021adfc4c3285a18ec13f039

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details.

Port corresponding list

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating	PVC
(20℃) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance(air) AC500V/min

Port corresponding list

Model	Corresponding to CN1		Corresponding to CN2
Model	Manufacturers	Module	Terminal Blocks
X211-3	KEYENCE	KL-16CX/KL-32CX	T004 T005 T060
X211-3		KL-16CT/KL-32CT	T060
X211-4		KL-16CT/KL-32CT	T003 T021 T031 T082 T084 Y412 Y413 Y415 Y421
X211-5		KL-16CX/KL-32CX	T003 T021 T031 T080
X211-6		KV-C32XA/C KV-C64XA/C KV-C32XTD KV-NC32EX KV-NC32EXT	T004 T060 T010
X211-7 X211-8		KV-C64TA/C KV-NC32ET KV-C16XTD KV-NC32EXT KV-C32XTD KV-C32TA/C/D	T004 T060 Y444 Y313 Y318 T010
