SiRON X21B Series 20P MIL Cable Corresponding for AB NX Series

Features
  •  I/O port designs for NX series.
  •  Corresponding to wiring terminal blocks T005.
  •  Corresponding to conversion module T060, can realize a comprehensive connection between PLC and signal terminal, then minimize the probability to connect cables

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X21B

  • SiRON

  • 8544421100

AWG28 Cable Suitable 20P MIL Cable series of cable PVC Soft copper wire
Product Description

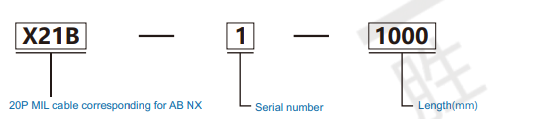

Order

fee58197-085d-4518-8434-801dc855da7a

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details


Port corresponding list

Cable specification AWG28
Wire constitute 7/0.127
Conductors and insulators material Conductor: Soft copper wire; Insulator: PE
Twist and polishing Filling: Cotton thread; Bag strap Paper tape
Appearance condition coating PVC
(20℃)
Conductor resistance and insulation resistance		 Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
 Voltage resistance(air)              AC500V/min


Port corresponding list

Model CN1
   Corresponding to CN1		 Corresponding to CN2
Manufacturers Module Terminal Blocks
X21B-1 AB
(Nx70  series)		 NX70-X32D NX70-X32D1 NX70-XY32(IN) T005 T060
T010
X21B-2 NX70-Y32P       NX70-Y32(OUT)
