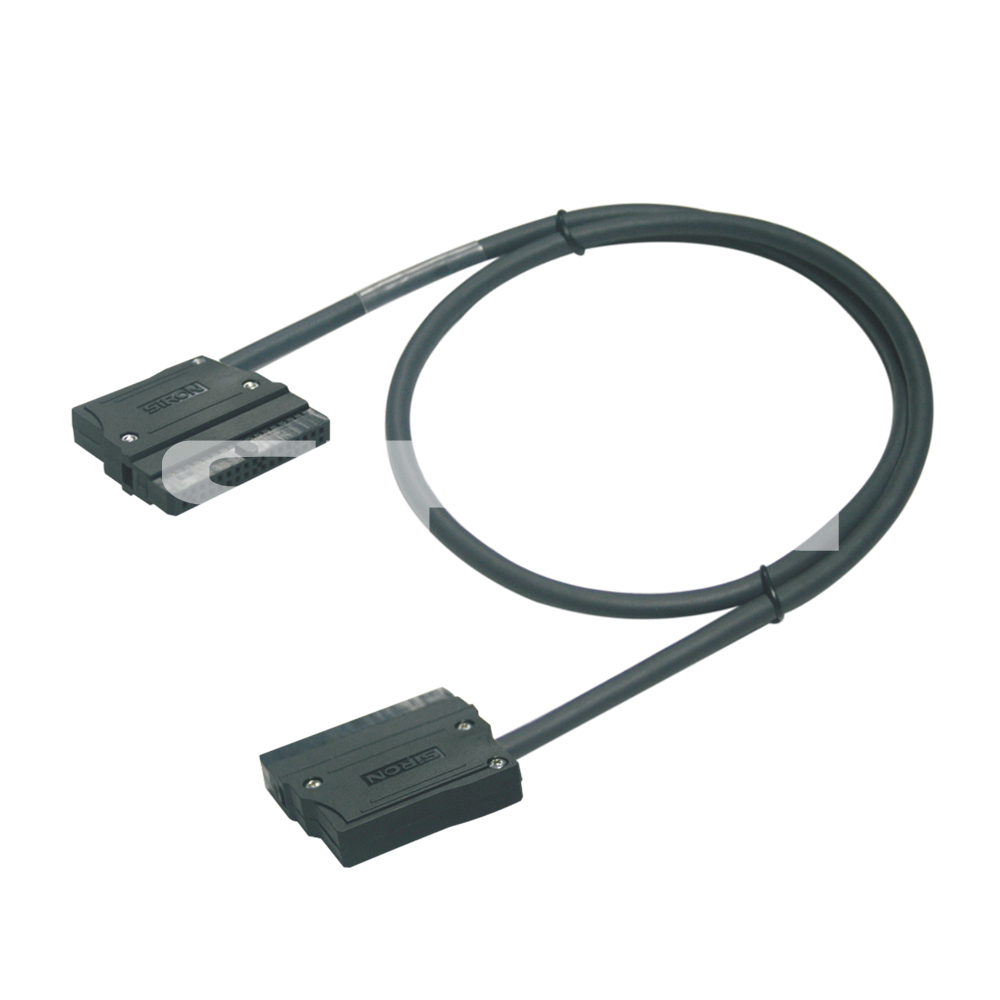

SiRON X211 Series KEYENCE KV Corresponding 34P MIL Cable

Name: SiRON X211 Series KEYENCE KV Corresponding 34P MIL Cable
Brand: SiRON
Rating: 5.0 (73 reviews)

Features

Expansion module designs for KV100/3000 series,Corresponding to wiring terminal blocks T007;
Corresponding to conversion module T063, can realize a comprehensive connection between PLC and signal terminal
Minimize the probability to connect cables in wrong way.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X211-1~2
Brand:
SiRON
Code:
8544421100

AWG28 Cable PVC suitable KEYENCE KV Cable Soft copper wire

Product Description

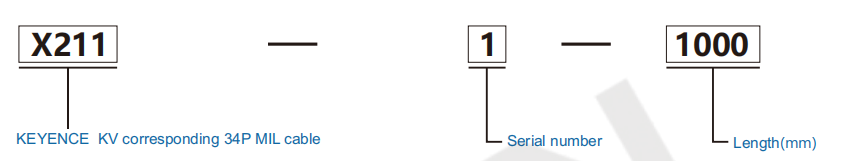

Order

Notice：The above is standard cable model. If you need the screen cables, Please sign “S” after the model. Please contact sales for more details

Cable specifications

Cable specification	AWG28
Wire constitute	7/0.127
Conductors and insulators material	Conductor: Soft copper wire; Insulator: PE
Twist and polishing	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Appearance condition coating	PVC
( 2 0 ℃ ) Conductor resistance and insulation resistance	Conductor impedance: below 239Ω/Kn; Insulation resistance: above 50MΩ/Kn
Voltage resistance (áir)	AC500V/min

Port corresponding list

Model	“⊃1;Coresponding to CN1			Coresponding to CN2	Note
Model	Manufacturers	Module		⊃2;Terminal Blocks	Note
X211-1 (IN)	KEYENCE	KV-C32XA/C KV-64XA/C KV-NC32EXT	KV-NC32EX KV-32XTD	T007 T011 T063	N P N connection
X211-2 (OUT)	KEYENCE	KV-C32TA KV-C32TP KV-C32XTD KV-NC32ET(P)	KV-C32TC KV-NC32ET KV-NC32EXT	T007 T011 T063 Y445Y449	N P N connection

All the products mentioned on the table are owned by Shenglan Company, and please refer to the comprehensive catalogue for the relative specifications of T series products.
