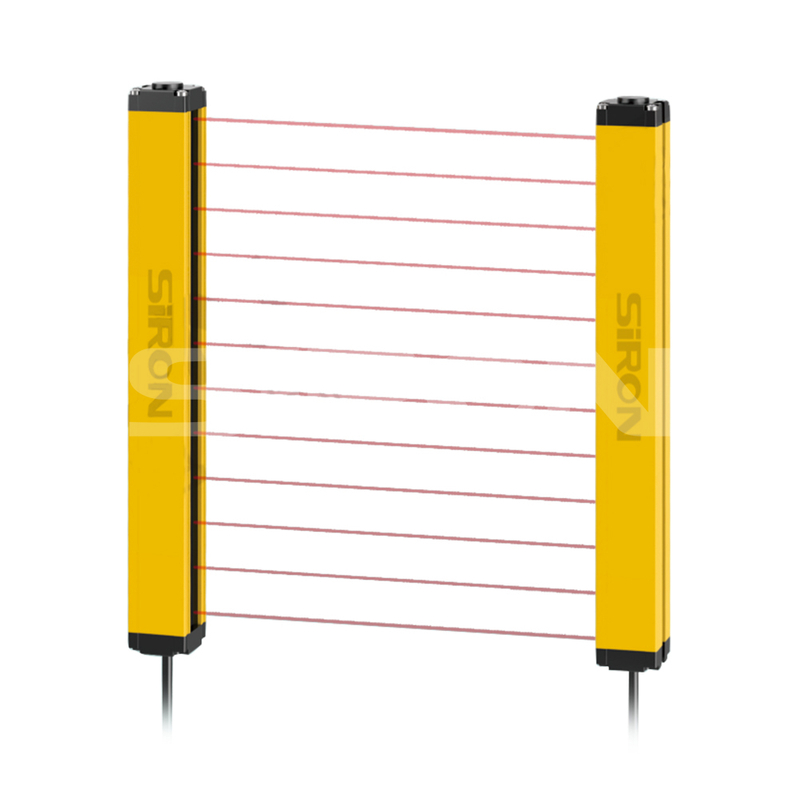

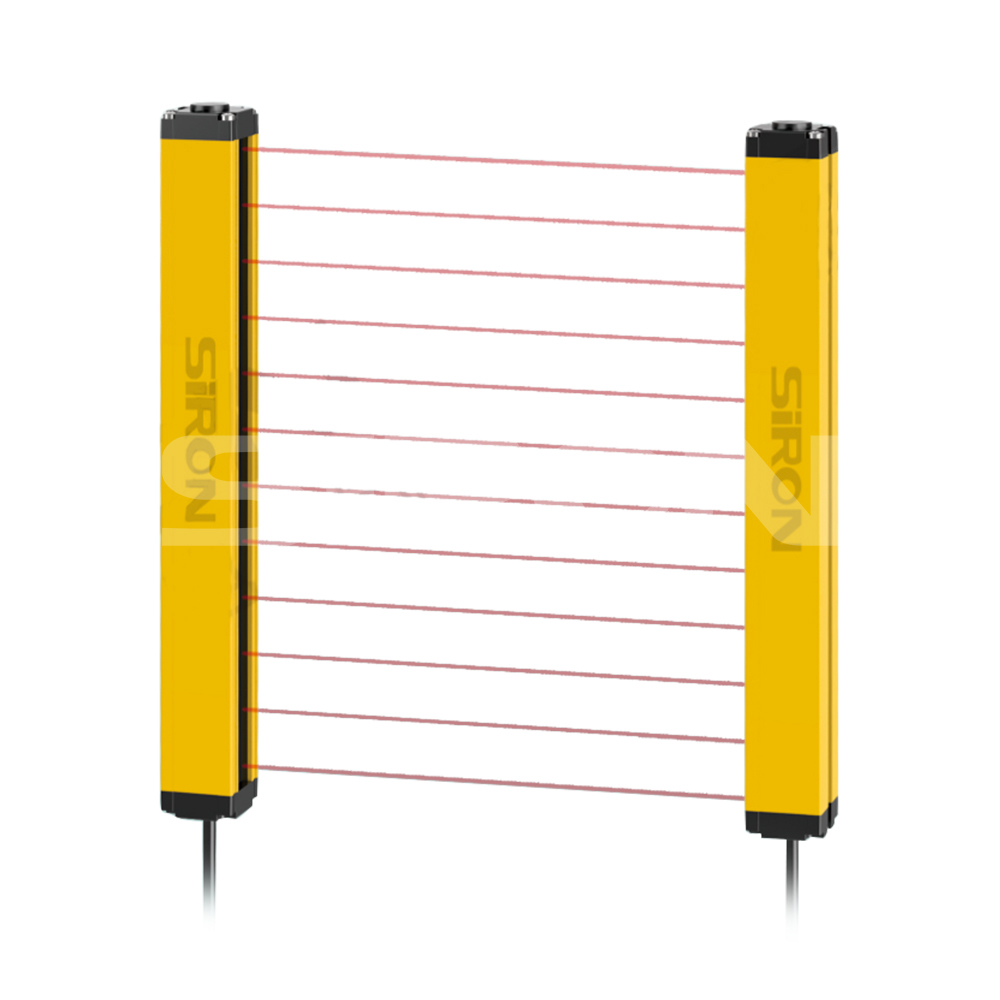

SiRON K033D Miniature Light Curtain Sturdy Durable IP65

Name: SiRON K033D Miniature Light Curtain Sturdy Durable IP65
Brand: SiRON
Rating: 5.0 (55 reviews)

Features:

* It adopts infrared communication and a dedicated optical system, with strong anti-interference ability;
* Automatic shielding and setting shielding functions;
* Unique optical synchronization technology, replacing traditional data cable synchronization;
* Dual independent redundant outputs were adopted.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K033D
Brand:
SiRON
Code:
8543709990

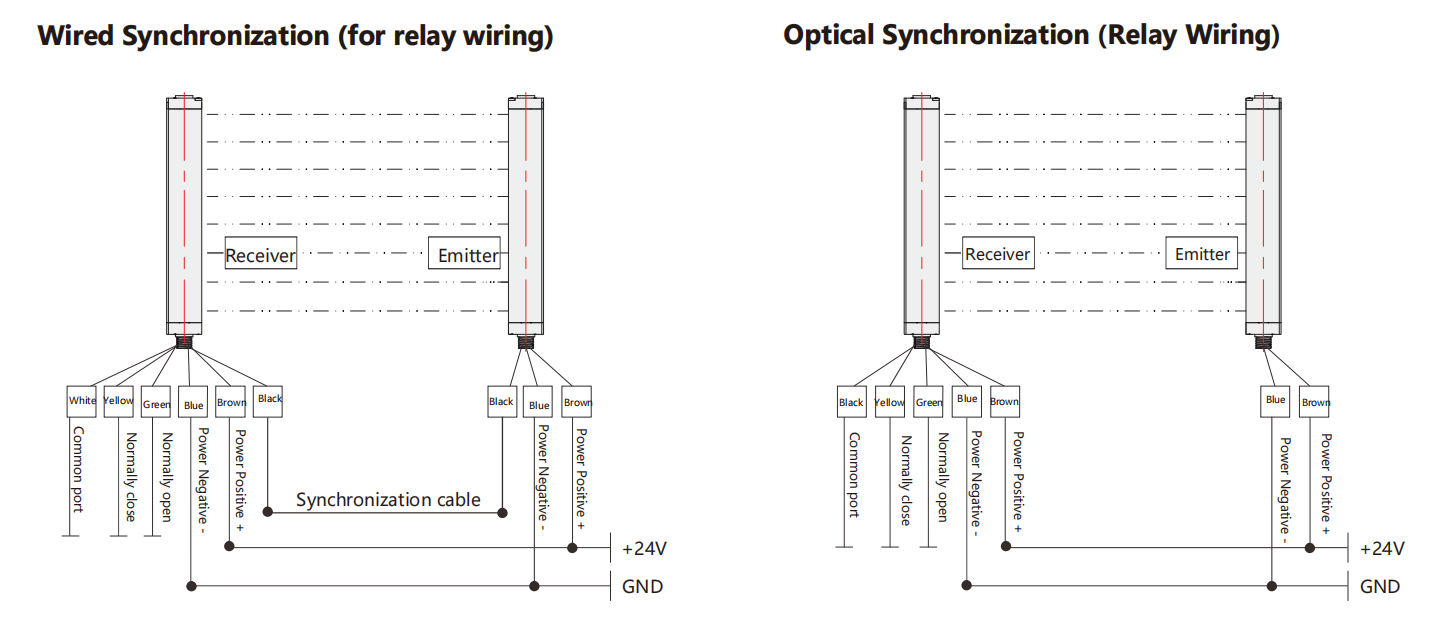

Safety Light Curtain Sensor Line synchronization optical synchronization Single-channel / dual-channel Dual independent redundant outputs IP65 infrared communication

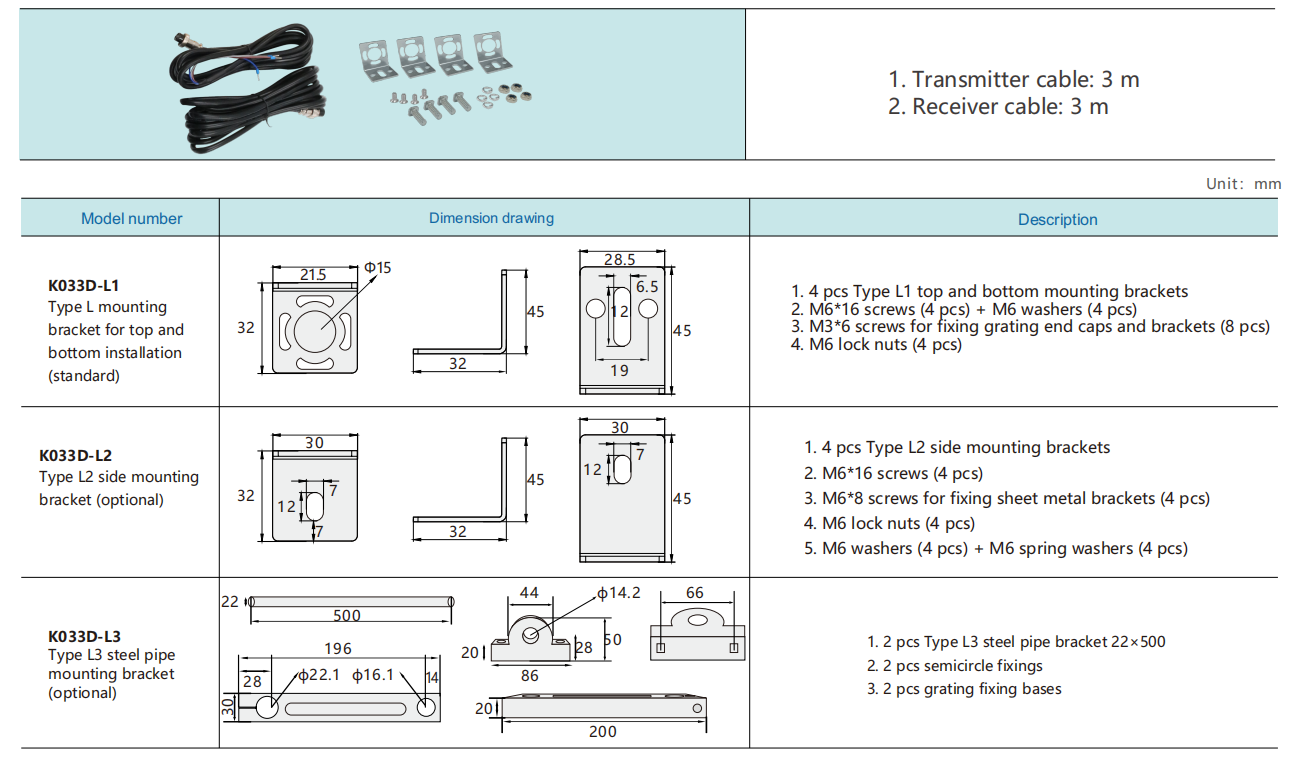

Product Description

About selection

Type analysis
①	Smalllight curtain series	K033D
②	Number of optical axes	4:4-axis 6:6-axis 8:8-axis (For other axis numbers, please refer to the selection table)
③	Optical axis spacing	10:10mm 20:20mm 40:40mm
④	Output mode	Blank:NPN output P:PNP ouput NP:NPN+PNPoutput Y:relay
⑤	Working condition	Blank:Normally closed state NO:Normally open state

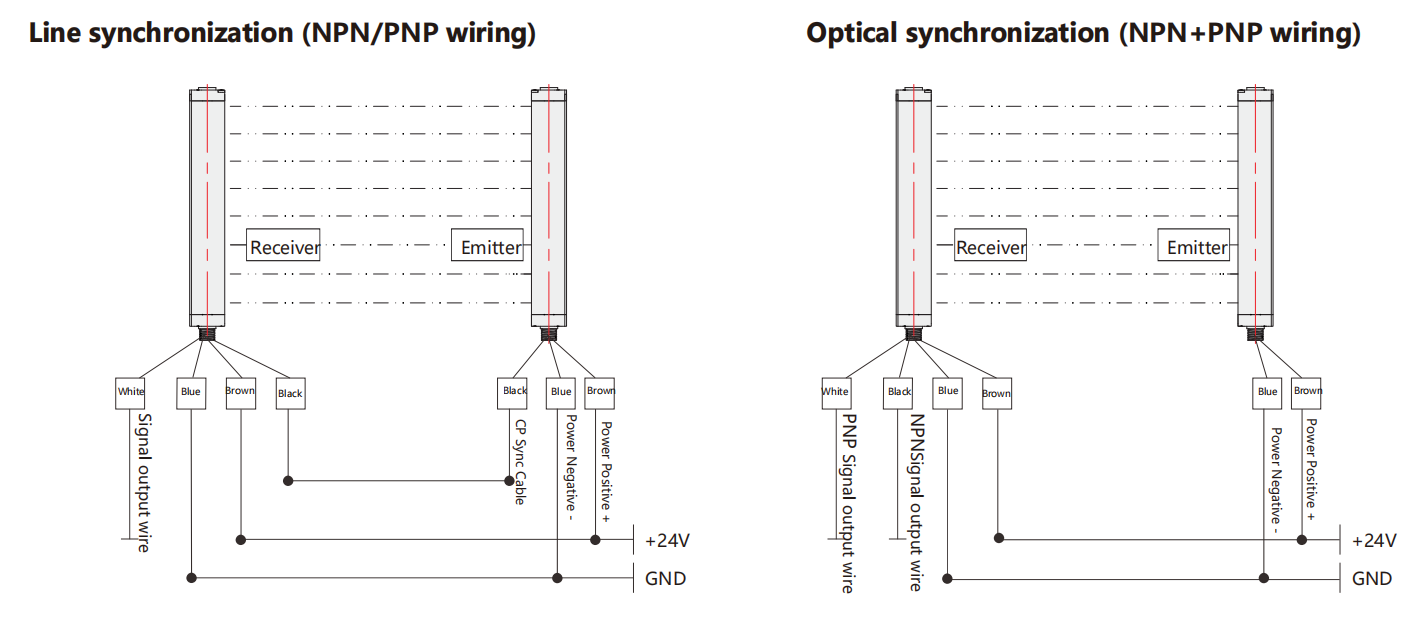

⑥	Synchronization mode	Blank:Line synchronization G:optical synchronization

Specifications

Name	Small light curtain
Appearance

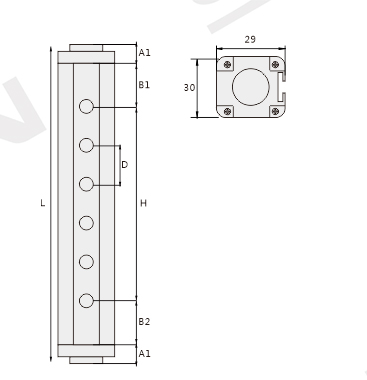

Cross area	30×29mm
Number of channels	Single-channel,dual-channel
Number of optical axes	4、6、8……256 axis
Protective height	Optical axis spacing X(number of optical axes -1)
Protection distance*	0.2~5M(Customizable to 7M)
Optical axis spacing	10mm/20mm/40mm
Working power supply	24V±10%
Power	3~8W
Circuit protection	Reverse connection protection/output short circuit protection
Response time	≤10ms
Operating ambient temperature	-10~+55℃
Storage ambient temperature	-40~+70℃
Insulation resistance	≥100MΩ
Anti-optical interference	NPN/PNPN/relay output
Anti-optical interference	10000Lux
Synchronous mode	Line synchronization/optical synchronization
Protection grade	IP65
Circuit protection	Reverse connection protection/output short circuit protection

Example

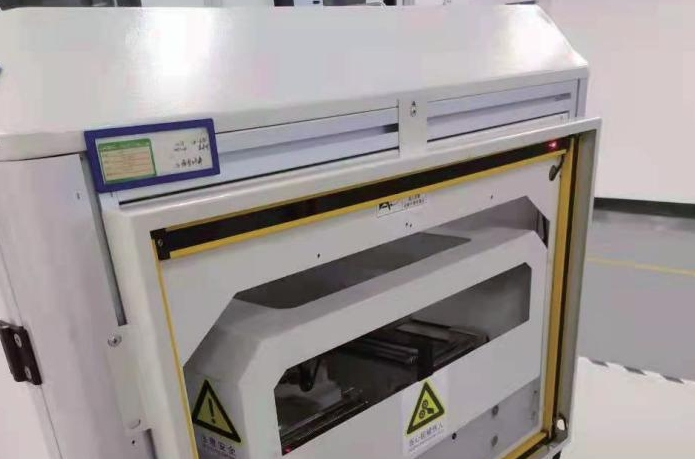

Protective inspection of the movement Automated operation protection inspection

department of the production line

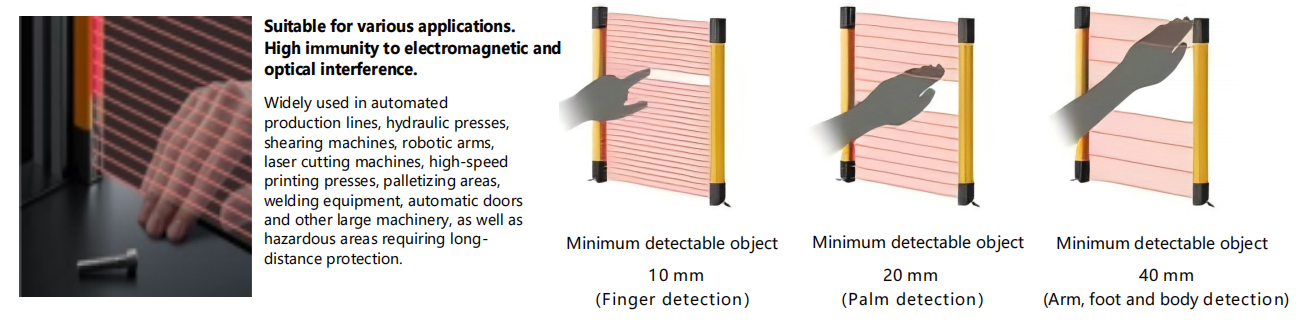

Schematic diagram of optical axis spacing

Selection list

The optical axis spacing is 10mm (protection distance:0.2-5m,can be set to 7m)

Optical axis spacing	10mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis
Protection height(mm)	30	50	70	90	110	130	150	170	190	210	230	250	270	290
Light curtain height(mm)	84	84	104	124	144	164	184	204	224	244	264	284	304	324

Optical axis spacing	10mm
Number of opticalaxis	32-axis	34-axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	48-axis	50-axis	52-axis	54-axis	56-axis	58-axis	60-axis
Protection height(mm)	310	330	350	370	390	410	430	450	470	490	510	530	550	570	590
Light curtain height(mm)	344	364	384	404	424	444	464	484	504	524	544	564	584	604	624

The optical axis spacing is 20mm (protection distance:0.2-5m,can be set to 7m)

Optical axis spacing	20mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis
Protection height(mm)	60	100	140	180	220	260	300	340	380	420	460	500	540	580
Light curtain height(mm)	104	144	184	224	264	304	344	384	424	464	504	544	584	624

Optical axis spacing	20mm
Number of opticalaxis	32-axis	34-axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	48-axis	50-axis	52-axis	54-axis	56-axis	58-axis	60-axis
Protection height(mm)	620	660	700	740	780	820	860	900	940	980	1020	1060	1100	1140	1180
Light curtain height(mm)	664	704	744	784	824	864	904	944	984	1024	1064	1104	1144	1184	1224

The optical axis spacing is 40mm (protection distance:0.2-5m,can be set to 7m)

Optical axis spacing	40mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis
Protection height(mm)	120	200	280	360	440	520	600	680	760	840	920	1000	1080	1160
Light curtain height(mm)	184	264	344	424	504	584	664	744	824	904	984	1064	1144	1224

Optical axis spacing	40mm
Number of opticalaxis	32-axis	34-axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	48-axis	50-axis	52-axis	54-axis	56-axis	58-axis	60-axis
Protection height(mm)	1240	1320	1400	1480	1560	1640	1720	1800	1880	1960	2040	2120	2200	2280	2360
Light curtain height(mm)	1304	1384	1464	1544	1624	1704	1784	1864	1944	2024	2104	2184	2264	2344	2424
