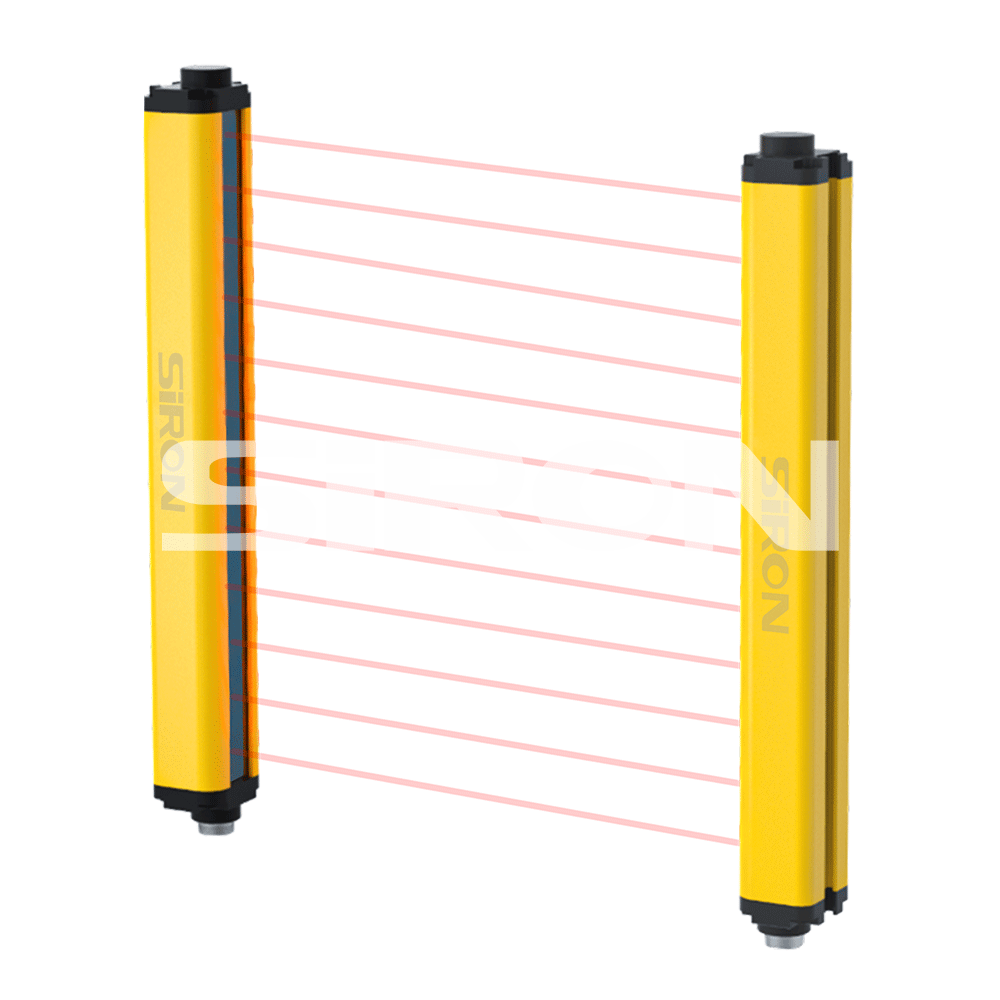

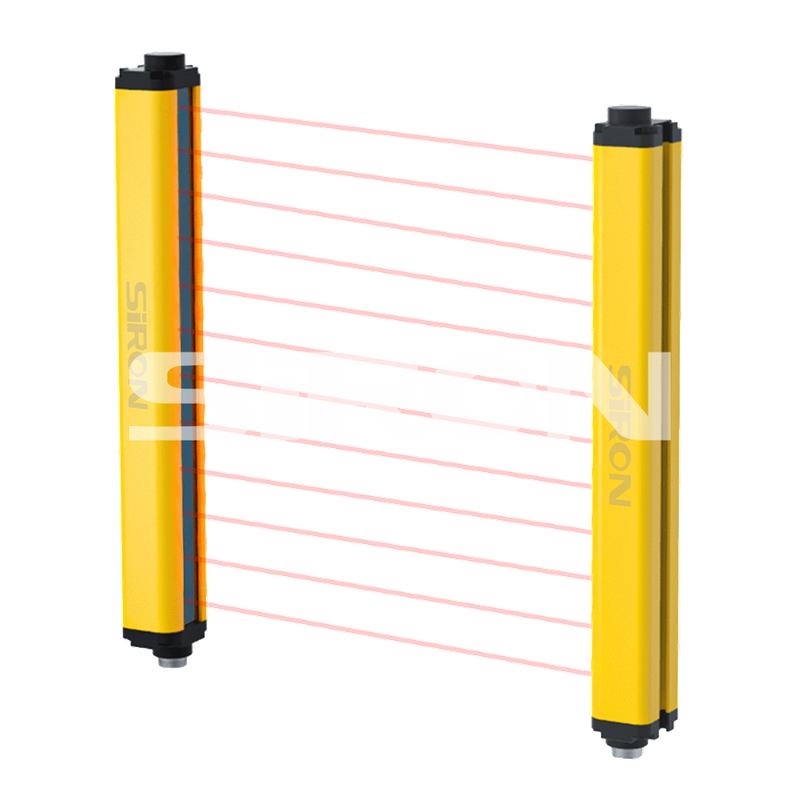

SiRON K033 Series Small Light Curtain

About selection

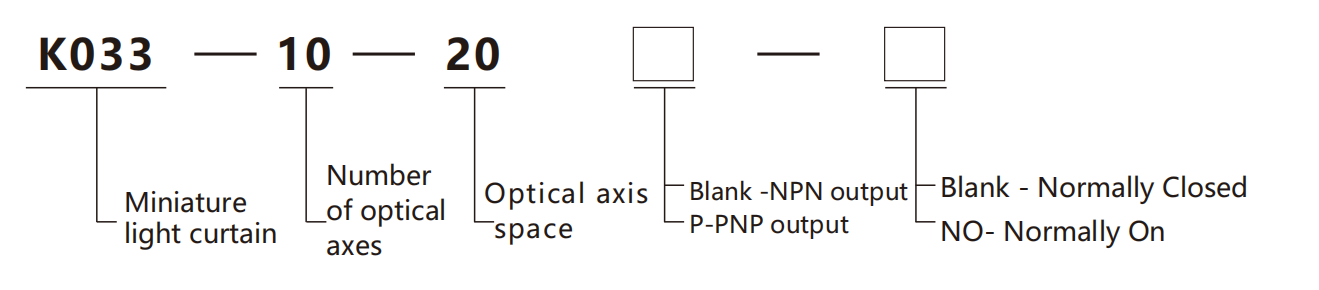

Selection example: K033-10-20 indicatesthe K033 series, thenumberofopticalaxesis 10 axes, the optical axis spacing is 20mm, NPN output, normallyclosed state;

K033-10-20p-no indicates the K033 series, the number of optical axes is 10 axes, the optical axis spacing is 20mm, PNP output, normally open state.

Note:

1. the protection distance can be customized to 4m, model examples are as follows: K033-10-20(D4) indicates the K033 series, the number of optical axes is 10 axes, the optical axis  spacing is 20mm, the NPN output, the normally closed state, the protection distance is 4m.

2. when ordering the support separately, the order model is: K033-L1, K033-L2.

Specifications

Name	Small light curtain
Appearance
Cross-sectional area	35×27mm	Response time	Response time =(N*0.1ms)+0.4ms(N is the number of optical axes)
Number of channels	two-channel	Working temperature	-10~55℃(No condensation)
Number of beams	10mm separation distance:8、12、16----140axis; 20mm separation distance:4、6、8----72axis; 40mm separation distance:4、6、8----36axis	Storage temperature	-30~70℃(No condensation)
Protecion height	Protection height H=(n-1)*optical axis spacing, N is the number of optical axes	Working environment humidity	When the temperature is 20℃,the relative humidity of the air is<85%
Protection distance*	0.1~2M (Customizable to4M)	Anti-light interference	10000Lux(incidence Anglel>5°)
Optical axis spacing	10mm/20mm/40mm	Light curtain form	Relative expression
Resolution	15mm/25mm/45mm	Synchronously	Line synchronization
voltage	DC10~30V	Shell material	Aluminium alloy
Power	<5W	Enclosure rating	IP65
Emitting light source	940nm	Safety Output (OSSD)	NPN/PNP transistor output,load current below 200mA, residual voltage below iV(except voltage drop due to cable extension),leakage current below 1mA
Protective circuit	Power supply overvoltage protection,reverse polarity protection and output overcurrent protection

Example

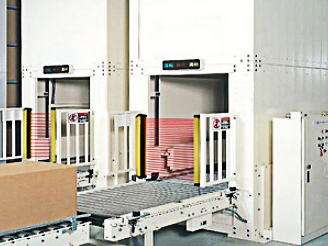

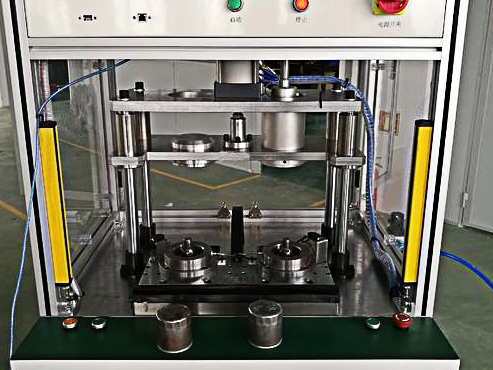

Equipment safety protection inspection                                                 Equipment safety protection inspection

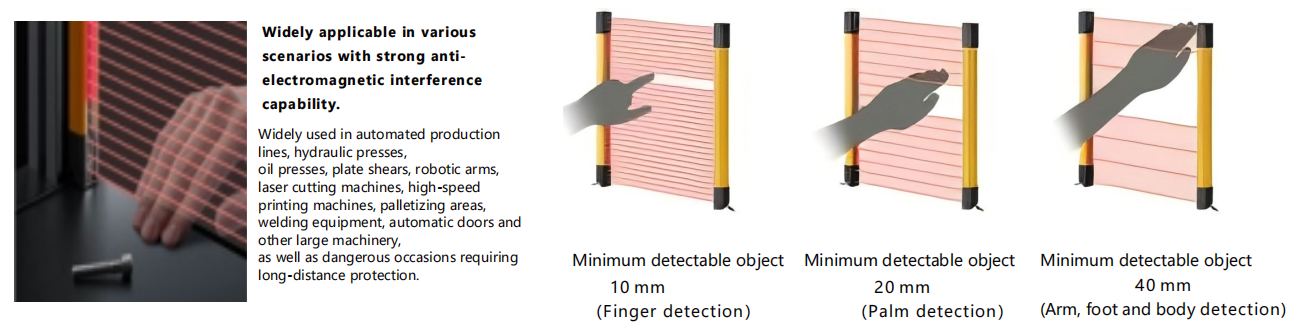

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm(protection distance:0.1~2m; can be customized to 5m)

Optical axis spacing is 20mm(protection distance:0.1~2m; can be customized to 5m)

Optical axis spacing is 40mm(protection distance:0.1~2m,can be customized to 5m)

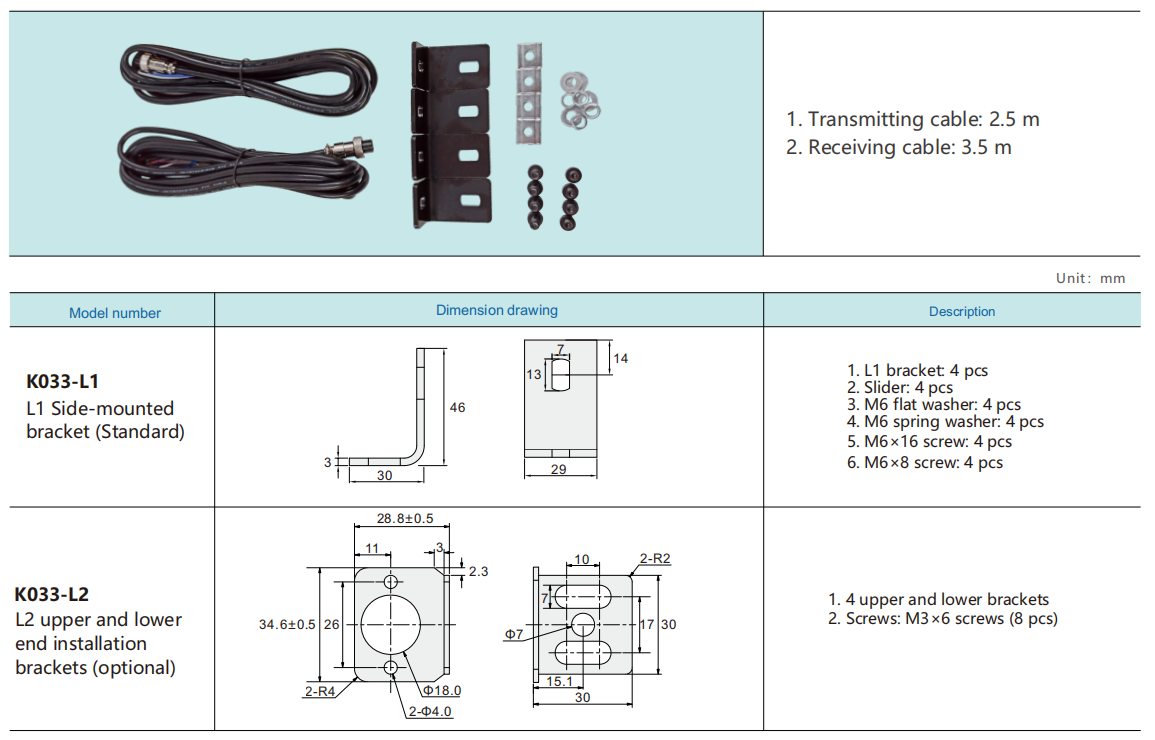

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

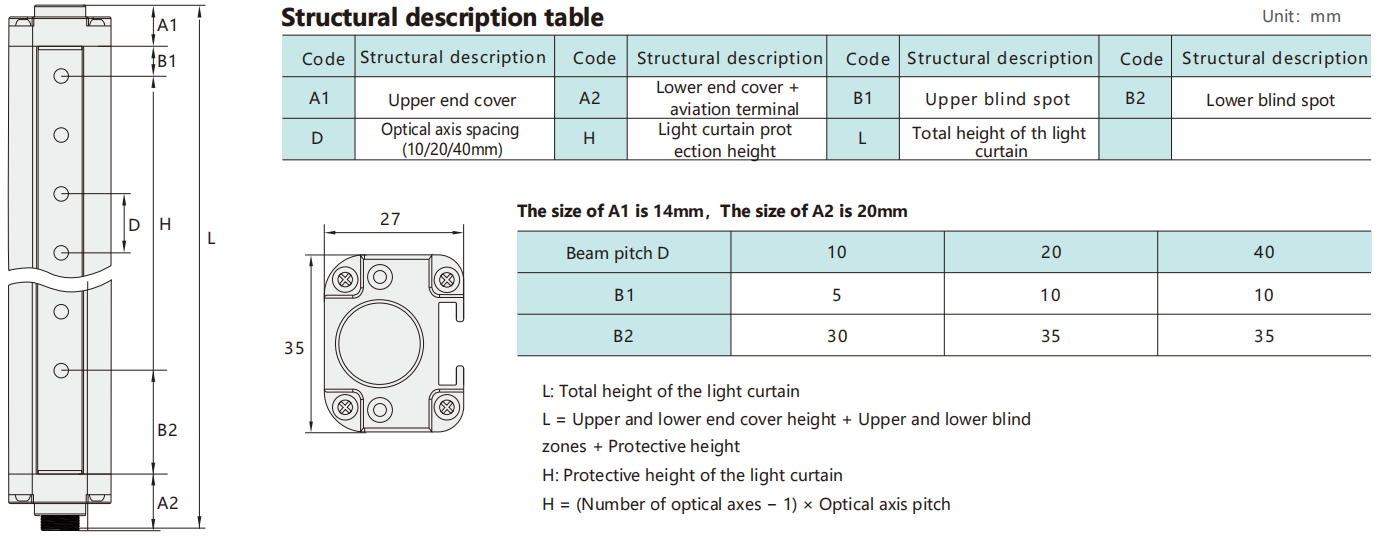

External drawing

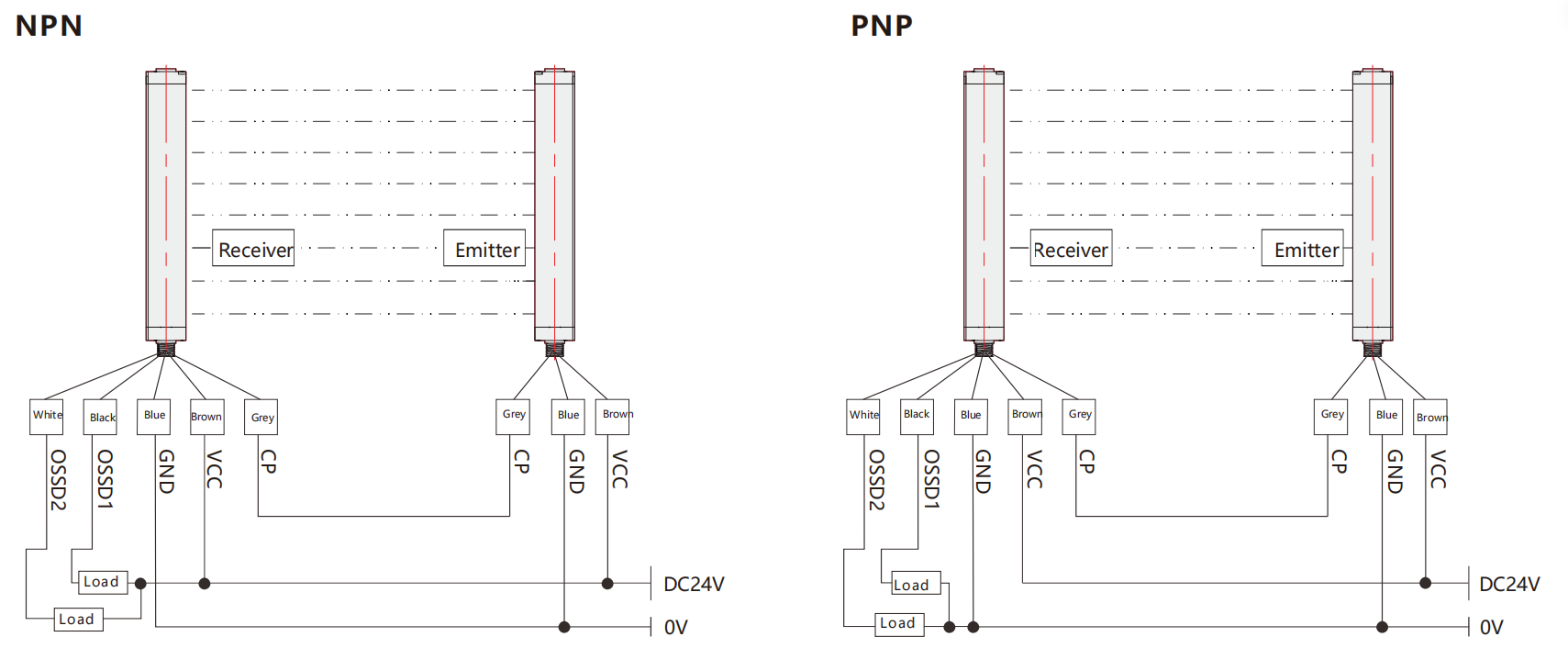

wiring diagram
