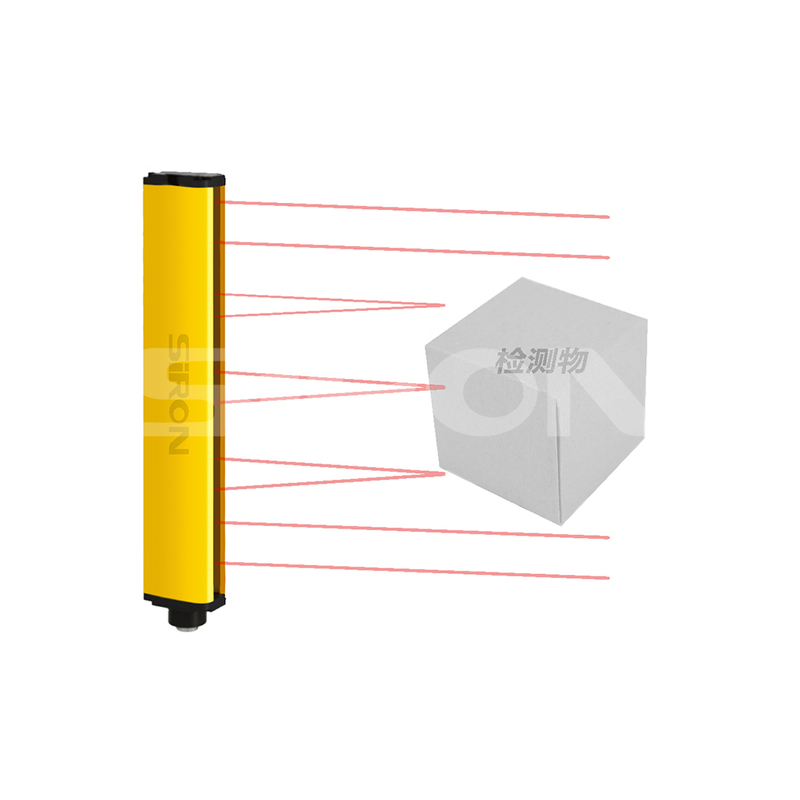

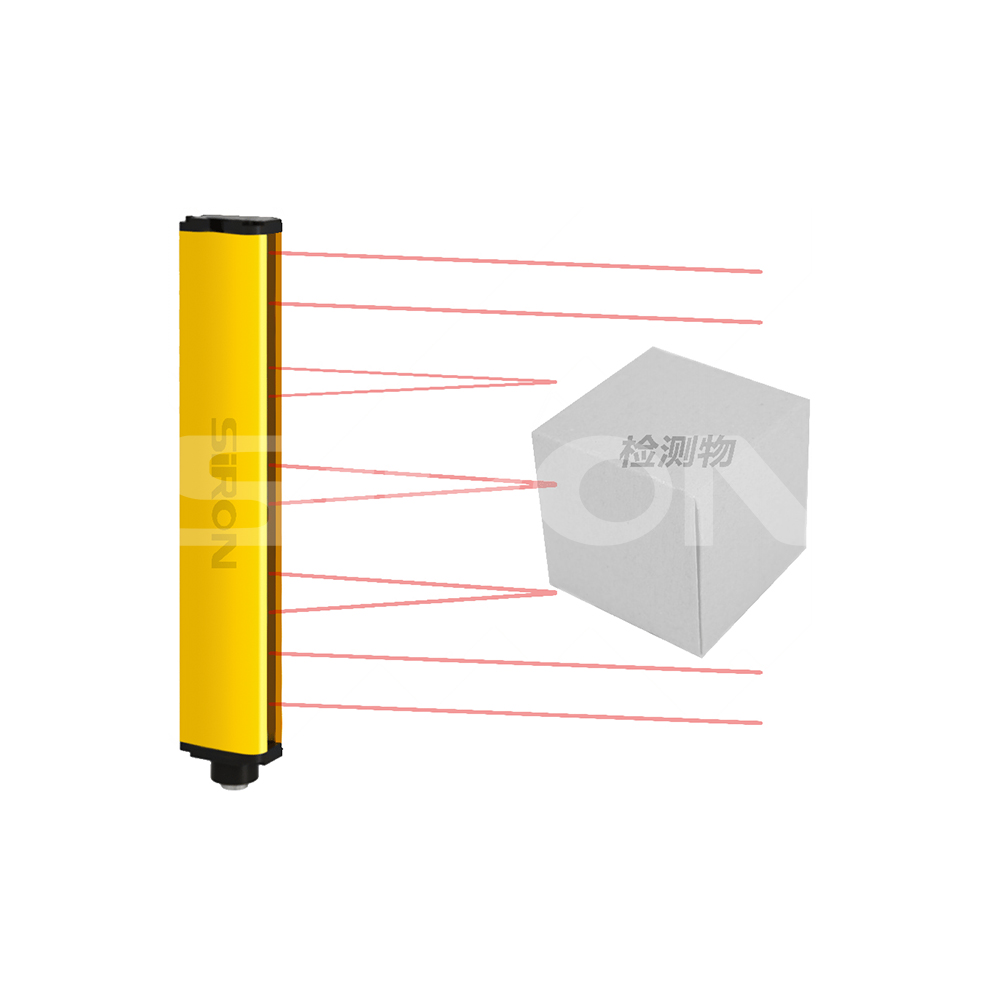

K031B series
SiRON
8543709990
About selection

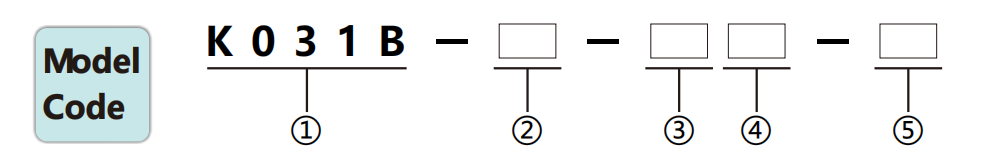

| Type analysis | ||
| ① | Diffuse reflection light curtain series | K031B |
| ② | Number of optical axes | 4:4-axes 6:6-axes 8:8-axes (For other axis numbers, please refer to the selection table) |
| ③ | Optical axis spacing | 40:40mm |
| ④ | Output mode | Blank:NPN output P:PNP ouput |
| ⑤ | Working condition | Blank:Normally closed state NO:Normally open state |
Selection example：K031B-10-40 indicates the K031B series, with 10 optical axes, an optical axis spacing of 40mm, NPN output, and normally closed state.
K031B-10-40P indicates the K031B series, with 10 optical axes, an optical axis spacing of 40mm, PNP output, and normally closed state.
Note: When ordering the bracket separately, the model to be placed is: K031B-L2.
Specifications
| Name | Dffuse light curtain |
Appearance |  |
Cross area | 35×50mm |
Number of channels | single channel |
Numberof optical axes | 4、6、8 axes…… |
Protective height | The protection height H=(N*2-1)*20, where N is the number of optical axes |
Sensing distance | 0.1~2M(The end cover has a knob for counterclockwise fine adjustment of the distance. The minimum is 0.35m. When the knob is turned to the minimum, the light curtain will not function) |
Optical axis spacing | 40mm |
Supply voitage | 12~24VDC |
Power consumption | 3~5W |
Circuit protection | Reverse connection protection/output short circuit protection |
Ant-optical interference | 10000Lux |
Self-check function | YES |
Shell material | Housing Material: Aluminum profile / End caps: Polyester Housing Color: Yellow |
Output mode | NPN/PNP |
Response time | ≤15ms |
Synchronous mode | Self-synchronization |
Light curtain form | Reflective type |
Operating temperature | -10~+60℃ |
| Ambient humidity | 20C，RH≤85% |
| Dielectric strength | DC30V.5A |
| Insulation resistance | ＞100MΩ |
Example

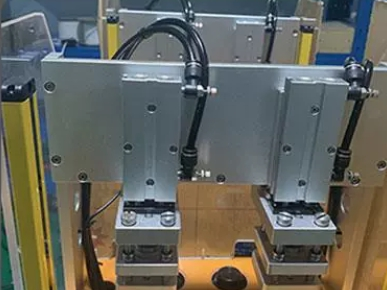

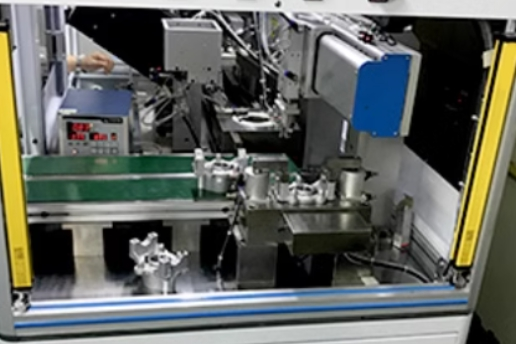

Equipment operation protection detection Equipment operation protection detection
Schematic diagram of optical axis spacing
Selection list
Optical axis spacing is 40mm (protection distance: 0.1 ~ 2m)
Optical axis spacing | 40mm | |||||||||||
Number of optical axis | 4-axis | 6-axis | 8-axis | 10-axis | 12-axis | 14-axis | 16-axis | 18-axis | 20-axis | 22-axis | 24-axis | 26-axis |
Protection height(mm) | 140 | 220 | 300 | 380 | 460 | 540 | 620 | 700 | 780 | 860 | 940 | 1020 |
Light curtain height (mm) | 244 | 324 | 404 | 484 | 564 | 644 | 724 | 804 | 884 | 964 | 1044 | 1124 |
Optical axis spacing | 40mm | |||||||||||
Number of optical axis | 28-axis | 30-axis | 32-axis | 34-axis | 36-axis | 38-axis | 40-axis | 42-axis | 44-axis | 46-axis | 48-axis | 50-axis |
Protection height(mm) | 1100 | 1180 | 1260 | 1340 | 1420 | 1500 | 1580 | 1660 | 1740 | 1820 | 1900 | 1980 |
Light curtain height(mm) | 1204 | 1284 | 1364 | 1444 | 1524 | 1604 | 1684 | 1764 | 1844 | 1924 | 2004 | 2084 |

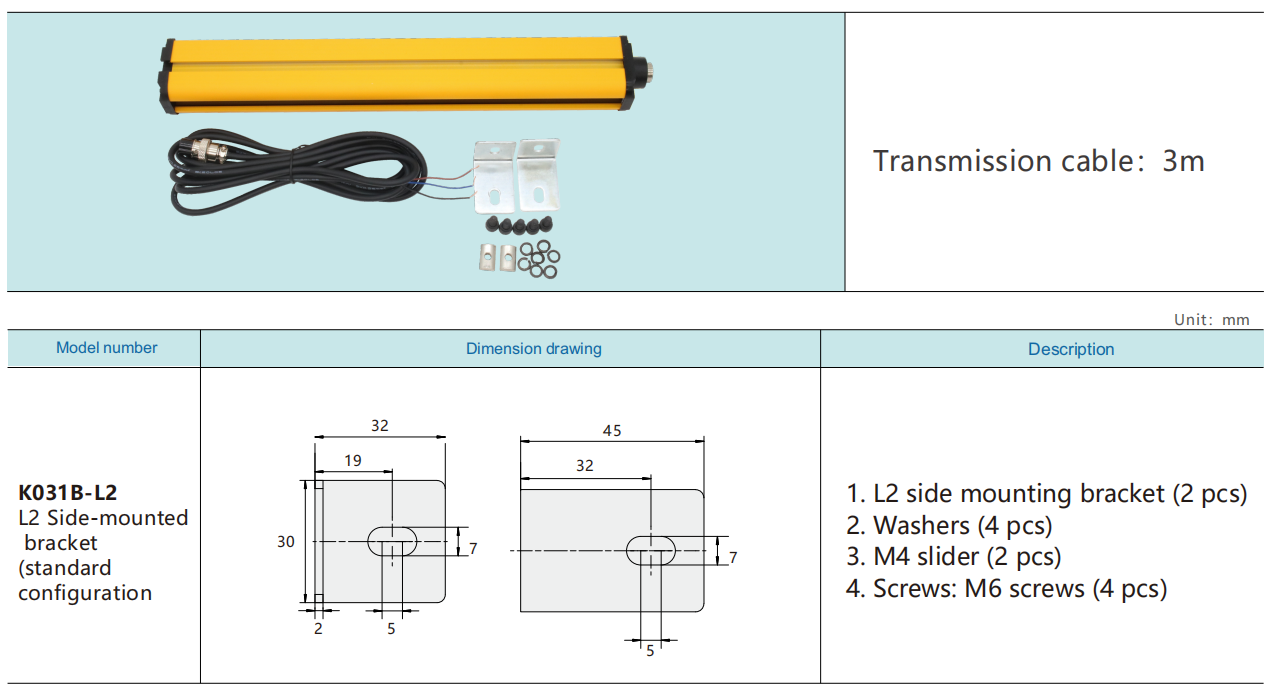

Attachments
Installation instructions
When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.
Calculate the safe distance correctly and maintain the minimum safe distance between the detection zone and the hazardous parts of the machine.
Safe distance refers to the minimum distance between the detection plane of the light curtain and the cutting edge or hazardous parts of the machine.
External drawing

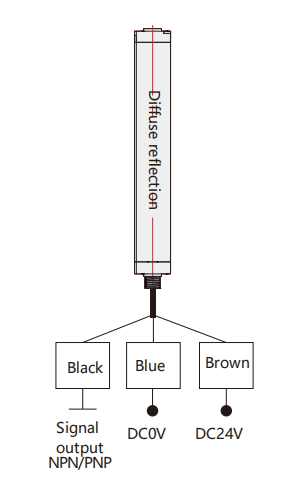

wiring diagram
| Output form | Light curtain status | Receiver Indicator | Output Transistor Status | |
| NPN type | No sensing | Green ON | ON | Output Low |
| Sensing | Red ON | OFF | Open Leakage Current ≤ 2mA | |
| Fault | Red Flashing | OFF | Open Leakage Current ≤ 2mA | |
| PNP type | No sensing | Green ON | ON | Output High |
| Sensing | Red ON | OFF | Open Leakage Current ≤ 2mA | |
| Fault | Red Flashing | OFF | Open Leakage Current ≤ 2mA | |
