SiRON K032A Series Ultra-thin Light Screen Front Detection

About selection

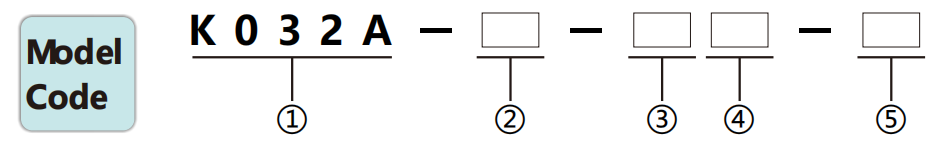

Selection example：K032A-16-10 indicates the K032A series, with 16 optical axes, an optical axis spacing of 10mm,                                              NPN/PNP output, and normally closed state.

                                       K032A-16-10-NO indicates the K032A series, with 16 optical axes, an optical axis spacing of                                                     10mm, NPN/PNP output, and normally open state.

Specifications

Name	Ultra thin light curtain(front detection)

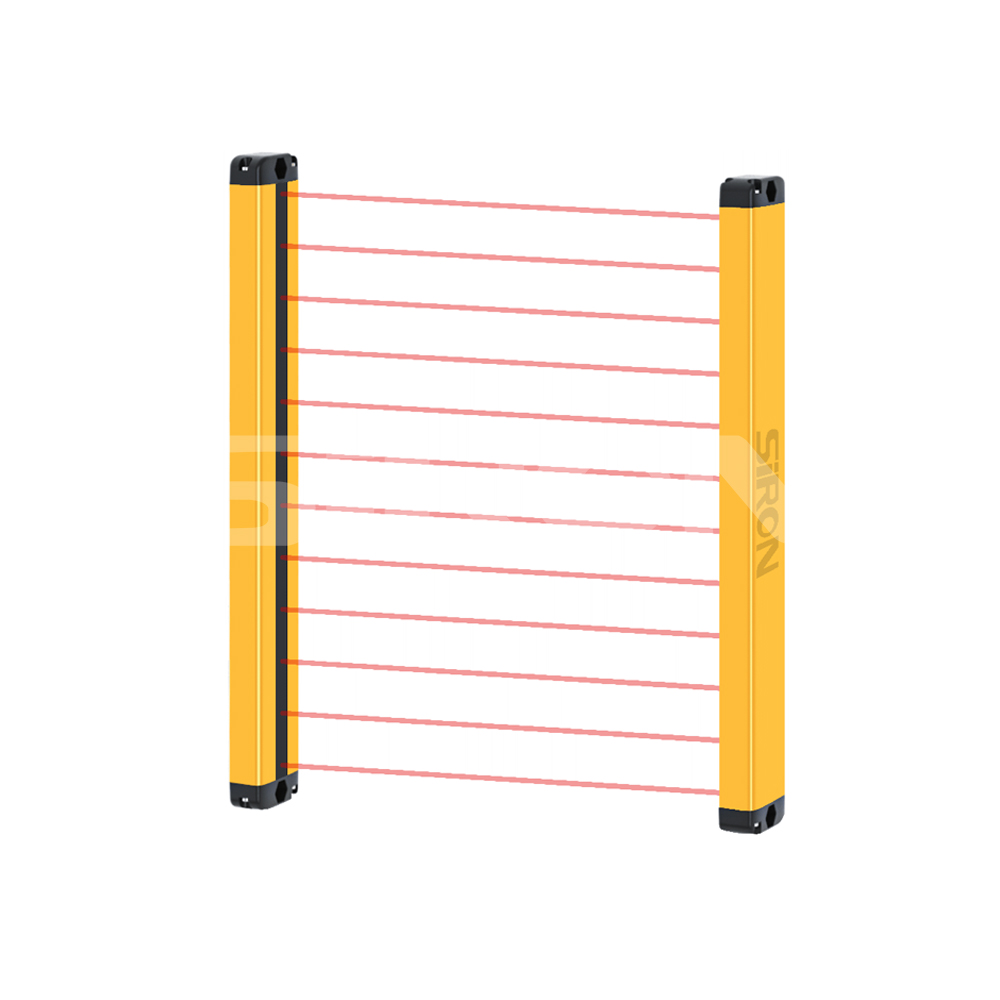

Appearance
CrosS-sectional area	29×14mm
Number of channels	single channel
Number of optical axes	4、6、8、10 axes……
Protection height	The protection height H=(N-1)* the optical axis spacing, where N is the number of optical axes
Protection distance*	0.2～1.5M
Optical axis spacing	10mm/20mm/40mm
Resolution	15mm/25mm/45mm
Infrared wavelength	940nm
Power	≤15W
Power supply	DC12~24V
Output current	≤100mA
Output method	NPN/PNP
Response time	4~18ms
Scan time	<18ms
Synchronicity	Optical synchronization
Protecion class	IP54
Operating temperature	-10～+55℃
Ambient temperature	-20～+70℃
Relative humidity	15%～85%
Impact resistance	10g/20ms

Example

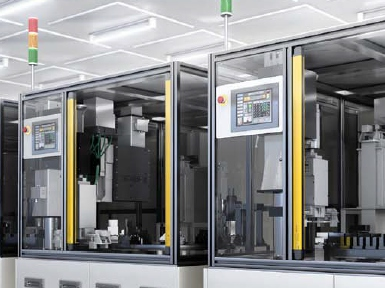

Application on die-casting machines                                                Application on die-casting machines

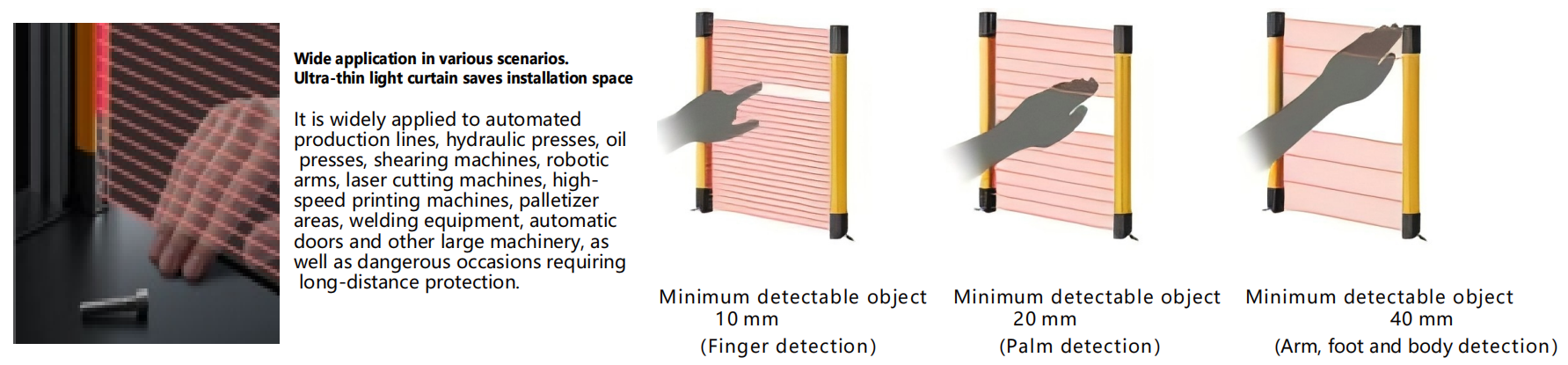

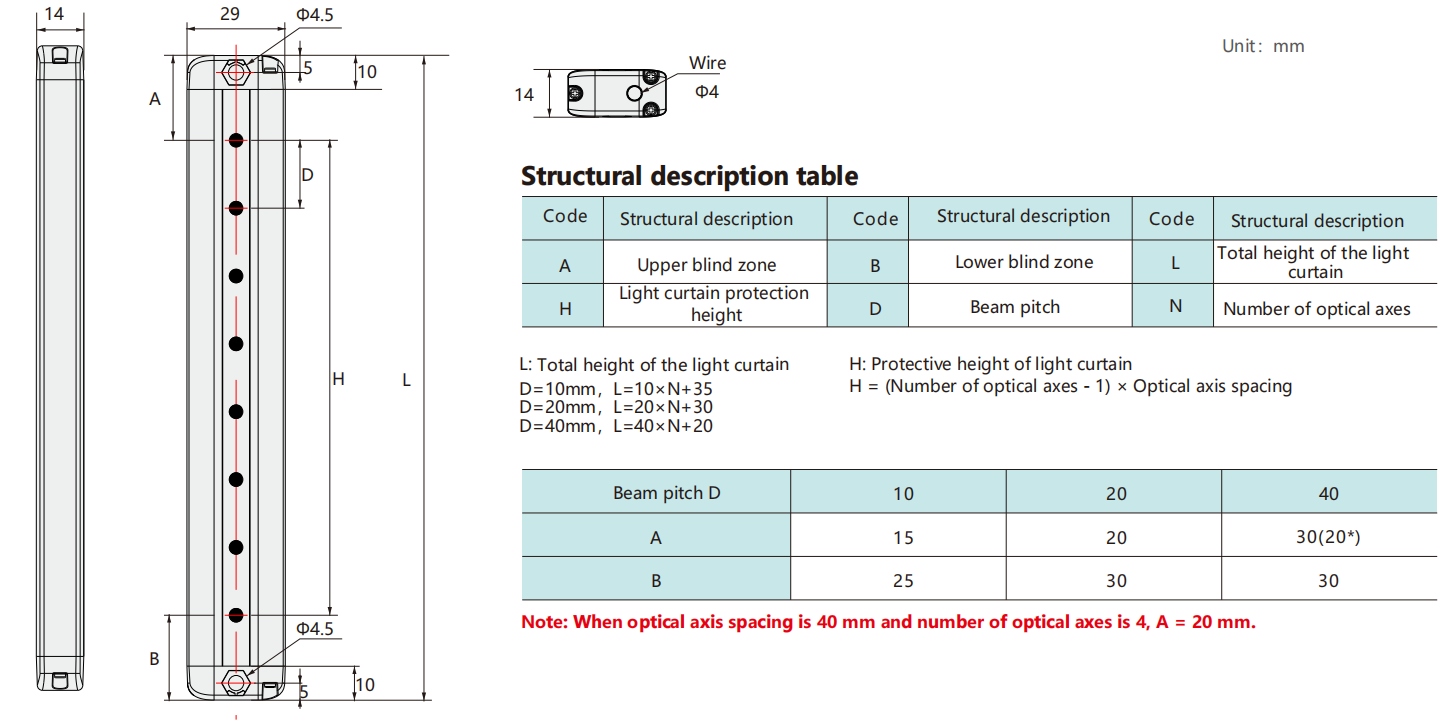

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm(protection distance:0.2~1.5m)

Optical axis spacing is 20mm(protection distance:0.2～1.5m)

Optical axis spacing is 40mm(protection distance:0.2～1.5m)

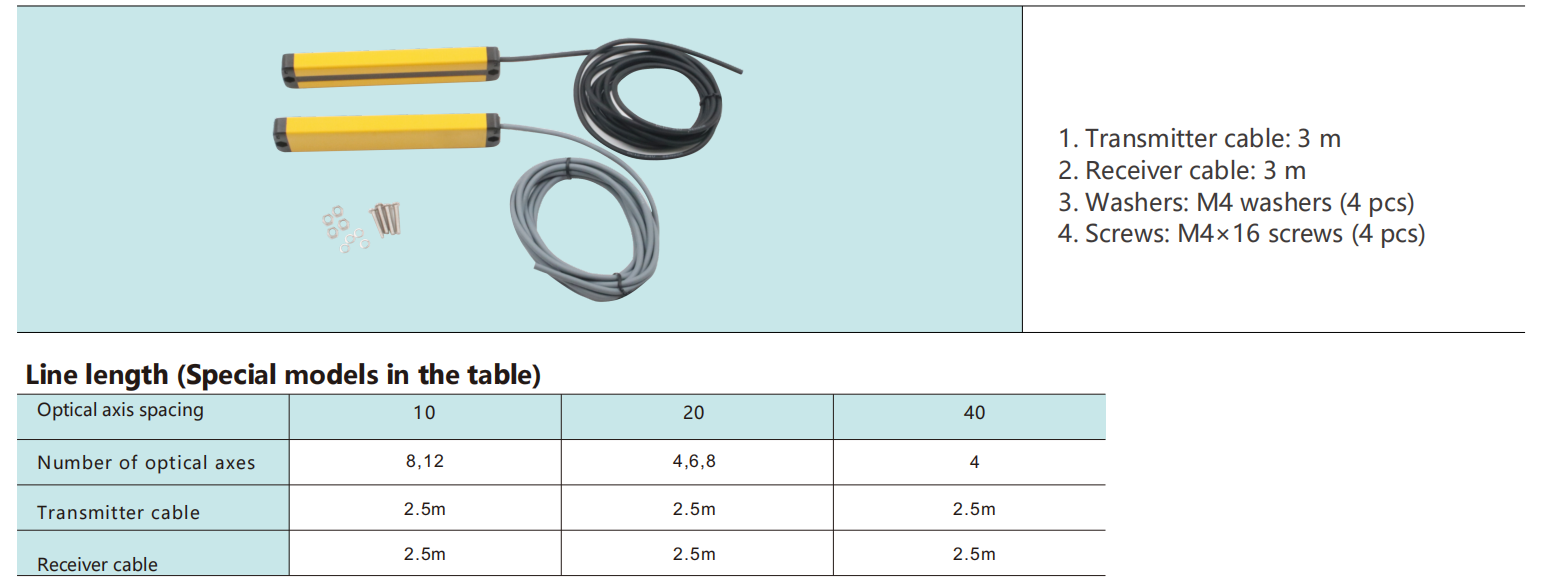

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

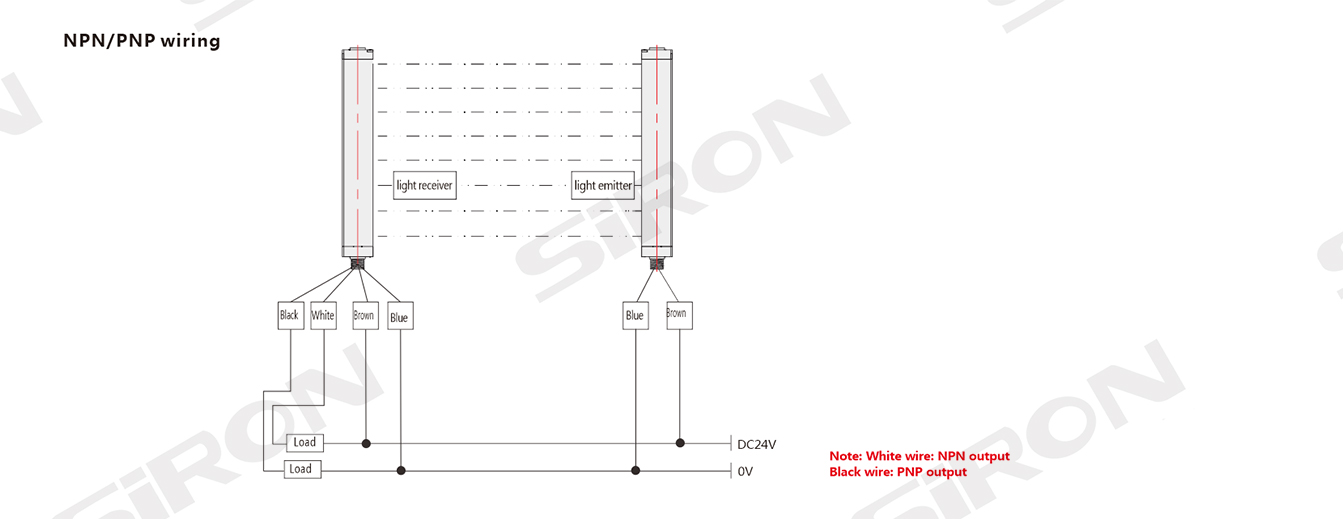

wiring diagram
