SiRON K032B Series Ultra Thin Light Curtain Front Detection

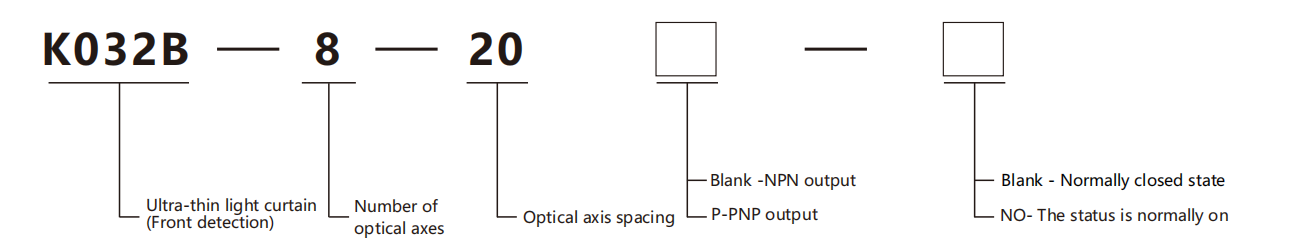

About selection

Selectionexamples: K032B-8-20  K032Bseries, thenumberofopticalaxesis 8, theopticalaxisspacingis 20mm,

                                      NPN output, normallyclosedstate.

                                      K032B-8-20P-NO  K032Bseries, thenumberofopticalaxesis 8, theopticalaxisspacingis 20mm,

                                      PNP  output, normallyopenstate.

Specifications

Name	Ultra thin light curtain (front detection)

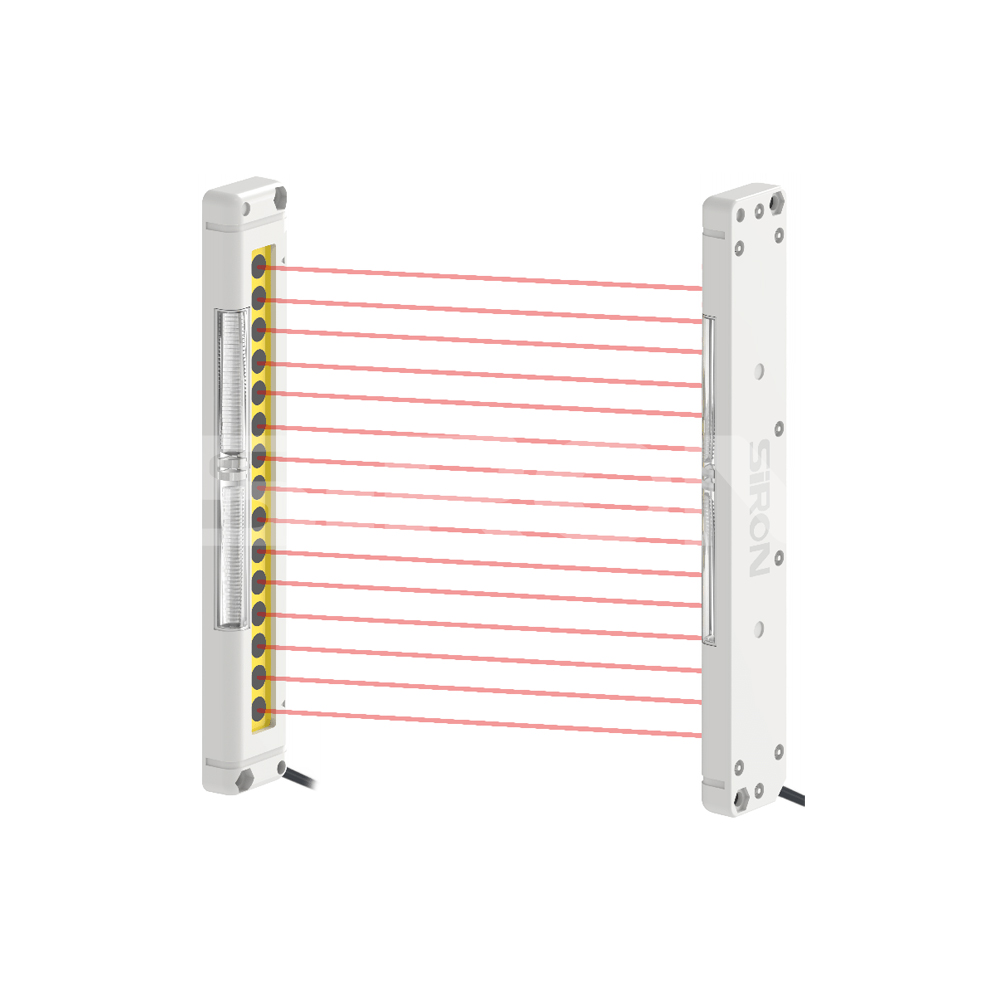

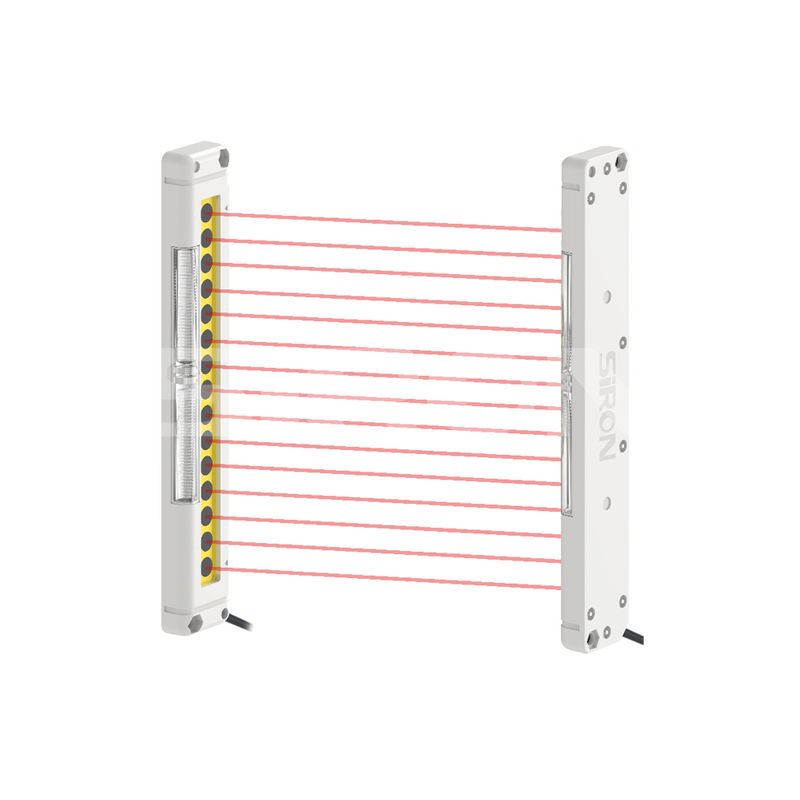

Appearance
Cross-sectional area	30×13mm	Response time	≤10ms
Number of channels	single channel	Synchronicity	Wire synchronization
Number ofoptical axes	6、8、12、16、28	Protection class	IP65
Protection height	Protection height H=(n-1)*optical axis spacing, N is the number of optical axes	Operating temperature	-10~+55℃
Protection distance*	0.2～2M	Ambient temperature	-40~+70℃
Optical axis spacing	20mm	Relative humidity	35%RH~85%RH
Power	3~8W	Resistance to light interference	1000Lux
Power supply	24V±10%	Protection of circuit	Reverse protection/output short circuit protection
Output method	NPN/PNP	Material of case	Plastic protection
Resistance to insulation	≥100MΩ

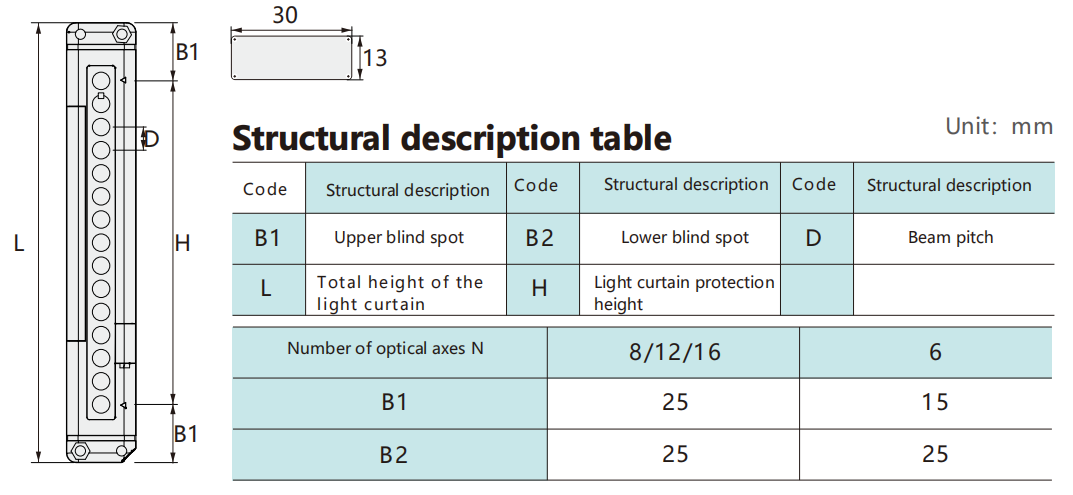

Dimension

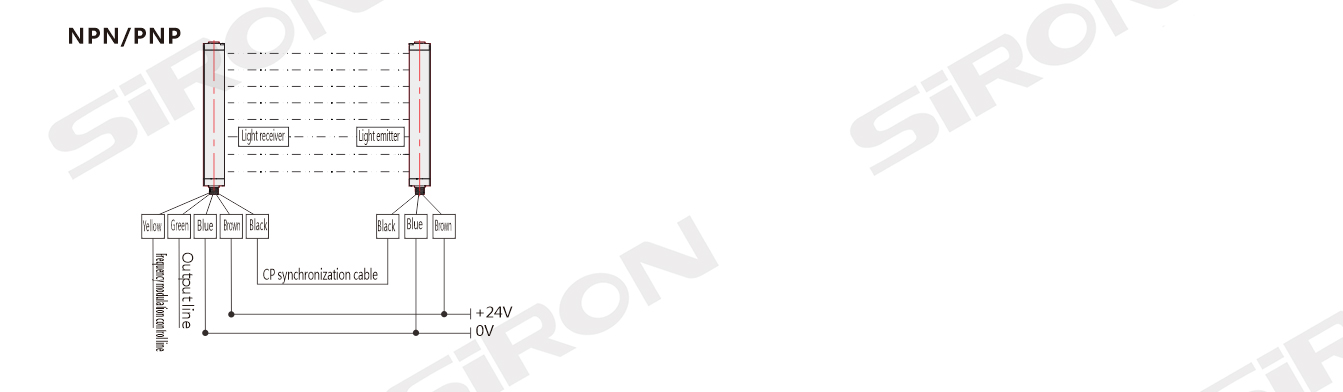

wiring diagram
