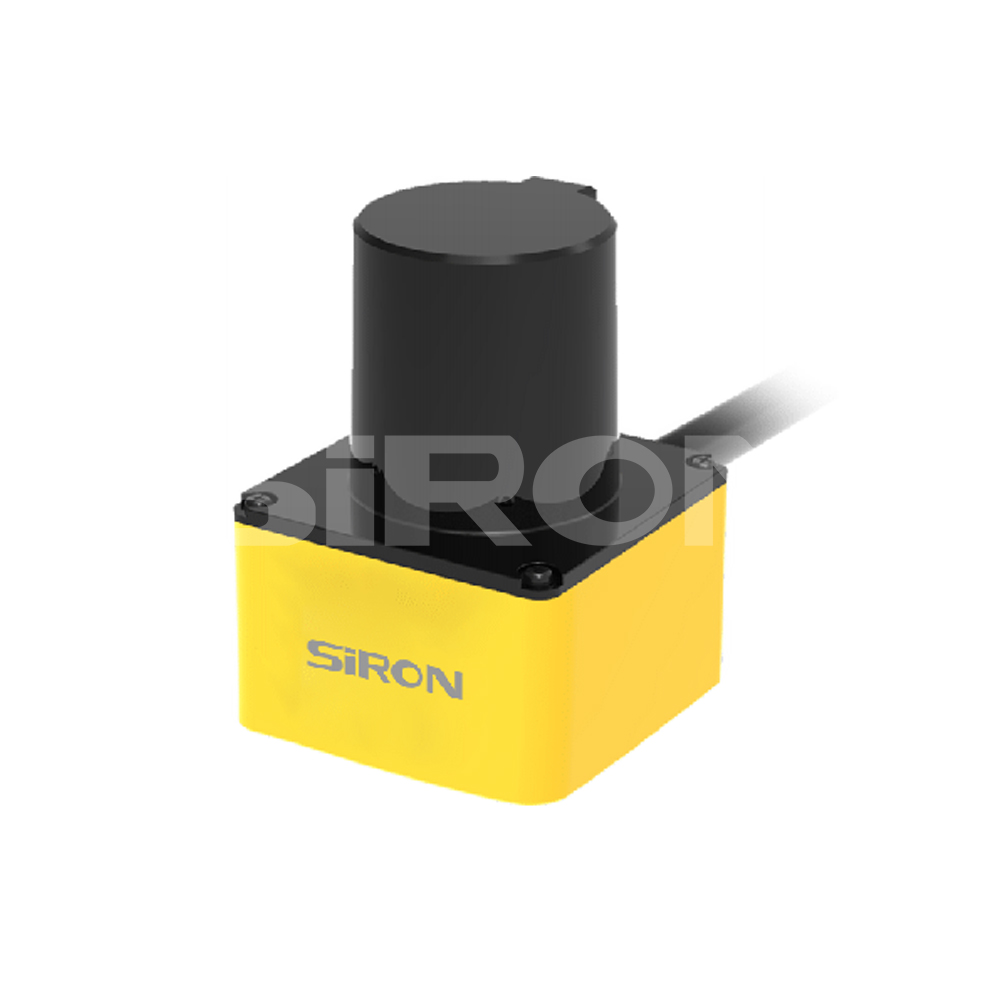

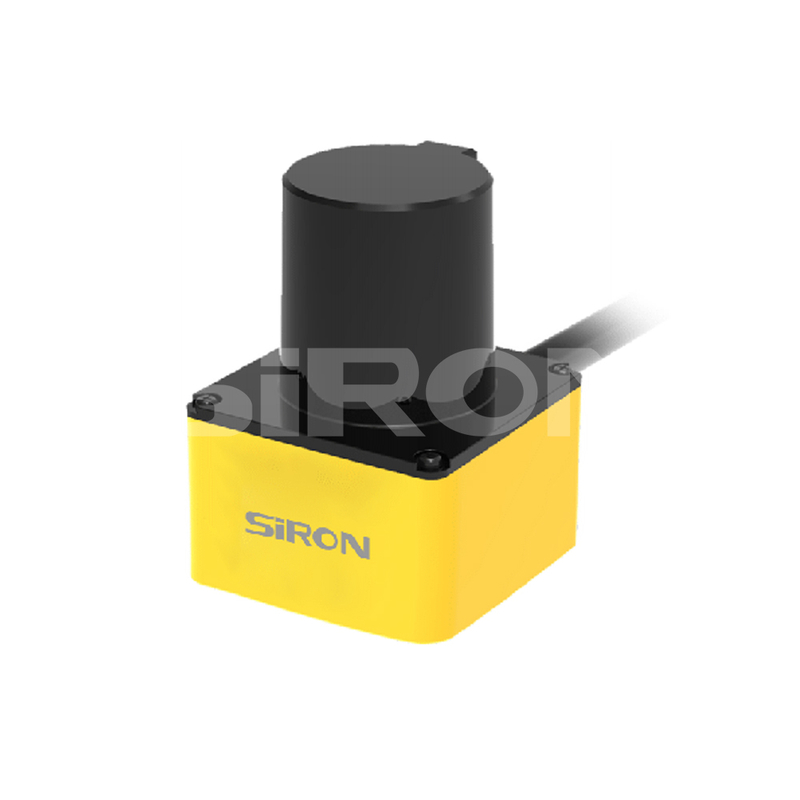

SiRON K039 Series Laser Radar

Name: SiRON K039 Series Laser Radar
Brand: SiRON
Rating: 5.0 (24 reviews)

Features:

* Navigation type, obstacle avoidance type;

* Enclosure protection class Ip65;

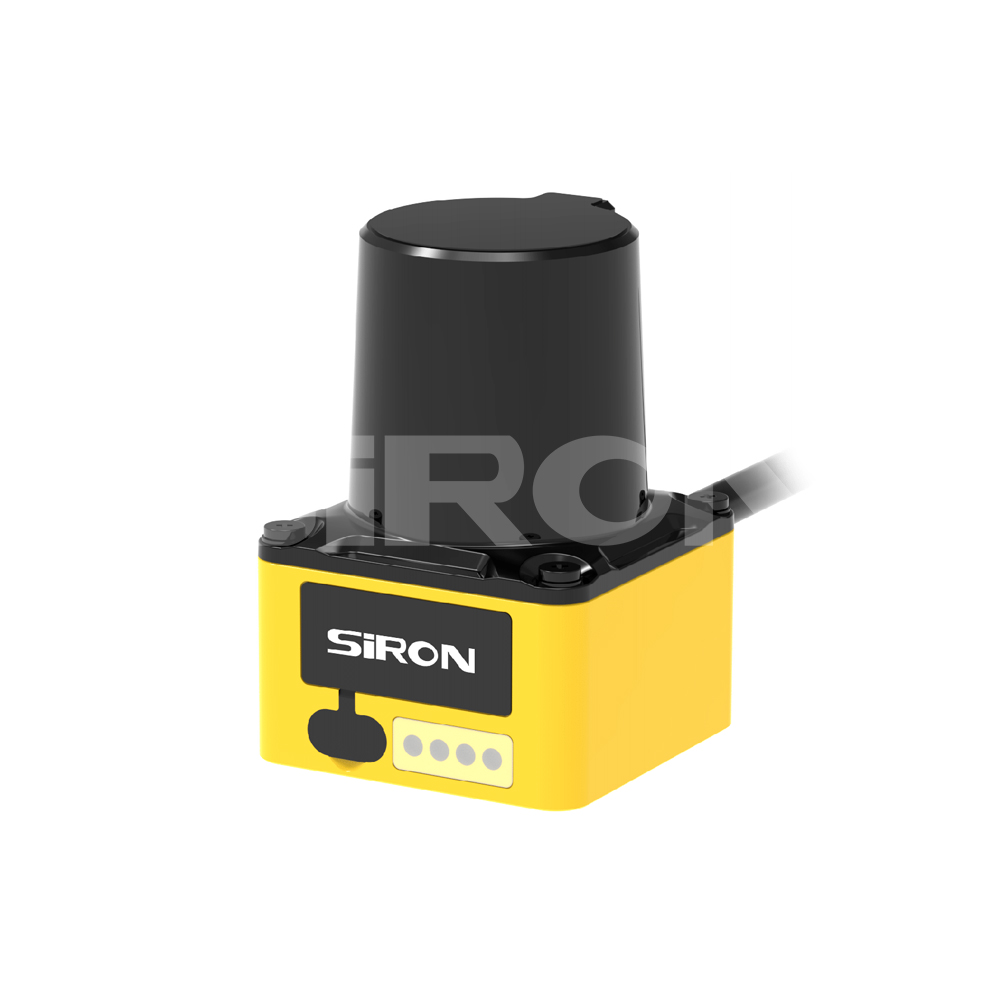

* K039-6 Horizontal perspective: Scanning Angle of 270° in front of the body can be divided into 64 independent channels.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K039 series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Laser radar IP65

Product Description

About selection

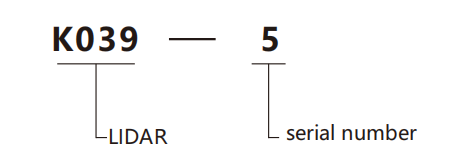

Selection example: K039-5 indicates K039 series, 5 serial number.

Specifications

Name		Laser radar
Model		K039-5	K039-6
Application function		Navigational route type	Obstacle avoidance type
Appearance			TOF principle

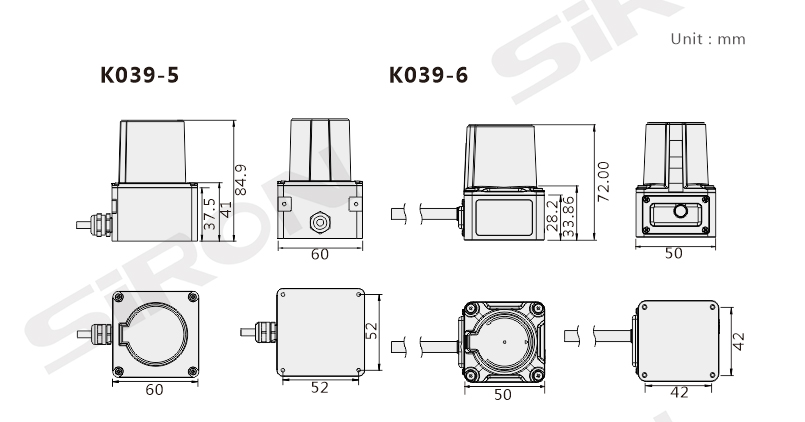

Size		60×60×84.9mm	50×50×72mm
Light source		Infrared laser(905nm)
Laser safety rating		Class(GB7247.1-2012,eye-safe)
Light spot size		7×3mm	4.5×2mm
Spot divergenceAngle		5.2×9mrad	4.0×2mrad
Range of scanningAngle		270°	270°
Data sampling rate		30KHz	18KHz
Frequency o scanning		10Hz/15Hz/20Hz/25Hz/30Hz	10Hz/25Hz
ScanAngle resolution		0.12°/0.18°/0.23°/0.35°	0.5°
Operating voltage		DC 12V	DC9～28V
Power consumption		5W	5W
Measuring range(70%reflectivity)		0.1m~20m	0.1m～5m
Measuring range(10%reflectivity)		0.1m~10m	0.1m~2m
Working Environment		Indoor
Emorof measurement	Resolutfonof reslufion	1cm
	Degre of lnearity	2cm
Sel testof equipment		Have
Abnomalalam function		Have
Communication		Ethernet/RS485	Type-C/RS⁴85
Enclosure protection class		IP65
Elecromagnetic compatibility	Bectostat dchage	6KV(GB/T17626.2～2006),Class3
	Fas plse group	1KV(GB/T17626.4～2008),Class2
	iefenedbge ofectmagneft afafon	GB/T17626.3～2006,Class2
VO input		/	6
VO output		/	4
Number of area Groups		/	64
Indicator light		/	4
Start up time		/	10s
Response time		/	50ms
Resistance to insuation		100MΩ,High resistance meter based on 500VDC
Resistance to surge		Power end1KV
Resistancetoimpact		10～150Hzdouble-amplitude，1.5mm，X、Y、ZTwo hours in each direction
Resistance to vibration		500m/s(About 50G), 3 times each in X, Y, and Z directions
Humidity of storage		93%，+40℃，2h(GB/T2423.3)
Operating temperature		-20～+60℃	-20～+50℃
Temperatureofstorage		-20～+70℃
Ambientillumination		80000Lux
Weight		0.25kg
