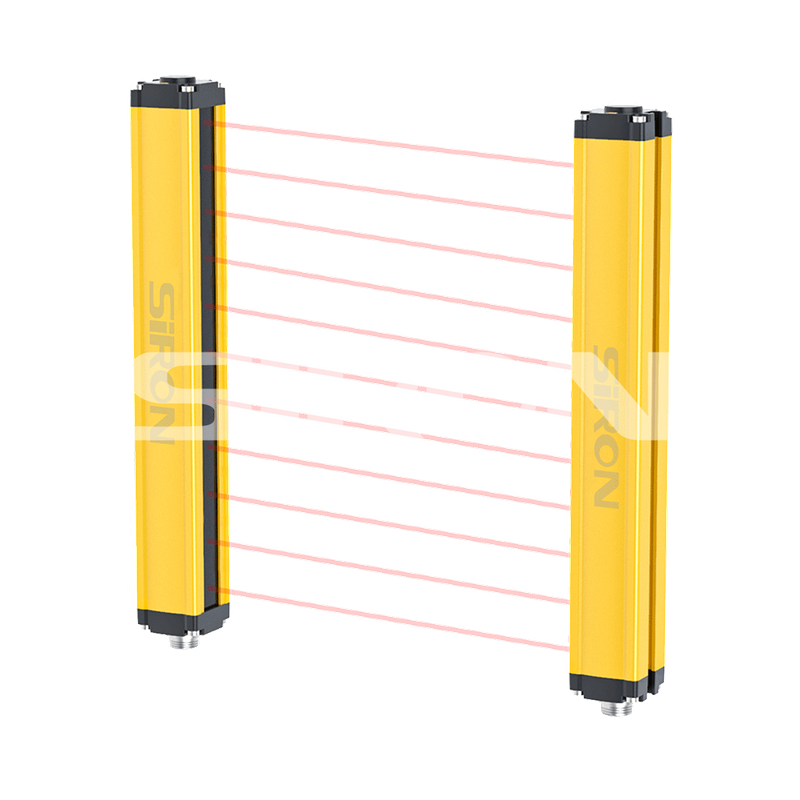

SiRON K033A Small Light Curtain

About selection

Model selection example:

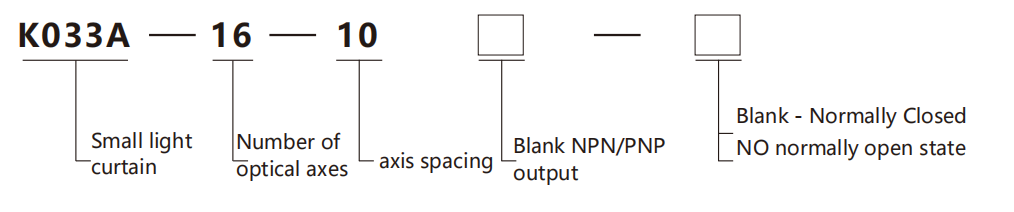

K033A-16-10 represents the K033A series. The number of optical axes is 16, and the optical axis spacing is 10mm. NPN/PNP output is normally closed.

K033A-16-10-NO represents the K033A series, with 16 optical axes and a spacing of 10 mm between optical axes, NPN/PNP output, normally open.

Note: 1. The protection distance can be customized to 6m, and the model examples are as follows:

               K033A-16-10 (D6) represents the K033A series. The number of optical axes is 16, and the optical axis spacing is                 10mm. NPN output is normally closed, and the protection distance is 6m.

Specifications

Name	Small light curtain
Appearance
Cross- sectional area	30×30mm
Number of channels	single channel
Number of optical axes	4、6、8、10axi……

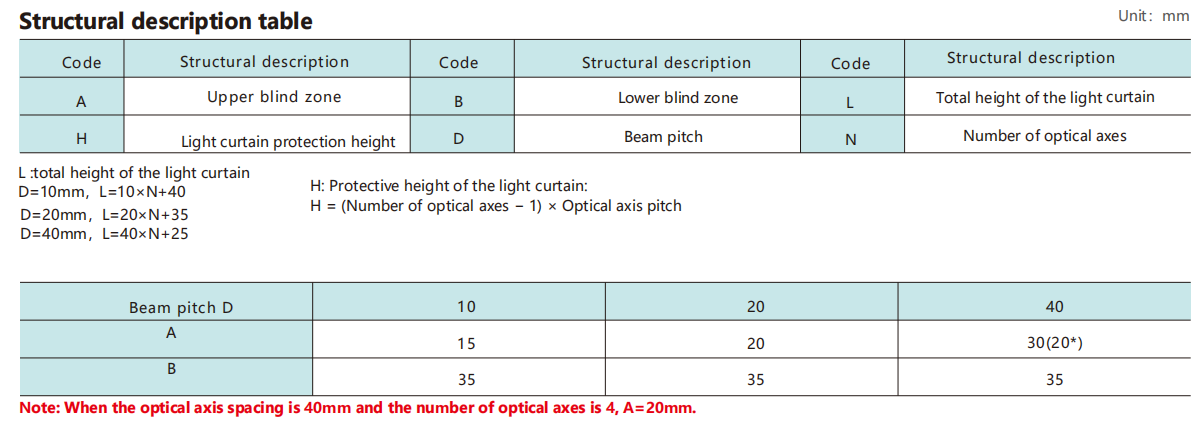

Protection height	Protection height H=(N-1)*Optical axis spacing,N is the number of optical axes
Protection distance*	0.2 to 2.5M (customizable to 6M)
Optical axis spacing	10mm/20mm/40mm
Resolution	15mm/25mm/45mm
nfrared wavelength	940nm
Power	≤15W
Power supply	DC12~24V
output current	≤100mA
Output method	NPN/PNP
Response time	4~18ms
Scan time	<18ms
Synchronicity	phototiming
Protection class	IP54
Operating temperature	-10~+55℃
Ambient temperature	-20~+70℃
Relative humidity	15%～85%
Impact resistance	10g/20ms

Example

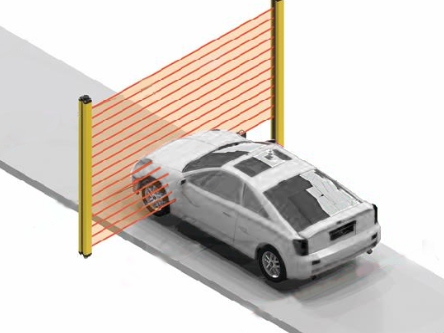

Automobile sensing detection                                                   Inspection of operation protection for stamping equipment

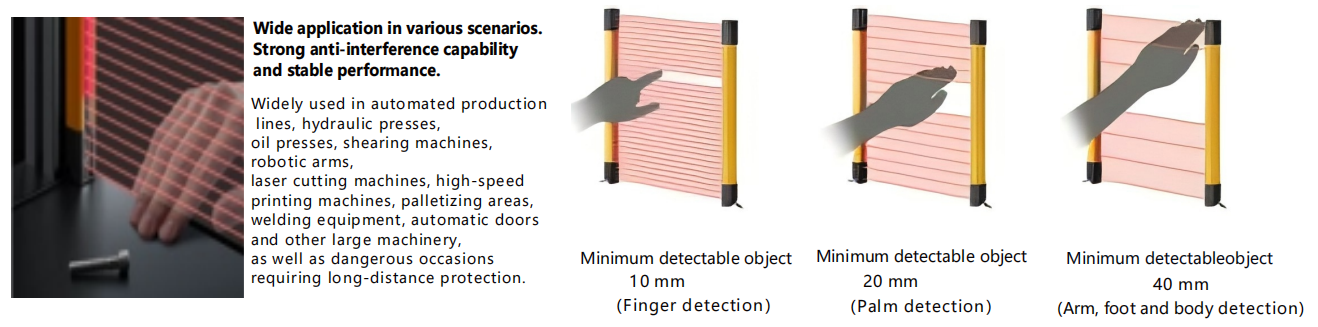

Schematic diagram of optical axis spacing

Selection list

opticlaxis spacing is 10mm(protection distance:0.2~2.5m;Customizableto 6m)

Optical axis spacing is 20mm(protection distance:0.2～2.5m;Customizable to 6m)

Opticalaxis spacing is 40mm(protection distance:0.2~2.5m,can be customize to 6m)

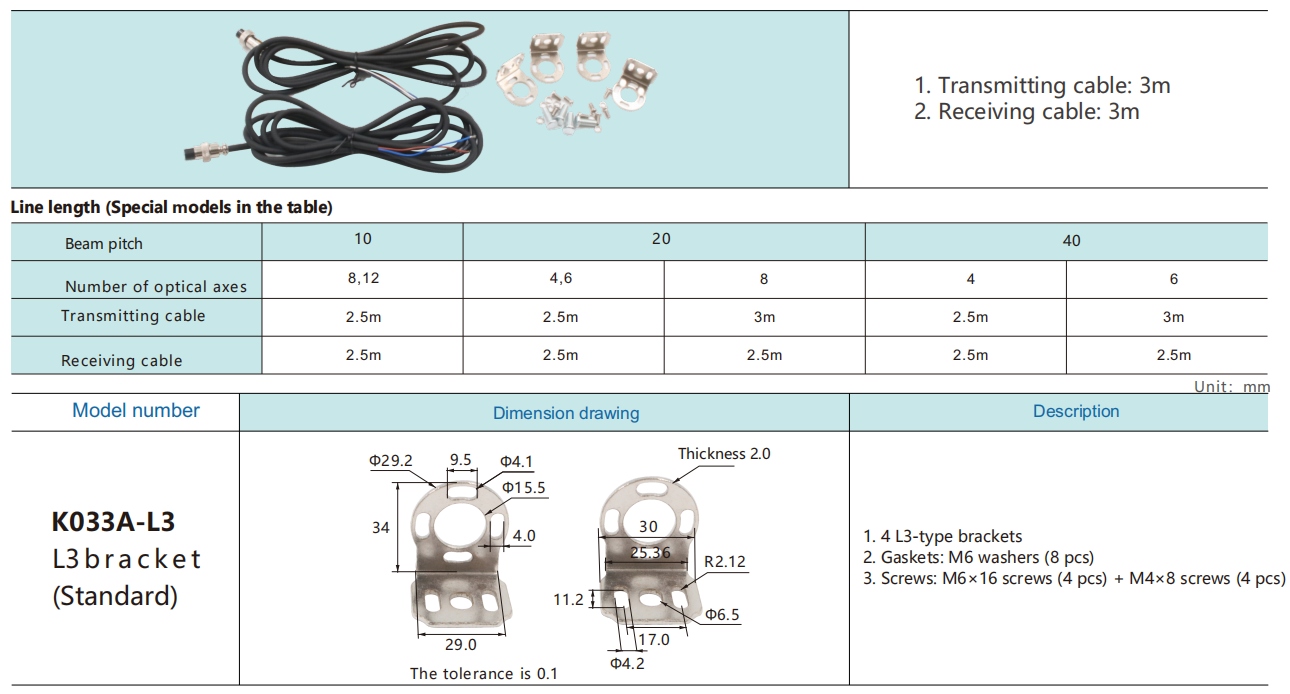

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

External drawing

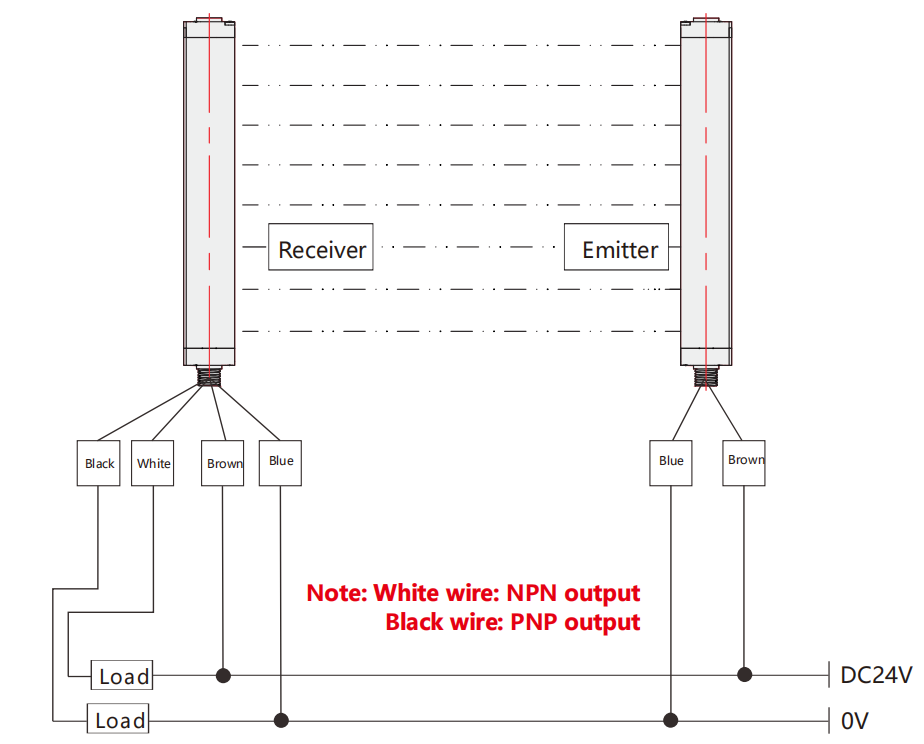

Wiring diagram
