SiRON K039-1-5/20 Obstacle Avoidance Lidar

Name: SiRON K039-1-5/20 Obstacle Avoidance Lidar
Brand: SiRON
Rating: 5.0 (59 reviews)

Features:

* Enclosure protection class Ip65;
* Built-in shutdown and restart functions, in conjunction with production line moving countermeasures;
* It has been widely applied in many fields such as autonomous driving robots, AGVs, and digital multimedia.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K039-1-5/20 series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Obstacle avoidance lidar ranging 5/20m IP65 CE certificate

Product Description

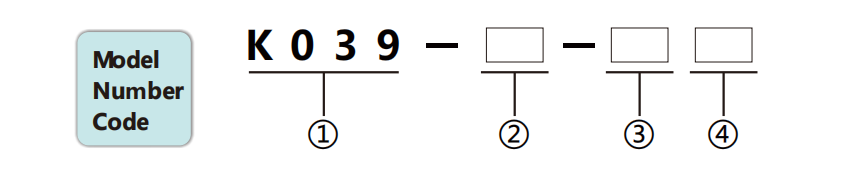

About selection


Type analysis
①	Lidar series	K039
②	Serial number	1
③	Output mo de	5:5m 20:20m
④	Output mode	Blank: NPN output P: PNP output

Model Selection Example:

K039-1-5 indicates the K039 series, serial number 1, measuring radius of 5 meters, with NPN output.

K009-1-20P indicates the K039 series, serial number 1, measuring radius of 20 meters, with NPN output.

Note: When ordering the bracket separately, the order model is: K039-5-L1 / K039-20-L1.

Specifications

Name	Obstade avoidance lidar
Model	K039-1-5		K039-1-20

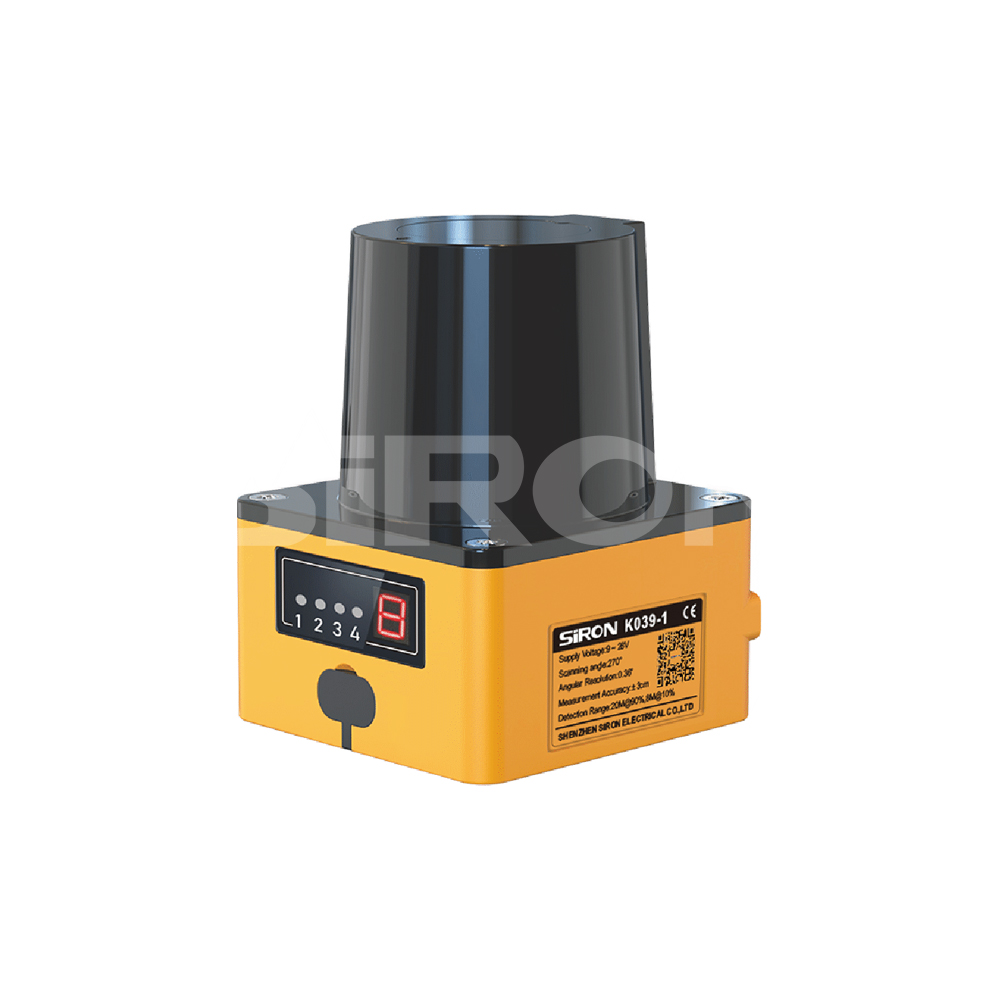

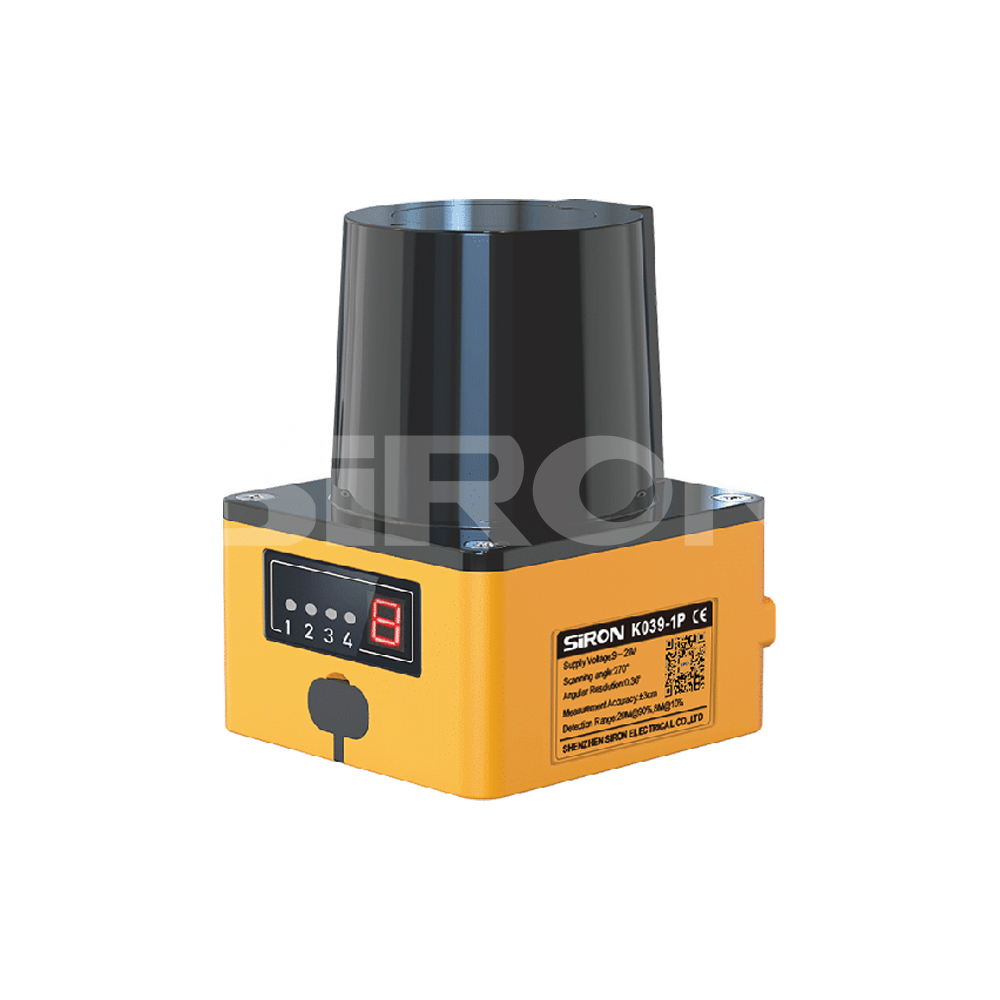

Appearance
Work area	0.05~5m		0.05~20m

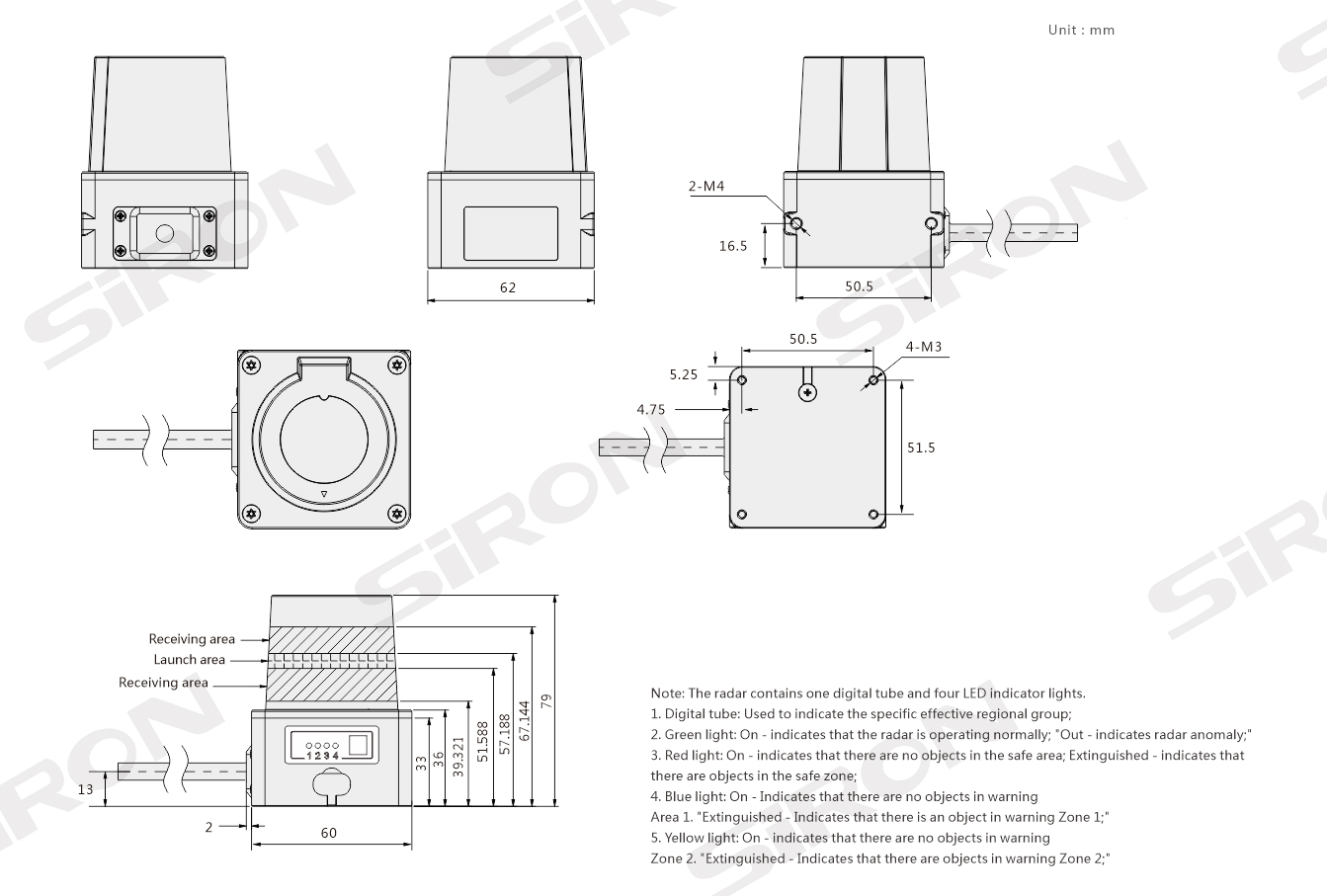

Size	50×50×76mm	Input		GND/NCx4
IO output	NPN/PNP	Switch output		NPNx3 device working status indicator x1
Laserlight source	905nm(classl)	Switch output		PNPx3 device working status indicator x1

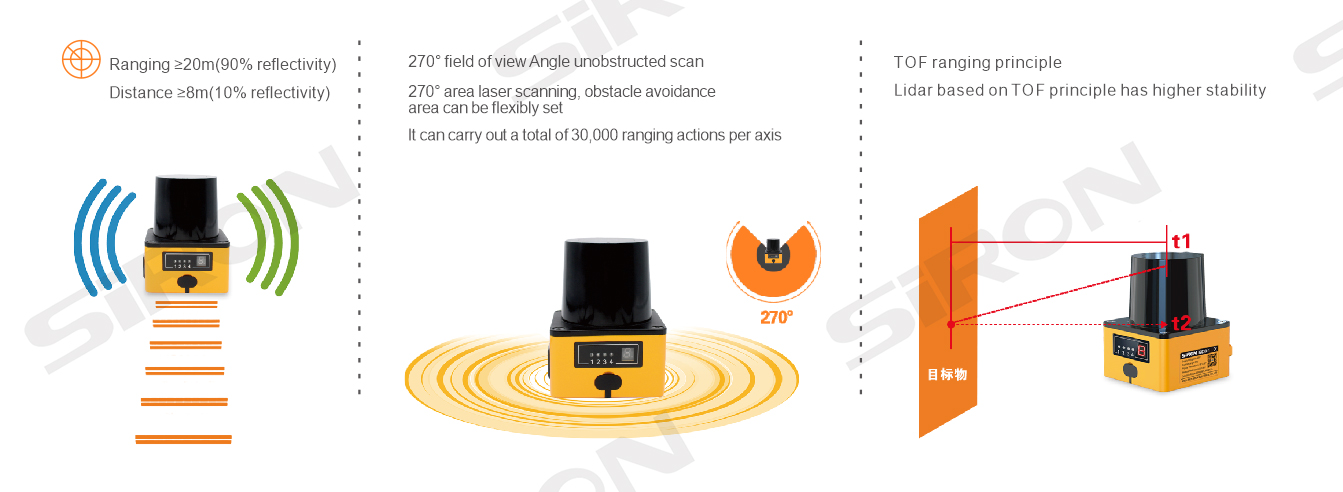

Scanning Angle range	270°	Response time		15 Hz:67 ms~29,949 ms(adjustable), with a typical value of 134 ms
Scanning frequency	15 Hz/30 Hz	Response time		30 Hz:33ms~29,997 ms(adjustable), with a typical value of 66ms
Scanning Angle resolution	0.1°/0.3°	Status indicator light		Status indicator x1, area group indicator x3

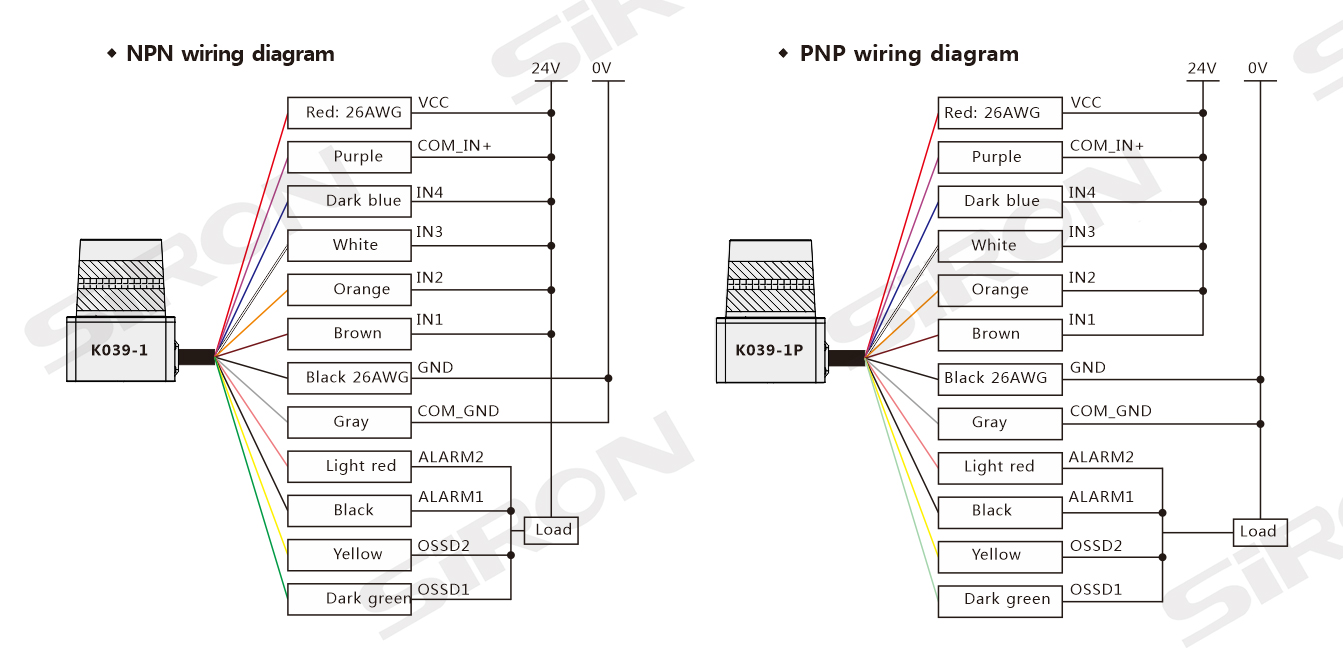

Self-learning function	Automatic environment scanning and area generation	Electrical connection		DB15 MALE/ Loose cable
Usb	Micro-USB	Power supplyvoltage		DC 9~28V
Signal output hold time	100 ms~10,000 ms(adjustable), with a typical value of 330 ms	Weight		150g,excluding cable
Power dissipation	2W	Recognizable object shapes		Almost any shape
Shell olor	Yellow	Measurement error		±30 mm
Protection grade	IP65	Working environment temperature		-10℃~+55℃
The number of regional groups	There are 16 regional groups, and each regional group contains 3 regions	Resistance to ambient light		>15,000 lux
Storage temperature range	-30℃~+75℃	Anti-vibration		10-55 Hz, amplitude 0.75 mm, XYZ three axes, 2 hours per axis 50-200 Hz, 196 m/s⊃2; (20G), scanning speed 2 min/cycle, XYZ three axes, 2 hours per axis 100000 Lux
