SiRON K031A Series Universal Light Curtain (anti-glare) Line Synchronization

About selection

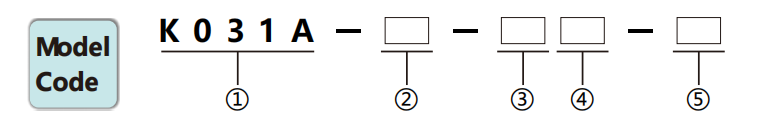

Selection example：K031A-24-20 indicates the K031A series, with 24 optical axes, an optical axis spacing of 20mm,                                               NPN output, and a normally closed state.

                                        K031A-24-20P indicates the K031A series, with 24 optical axes, an optical axis spacing of 20mm,                                            PNP output, and a normally closed state.

Noted：1.The protection distance can be customized up to 20 meters. Examples of models are as follows:

                                         K031A-24-20(D10) indicates the K031A series, with 24 optical axes, an optical axis spacing of                                                   20mm, NPN output, a normally closed state, and a protection distance of 10 meters.

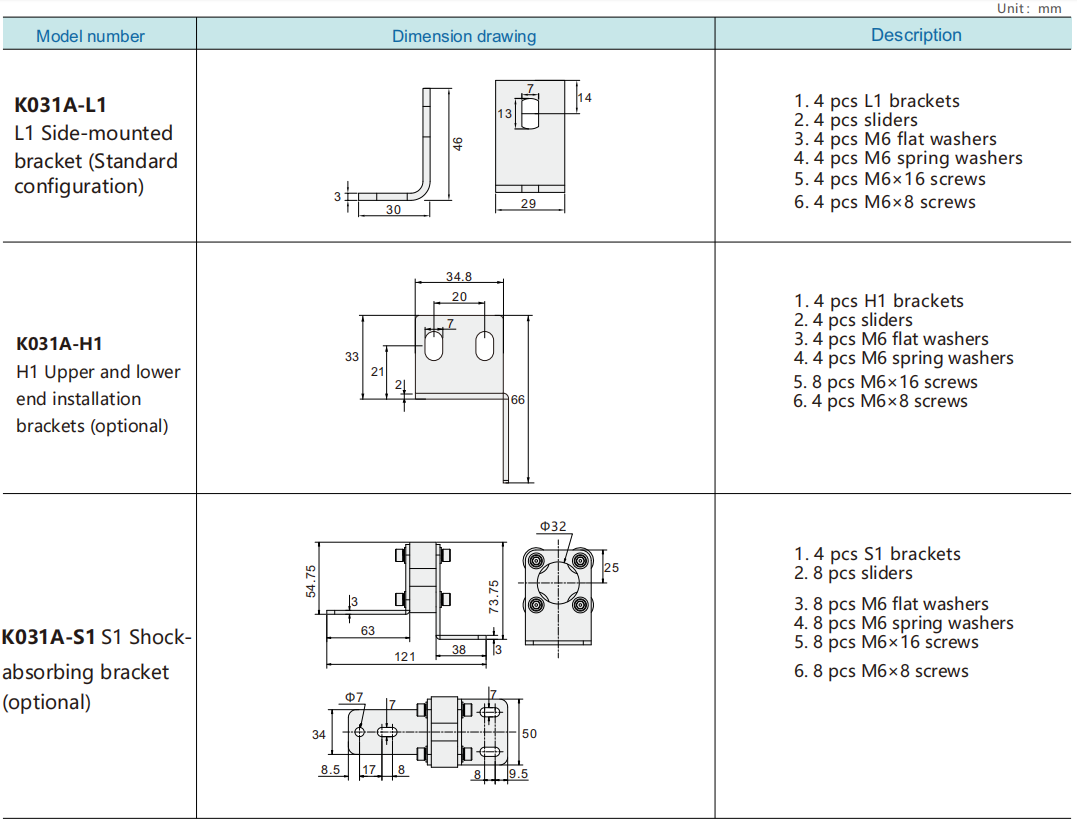

               2. When ordering brackets separately, the order models are: K031A-L1, K031A-H1, and K031A-S1.

Specifications

Name	Universal light curtain (anti-glare)

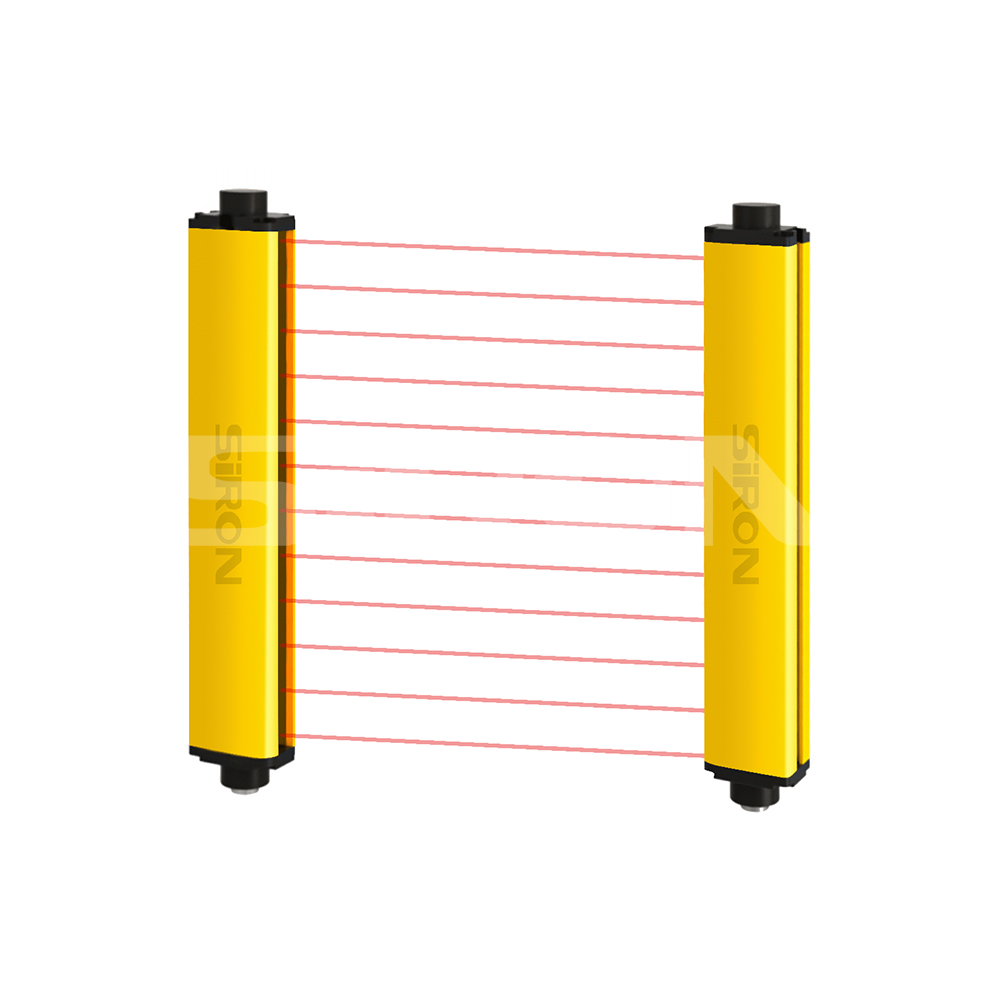

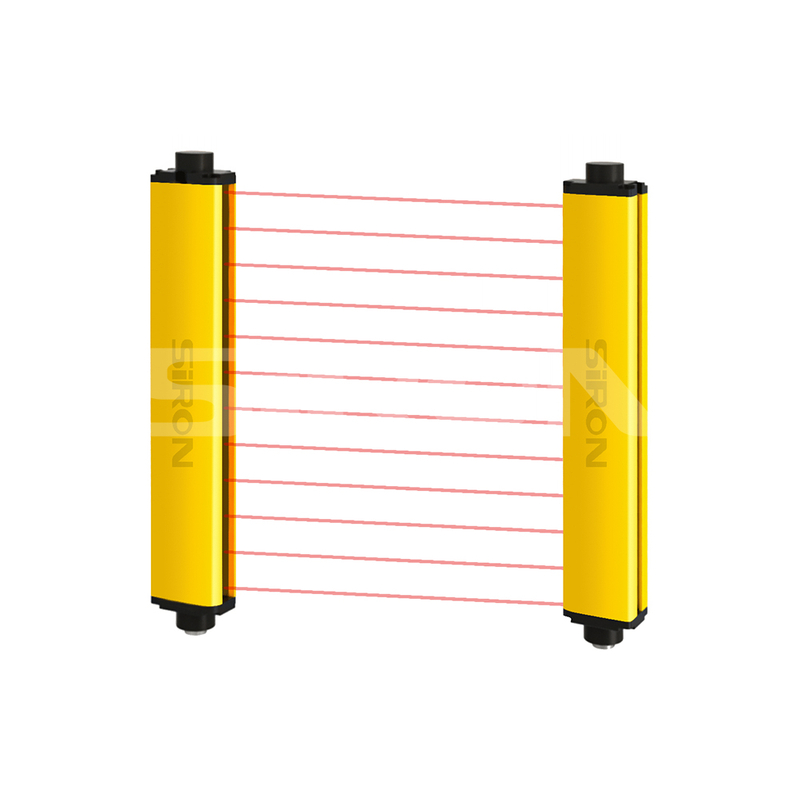

Appearance
Cross area	35×50mm
Number of channels	two-channel
Number of optical axes	8、16、24 axle ……
Protective height	The protection height H=(N-1)* the optical axis spacing, where N is the number of optical axes
Protection distance*	0 . 1~5M(Customizable up to 20M)
Optical axis spacing	20mm/40mm
Resolution	30mm/50mm
Supply voltage	DC10~30V
Power	<5W
Emission light source	940nm
Protective circuit	Power overvoltage protection, reverse polarity protection and output overcurrent protection
Response time	Response time =(N* 0.1 ms)+ 0.4 ms(where N is the number of optical axes)
Operating ambient temperature	-10~+55℃(No condensation)
Storage ambient temperature	-30~+70℃(No condensation)
Working ambient humidity	When the temperature is 20℃, the relative humidity of the air is less than 85%
Vibration resistance	Frequency: 10-55Hz, amplitude: 0.35 ± 0.05 mm, twice in each direction of X,Y, and Z
Ani-optical interference	100,000Lux (incident Angle>5°)
Output mode	NPN/PNP
Synchronous mode	line synchronization
Shell material	aluminium alloy
Case protection class	IP65
Security Output (OSSD)	NPN/PNP transistor output, load current below 200mA, residual voltage below 1V (excluding voltage drop caused by cable extension), leakage current below 1mA

Example

Equipment operation protection detection                         Equipment operation protection detection

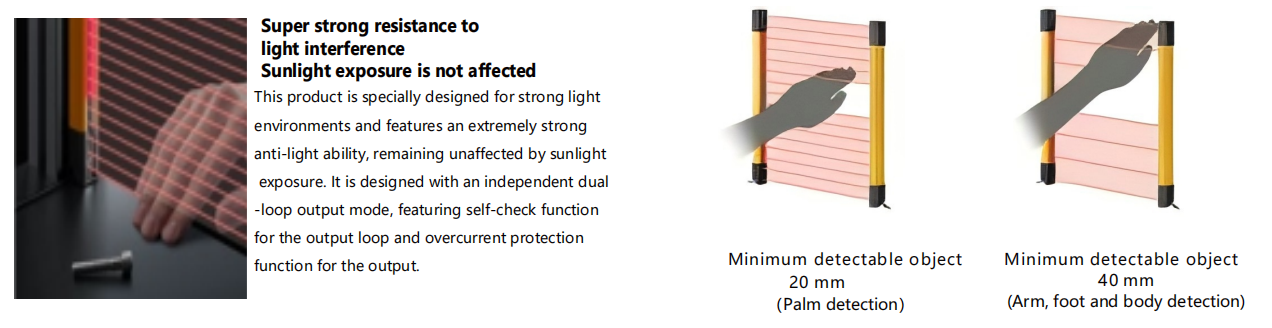

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 20mm(protection distance:0.1~5m,can be customized to 20m)

Optical axis spacing is 40mm(protection distance:0.1~5m,can be customized to 20m)

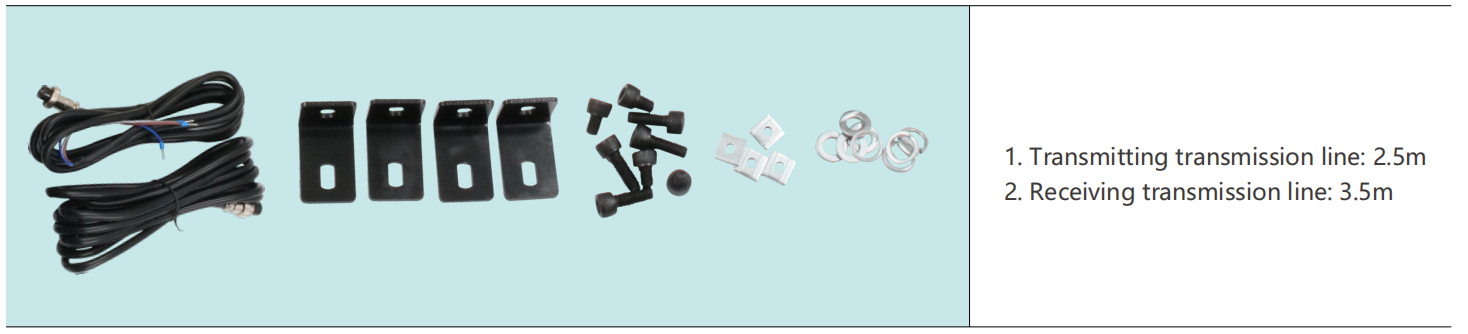

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

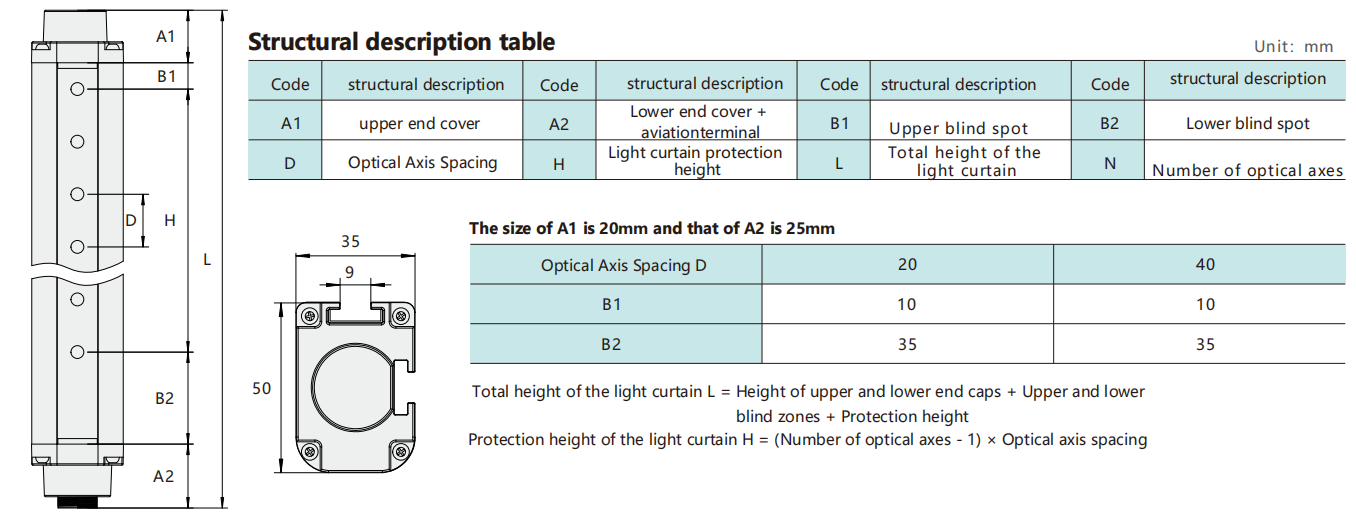

External drawing

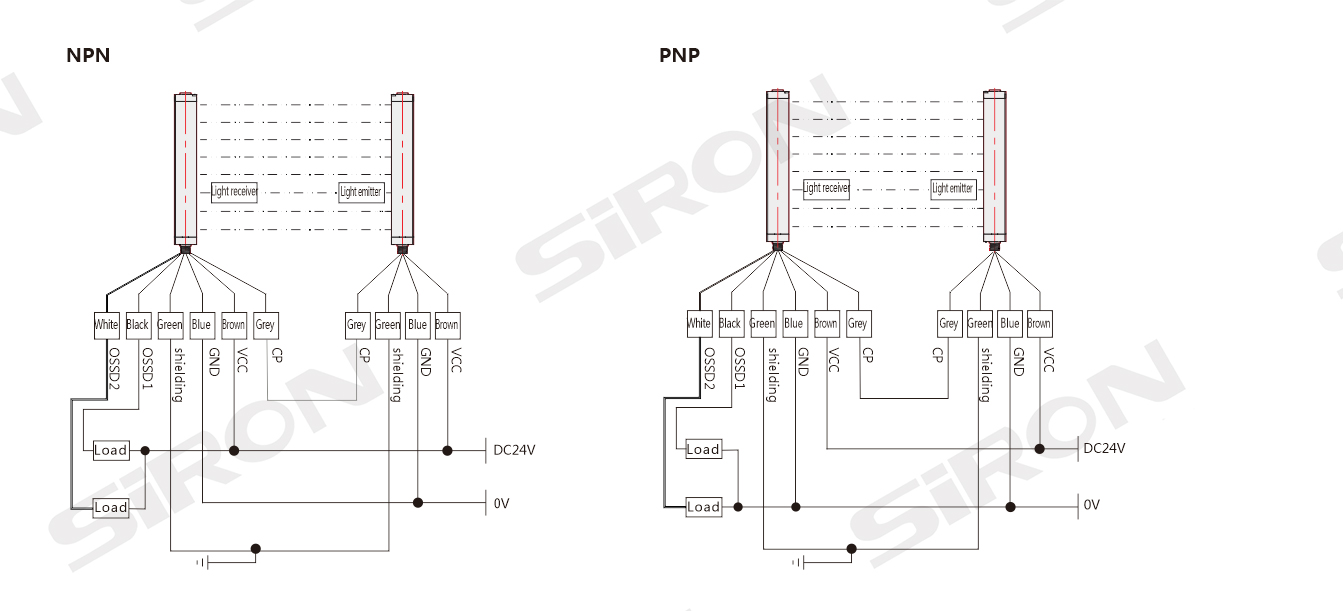

wiring diagram
