K032C series
SiRON
8543709990
About selection
![]() | ||

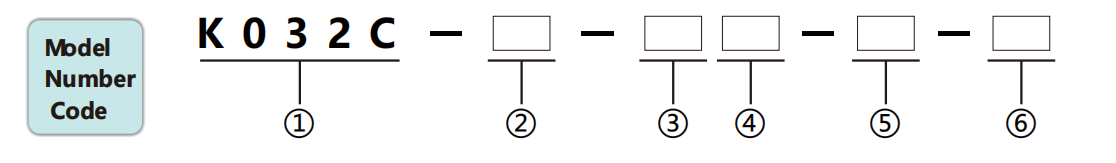

| Type analysis | ||
| ① | Ultra-thin light curtain (front detection) series | K032C |
| ② | Number of optical axes | 8:8-axis 16:16-axis 24:24 axis (For other shaft numbers, please refer to the selection table) |
| ③ | Optical axis spacing | 5:5mm 10:10mm 15:15mm 20:20mm 30:30mm 40:40mm 60:60mm |
| ④ | Output mode | Blank: NPN output P: PNP output NP: NPN+PNP output |
| ⑤ | Working condition | Blank: Normally closed state; NO: Normally open state |
| ⑥ | Synchronization mode | Blank: Line synchronization G: Optical synchronization |
election example:
K032C-16-20 represents the K032C series, with 16 optical axes, an optical axis spacing of 20mm, NPN output, normally closed state, and line synchronization.
K032c-16-20p-no-g represents the K032C series, with 16 optical axes, an optical axis spacing of 20mm, PNP output, always on state, and optical synchronization.
Note: 1. The default shipment is silver. If you need yellow, please add (Y) after the model. Examples of models are as follows:
K032c-8-10 (Y) indicates the K032C series, with 8 optical axes, an optical axis spacing of 10mm, NPN output, normally closed state, line synchronization, and a yellow housing.
K032c-8-10p-no-g (Y) indicates the K032C series, with 8 optical axes, an optical axis spacing of 10mm, PNP output, always on state, optical synchronization, and a yellow housing.
2. Only optical synchronization can be optionally equipped with NPN+PNP output.
Specifications
Name | UItra-thin light curtain (front delection) |

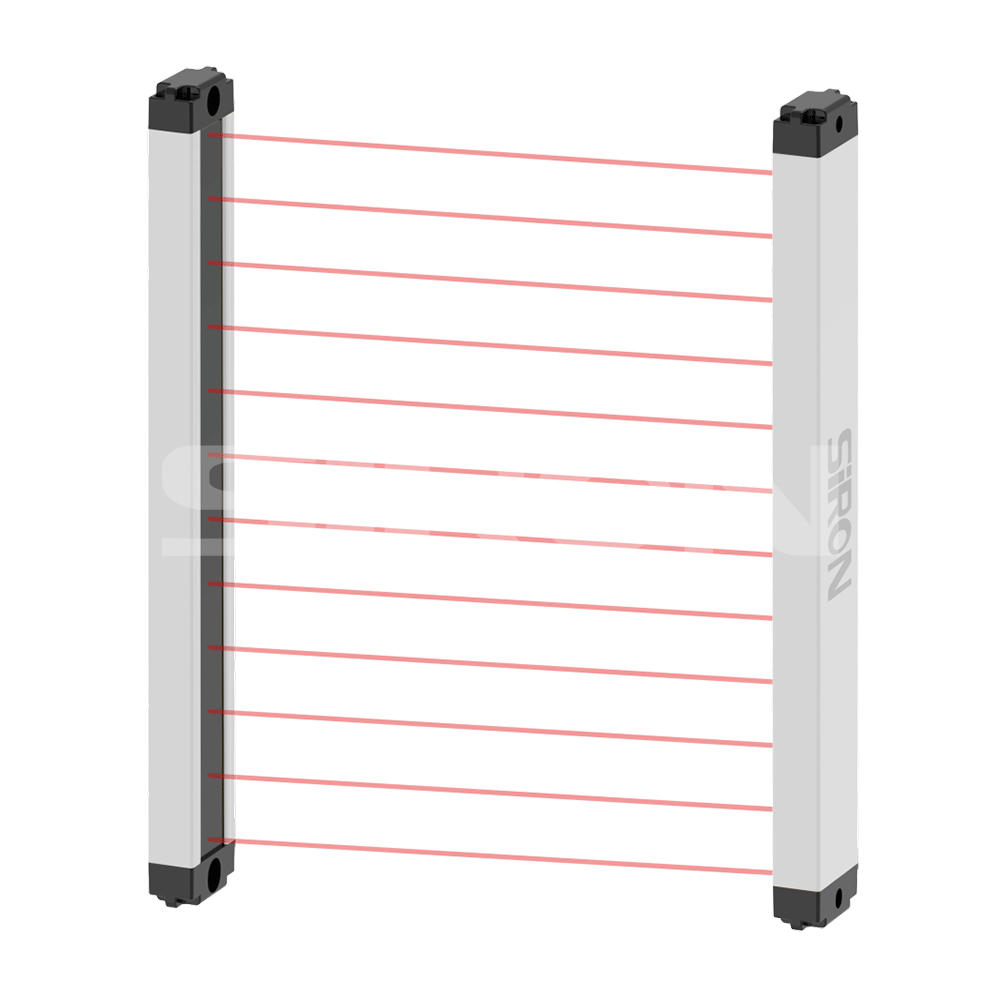

Appearance | ![]() ![]() |

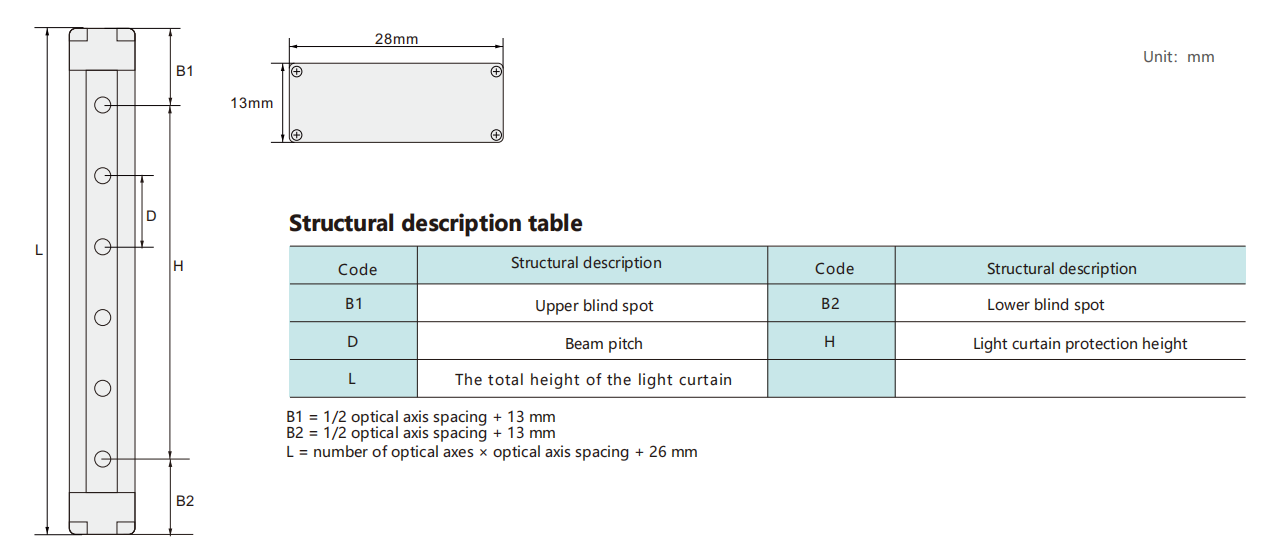

Cross ara | 28×13mm |
Number of channels | Single-channel, dual-channel |
Number of optical axes | 4、6、8、10……256 axis |
Protective height | Optical axis spacing X(number of optical axes -1) |
Protection distance* | 0.2~2M |
Optical axis spacing | 5mm/10mm/15mm/20mm/30mm/40mm/60mm |
Power | 3~8W |
Power supply | 24V±10% |
Output method | NPNP/NP |
Response time | ≤15ms |
Resistance to insulatfion | ≥100M2 |
Synchronicity | Line synchronization/optical synchronization |
Protection class | IP53 |
Operating temperature | -10~+55℃ |
Temperature of storage | -40~+70℃ |
Working humidity | 35%RH~85%RH |
Resistance to light interference | 10000Lux |
| Protection of circuit | Reverse connection protection/output short circuit protection |
| Light curtain form | through-beam type |
