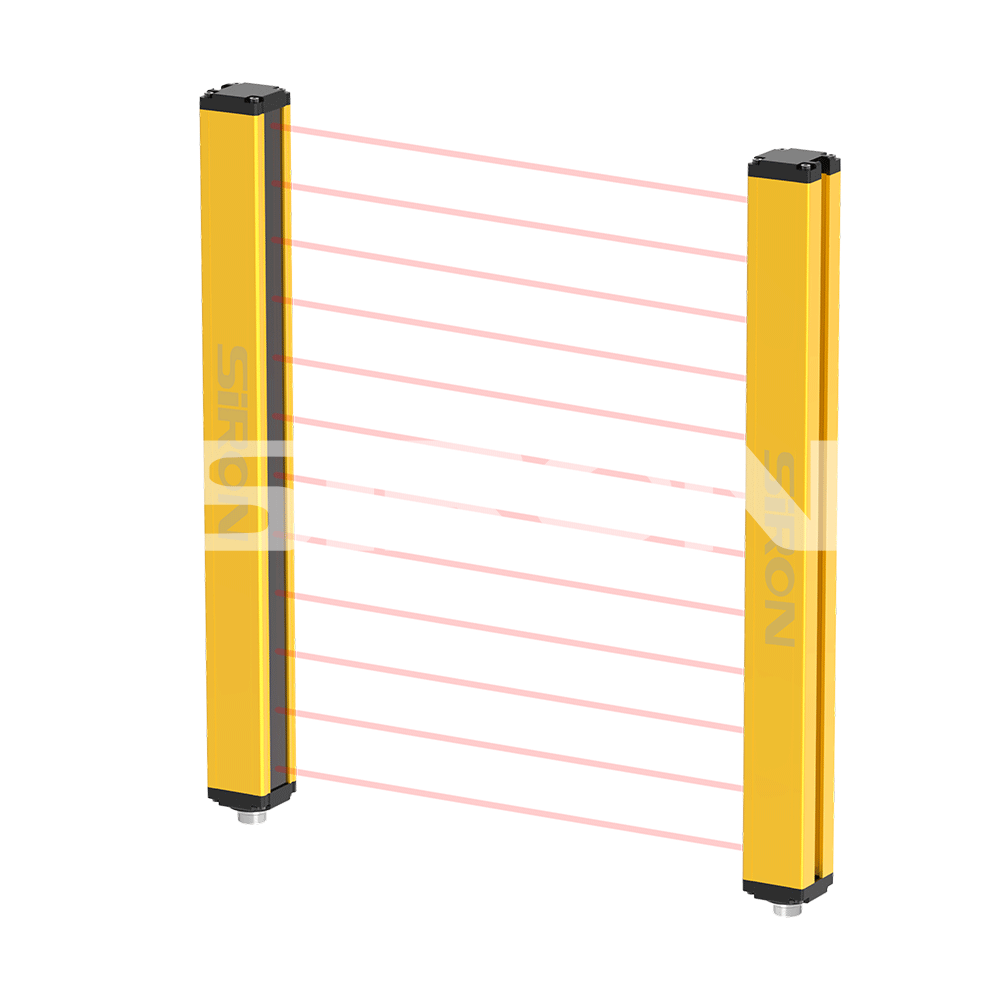

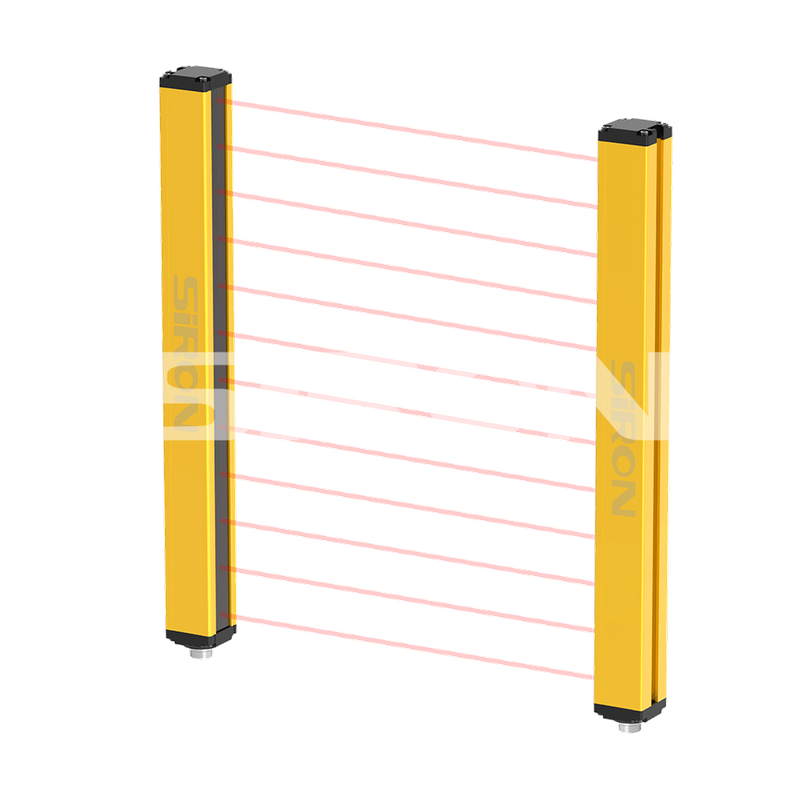

SiRON K033C Series Small Light Curtain

About selection

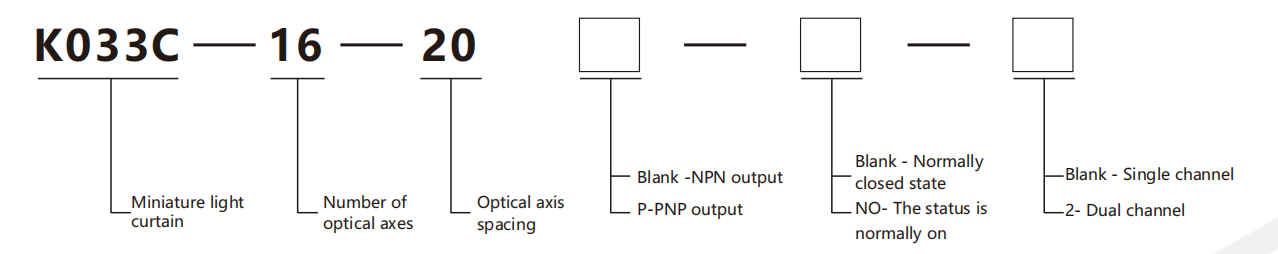

Selectionexample: K033C-16-20 indicatesthe K033C series, thenumberofopticalaxesis 16 axes,  the optical                                                            axis spacing is                                 20mm, NPN output, normally closed state, single channel.

                                     K033c-16-20p-no-2 indicatesthe K033C series, thenumberofopticalaxesis 16 axes,                                                                       the optical axis spacing is 20mm, PNP output, Normallyopen, dual channel.

Note: 1, the protection distance can be customized to 30m(optical axis spacing 10/20/40/60mm), model examples are                  as follows:

                K033C-16-20(D10) K033C series, the number of optical axes is 16 axes, the optical axis spacing is 20mm, NPN                    output, normally closed state,The protection distance is 10m.

            2, when ordering the support separately, the order model is: K033C-L1, K033C-L2.

Specifications

Name	Smalllight curtain
Appearance
Cross-sectional area	35×35mm	Resistance to insulation	≥100MΩ
Number of channels	Single   channel,double   channel	Response time	line locking
Number of optical axes	4、6、8、10……	Scan time	IP65
Protection height	Protection height H=(n-1)*optical axis spacing,N is the number of optical axes	Synchronicity	-10～+55℃
Protection distance*	0.2～3M   (Spacing   10/20/40/60mm   can   be   customized   to   30M)	Temperature of storage	-40～+70℃
Optical axis spacing	5mm/10mm/20mm/40mm/60mm	Working humidity	35%RH~85%RH
Power	3～8W	Resistance to light interference	10000Lux
Power supply	24V±10%	Protection of circuit	Reverse protection/output short circuit protection
Output method	NPN/PNP	Light curtain form	Relative expression
Response time	≤10ms

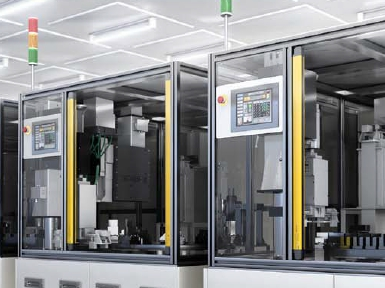

Example

       Application on die-casting machines                                                     Application on die-casting machines

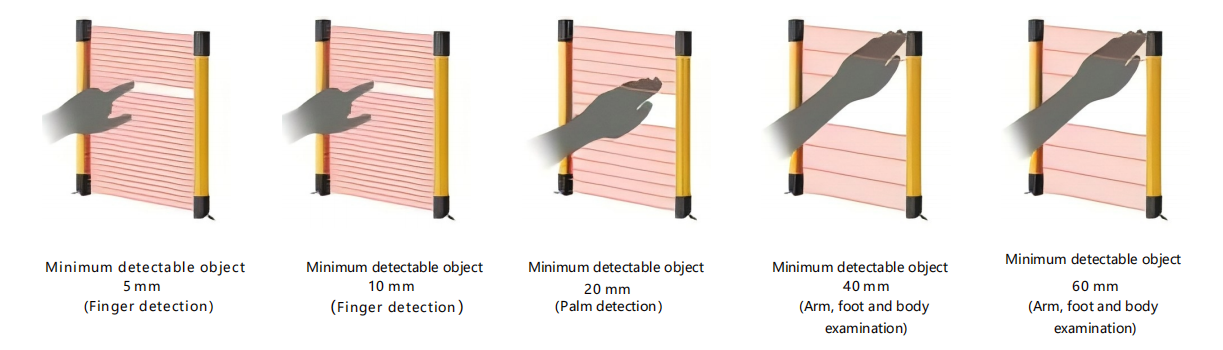

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 5mm (protection distance: 0.2 ~ 3m)

Optical axis spacing is 10mm (protection distance: 0.2 ~ 3m; Can be customized to 30m)

Optical axis spacing	10mm
Number of optical axis	4	6	8	1 0	1 2	14	1 6	1 8	2 0	22	24	2 6	28	30	3 2	3 4	36	38
Protection height(mm)	30	50	70	90	110	130	150	170	190	210	230	250	270	290	310	330	350	370
Light curtain height(mm)	141	141	161	181	201	221	241	261	281	301	321	341	361	381	401	421	441	461

Optical axis spacing	10mm
Number of optical axis	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72
Protection height(mm)	390	410	430	450	470	490	510	530	550	570	590	610	630	650	670	690	710
Light curtain height(mm)	481	501	521	541	561	581	601	621	641	661	681	701	721	741	761	781	801

Optical axis spacing is 20mm (protection distance: 0.2 ~ 3m; Can be customized to 30m)

Optical axis spacing	20mm
Number of optical axis	4	6	8	1 0	1 2	14	1 6	1 8	2 0	22	24	2 6	28	30	3 2	3 4	36	38
Protection height(mm)	60	100	140	180	220	260	300	340	380	420	460	500	540	580	620	660	700	740
Light curtain height(mm)	161	201	241	281	321	361	401	441	481	521	561	601	641	681	721	761	801	841

Optical axis spacing	10mm
Number of optical axis	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72
Protection height(mm)	780	820	860	900	940	980	1020	1060	1100	1140	1180	1220	1260	1300	1340	1380	1420
Light curtain height(mm)	881	921	961	1001	1041	1081	1121	1161	1201	1241	1281	1321	1361	1401	1441	1481	1521

Optical axis spacing is 40mm (protection distance: 0.2 ~ 3m; Can be customized to 30m)

Optical axis spacing is 60mm (protection distance: 0.2 ~ 3m; Can be customized to 30m)

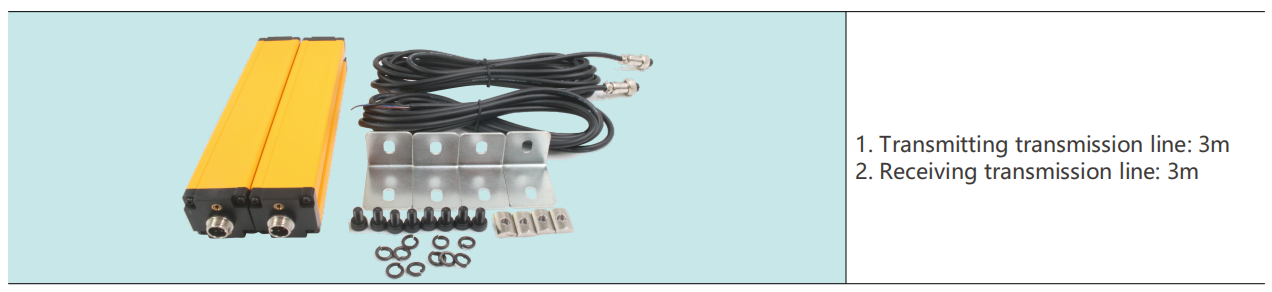

Attachments

1. Transmitting transmission line: 3m 2. Receiving transmission line: 3m

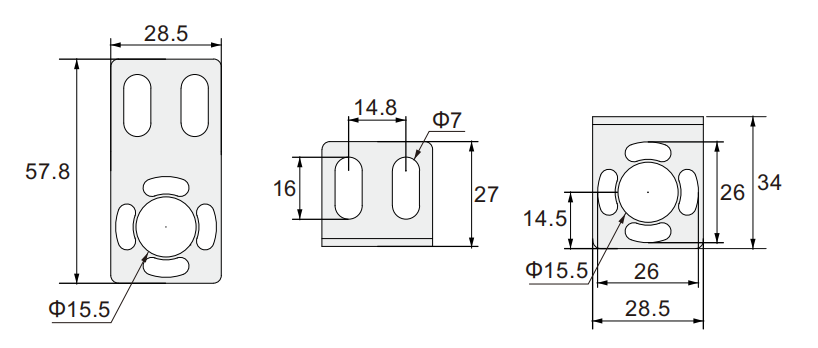

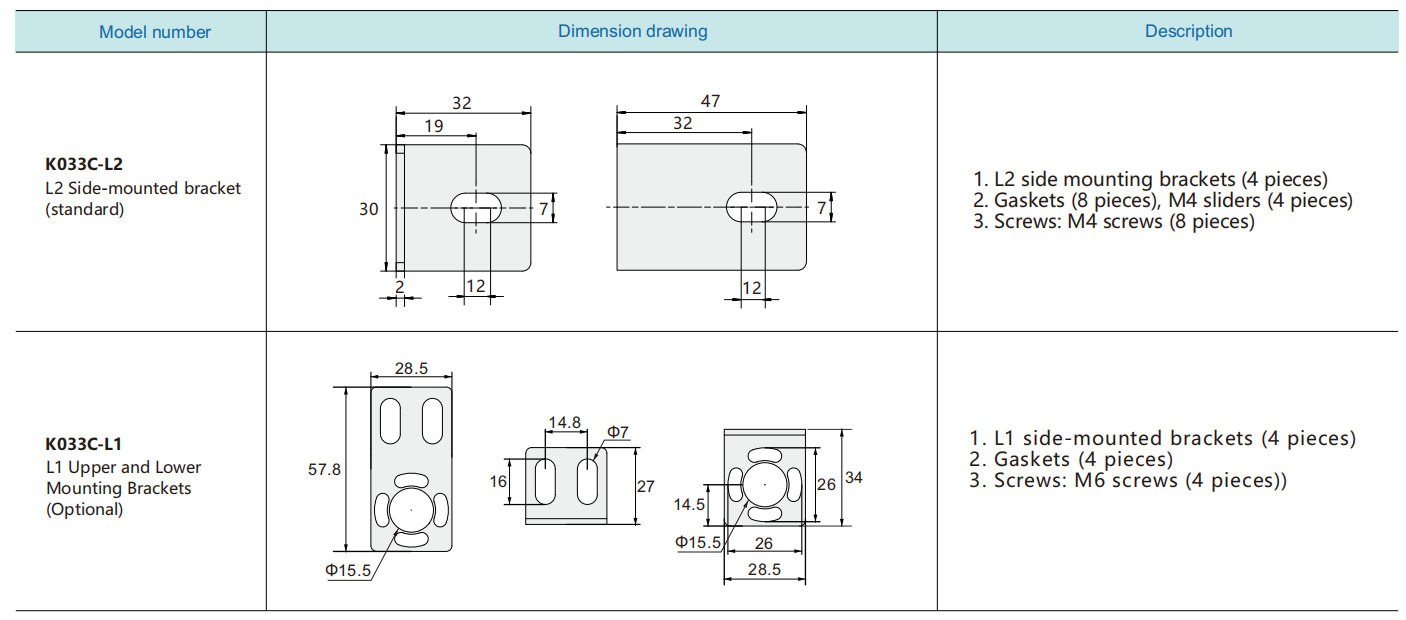

Model number	Dimension drawing	Description
K033C-L2 L2  Side-mounted bracket (standard configuration)		1. L2 side mounting brackets (4 pieces) 2. Gaskets (8 pieces), M4 sliders (4 pieces) 3. Screws: M4 screws (8 pieces)
K033C-L1 L1  Upper and Lower Mounting Brackets (Optional)		1. L1 side-mounted brackets (4 pieces) 2. Gaskets (4 pieces) 3. Screws: M6 screws (4 pieces)

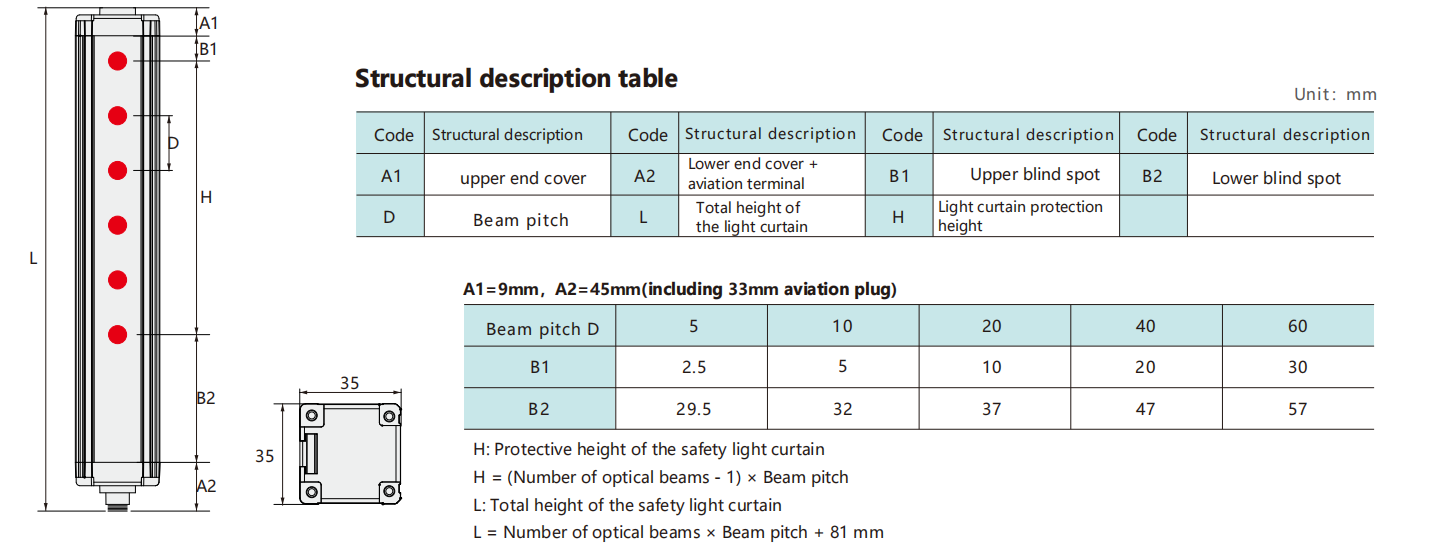

Structure Description Table

A1=9mm, A2=45mm (including 33mm aviation plug)

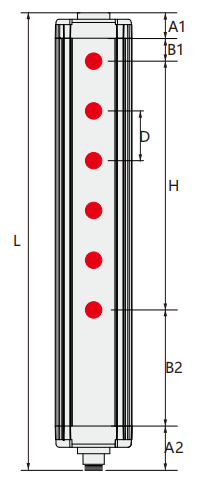

External drawing

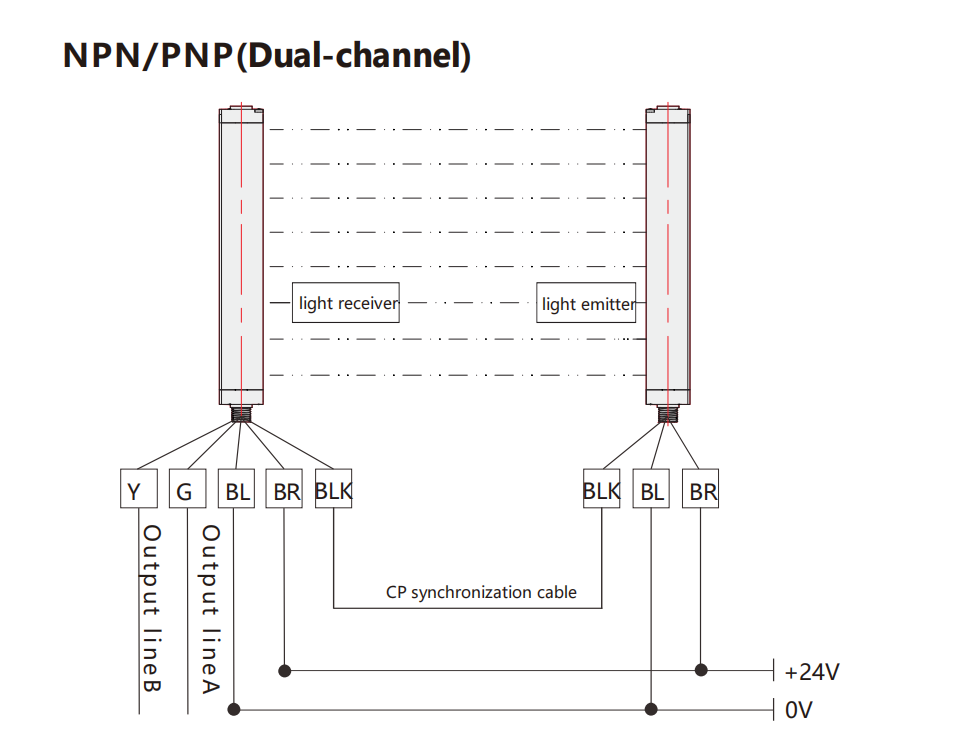

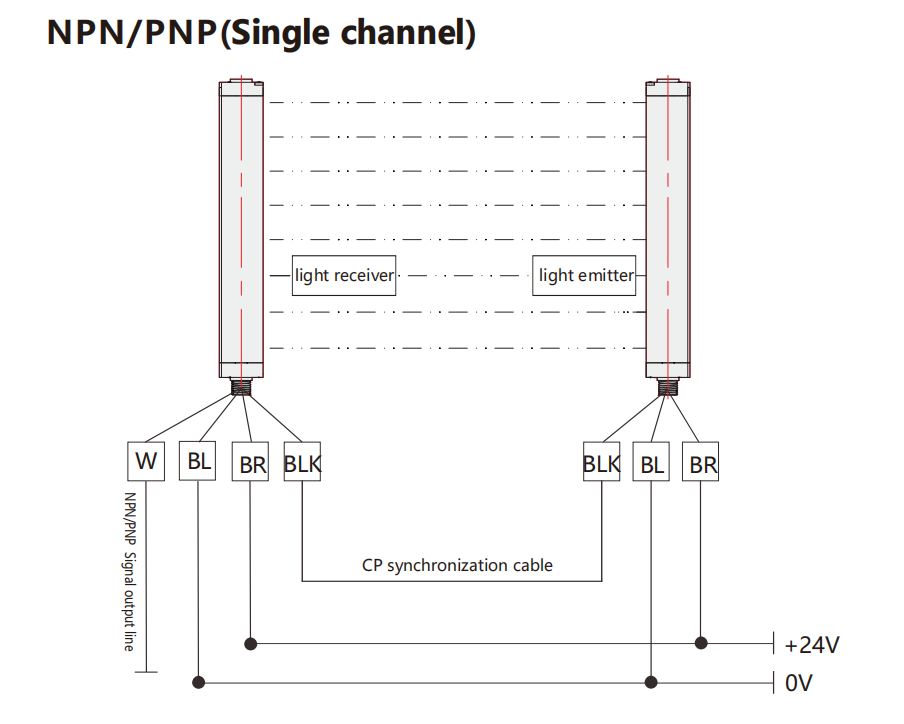

Distribution diagram
