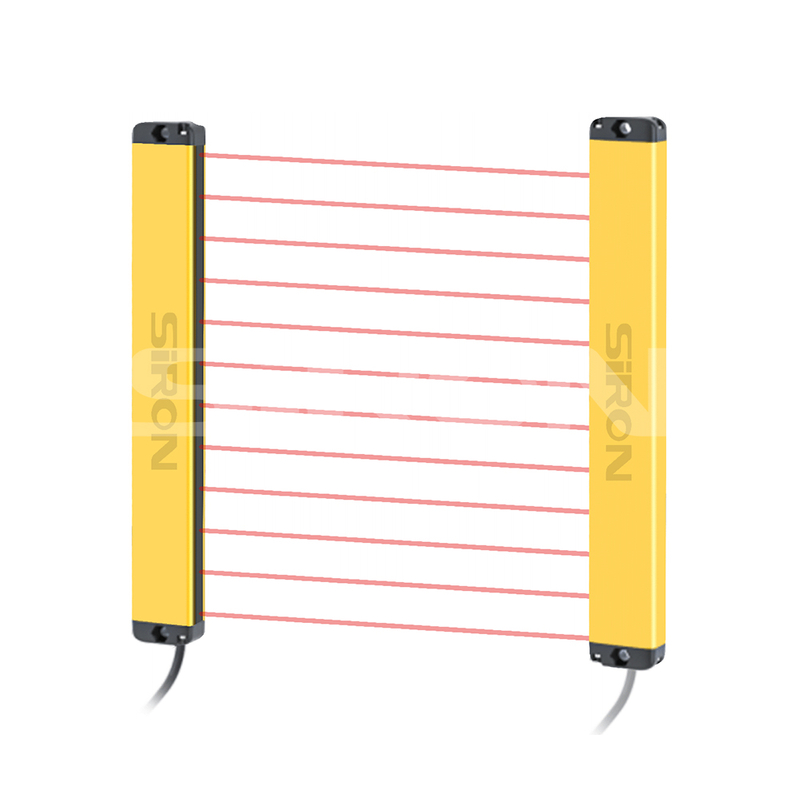

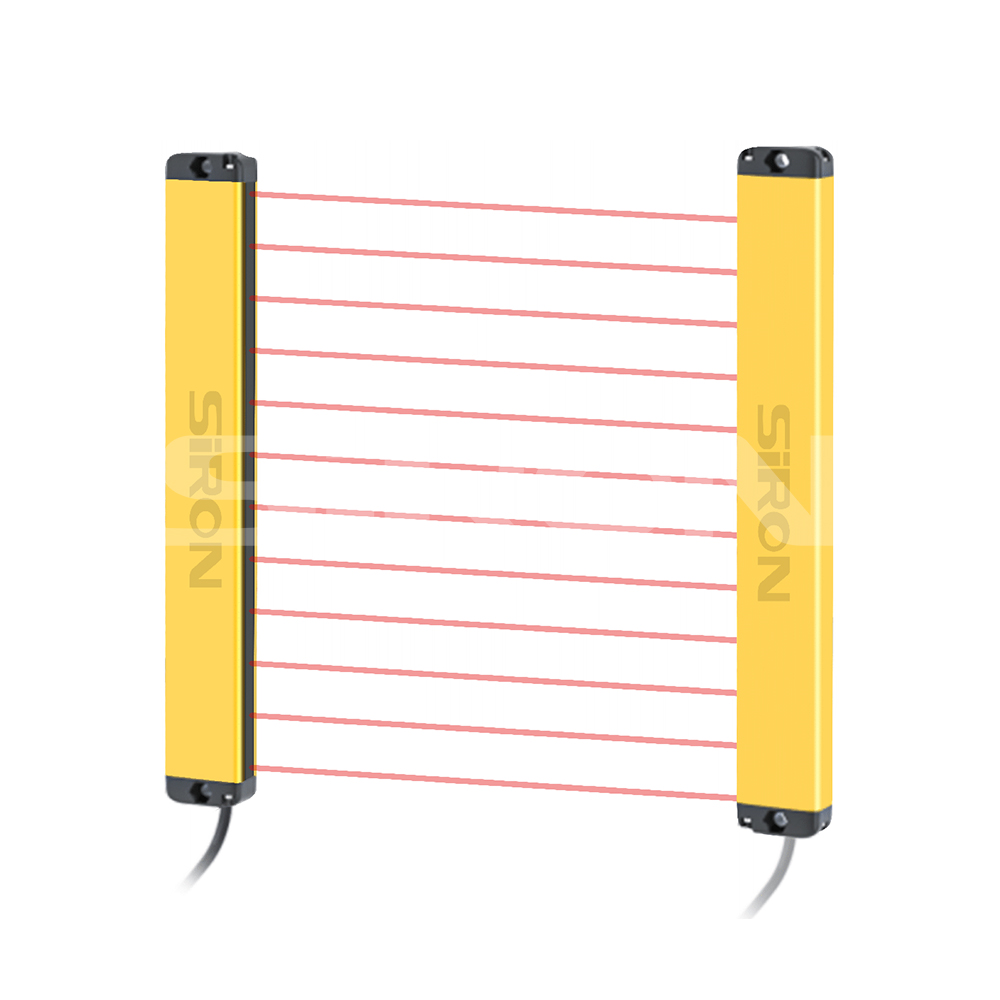

SiRON K035 Series Ultra Thin Light Curtain Side Detection

Name: SiRON K035 Series Ultra Thin Light Curtain Side Detection
Brand: SiRON
Rating: 5.0 (60 reviews)

Features:

*Ultra thin appearance, saving installation space, less blind area in the same protection space;

* Optical synchronization technology, strong electromagnetic interference resistance;

* Direct outgoing line, light curtain transmitting and receiving units can be powered independently;

* Real time self inspection, alarm and shutdown immediately in case offailure.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K035 series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Ultra Thin Light Curtain Side Detection Stable property Photo timing IP54

Product Description

About selection

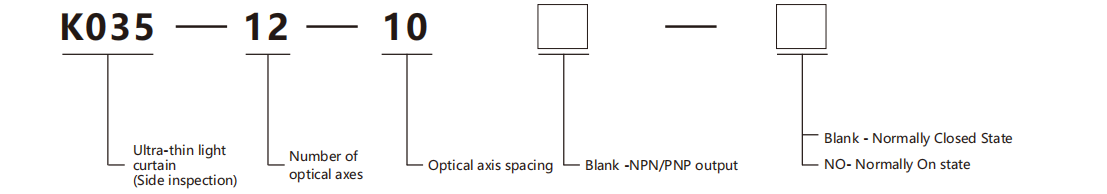

Selection example: K035-12-10 indicates the K035 series, the number of optical axes is 12 axes, the optical axis spacing is 10mm, NPN/PNP output, normally closed state.

K035-12-10-no indicates the K035 series, the number of optical axes is 12 axes, the optical axis spacing is 10mm, NPN/PNP output, normally open state.

Specifications

Name	Ultra thin light curtain (side detection)
Appearance
Cross-sectional area	29×14mm	Output current	≤100mA
Number of channels	single channel	Output method	NPN/PNP
Number of optical axes	4、6、8、10……	Response time	4~18ms
Protection height	Protection height H=(n-1)*optical axis spacing,N is the number of optical axes	Scan time	<18ms
Protection distance*	Axis number 0.2～2.5M	Synchronicity	phototiming
Optical axis spacing	10mm/20mm/40mm	Protection class	IP54
Resolution	15mm/25mm/45mm	Operating temperature	-10~+55℃
Infrared wavelength	940nm	Ambient temperature	-20～+70℃
Power	≤15W	Relative humidity	15%～85%
Power supply	DC12~24V	Impact resistance	10g/20ms

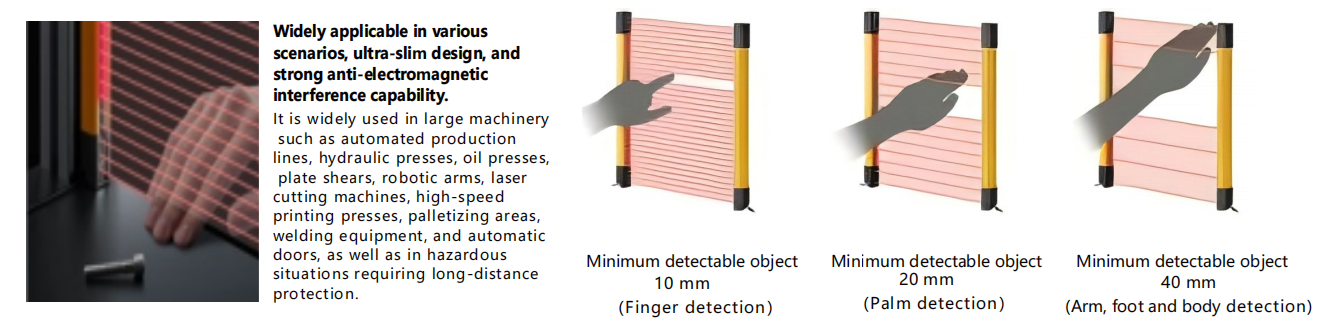

Example

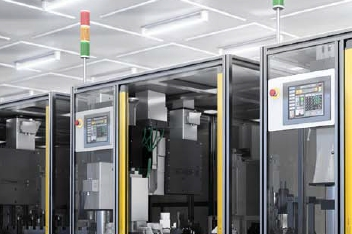

Application on die-casting machines Application on die-casting machines

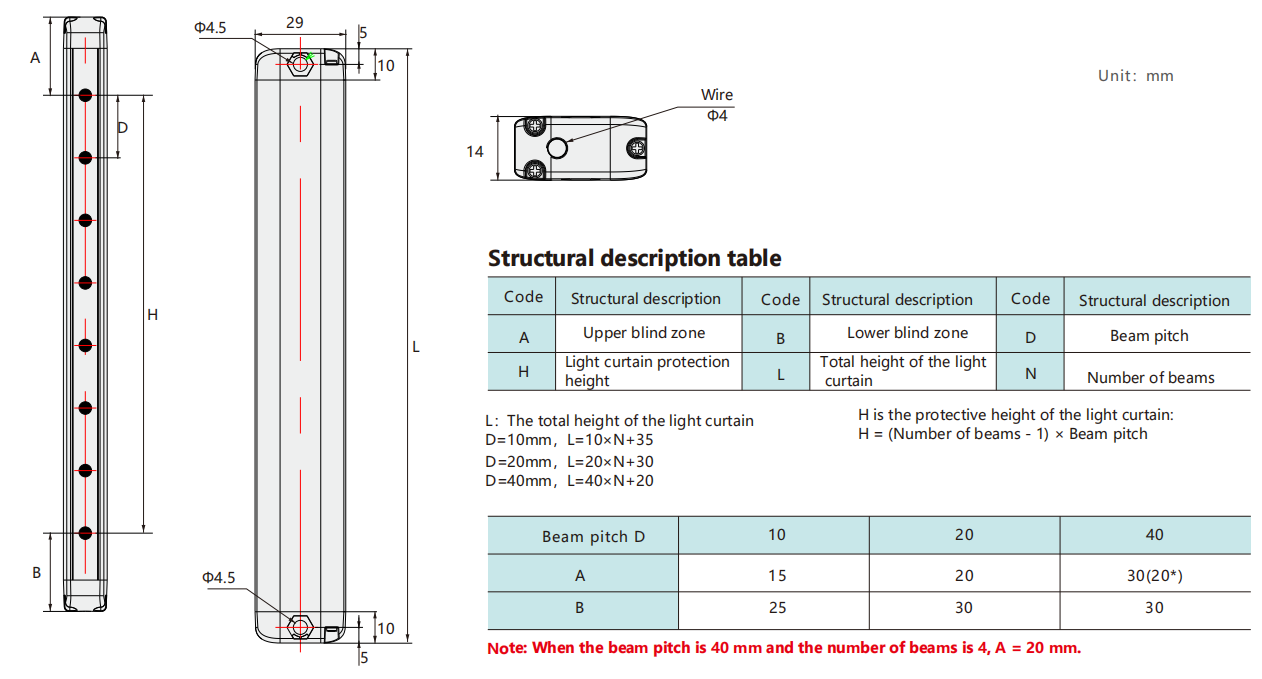

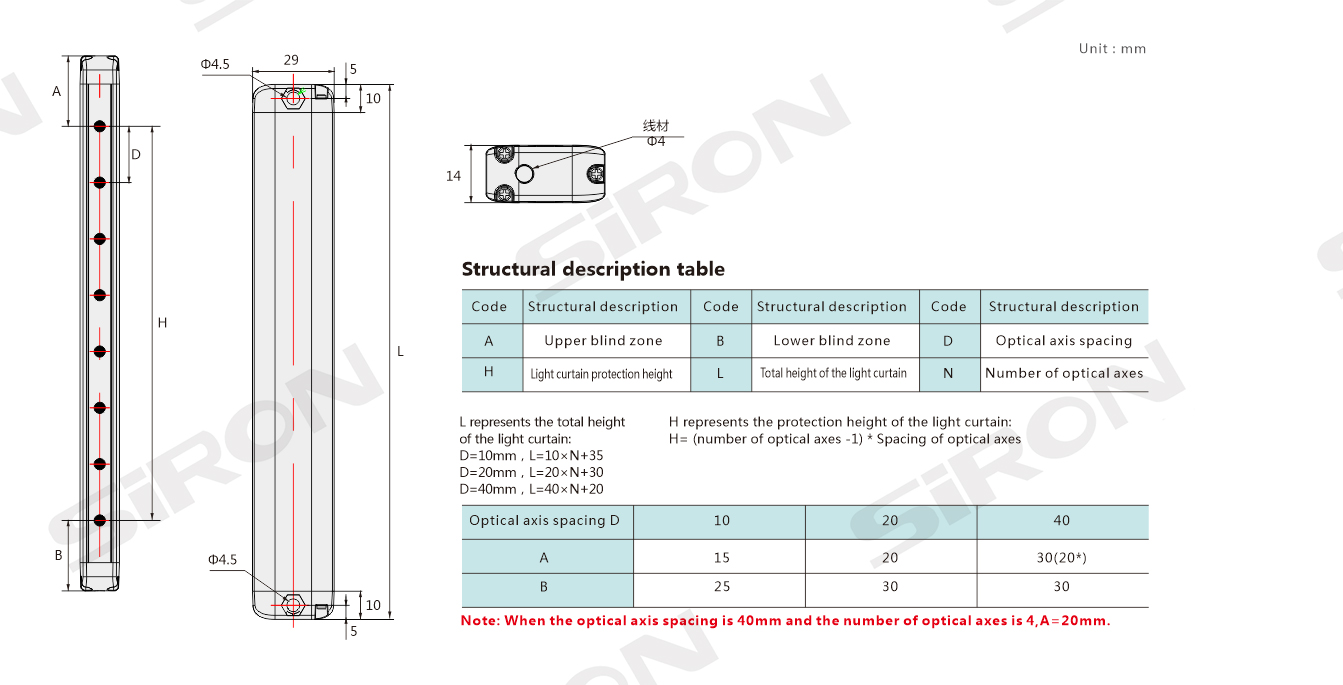

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (protection distance: 0.2 ~ 2.5m)

Optical axis spacing	10mm
Number of optical axis	8-axis	12-axis	16-axis	20-axis	24-axis	28-axis	32-axis	36-axis	40-axis	44-axis	48-axis	52-axis	56-axis	60-axis	64-axis
Protection height(mm)	70	110	150	190	230	270	310	350	390	430	470	510	550	590	630
Light curtain height(mm)	110	150	190	230	270	310	350	390	430	470	510	550	590	630	670

Optical axis spacing is 20mm (protection distance: 0.2 ~ 2.5m)

Optical axis spacing	20mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis	32-axis	34-axis	36-axis	38-axis	40-axis
Protection height(mm)	60	100	140	180	220	260	300	340	380	420	460	500	540	580	620	660	700	740	780
Light curtain height(mm)	110	150	190	230	270	310	350	390	430	470	510	550	590	630	670	710	750	790	830

Optical axis spacing is 40mm (protection distance: 0.2 ~ 2.5m)

Optical axis spacing	40mm
Number of opical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis	32-axis	34-axis	36-axis
Protection height(mm)	120	200	280	360	440	520	600	680	760	840	920	1000	1080	1160	1240	1320	1400
Light curtain height(mm)	170	260	340	420	500	580	660	740	820	900	980	1060	1140	1220	1300	1380	1460

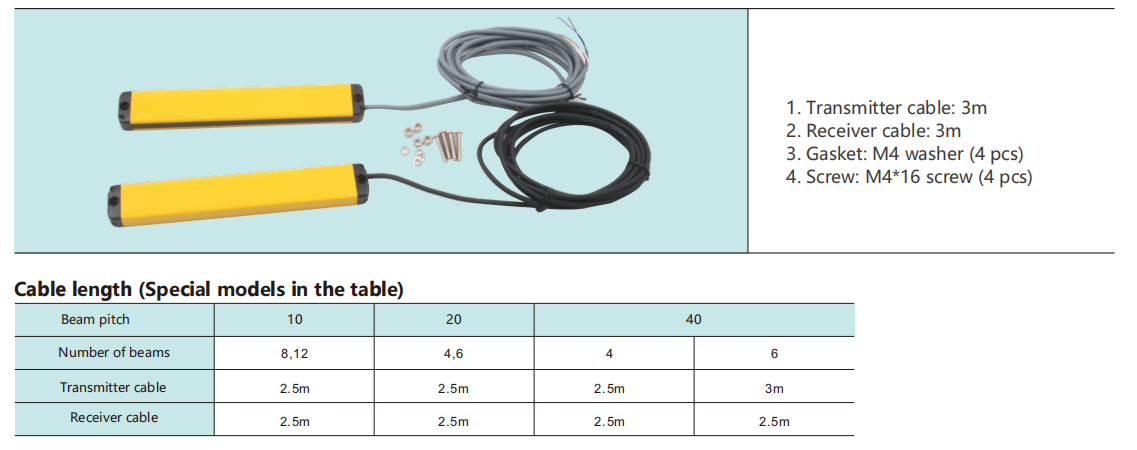

Attachments

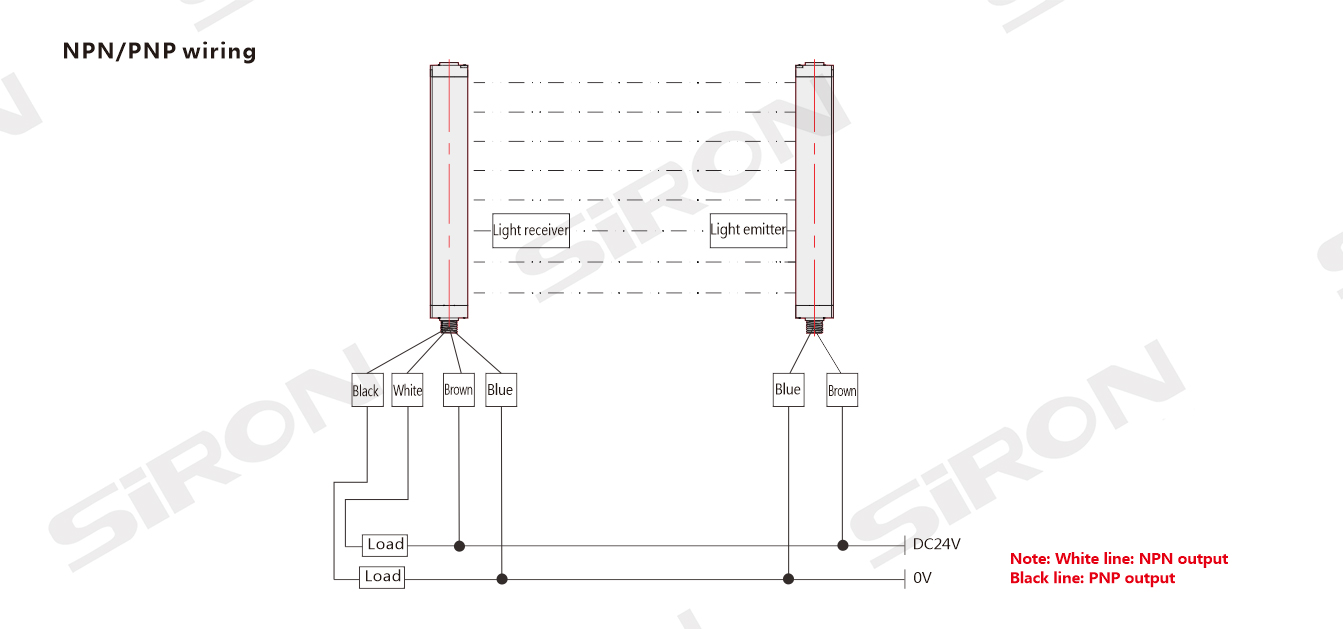

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

Calculate the safe distance correctly and maintain the minimum safe distance between the detection zone and the hazardous parts of the machine.

Safe distance refers to the minimum distance between the detection plane of the light curtain and the cutting edge or hazardous parts of the machine.
