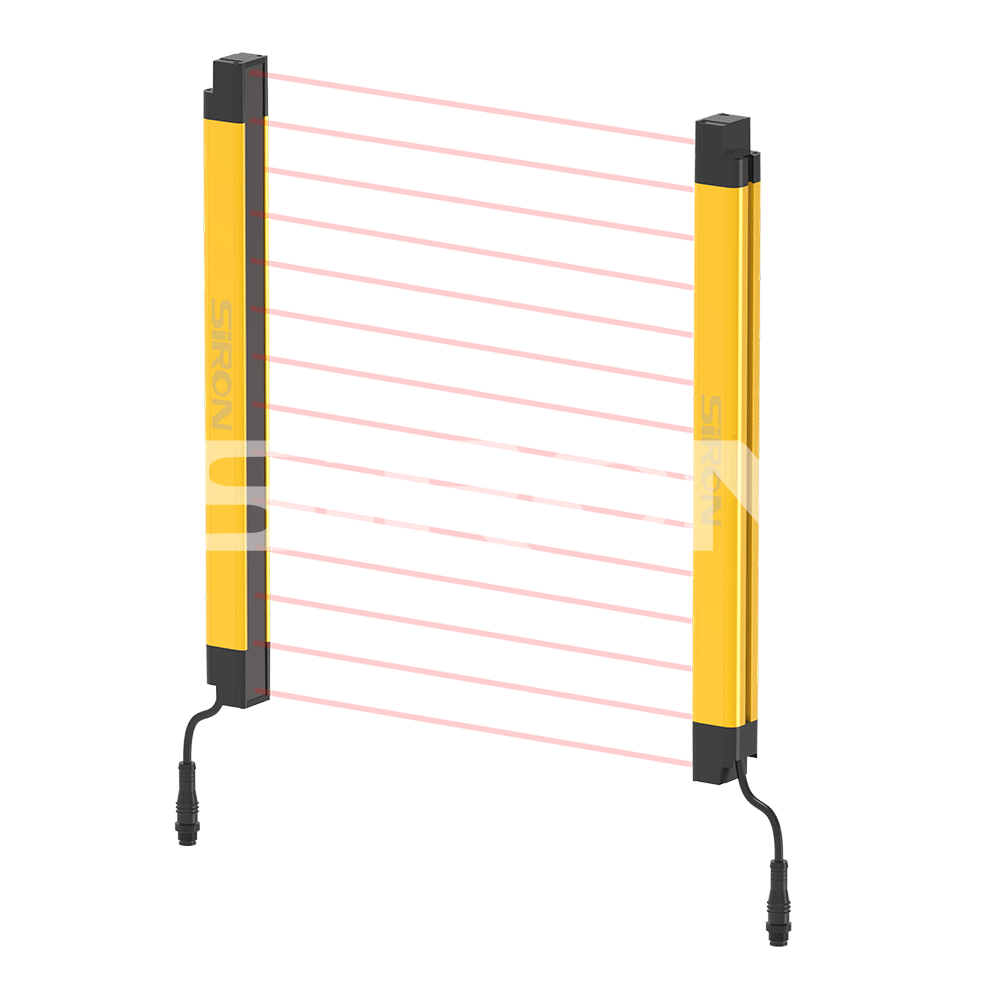

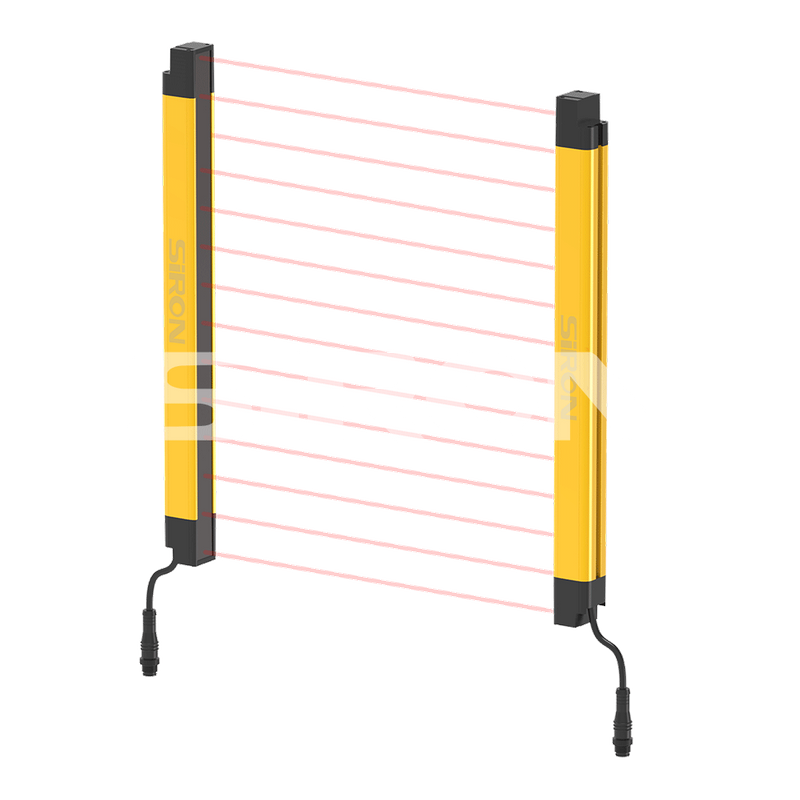

SiRON K033B Series Small Light Curtain No Blind Area

About selection

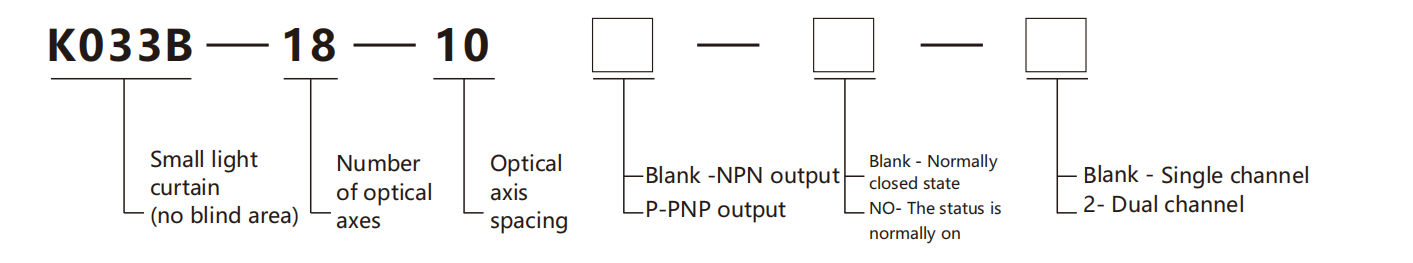

Selectionexample: K033B-18-10 indicatesthe K033Bseries, thenumberofopticalaxesis 18 axes, the optical axis                                                      spacingis 10mm, NPN output, normallyclosedstate, singlechannel.

                                    K033B-18-10P-NO-2 indicatesthe K033Bseries, thenumberofopticalaxesis 18 axes, the optical                                                axis spacing is 10mm, PNP output, Normallyopen, dualchannel.

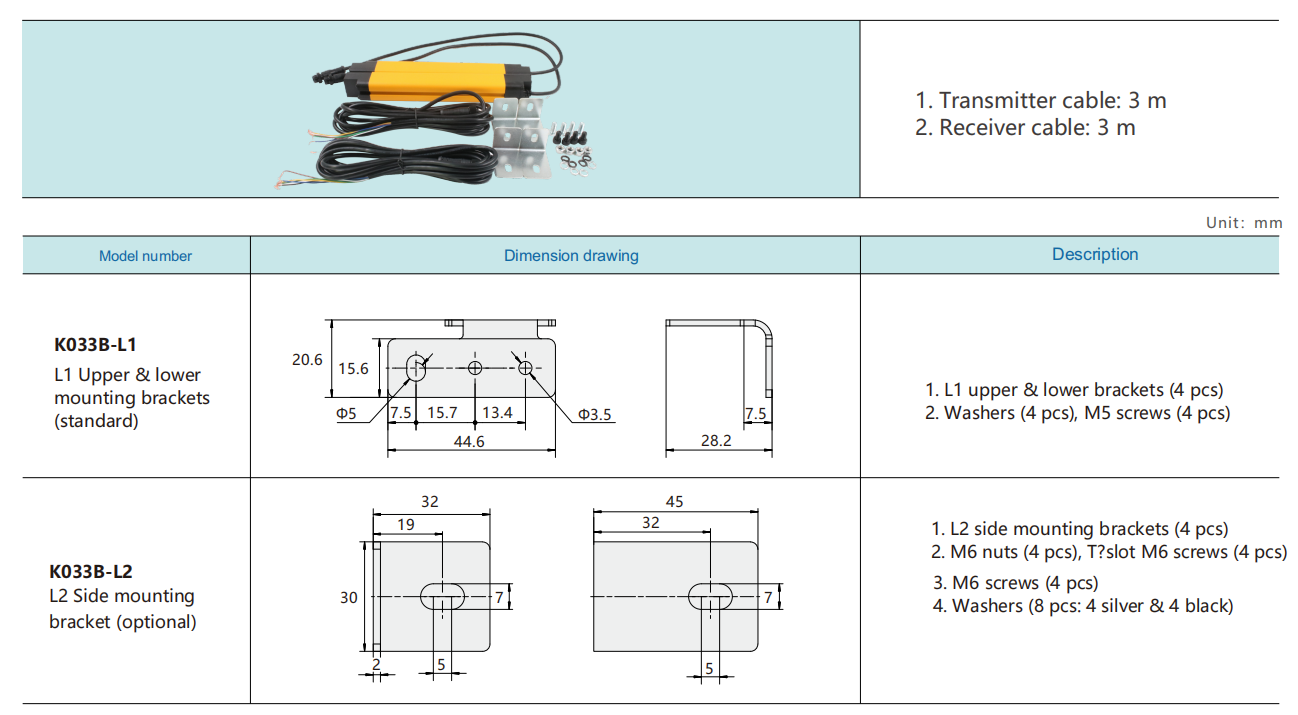

Note: When ordering the bracket separately, the order model is: K033B-L1, K033B-L2.

Specifications

Name	Smalllight curtain(no blind area)
Appearance
Cross-sectional area	30×30mm	Resistance to insulation			≥100MΩ
Number of channels	Single channel,double channel	Response time			line locking
Number of optical axes	4、6、8、10……	Scan time			IP65

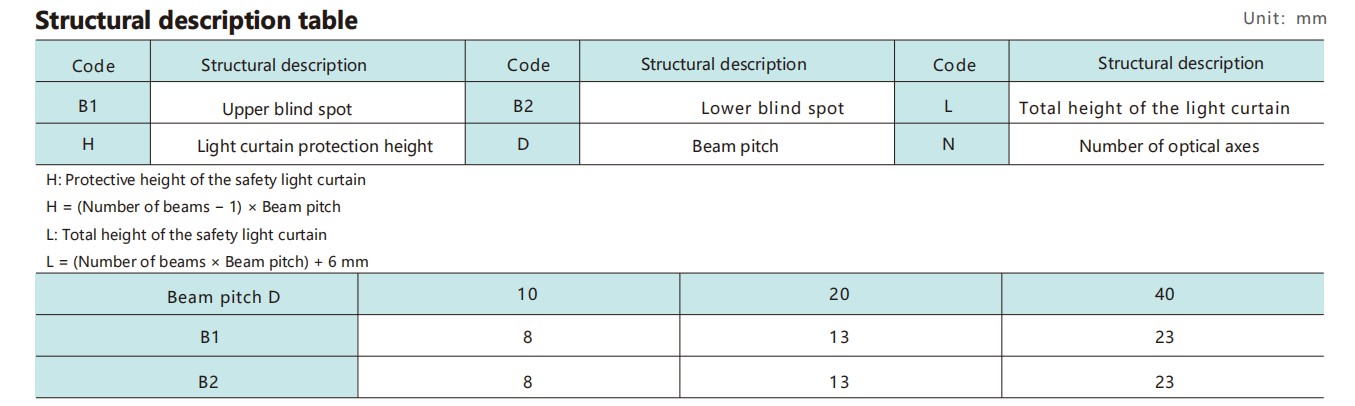

Protection height	Protection height H=(n-1)*optical axis spacing,N is the number of optical axes	Synchronicity			-10～+55℃
Protection distance*	0.2～5M	Temperature of storage			-40～+70℃
Optical axis spacing	10mm/20mm/40mm	Working humidity			35%RH~85%RH
Power	3～8W	Resistance to light interference			10000Lux
Power supply	24V±10%	Protection of circuit			Reverse protection/output short circuit protection
Output method	NPN/PNP	Light curtain form			Relative expression
Response time	≤10ms

Example

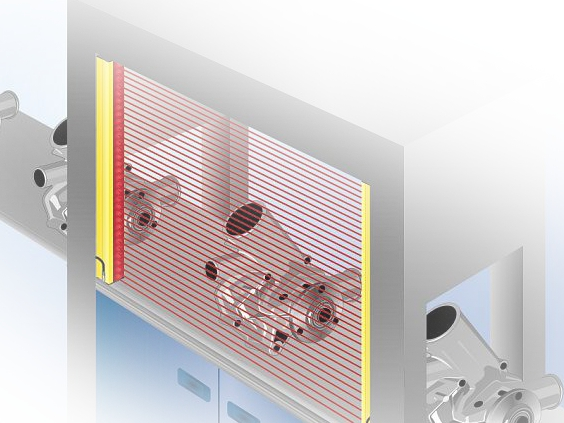

Equipment operation protection detection                                   Equipment operation protection detection

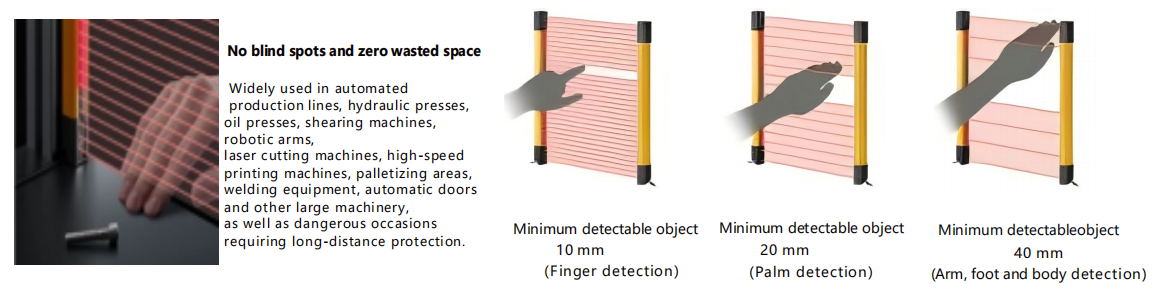

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (protection distanc: 0.2~6m)

Optical axis spacing is 20mm (protection distance: 0.2~6m)

Optical axis spacing is 40mm (protection distance: 0.2~6m)

Attachments

Installation instructions

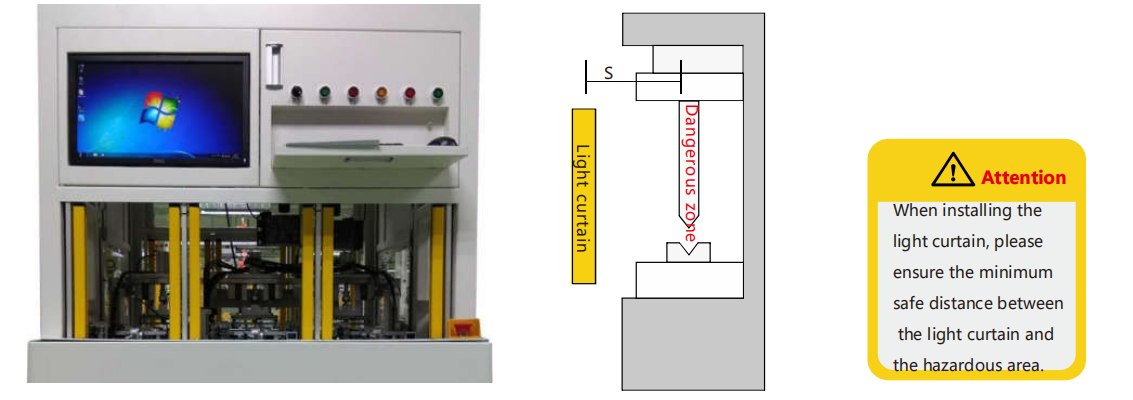

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

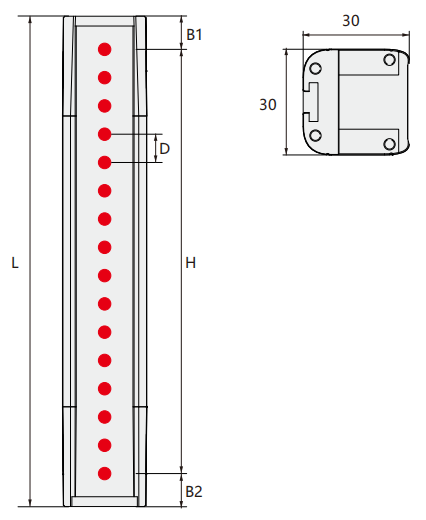

External drawing

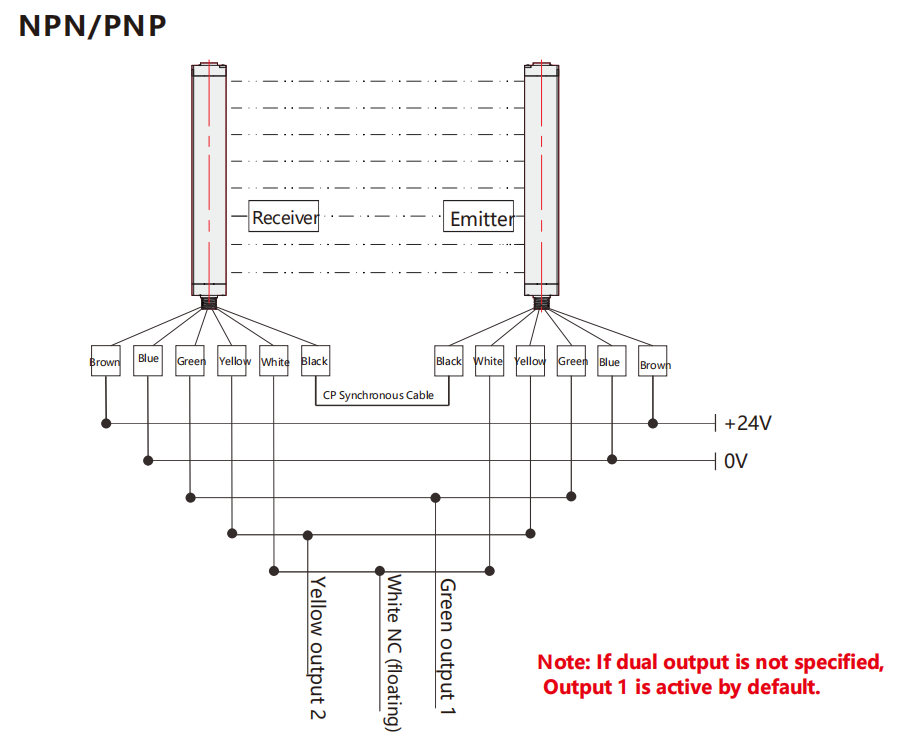

Wiring diagram
