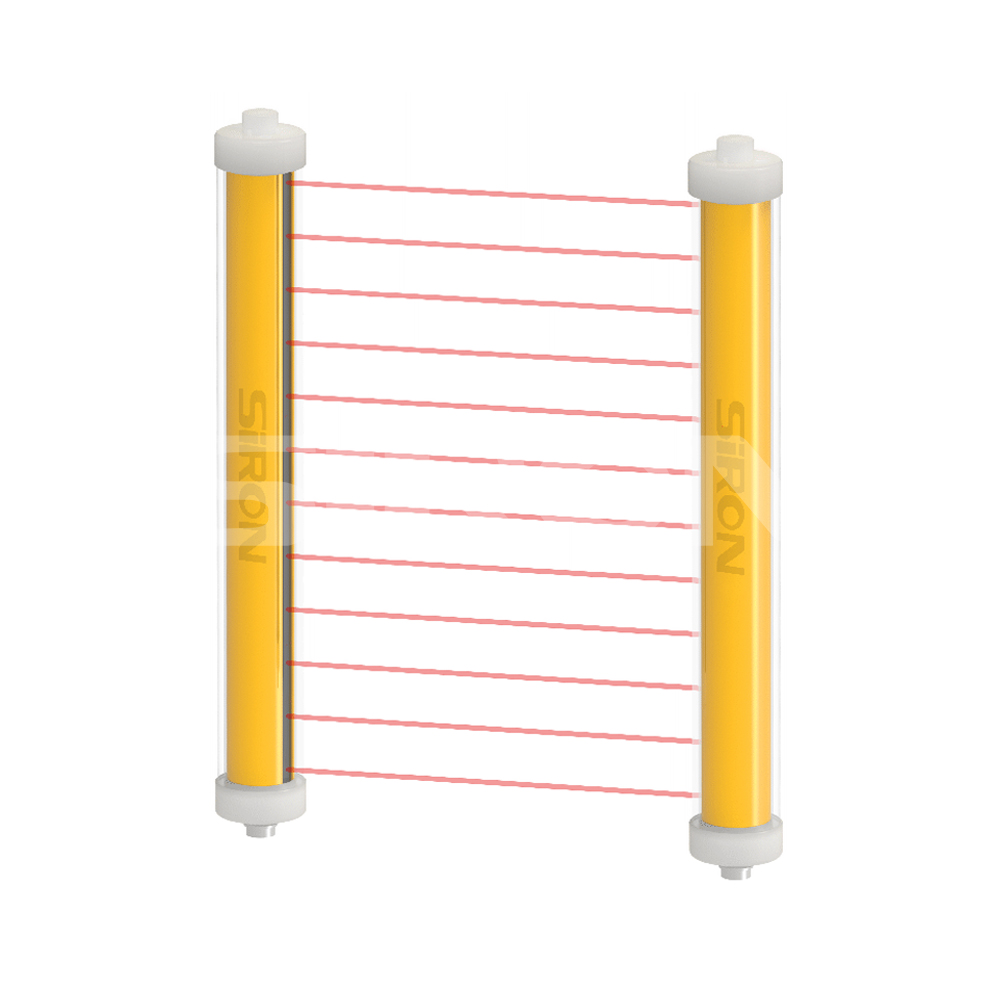

SiRON K036A Series Waterproof Light Curtain

About selection

Selection example:

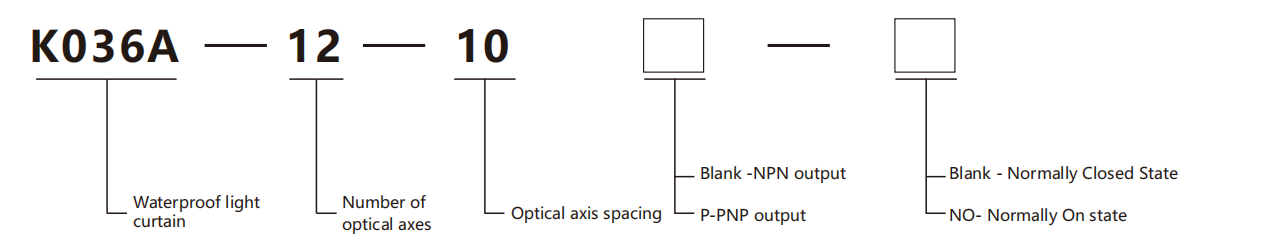

K036A-12-10 indicates K036A series, the number of optical axes is 12 axes, the optical axis spacing is 10mm, NPN output, normally closed state.

K036A-12-10P-No indicates the K036A series, the number of optical axesis 12 axes, the optical axis spacing is 10mm, PNP output, normally open state.

Note: The default is single channel, if you customize double channel (not waterproof), please consult our sales staff.

Specifications

Name	Waterproof light curtain
Appearance
Cross-sectional area	φ37mm	Response time			≤10ms
Number of channels	Single    channel,dual    channel(not    waterproof)	Synchronicity			line locking
Number of optical axes	4、6、8、10……	Protection class			IP69
Protection height	Protection height H=(n-1)*optical axis spacing,N is the number of optical axes	Operating temperature			-10～+55℃
Protection distance*	0.2～3M	Ambient temperature			-40～+70℃
Optical axis spacing	10mm/20mm/40mm/60mm	Relative humidity			35%RH~85%RH
Power	3~8W	Resistance to light interference			1000Lux
Power supply	24V±10%	Protection of circuit			Reverse protection/output short circuit protection
Output method	NPN/PNP	Light curtain form			correlation
Resistance to insulation	≥100MΩ

Example

Equipment operation protection detection                                Equipment operation protection detection

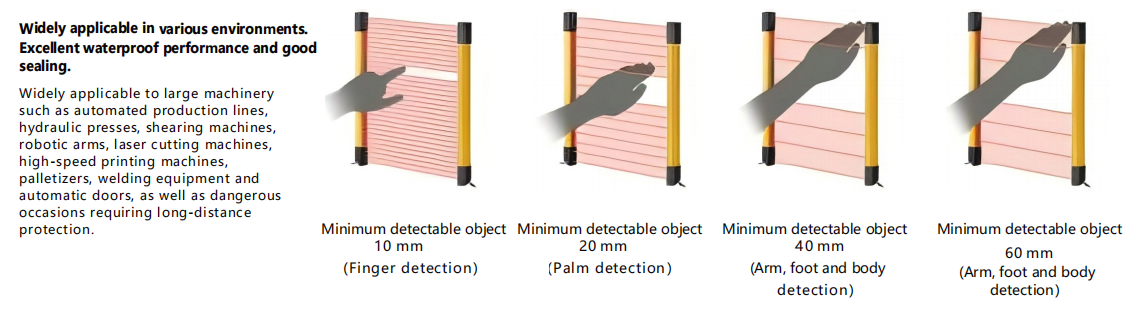

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm(protection distance:0.2~3m)

Opticalaxis spacing is 20mm(protection distance: 0.2~3m)

Optical axis spacing is 40mm(protection distance:0.2～3m)

Optical axis spacing is 60mm  (protection distance:0.2~3m)

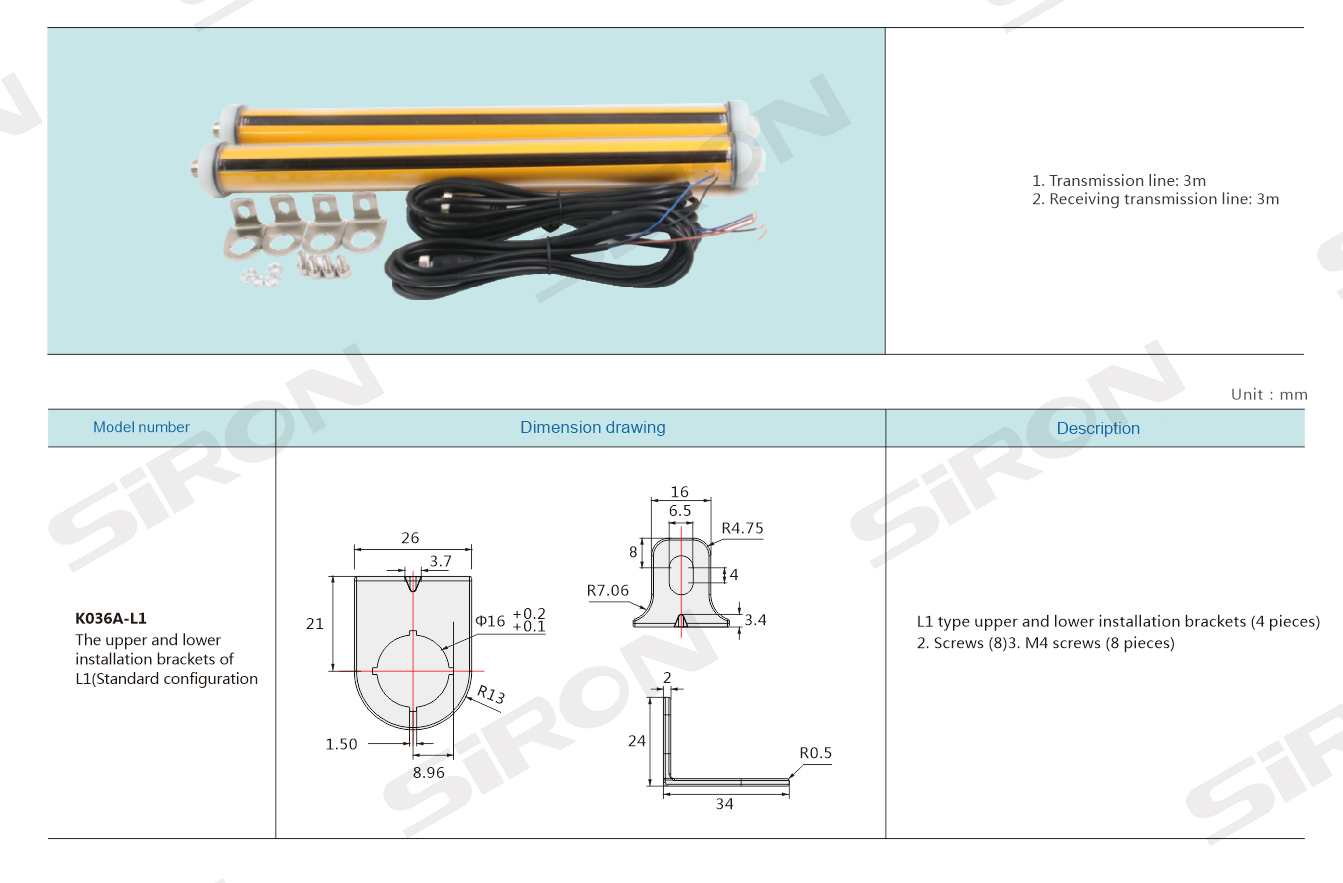

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

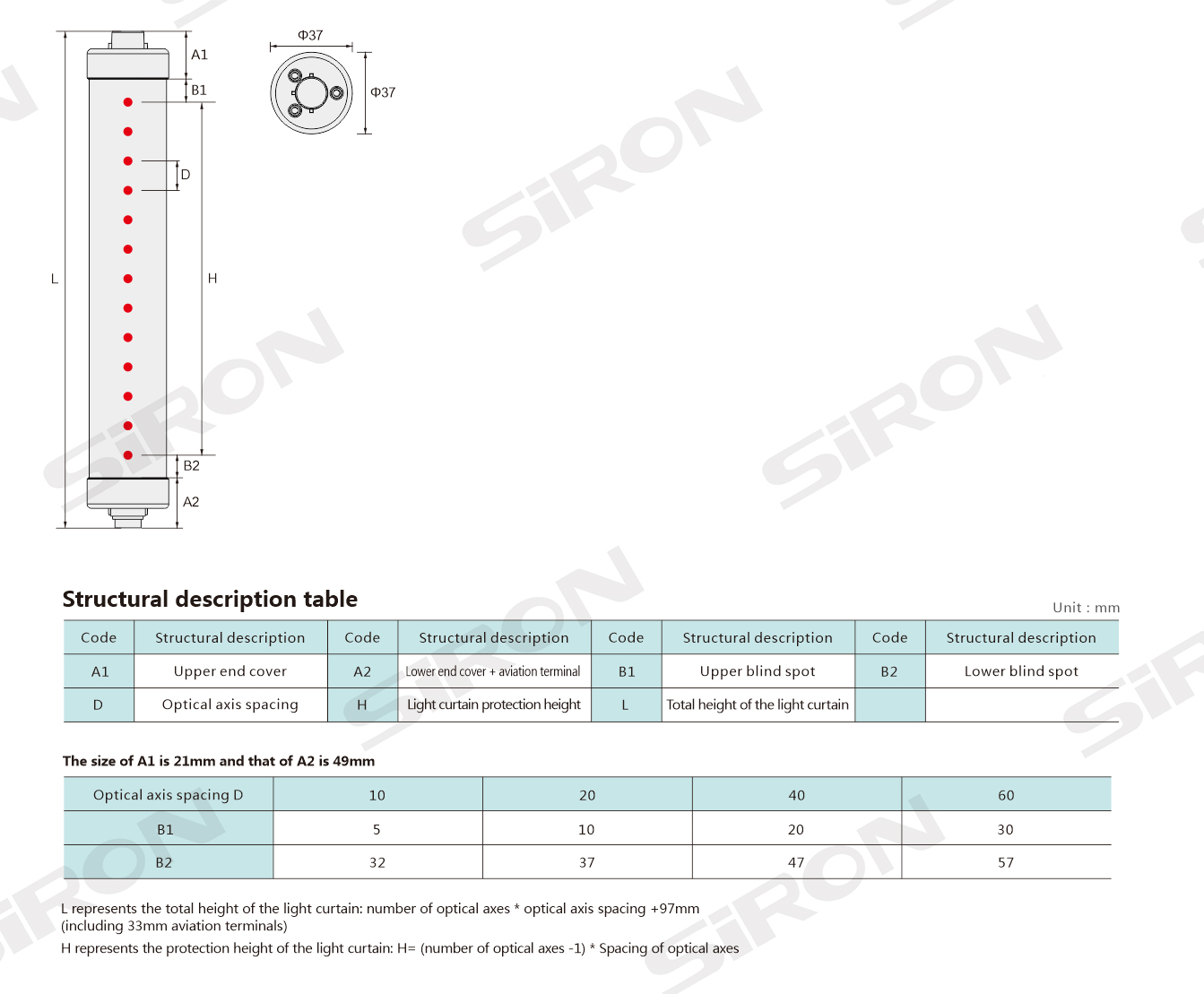

External drawing

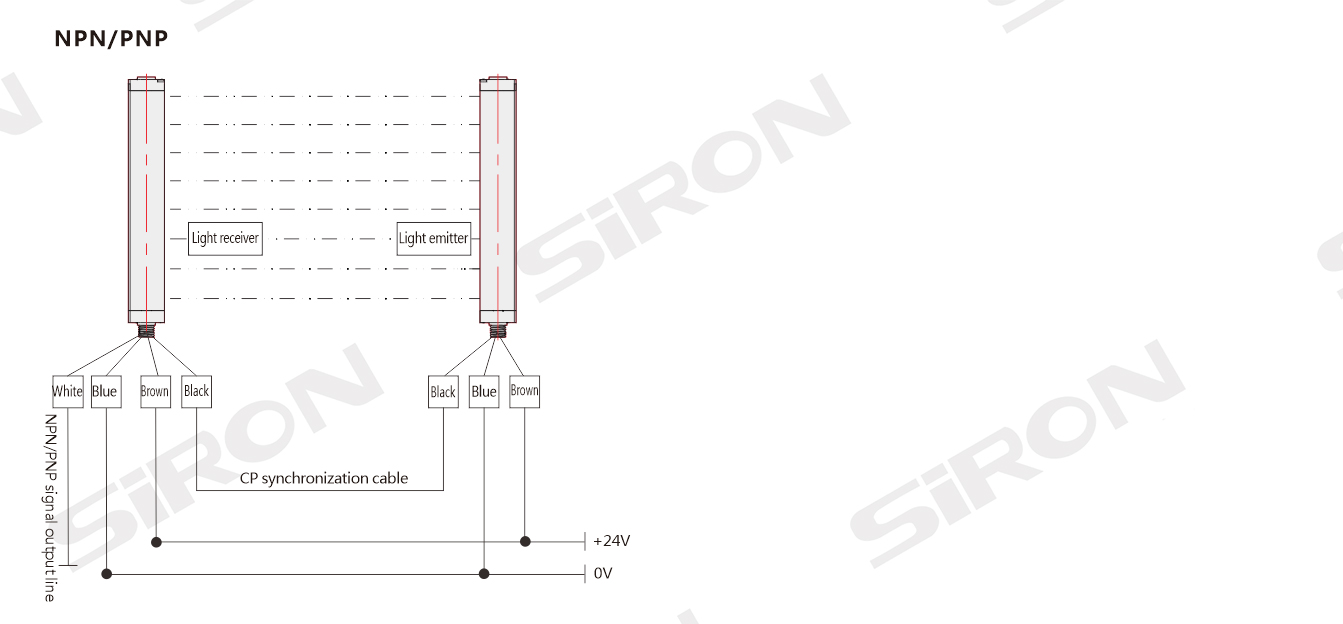

Wiring diagram
