SiRON K037A Series Light Curtain SIL4

About selection

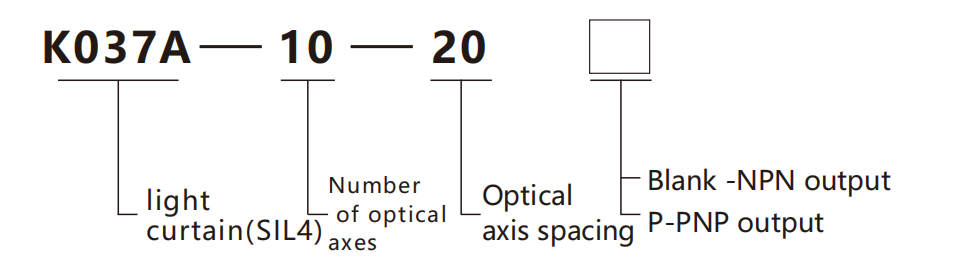

Selection example: K037A-10-20 indicates the K037A series,thenumber of opticalaxes is 10 axes, the optical axis                                                   spacingis 20mm,and the NPN output.

                                     K037A-10-20p indicates the K037A series, the number of optical axes is 10  axes, the optical axis                                              spacing is 20mm, and the PNP output.

Note: 1, the protection distance can be customized to 15m, the model example is as follows :

            K037A-10-20(D15)K037A series, the number of optical axes is 10 axes, the optical axis spacing is  20mm,

            the NPN output, the protection distance is 15m.

            2, when ordering the support separately, the  order model is: K037A-L1, K037A-L2.

Specifications

Name	Light Curtain (SIL4)

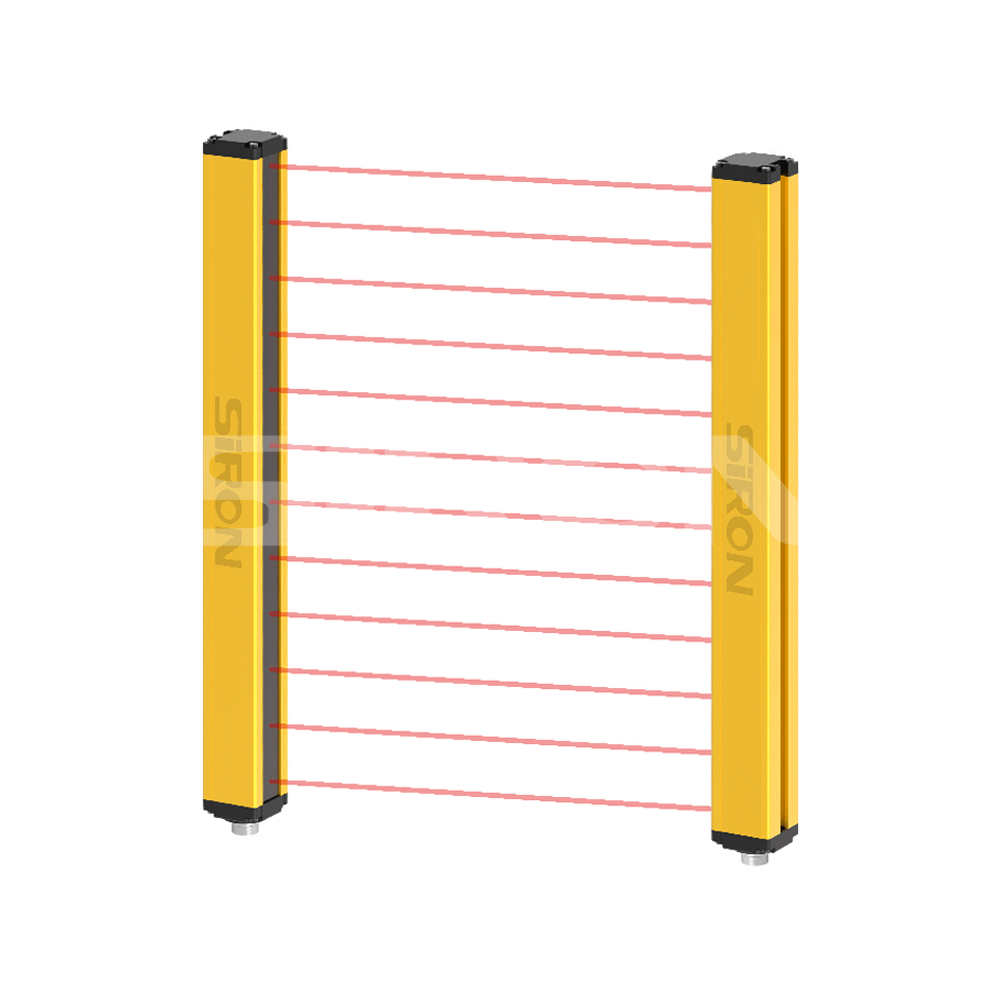

Appearance
Security Level	Type4	Resistance to insulation		≥100MΩ
Cross-sectional area	35×35mm	Response time		≤10ms
Number of channels	two-channel	Synchronicity		Wire synchronization
Number of optical axes	8、10、12、14……	Protection class		IP65
Protection height	Protection height H=(n-1)*optical axis spacing,N is the number of optical axes	Operating temperature		-10～+55℃
Protection distance*	0.2～3M(Customizable    to    15M)	Ambient temperature		-40～+70℃
Optical axis spacing	10mm/20mm/30mm/40mm	Relative humidity		35%RH~85%RH
Power	3~8W	Resistance to light interference		1000Lux
Power supply	24V±10%	Protection of circuit		Reverse protection/output short circuit protection,dual circuit control system,self-diagnosis for fault inspection,etc
Output method	NPN/PNP	Light curtain form		Correlation

Example

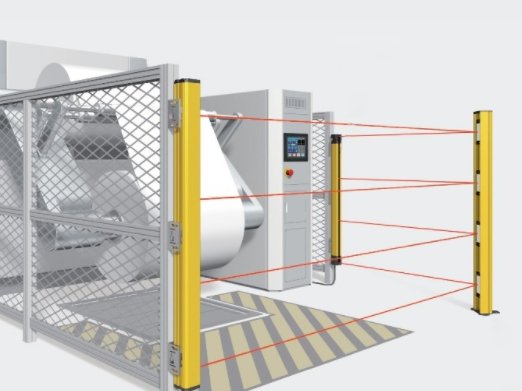

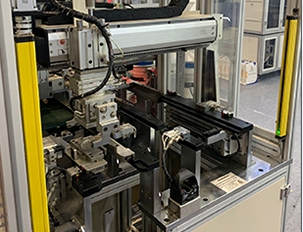

Equipment operation protection detection                                Inspection on mechanical equipment

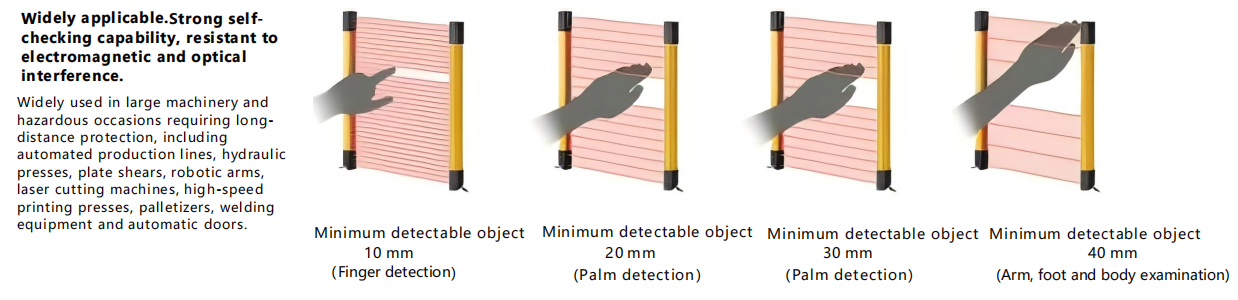

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (protection distance: 0.2 ~ 3m, can be customized to 15m)

Optical axis spacing is 20mm (protection distance: 0.2 ~ 3m, can be customized to 15m)

Optical axis spacing is 30mm (protection distance: 0.2 ~ 3m, can be customized to 15m)

Optical axis spacing is 40mm (protection distance: 0.2 ~ 3m, can be customized to 15m)

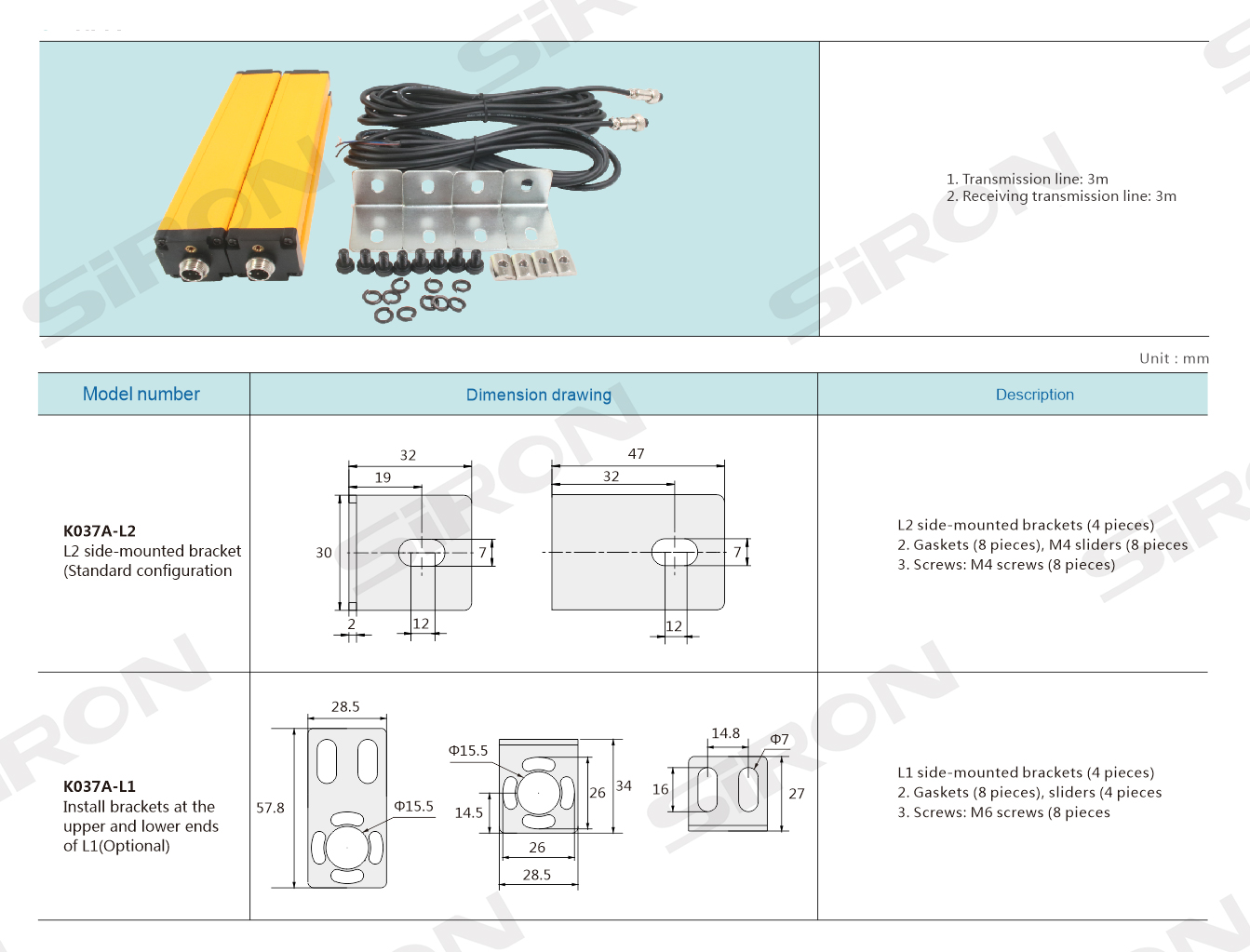

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

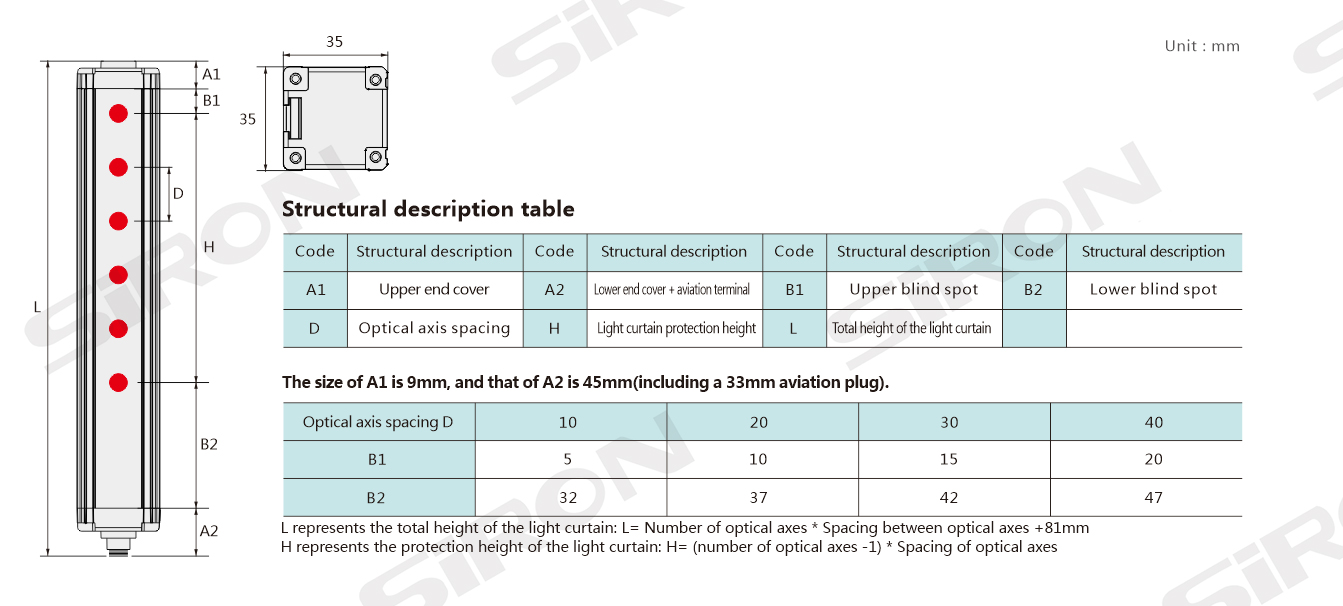

External drawing

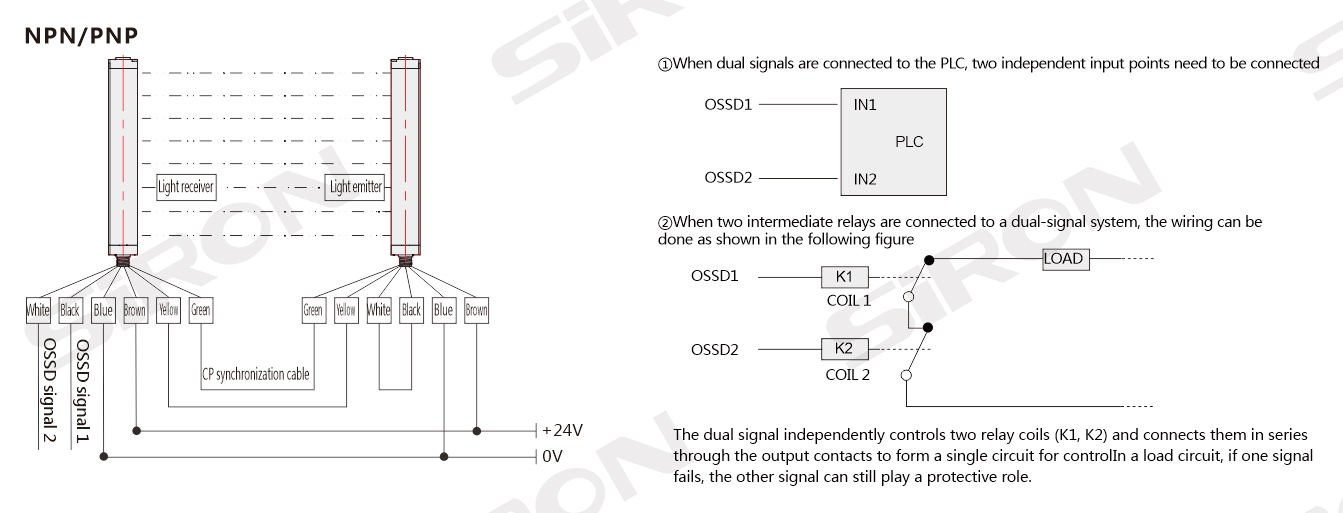

Wiring diagram
