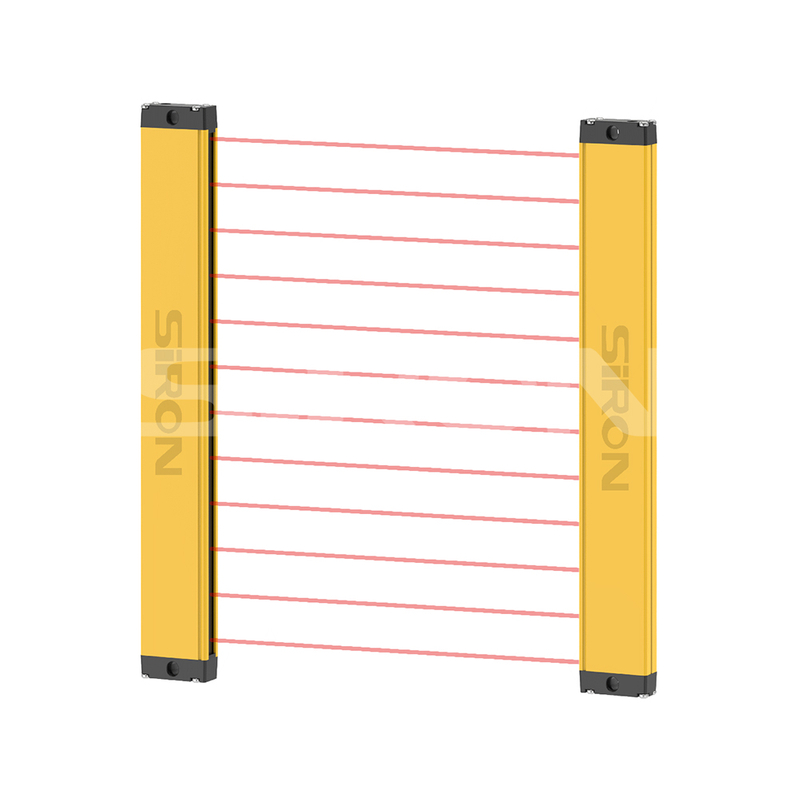

SiRON K035A/B Series Ultra Thin Light Curtain Side Detection

Name: SiRON K035A/B Series Ultra Thin Light Curtain Side Detection
Brand: SiRON
Rating: 5.0 (22 reviews)

Features:

* 15mm ultra-thin photosensitive surface; Fast response time;
* The line synchronization technology is adopted, and the anti optical interference ability is strong;
* It is easy to install, the end cover is fixed, and the operation is simple;
* It has strong anti electromagnetic interference ability and can effectively resist various electromagnetic interference effects of motor equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K035A/B series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Ultra Thin Light Curtain Ultra -thin case line locking Side Detection IP54

Product Description

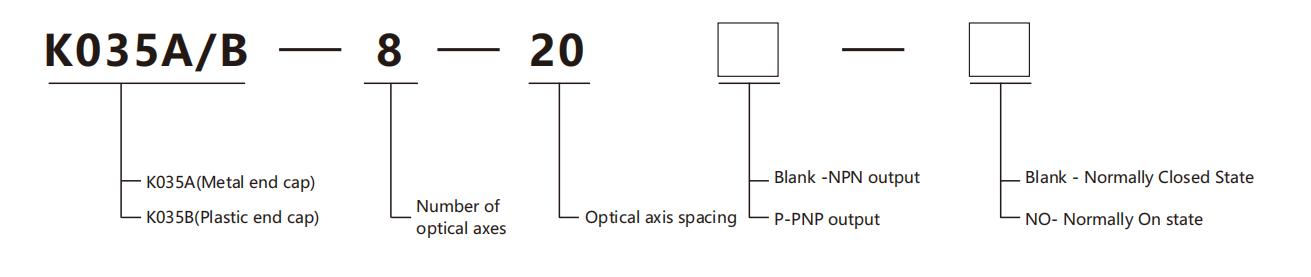

About selection

Selection example:

K035A-8-20 indicates K035A series, thenumberofopticalaxesis 8 axes, the optica laxis spacing is 20mm, NPN output, normally closedstate.

K035A-8-20P-No indicates the K035A series, thenumberofopticalaxesis 8 axes, the optical axis spacing is 20mm, PNP output, normallyopenstate.

Note:

The protection distance can be customized to 4m, the model examples are as follows:

K035A-8-20(D4) K035A series, the number of optical axes is 8 axes, the optical axis spacing is 20mm, NPN output, normally closed state,The protection distance is 4m.

Specifications

Name	Ultrathin light curtain(side detection)

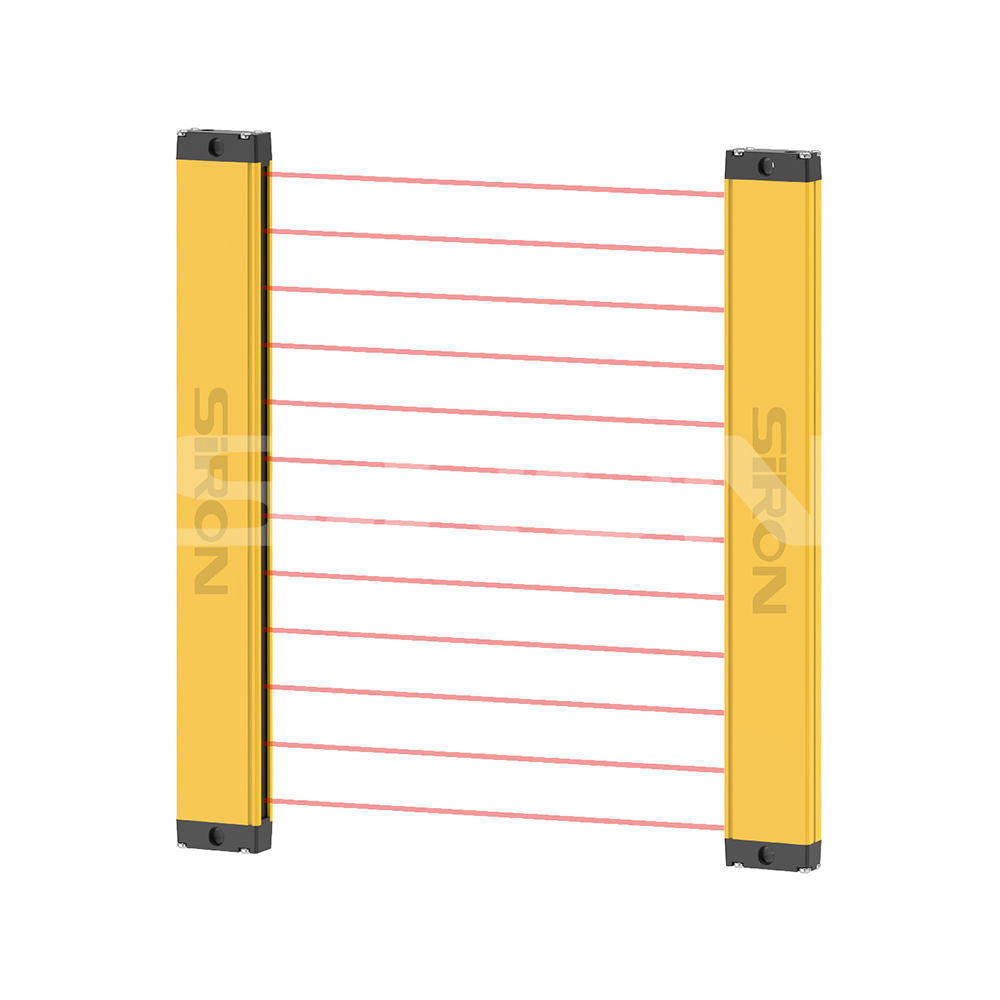

Appearance	K035A K035B
Cross-sectional area	39×15mm	Protective circuit	Power supply overvoltage protection,reverse polarity protection ánd output overcurrent protection
Number of channels	single channel	Response time	Response time=(N*0.1ms)+0.4ms(N is the number of optical axe
Optical axis number	10mm Spacing:8、12、16----16axis	Working temperature	-10~55℃(No condensation)
	20mm Spacing:4、6、8----58axis	Storage ambient temperature	-30~70℃(No condensation)
	40mm Spacing:4、6、8----28axis	Working environment humidity	When the temperature is 20°C,the relative humidity of the air<85%
Protect the height	Protection height H=(n-1)*optical axis spacing, N is the number of optical axes	Anti-light interference	10000Lux(angle of incidencel>5°)
Protect the distance	0.1~2M (Customizable to4M)	Light curtain form	Relative expression
Optical axis spacing	10/20/40mm	Synchronously	Line synchronization
Resolution	15/25/45mm	Shell material	Aluminium alloy
Working power	DC10～30V	Enclosure rating	IP54

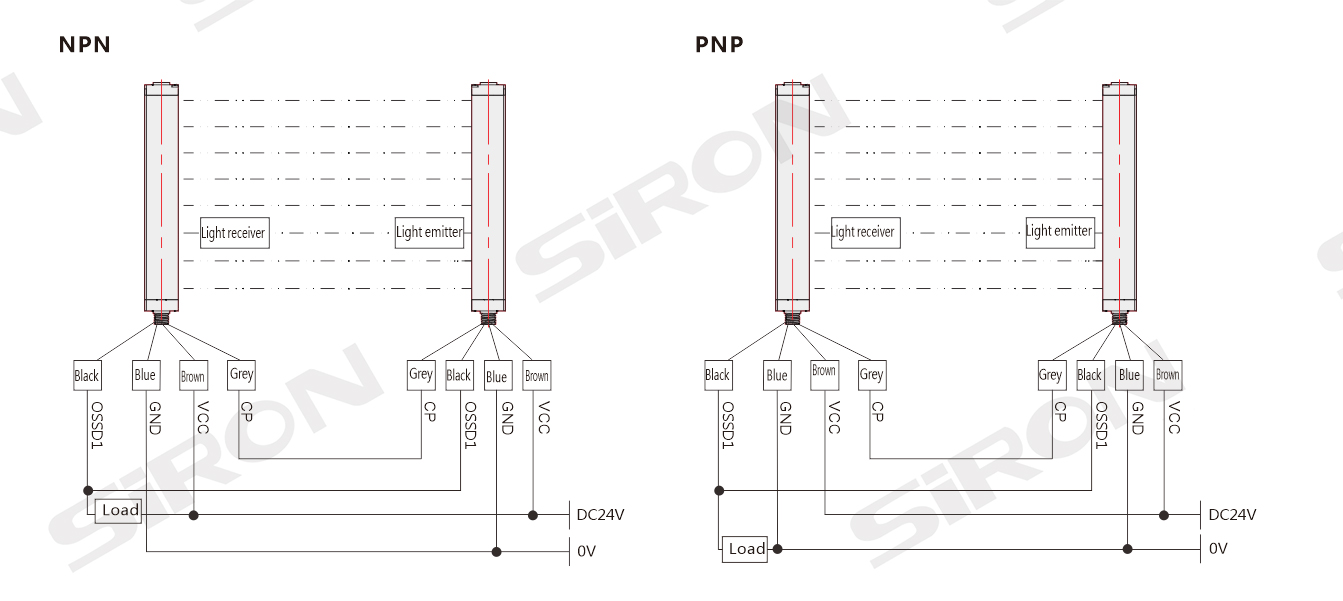

Power	<5W	Safety Output(OSSD)	NPN/PNP transistor output,load current below 200mA, residual voltage below iV(except voltage drop due to cable extension),leakage current below 1mA
Emitting light source	940nm

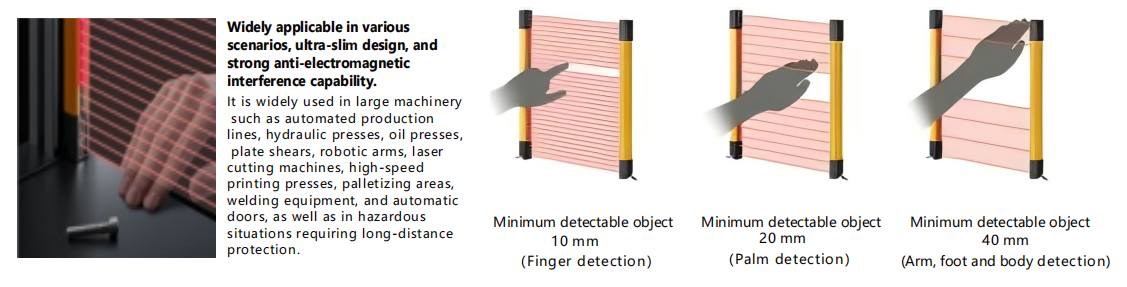

Example

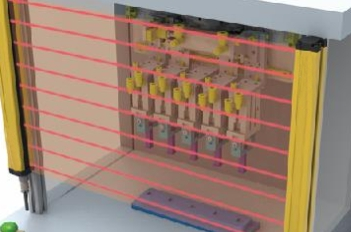

Equipment operation protection detection Inspection of operation protection for stamping equipment

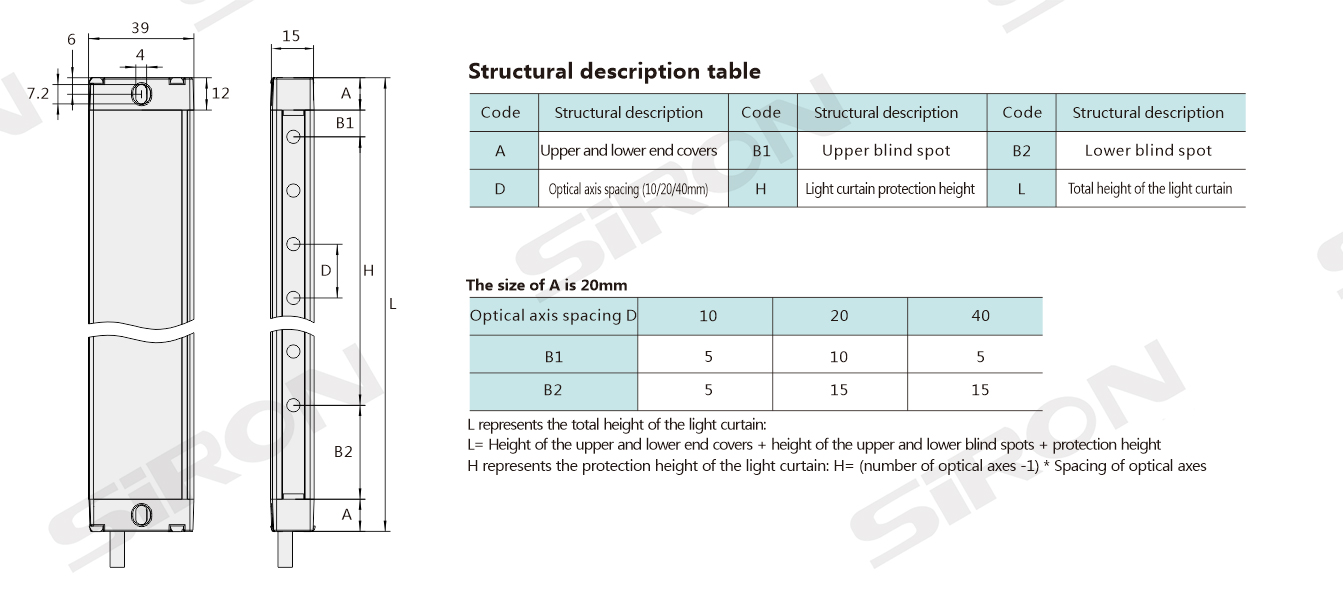

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm(protection distance:0.1～2m,can be customized to 4m)

Optical axis spacing	10mm
Number of optical axis	8-axis	12-axis	16-axis	20-axis	24-axis	28-axis	32-axis	36-axis	40-axis	44-axis	48-axis	52-axis	56-axis	60-axis	64-axis	68-axis	72-axis	76-axis	80-axis	84-axis	88-axis	92-axis	…	116-axis
Protection height(mm)	70	110	150	190	230	270	310	350	390	430	470	510	550	590	630	670	710	750	790	830	870	910	…	1150
Light curtain height(mm)	104	144	184	224	264	304	344	384	424	464	504	544	584	624	664	704	744	784	824	864	904	944	…	1184

Opical axis spacing is 20mm(protection distance:0.1~2m,can be customized to 4m)

Optical axis spacing	20mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis	32-axis	34-axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	…	58-axis
Protection height(mm)	60	100	140	180	220	260	300	340	380	420	460	500	540	580	620	660	700	740	780	820	860	900	…	1140
Light curtain height(mm)	104	144	184	224	264	304	344	384	424	464	504	544	584	624	664	704	744	784	824	864	904	944	…	1184

Optical axis spacing is 40mm(protection distance:0.1~2m,can be customizedto4m)

Optical axis spacing	40mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis
Protection height(mm)	120	200	280	360	440	520	600	680	760	840	920	1000	1080
Light curtain height(mm)	164	244	324	404	484	564	644	724	804	884	964	1044	1124

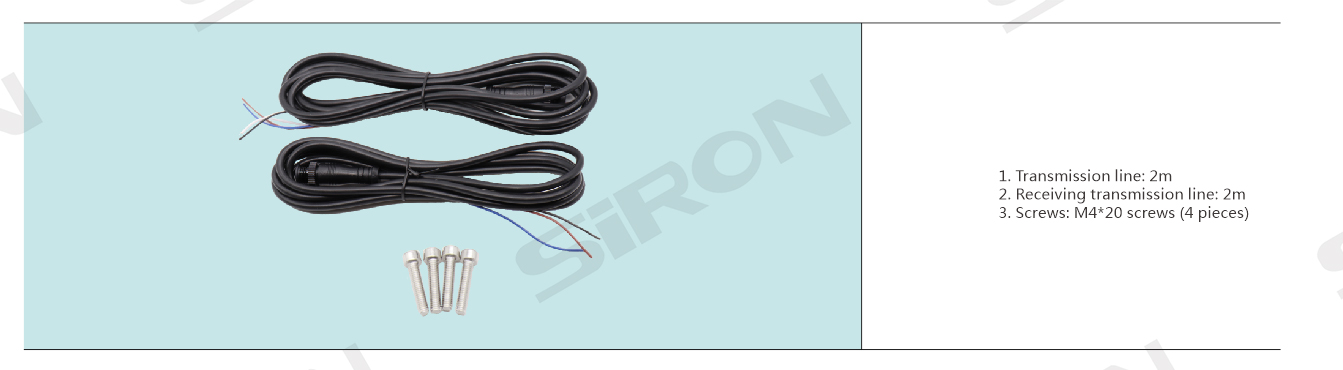

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

Calculate the safe distance correctly and maintain the minimum safe distance between the detection zone and the hazardous parts of the machine.

Safe distance refers to the minimum distance between the detection plane of the light curtain and the cutting edge or hazardous parts of the machine.
