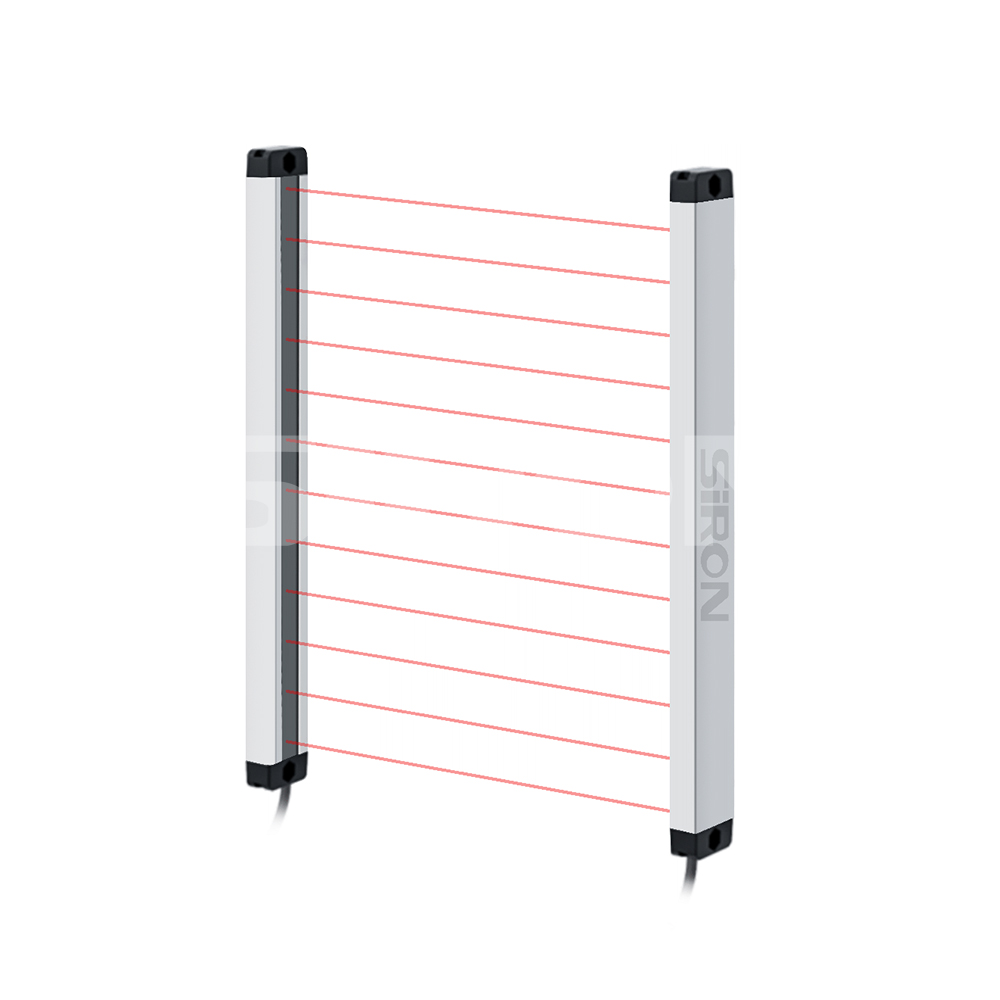

SiRON K032 Series Ultra-thin Light Screen Front Detection

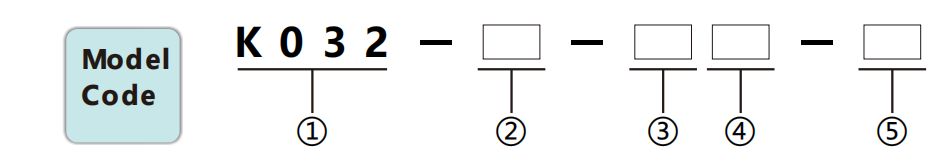

About selection

Selection example：K032-8-10 indicates the K032 series, with 8 optical axes, an optical axis spacing of 10mm, NPN                                               output, and normally closed state.

                                       K032-8-10P-NO indicates the K032 series, with 8 optical axes, an optical axis spacing of 10mm,                                               PNP output, and normally open state.

Specifications

Name	UItra-thin light screen(front detection)

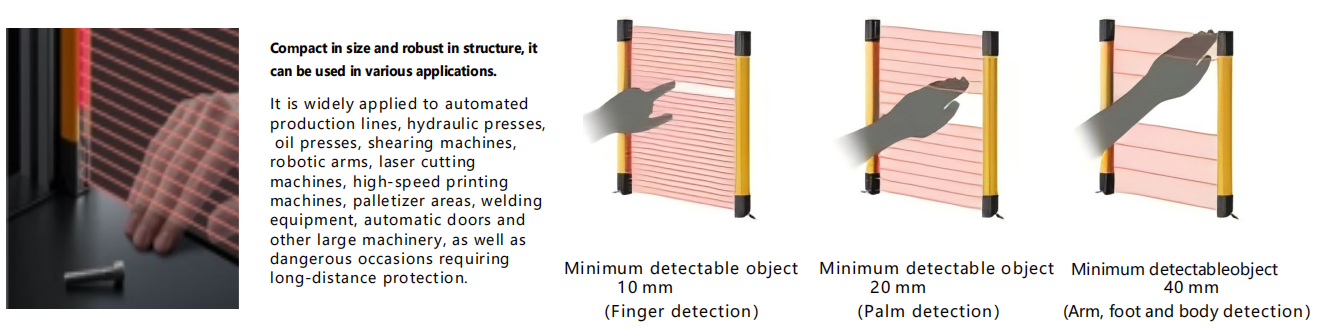

Appearance
Cross area	28×13mm
Number of channels	single channel
Number of optical axes	10mm spacing：8、12、16 - - - - 116 axes    20mm spacing：4、6、8 - - - - 58axes    40mm spacing：4、6、8 - - - - 28axes
Protective height	The protection height H = (N - 1) * optical axis spacing, where N is the number of optical axes.
Protection distance*	0.1 - 2M (can be customized to 2.5M) Note: Special remarks are required if there is any reflective effect.
Optical axis spacing	10mm/20mm/40mm
Resolution	15mm/25mm/45mm
Working powersupply	DC10~30V
Power	<5W
Emission light source	940nm
Protective circuit	Power overvoltage protection, reverse polarity protection and output overcurrent protection
Response time	Response time = (N * 0.1ms) + 0.4ms (N is the number of optical axes)
Operating ambient temperature	- 10~55℃(No condensation)
Storage ambient temperature	-30~70℃(No condensation)
Working ambient humidity	When the temperature is 20℃, the relative humidity of the air is less than 85%
Anti-optical interference	10000Lux(Incident Angle l>5°)
Light curtain form	Through-beam type
Synchronous mode	Line synchronization
Shell material	aluminium alloy
Case protection class	IP54
Security Output (OSSD)	NPN/PNP transistor output, load current below 200mA, residual voltage below 1V (excluding voltage drop caused by cable extension), leakage current below 1mA

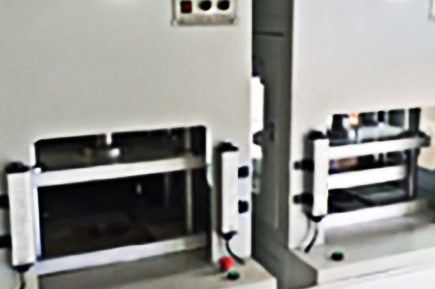

Example

Protection detection on the equipment                                      Protection detection on the equipment

Protection detection on the equipment

Selection list

Optical axis spacing is 10mm(Protection distance:0.1-2m,customizableto 25m)

Optical axis spaing is 20mm(Protection distance :0.1-2m,customizable to 2.5m)

Opticalaxis spacing is 40mm(Protection distance:0.1-2m,customizable to 2.5m)

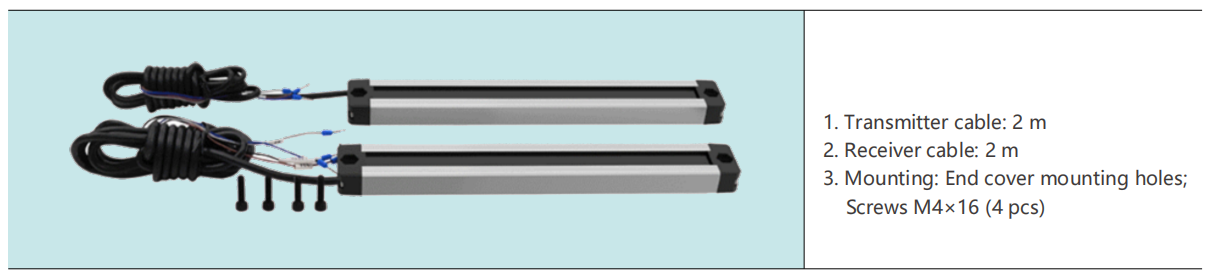

Attachments

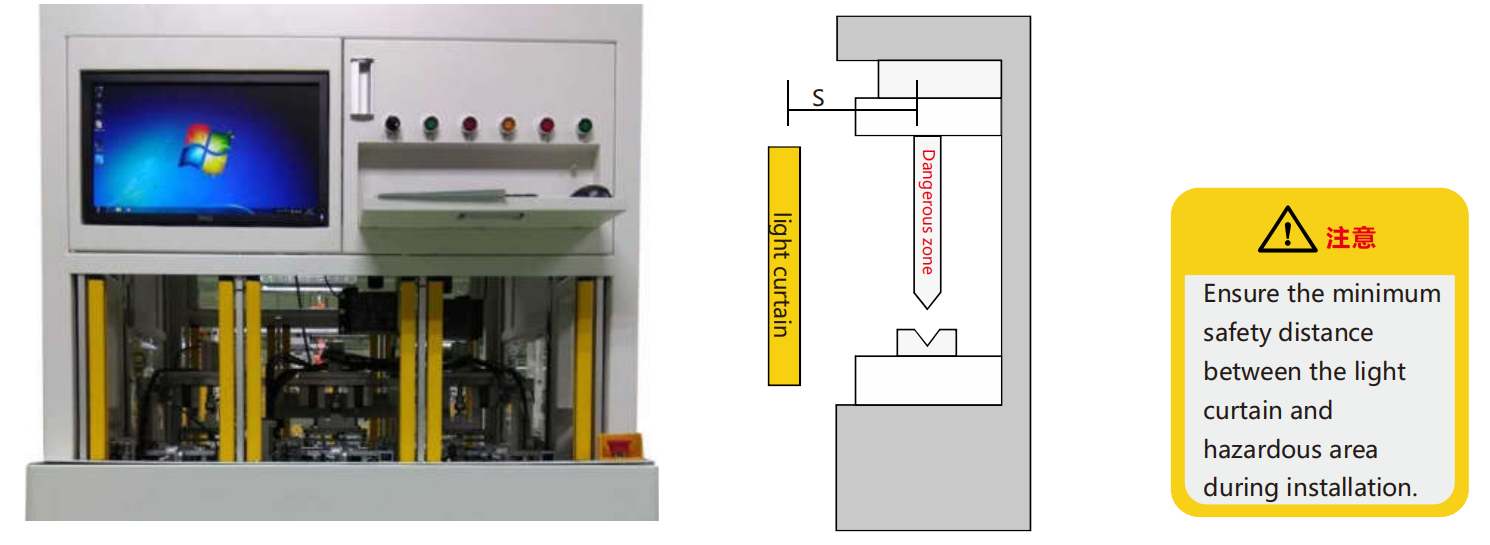

Installation instructions

When installing the safety light curtain, ensure a sufficient safety distance between the light curtain and the hazardous area. Failure to stop the machine before a person enters the hazardous zone may result in severe injury or death. Calculate the safety distance correctly to maintain the minimum safe distance between the detection area of the light curtain and the hazardous parts of the machine. Safety distance refers to the minimum distance between the detection plane of the safety light curtain and the cutting edge or hazardous parts of the machine.

External drawing

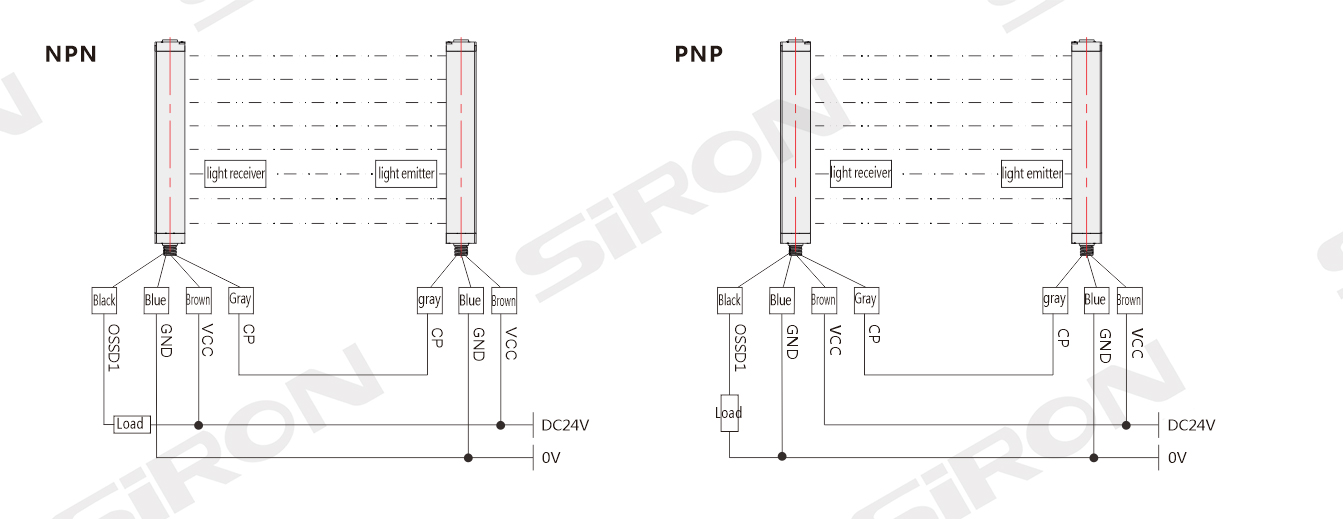

wiring diagram
