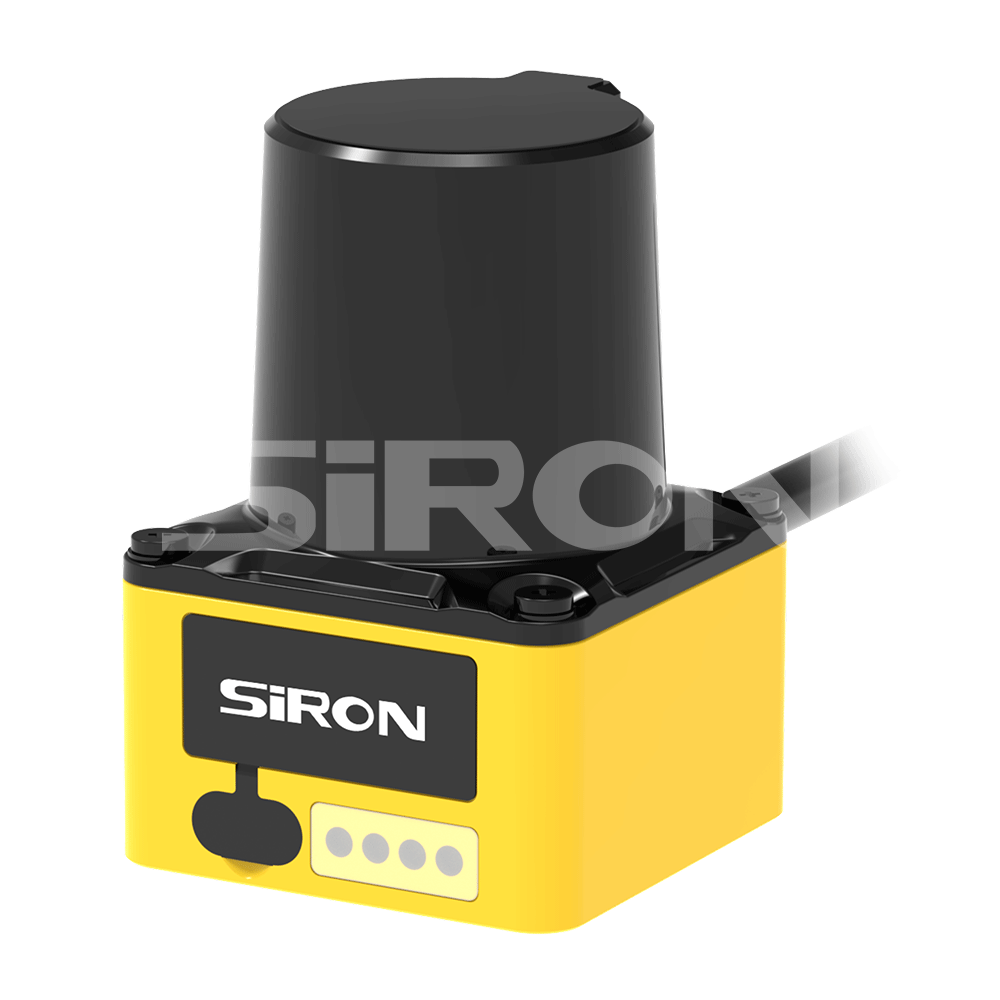

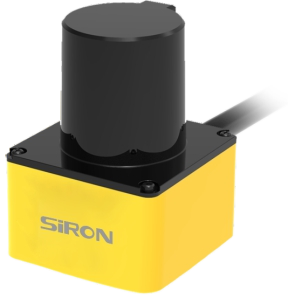

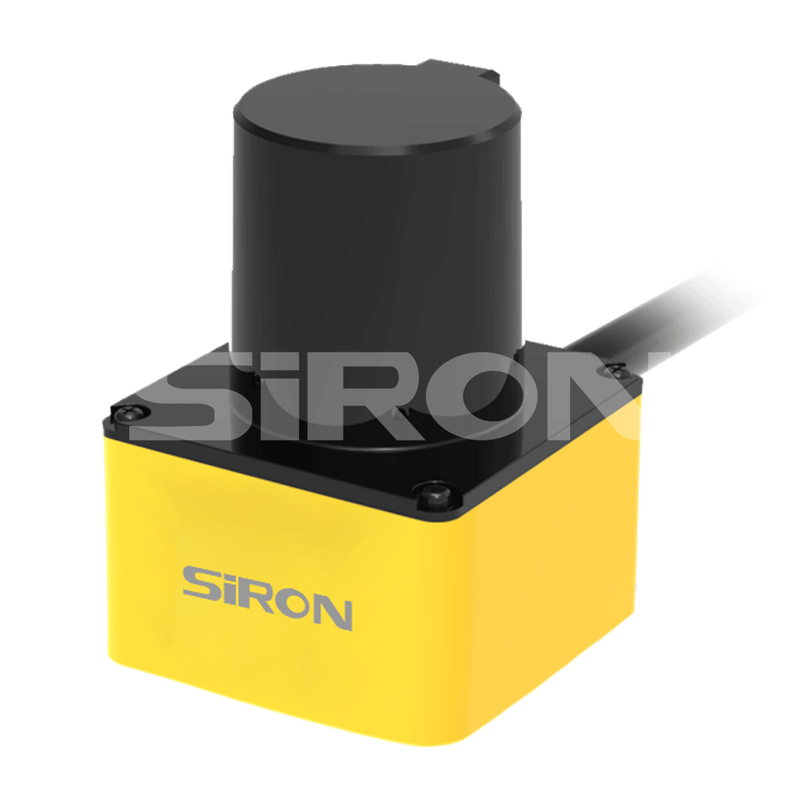

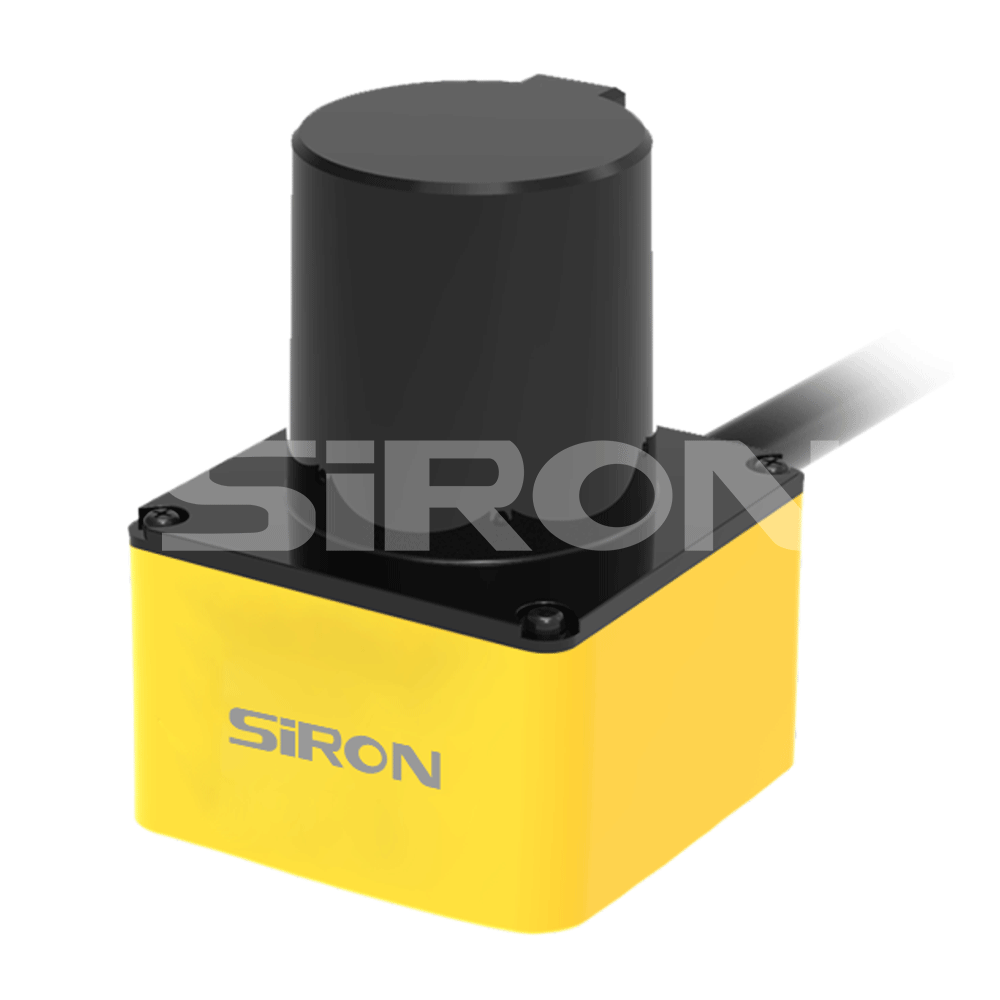

SiRON K039-5/6 Laser Lidar Navigation Type Obstacle Avoidance Type Lidar

SiRON K039-5/6 Laser Lidar Navigation Type Obstacle Avoidance Type Lidar

Name: SiRON K039-5/6 Laser Lidar Navigation Type Obstacle Avoidance Type Lidar
Brand: SiRON
Rating: 5.0 (74 reviews)

Features:

* Navigation type, obstacle avoidance type;
* Enclosure protection class IP65;
* K039-6 Horizontal perspective: Scanning Angle of 270° in front of the body can be divided into 64 independent channels.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K039-5/6 series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Laser radar Navigation Type Obstacle Avoidance Type IP65

Product Description

About selection

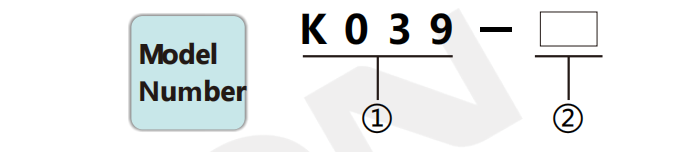

Type analysis
①	Lidar series	K039
②	Serial number	5:Navigation Type 6:Obstacle Avoidance Type

Selection example: K039-5 represents the K039 series, navigation type.

Specifications

Name	Laser radar
Model	K039-5(Navigation Type )		K039 - 6(Obstacle Avoidance Type )

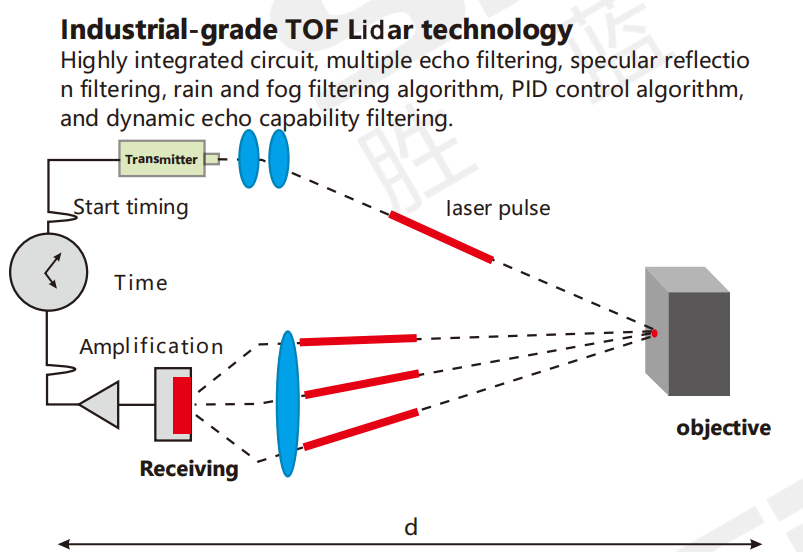

Appearance			TOF principle

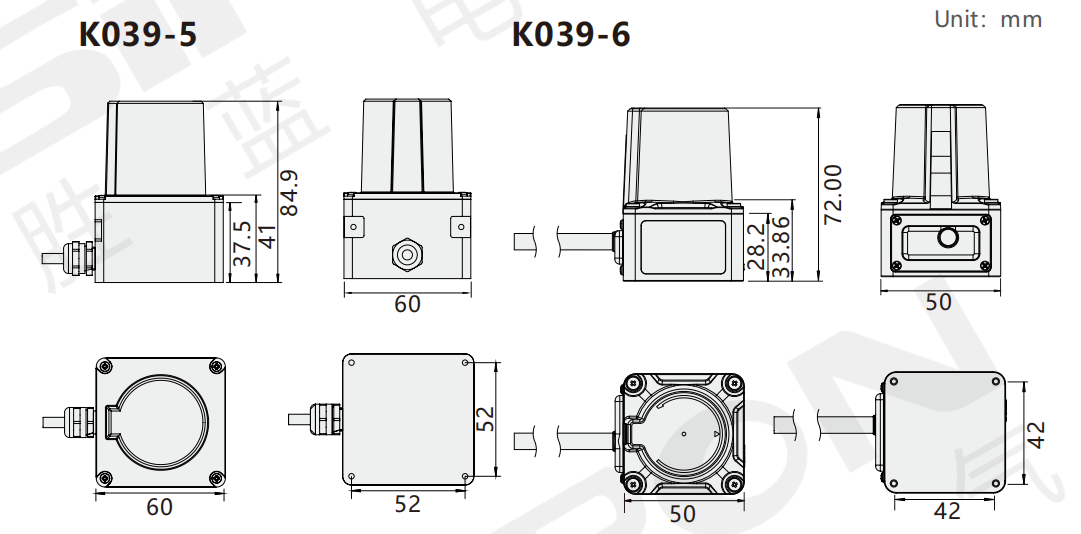

Size	60×60×84.9mm		50×50×72mm
Light spot size	7×3mm		4.5×2mm
Spot divergence Angle	5.2×9mrad		4.0×2mrad
Data sampling rate	30KHz		18KHz
Frequency of scanning	10Hz/15Hz/20Hz/25Hz/30Hz		10Hz/25Hz
ScanAngle resolution	0.12°/0.18°/0.23°/0.35°		0.5°
Operating voltage	DC 12V		DC9～28V
Power consumption	5W		5W
Measuring range(70%refilectivity)	0.1m~20m		0.1m～5m
Measuring range(10%reflectivity)	0.1m~10m		0.1m~2m
Communication	Ethernet/RS485		Type-C/RS485
I/O input	/		6 pieces
I/O output	/		4 pieces
Number of area Groups	/		64 pieces
Indicator light	/		4
Start uptime	/		10s
Response time	/		50ms
Operating temperature	-20～+60℃		-20～+50℃
Light source	Infrared laser (905 nm)	Errorof measurement	Resolution of resolution	1cm
Laser safety rating	Class 1 (GB7247.1-2012, eye-safe)		Degree of linearity	2cm
Working Environment	Indoor type	Enclosure protection class		IP65
Self test of equipment	Equipped	Electromagnetic compatibility	Electrostatic discharge	6KV(GB/T17626.2~2006),Class3
Abnomal alarm function	Equipped		Fast transient bursts	1KV(GB/T17626.4~2008),Class2
Resistance to insulation	100 MΩ, measured with a high-resistance meter at 500 VDC		Radiated electromagnetic field immunity	GB/T17626.3～2006,Class2
Resistance to surge	Power terminal 1 kV	Temperature of storage		-20～+70℃
Resistance to impact	10~150 Hz, double amplitude 1.5 mm, 2 hours each for X, Y, Z axes	Ambient illumination		80000Lux
Resistance tovibration	500 m/s⊃2; (approx. 50 G), 3 times each for X, Y, Z axes	Weight		0.25kg
Humidity of storage	93%,+40℃,2h(GB/T2423.3)	Range of scanning Angle		270°
