SiRON K036C Series Waterproof Light Curtain

About selection

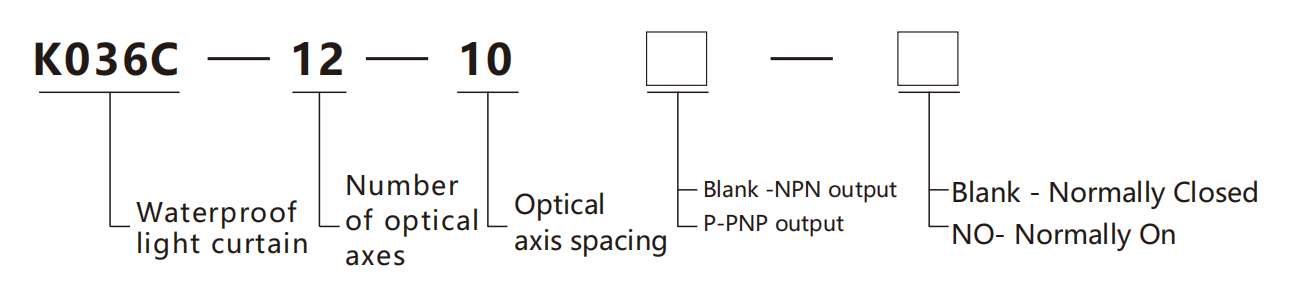

Selection example:

K036C-12-10 indicates K036C series, the number of optical axesis 12 axes, the optical axis spacing is 10mm, NPN output, normally closed state.

K036C-12-10P-NO indicates the K036C series, the number of optical axesis 12 axes, the optical axis spacing is 10mm, PNP output, normally open state.

Specifications

Name	Waterproof light curtain

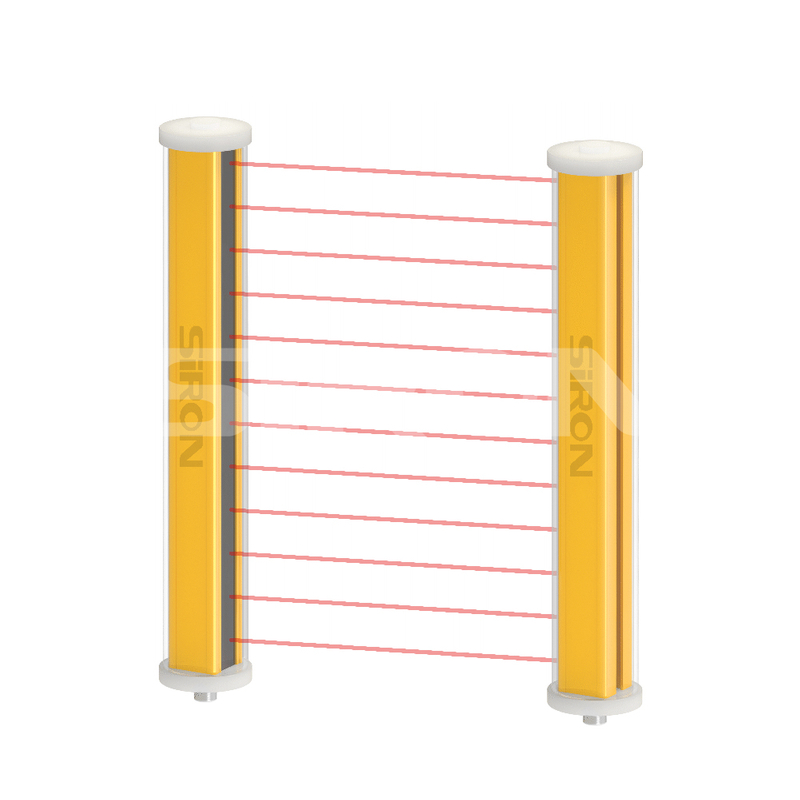

Appearance
Cross-sectional area	Φ5 5 m m	Response time	≤10ms
Number of channels	single channel	Synchronicity	Wire synchronization
Number of optical axes	4、6、8、10……	Protection class	IP69
Protection height	Protection height H=(n-1)*optical axis spacing, N is the number of optical axes	Operating temperature	-10～+55℃
Protection distance*	Indoor:0.1～30M;outdoor:0.1～5M	Ambient temperature	-40～+70℃
Opical axis spacing	10mm/20mm/40mm/60mm	Relative humidity	35%RH~85%RH
Power	3~8W	Resistance to light interference	1000Lux
Power supply	24V±10%	Protection of circuit	Reverse protection/output short-circuit
Output method	NPN/PNP	Light curtain form	Protection beam
Resistance toinsulation	≥100MΩ

Example

Equipment operation protection detection                                Equipment operation protection detection

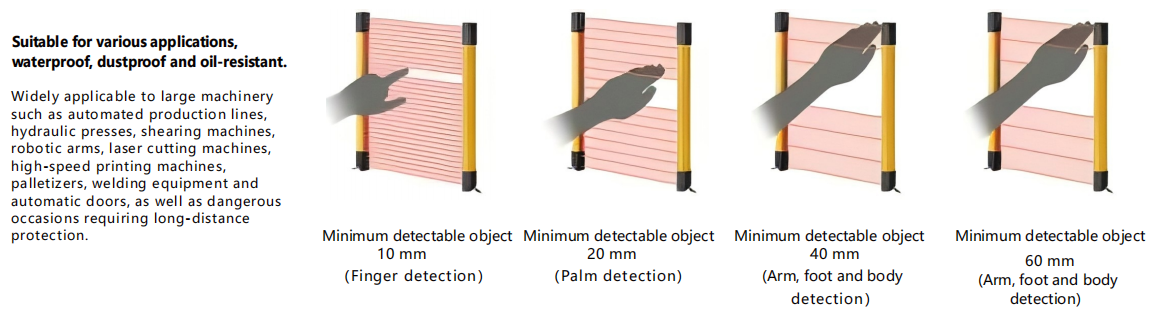

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (Indoor 0.1 to 30 meters; Outdoor: 0.1 to 5 meters)

Optical axis spacing is 20mm (Indoor 0.1 to 30 meters; Outdoor: 0.1 to 5 meters)

Optical axis spacing is 40mm (Indoor 0.1 to 30 meters; Outdoor: 0.1 to 5 meters)

Optical axis spacing is 60mm(Indoor 0.1 to 30 meters; Outdoor: 0.1 to 5 meters)

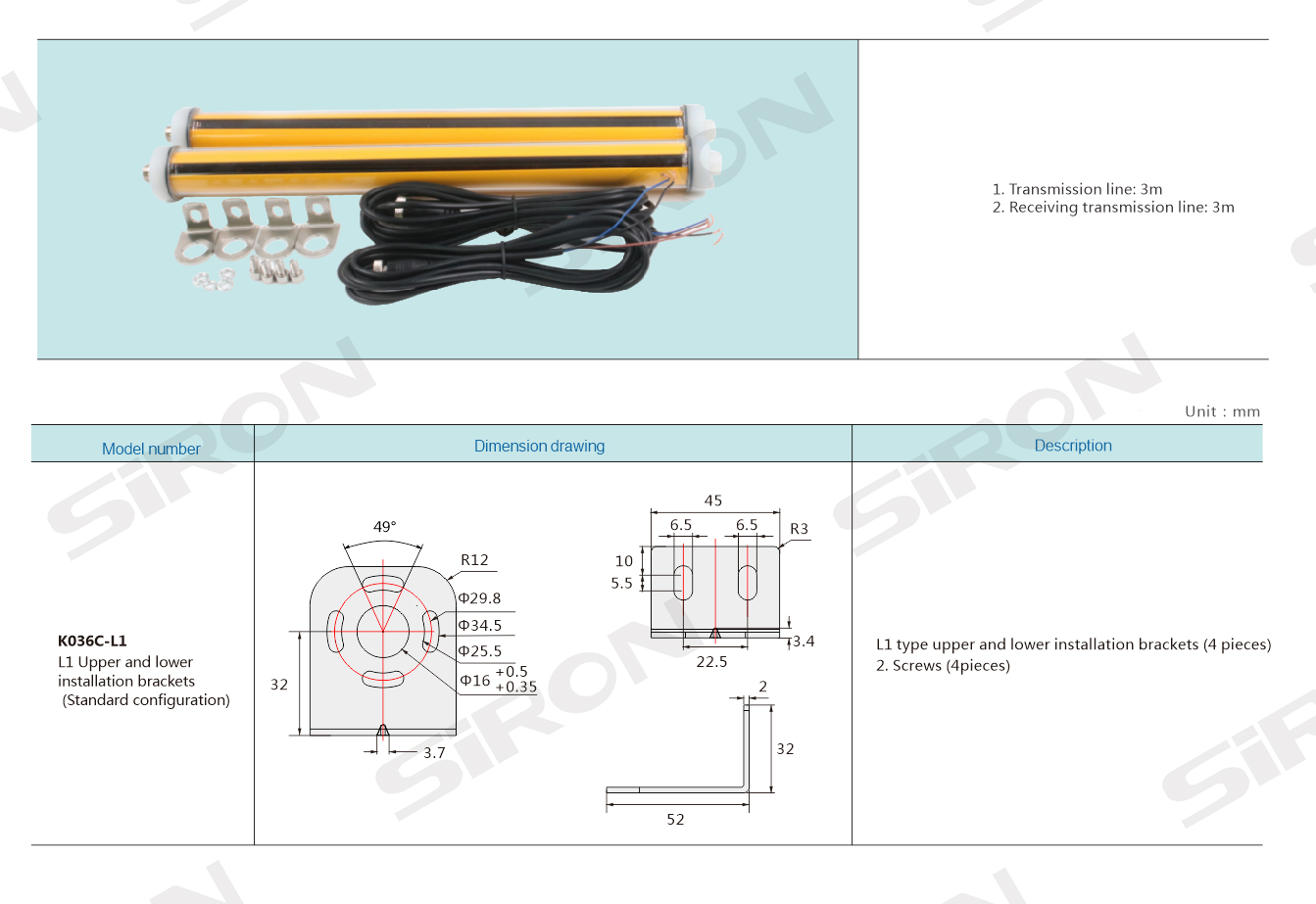

Attachments

Installation instructions

When installing the light curtain, ensure a safe distance between the light curtain and the hazardous area of the machine. Failure to stop the machine before reaching its hazardous area may result in severe injury or death.

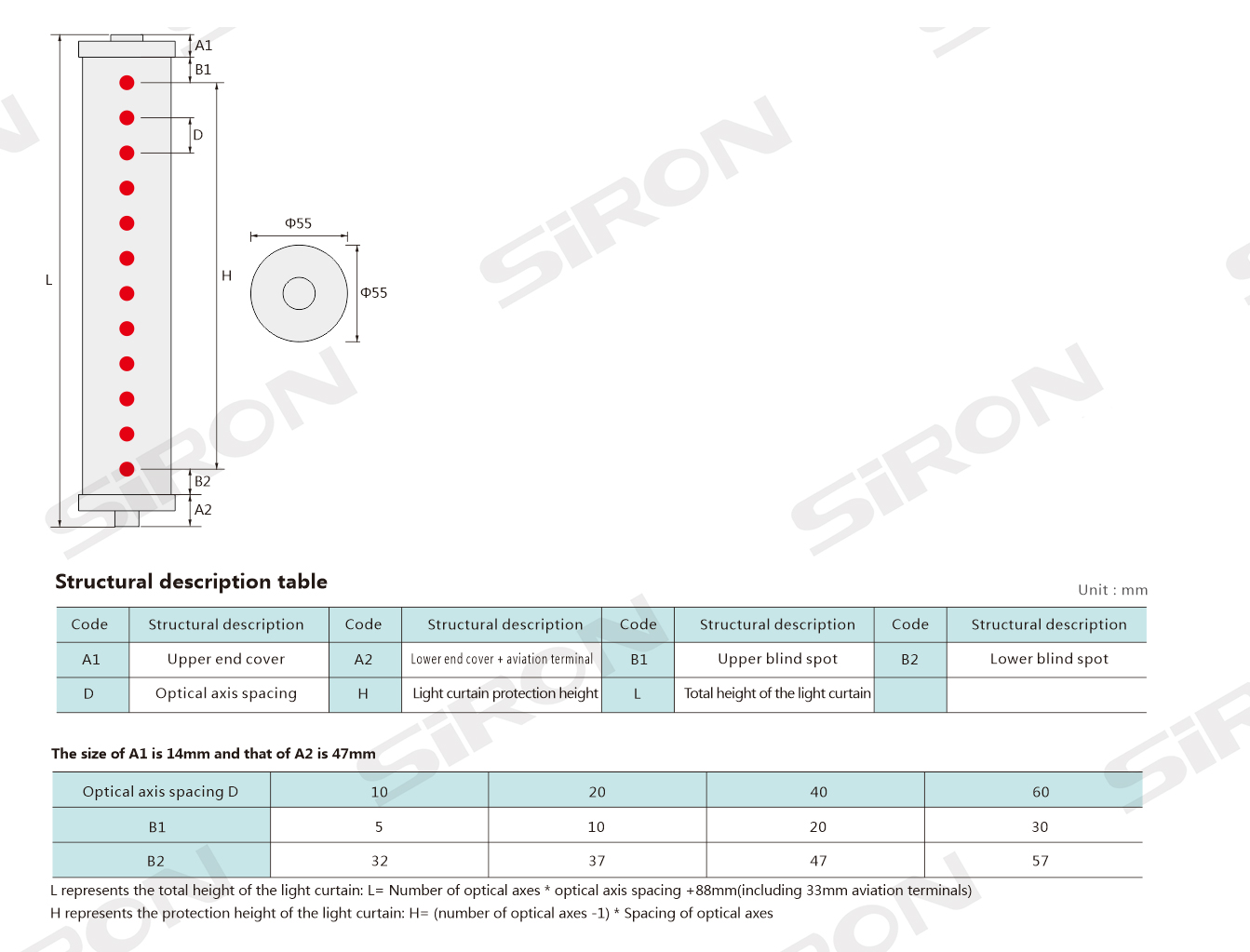

External drawing

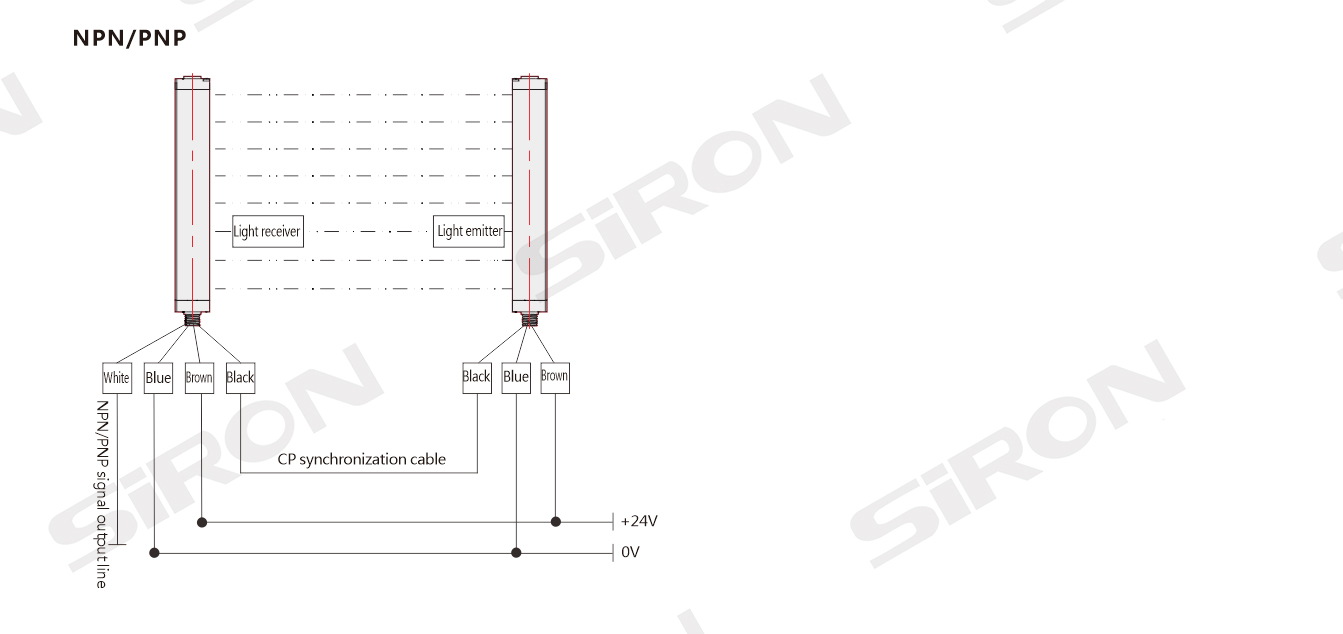

Wiring diagram
