About selection

Type analysis
①	Ultra-thin light curtain(side detection)series	K035C
②	Number of optical axes	8:8-axis   16:16-axis 24:24-axis (Other axis numbers please refer to the selection table.)
③	Optical axis spacing	10:10mm        20:20mm        30:30mm   40:40mm
④	Output mode	Blank:NPN   output   P:PNP   output
⑤	Working condition	Bank:Normally Closed NO:Normally Open
⑥	Synchronization mode	Blank:Line synchronization G:Optical synchronization

Selection Example:

K035C-16-20P-NO-G indicates the K032C series, with 16 optical axes, 20 mm optical axis spacing, PNP output, normally open (NO) state, and optical synchronization.

Note: The standard color is silver. For yellow, please add (Y) at the end of the model. Examples are shown below:

K035C-8-10(Y) indicates the K035C series with 8 optical axes, 10 mm optical axis spacing, NPN output, normally closed (NC) state, line synchronization, and yellow housing. K035C-8-10P-NO-G(Y) indicates the K035C series with 8 optical axes, 10 mm optical axis spacing, PNP output, normally open (NO) state, optical synchronization, and yellow housing.

Specifications

Name	UItra-thin light curtain(side detection)

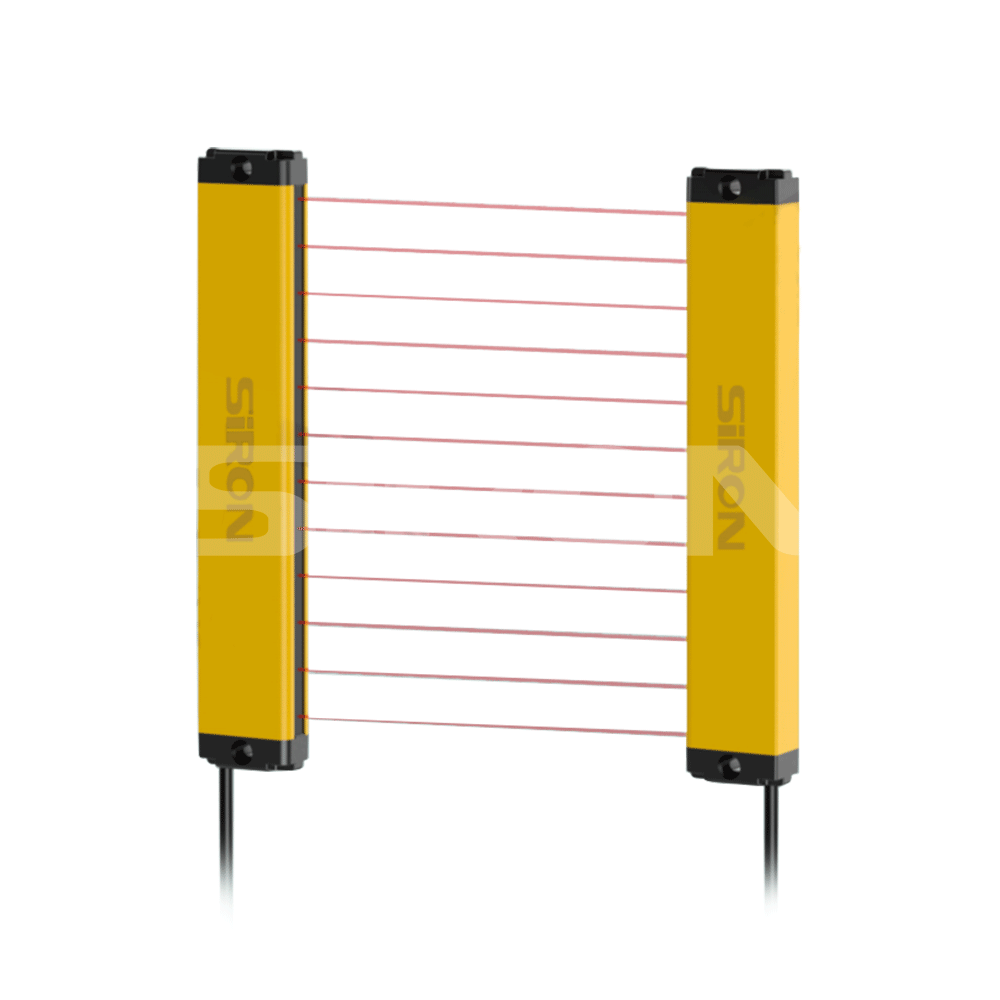

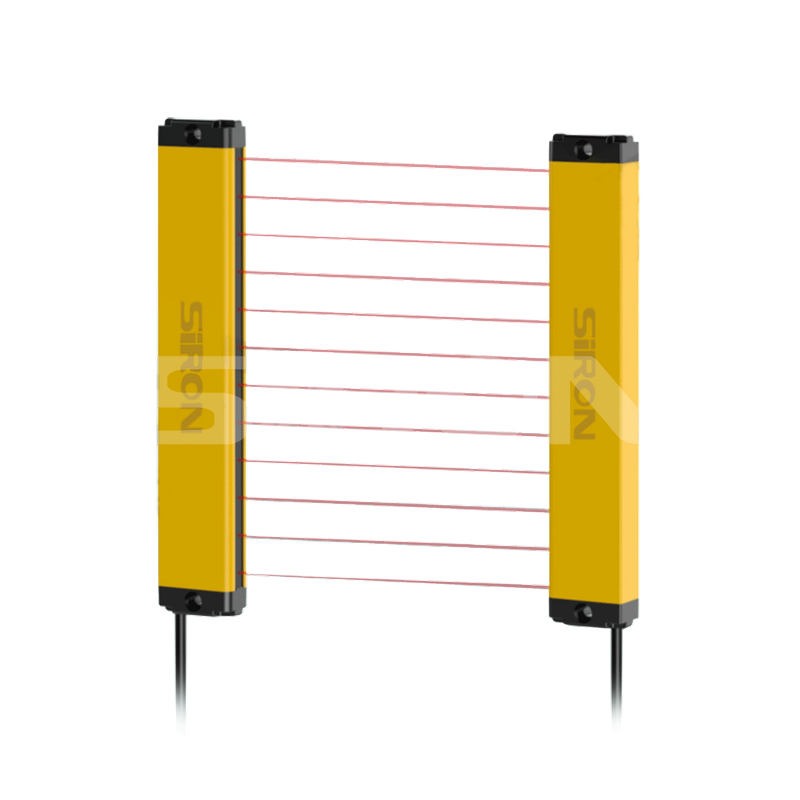

Appearance
Cross area	35×18mm
Number of channels	single channel
Number of optical axes	4、6、8、10……256 axes
Protective height	Optical axis spacing X (number of optical axes -1)
Protection distance*	0.2～2M
Optical axis spacing	10mm/20mm/30mm/40mm
Power	3～8W
Power supply	24V±10%
Output method	NPN/PNP
Response time	≤15ms
Resistance to insulation	≥100MΩ
Synchronicity	Line synchronization/optical synchronization
Protection class	IP53
Operating temperature	-10~+55℃
Temperature of storage	-40~+70℃
Working humidity	35%RH～85%RH
Resistance tolight interference	10000Lux
Protection of circuit	Reverse polarity protection / Output short-circuit protection
Light curtain form	Through-beam type

Example

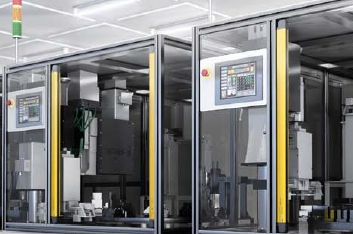

Application on die-casting machines                                           Application on die-casting machines

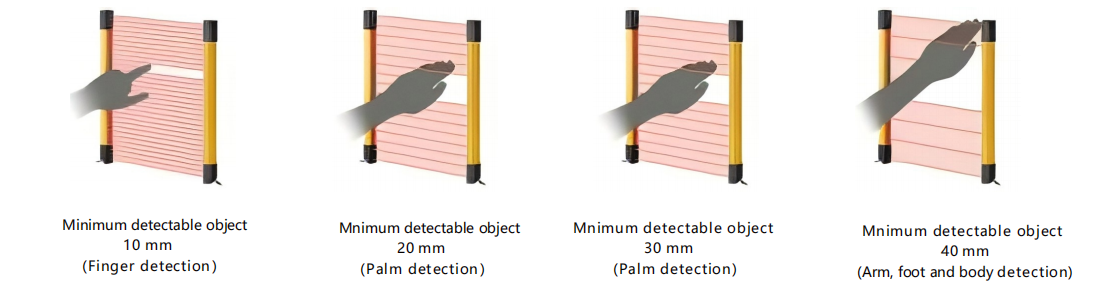

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (protection distance: 0.2 ~ 2m)

Optical axis spacing is 20mm (protection distance: 0.2 ~ 2m)

Optical axis spacing is 30mm (protection distance: 0.2 ~ 2m)

Optical axis spacing is 40mm (protection distance: 0.2 ~ 2m)

Attachments

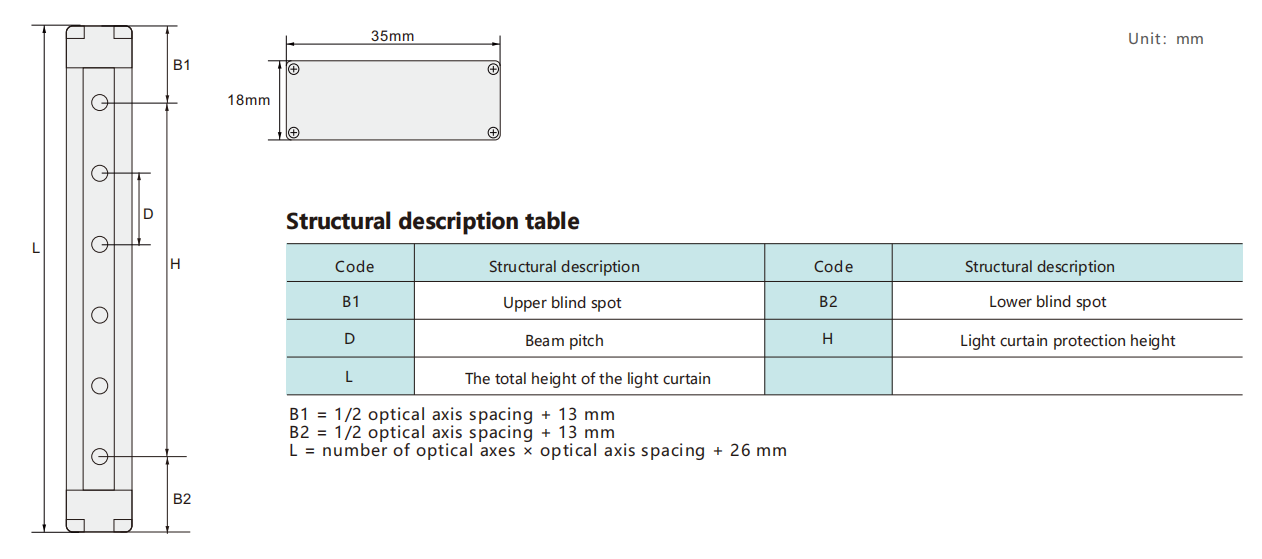

Dimension

Wiring diagram
