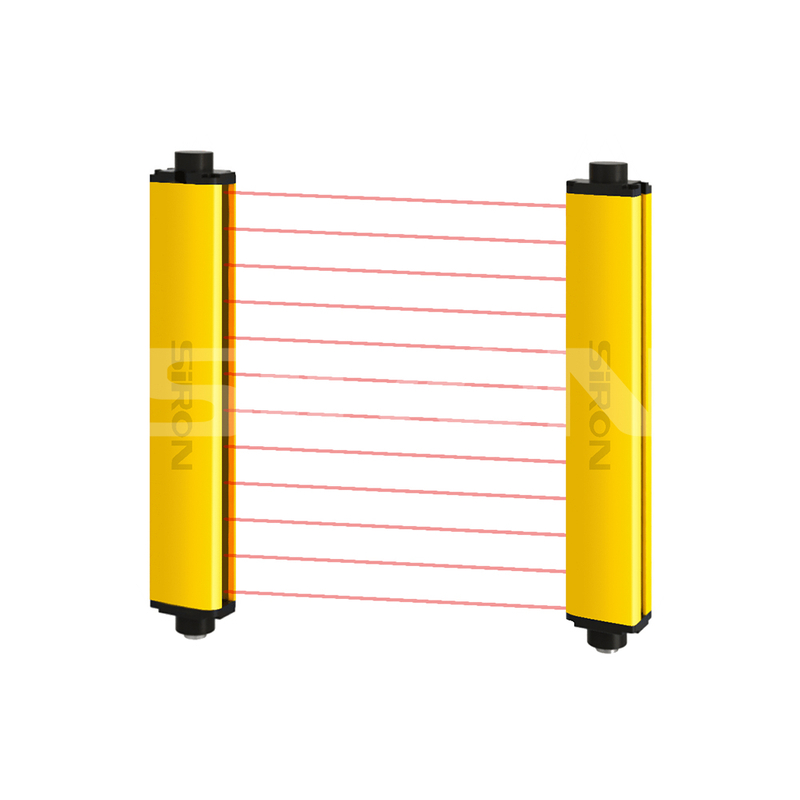

SiRON K031 Series Universal Light Curtain Line Synchronization

Name: SiRON K031 Series Universal Light Curtain Line Synchronization
Brand: SiRON
Rating: 5.0 (36 reviews)

Features:

* Low wide voltage power supply, working voltage is DC10 ~ 30V; Using line synchronization technology, strong anti-light interference ability;

* The interior of the light curtain is designed with seismic structure and aluminum alloy shell structure;

* Double circuit self-check output design, high safety and reliability;
* Strong anti-electromagnetic interference ability, can effectively fight against various electromagnetic interference effects of motor equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K031 series
Brand:
SiRON
Code:
8543709990

Safety Light Curtain Sensor Line synchronization high safety and reliability Strong anti-electromagnetic interference ability seismic structure

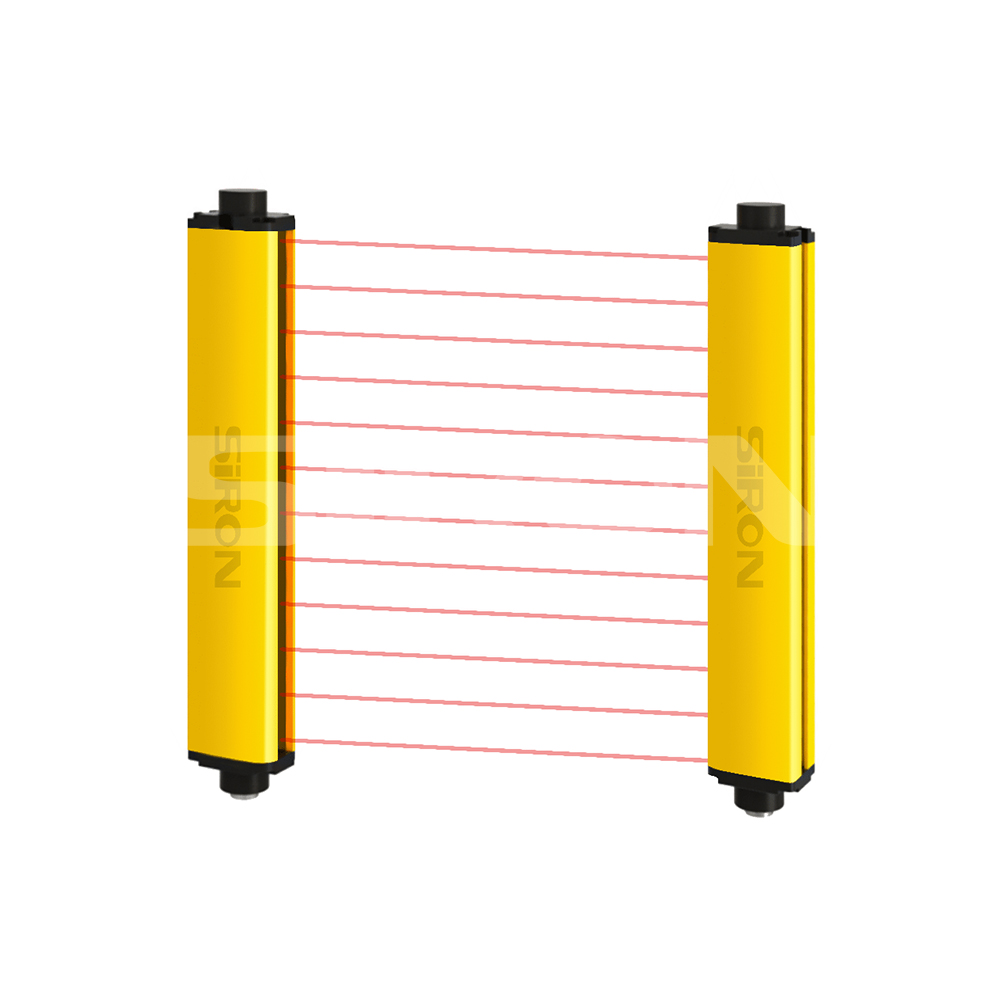

Product Description

About selection

Type analysis

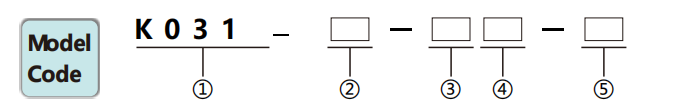

①	Universal light curtain series	K031
②	Number of optical axes	8:8-axes 12:12-axes 16:16-axes (For other axis numbers, please refer to the selection table)
③	Optical axis spacing	10:10mm 20:20mm 40:40mm
④	Output mode	Blank:NPN output P:PNP ouput
⑤	Working condition	Blank:Normally closed state NO:Normally open state

Selection example：K031-8-10 indicates the K031 series, with 8 optical axes, an optical axis spacing of 10mm, NPN output, and a normally closed state.

Noted:1. For a spacing of 10mm: The number of optical axes ranges from 8 to 160.

For a spacing of 20mm: The number of optical axes ranges from 4 to 80.

For a spacing of 40mm: The number of optical axes ranges from 4 to 76.

The protection distance can be customized up to 30 meters. Examples of models are as follows:

K031-12-20(D30) indicates the K031 series, with 12 optical axes, an optical axis spacing of 20mm, NPN output, a normally closed state, and a protection distance of 30 meters.

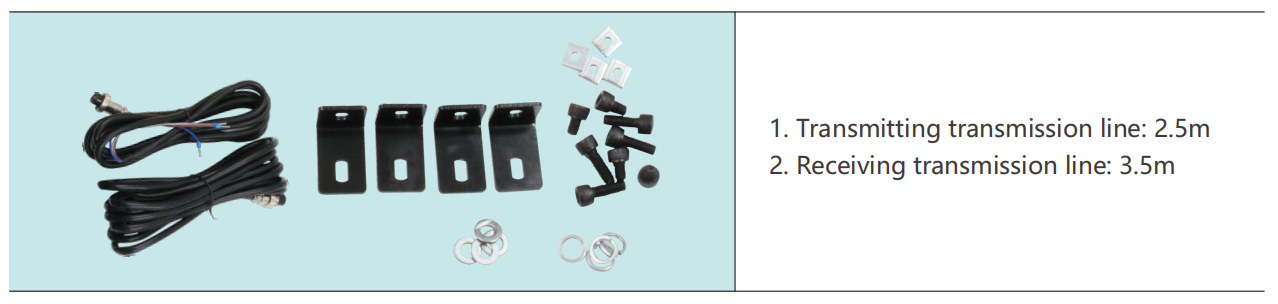

2. When ordering brackets separately, the order models are: K031-L1, K031-H1, K031-Z, and K031-N.

Specifications

Name	Universal light curtain

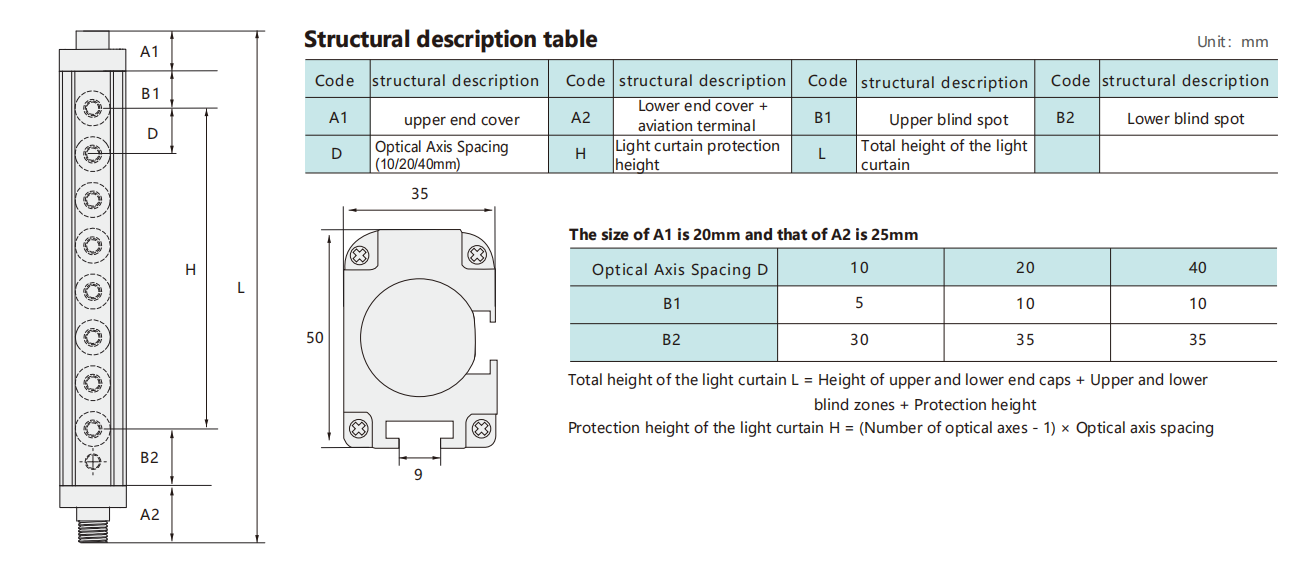

Appearance
Cross area	35×50mm
Number of channels	Dual-channel (when the number of optical axes is 4, only single-channel is available)
Number of optical axes	10mm spacing：8、12、16----320 axes 20mm spacing：4、6、8----160 axes 40mm spacing：4、6、8----122 axes
Protective height	The protective height H=(N-1)* the spacing of the optical axes, where N is the number of optical axes
Protection distance*	0 . 1~10M(customizable up to 30M)
Optical axis spacing	10mm/20mm/40mm
Resolution	20mm/30mm/50mm
Working power supply	DC 10~30V
Power	<5W
Emission light source	940nm
Protective circuit	Power overvoltage protection, reverse polarity protection and output overcurrent protection
Response time	Response time =(N*0.1ms)+0.4ms(N is the number of optical axes)
Operating ambienttemperature	-10~55℃(No condensation)
Storage ambient temperature	-30~70℃(No condensation)
Workingambient humidity	When the temperature is 20℃, the relative humidity of the air is less than 85%
Vibration resistance	Frequency: 10-55Hz, amplitude: 0.35±0.05mm, 20 times in each direction of X,Y, and Z
Anti-optical interference	10000Lux(Incident Angle l>5°)
Light curtain form	Through-beam type
Synchronous mode	line synchronization
Shell material	aluminium alloy
Case protection class	IP65
Security Output (OSSD)	NPN/PNP transistor output, load current below 200mA, residual voltage below 1V (excluding voltage drop caused by cable extension), leakage current below 1mA

Example

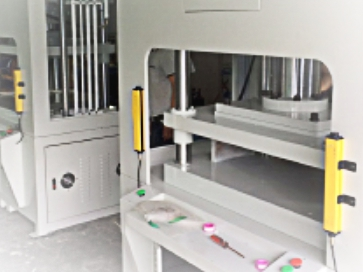

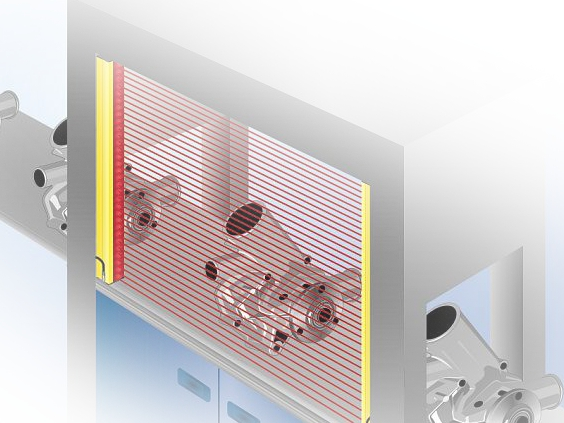

Detect whether there are any personnel Detect whether there are any personnel

approaching the machinery approaching the machinery

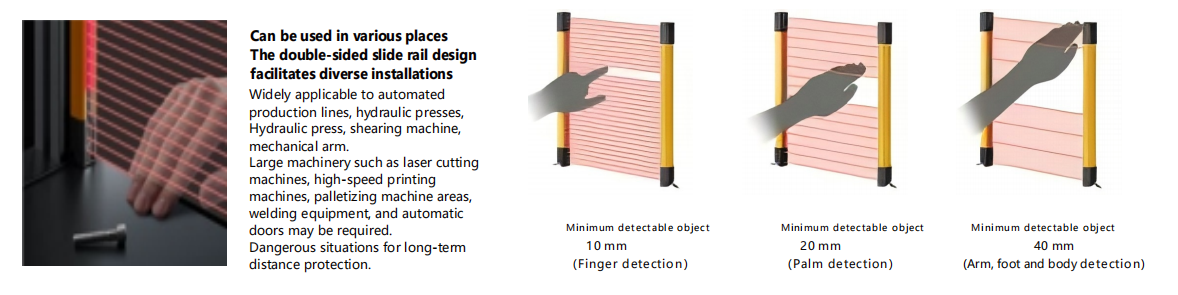

Schematic diagram of optical axis spacing

Selection list

Optical axis spacing is 10mm (protection distance: 0.1 ~ 10m, can be customized to 30m)

Optical axis spacing	10mm
Number of optical axis	8-axis	12-axis	16-axis	20-axis	24-axis	28-axis	32-axis	36-axis	40-axis	44-axis	48-axis	52-axis	56-axis	60-axis	64-axis	68-axis
Protection height (mm)	70	110	150	190	230	270	310	350	390	430	470	510	550	590	630	670
Light curtain height (mm)	150	190	230	270	310	350	390	430	470	510	550	590	630	670	710	750

Optical axis spacing	10mm
Number of optical axis	72-axis	76-axis	80-axis	84-axis	88-axis	92-axis	96-axis	100-axis	104-axis	108-axis	112-axis	116-axis	120-axis	124-axis	128-axis	……	320-axis
Protection height (mm)	710	750	790	830	870	910	950	990	1030	1070	1110	1150	1190	1230	1270	……	3190
Light curtain height (mm)	790	830	870	910	950	990	1030	1070	1110	1150	1190	1230	1270	1310	1350	……	3270

Optical axis spacing is 20mm（protection distance：0.1~10m，can be customized to 30m）

Optical axis spacing	20mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis	32-axis	34-axis
Protection height (mm)	60	100	140	180	220	260	300	340	380	420	460	500	540	580	620	660
Light curtain height (mm)	125	190	230	270	310	350	390	430	470	510	550	590	630	670	710	750

Optical axis spacing	20mm
Number of optical axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	48-axis	50-axis	52-axis	54-axis	56-axis	58-axis	60-axis	62-axis	64-axis	……	160-axis
Protection height (mm)	700	740	780	820	860	900	940	980	1020	1060	1100	1140	1180	1220	1260	……	3180
Light curtain height (mm)	790	830	870	910	950	990	1030	1070	1110	1150	1190	1230	1270	1310	1350	……	3270

Optical axis spacing is 40mm (protection distance:0.1 ~ 10m,can be customized to 30m)

Optical axis spacing	40mm
Number of optical axis	4-axis	6-axis	8-axis	10-axis	12-axis	14-axis	16-axis	18-axis	20-axis	22-axis	24-axis	26-axis	28-axis	30-axis	32-axis	34-axis
Protection height (mm)	120	200	280	360	440	520	600	680	760	840	920	1000	1080	1160	1240	1320
Light curtain height (mm)	210	290	370	450	530	610	690	770	850	930	1010	1090	1170	1250	1330	1410

Optical axis spacing	40mm
Number of optical axis	36-axis	38-axis	40-axis	42-axis	44-axis	46-axis	48-axis	50-axis	52-axis	54-axis	56-axis	58-axis	60-axis	62-axis	64-axis	……	122-axis
Protection height (mm)	1400	1480	1560	1640	1720	1800	1880	1960	2040	2120	2200	2280	2360	2440	2520	……	4840
Light curtain height (mm)	1490	1570	1650	1730	1810	1890	1970	2050	2130	2210	2290	2370	2450	2530	2610	……	4930
