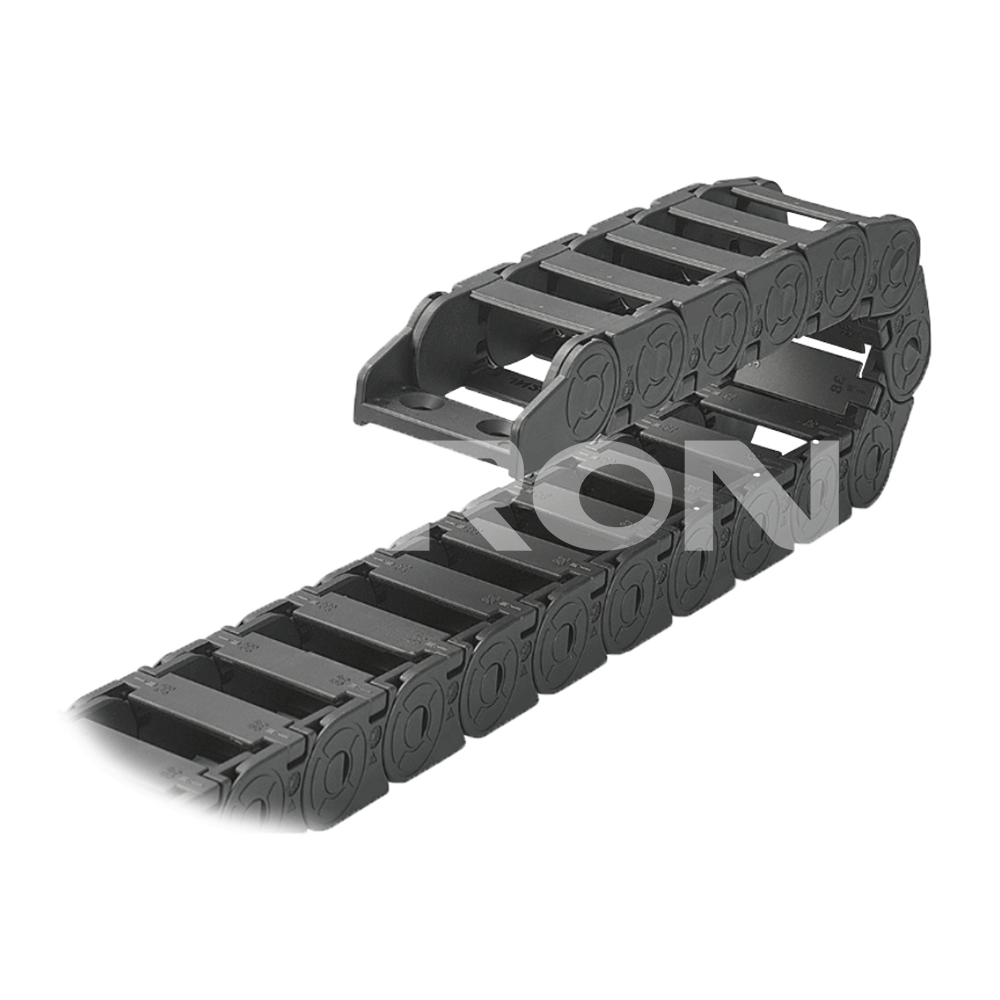

SiRON X70 Series Inner Height 21 Chain-bridge Type inside Opening Drag

Name: SiRON X70 Series Inner Height 21 Chain-bridge Type inside Opening Drag
Brand: SiRON
Rating: 5.0 (74 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series Open inside Opening Drag X70 Series Inner Height 21 Drag

Product Description

Order

f86d49b9-d90d-4daf-aca8-7f1c1a22a165

Selection example: X70-JN21Q.2.38N-38-30-X2 represents the X70 series drag chain, with an inner height of 21mm and a bridge type. Inner width: 38mm, inner opening, bending radius: 38mm, 14 sections, 2 joints (1 pair).Individual

Order of connector model: X70-JN21Q.2.38N-X2 1 pair

Towing chain size table

Model	Bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H₆	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	Installation dimensions of drag chains
													H	D	K
X70-JN21Q.2.38N	38	21	38	28	51.5	28	28	33.3	30	H+28	19	2	104	85	200
	48												124	95	233
	75												178	122	333
	100												228	147	400
	125												278	172	466
X70-JN21Q.2.68N	38		68		81.5								104	85	200
	48												124	95	233
	75												178	122	333
	100												228	147	400
	125												278	172	466
