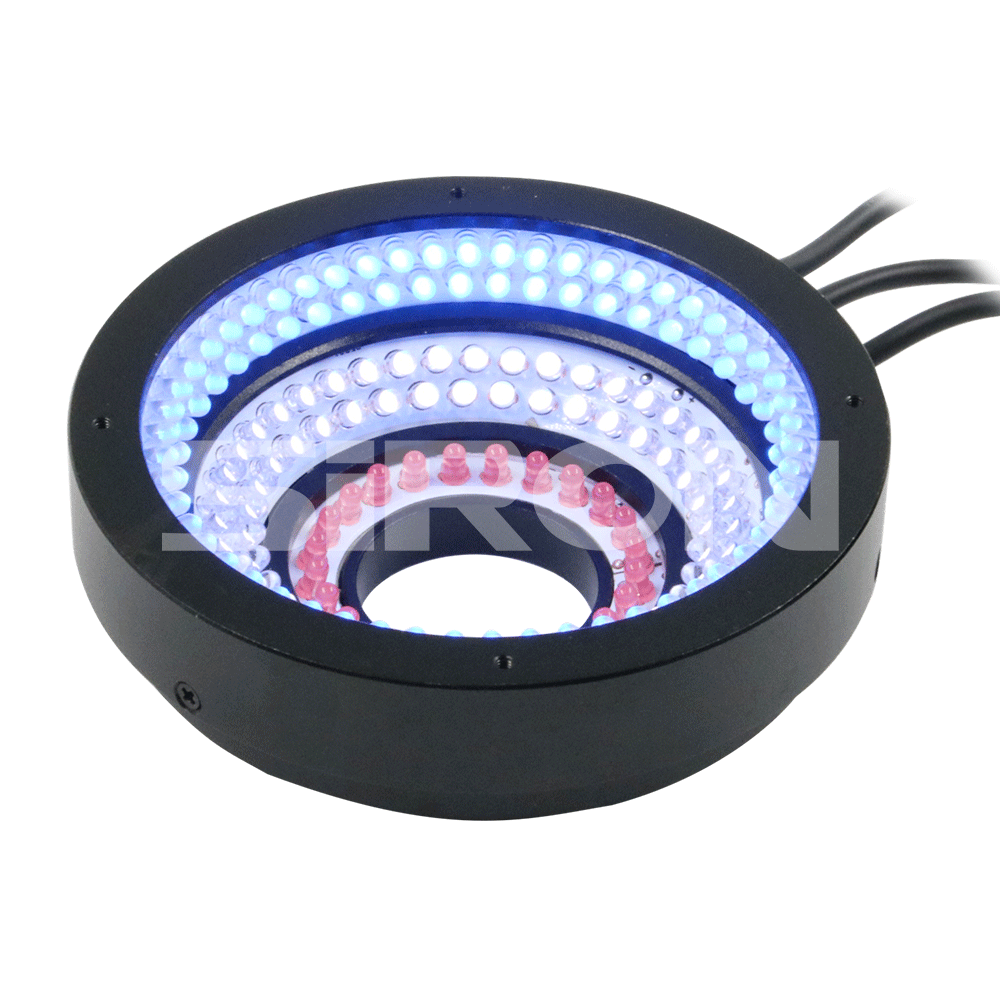

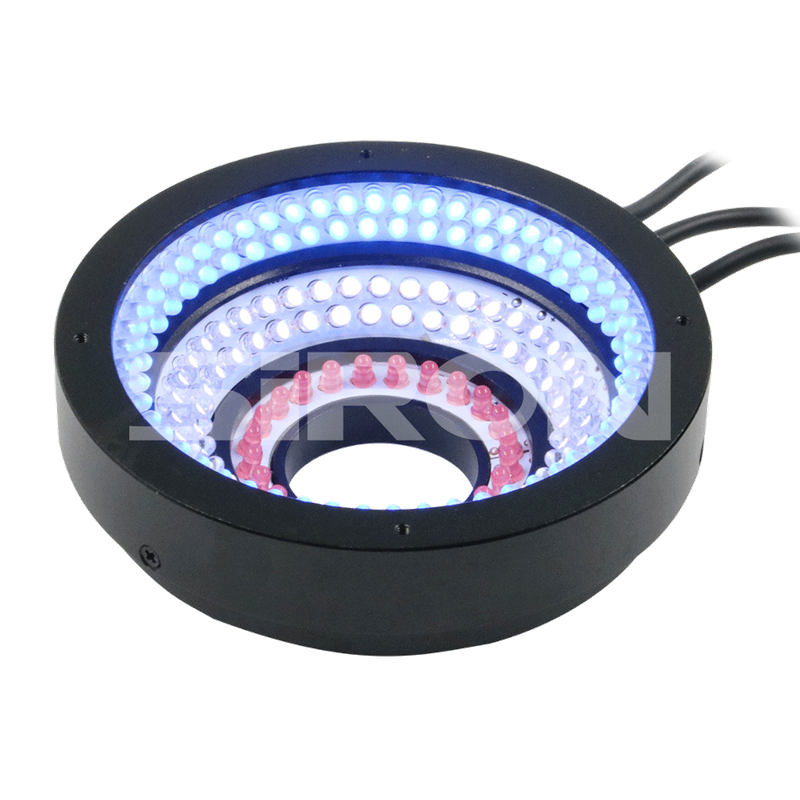

SiRON K732 Series AOI Lightsource

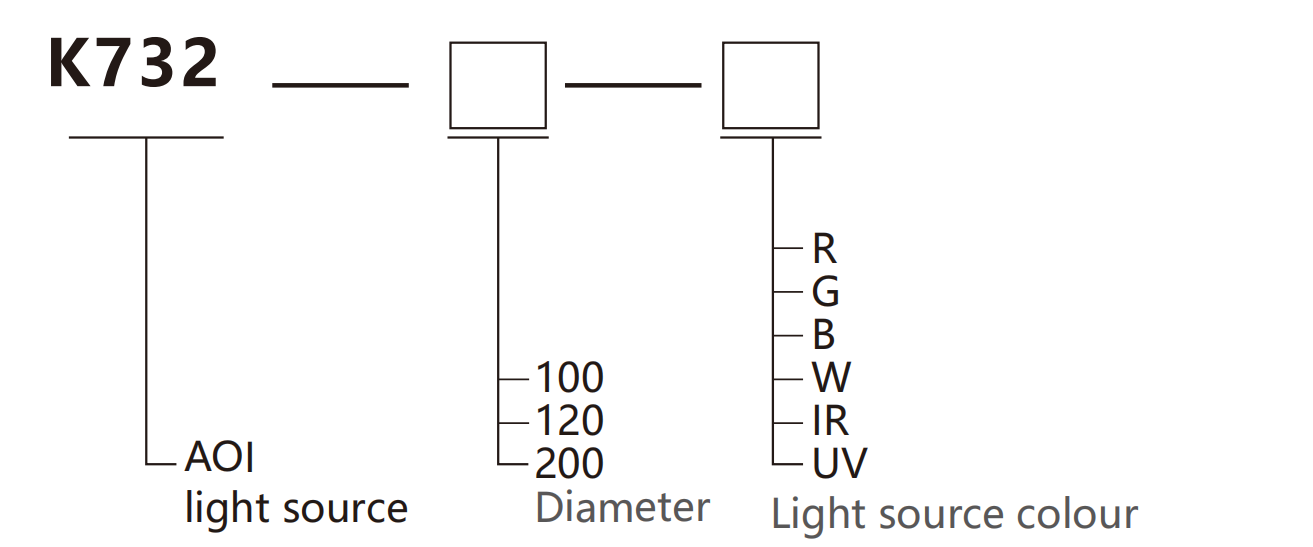

About selection

Selection example:

K732-100-RWB indicates the K732 series,with a diameter of  100mm,and the color of the light source is red,white and blue from the inside out.

Note: 1. R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

            2. RGBW four colors can be mixed.

            3. choosethelight sourcelampfull color: from insideto outside.

Specifications

Name	AOllight source
Appearance
Voltage	24V    DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No        atomization)
Controller	Point light source 24V constant current controller
Scope of application	Check  the  welding  quality  of  circuit  board  components;PCB board   welding   defect   detection;Printed   character   detection
Wavelength and color temperature	W:6500K                       B:465～470nm R:620～630nm                  IR:850～940nm G:525～530nm                  UV:365～395nm

Example

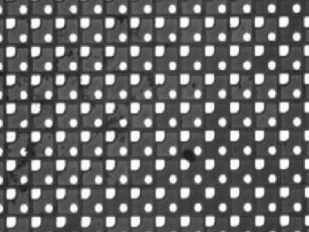

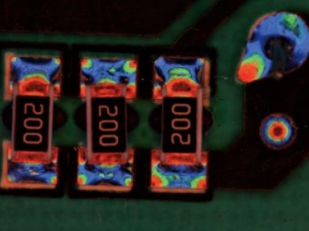

Metal Solder Inspection                                                                   Pin Height Difference Defect Inspection

Better results are achieved by distinguishing                               Good results are obtained by distinguishing

based on RGB three-color changes.                                                based on RGB three-color changes.

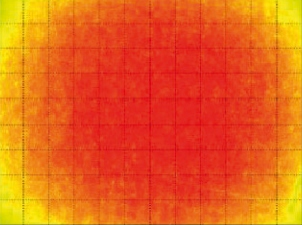

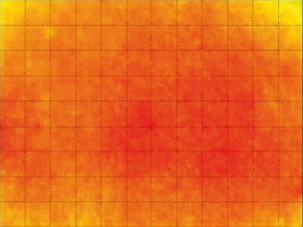

Uniformity distribution map

LED=100, Field of View: 30×40 mm                                                  LED=270, Field of View: 90×120 mm

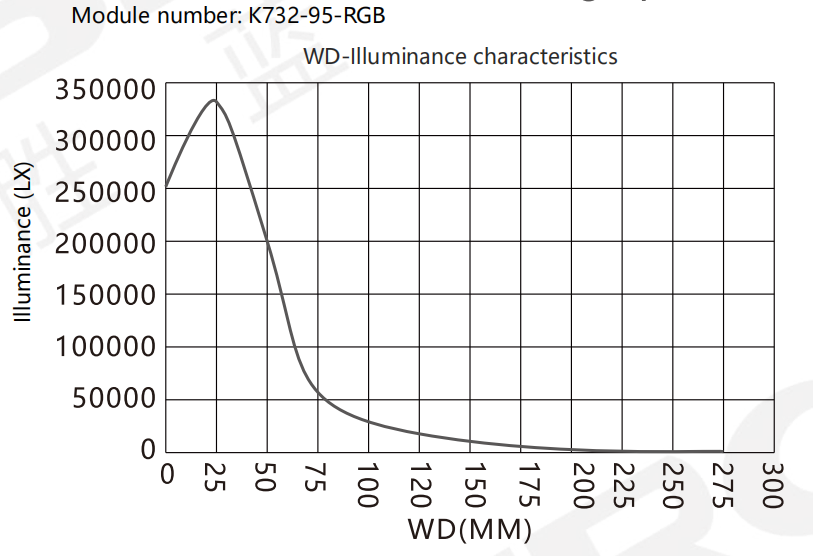

Lllumination characteristic graph

Related products

Controller			Extension cord
	Analog Controller K790/P.065	Digital Controller K791/P.067		K019-2-XXXX (Custom lengths available; confirm length before order)

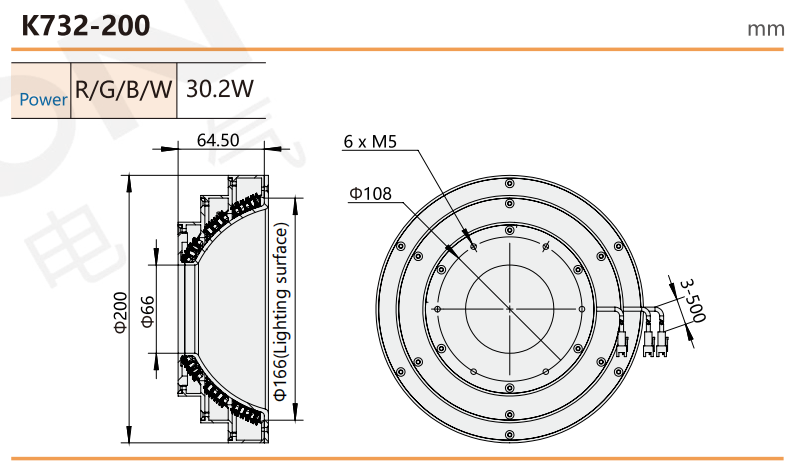

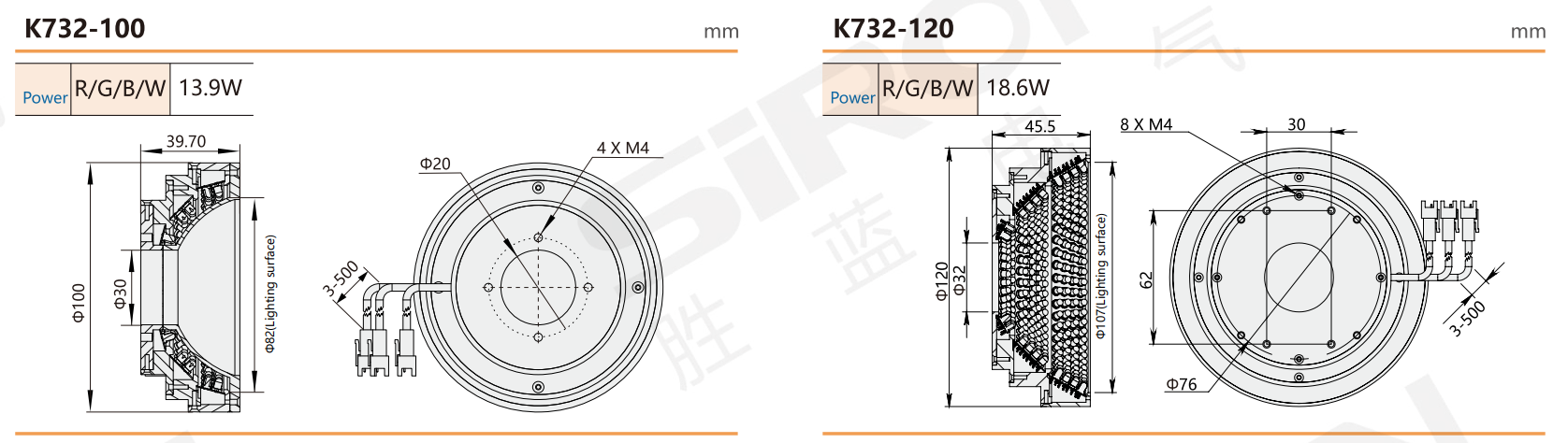

Dimension
