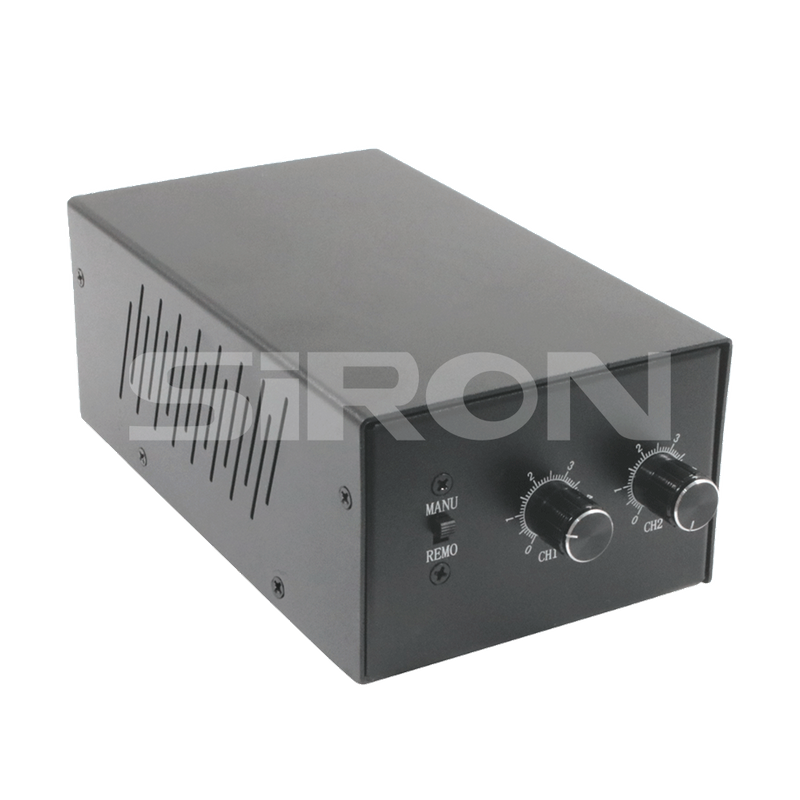

SiRON K790 Series Analog Controller

Name: SiRON K790 Series Analog Controller
Brand: SiRON
Rating: 5.0 (46 reviews)

Features:

* Small size, easy to install;
* Infinitely adjustable brightness, simple structure and good stability;* With external trigger function and short circuit protection function;
* The appearance logo is concise and easy to operate.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K790 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Analog Controller Small insize easy to install Good stability Simple Operation

Product Description

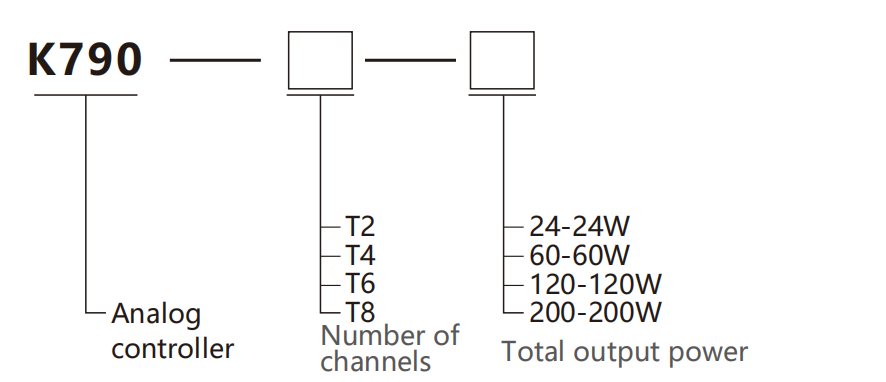

About selection

Selection example: K790-T2-60 indicates the K790 series, with 2 channels and a total output power of 60W.

Specifications

Name	Analog controller
Model	K790-T2-10	K790-T2-24	K790-T2-60	K790-T4-60	K790-T6-120	K790-T8-120
Model	K790-T2-10	K790-T2-24	K790-T2-120	K790-T4-120	K790-T6-200	K790-T8-200

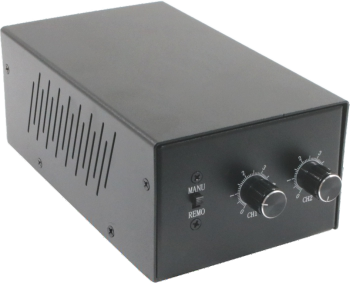

Appearance
The output voltage	5V	Maximum 24V DC
External trigger voltage	12～24V	5~24V DC
Output Power	10W	24W	60W/120W	60W/120W	120W/200W	120W/200W
Input power	100～240VAC 50/60Hz	100~200VAC 50Hz
Bright adjustment	PWM	Knob manual adjustment
Control state	/	Constant on/constant off mode switching
Ambient temperature	/	20～85%RH
Environment humidityn	-5~50℃	0～60℃
Trigger delay time	<100μs	/
Maximum output current of a single channel	1A	/
Mode switching	Constant on (MANU)/constant off (REMO) mode switching: Switch by toggling the switch. In constant on mode, the light source output is turned on, and the light source output is turned off when an external trigger signal is given; In constant off mode, the light source output is turned off, and the light source output is turned on when an external trigger signal is given.
