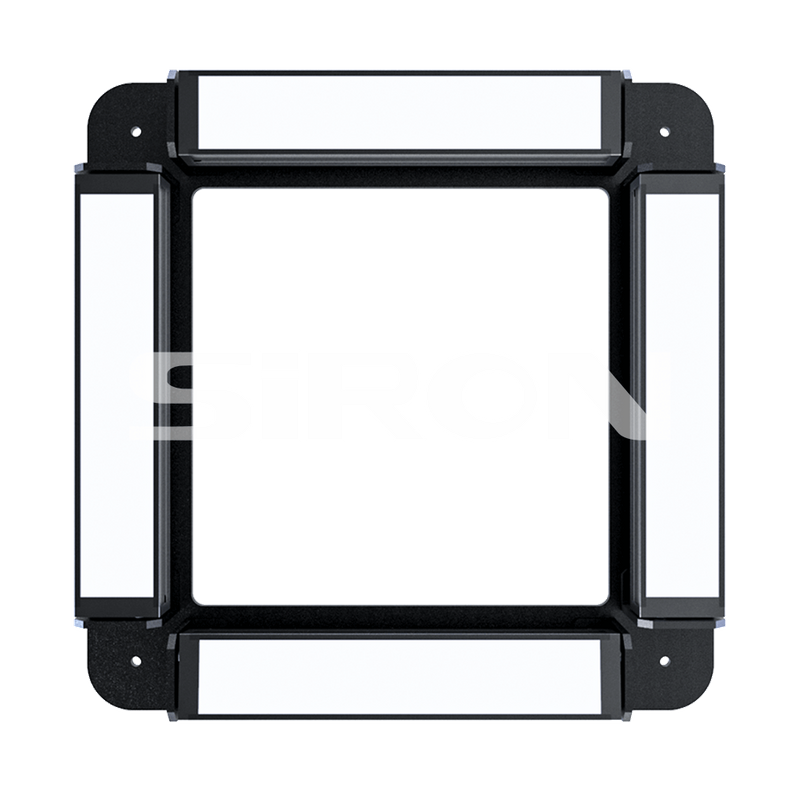

K712 Series
SiRON
8479909090

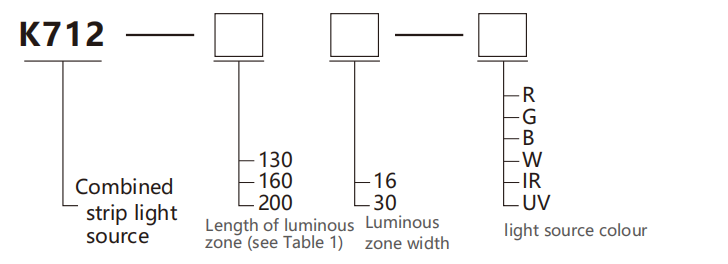

About selection
Selectionexample: K712-13016-R indicates the K712 series,the length of the luminous area is 130mm,the width of the luminous area is 16mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
| LED rows | 4 rows | LED rows | 4 rows |
| Light area length | 130,160,200 | Light area length | 160,200 |
| Light area width | 16 | Light area width | 30 |
Specifications

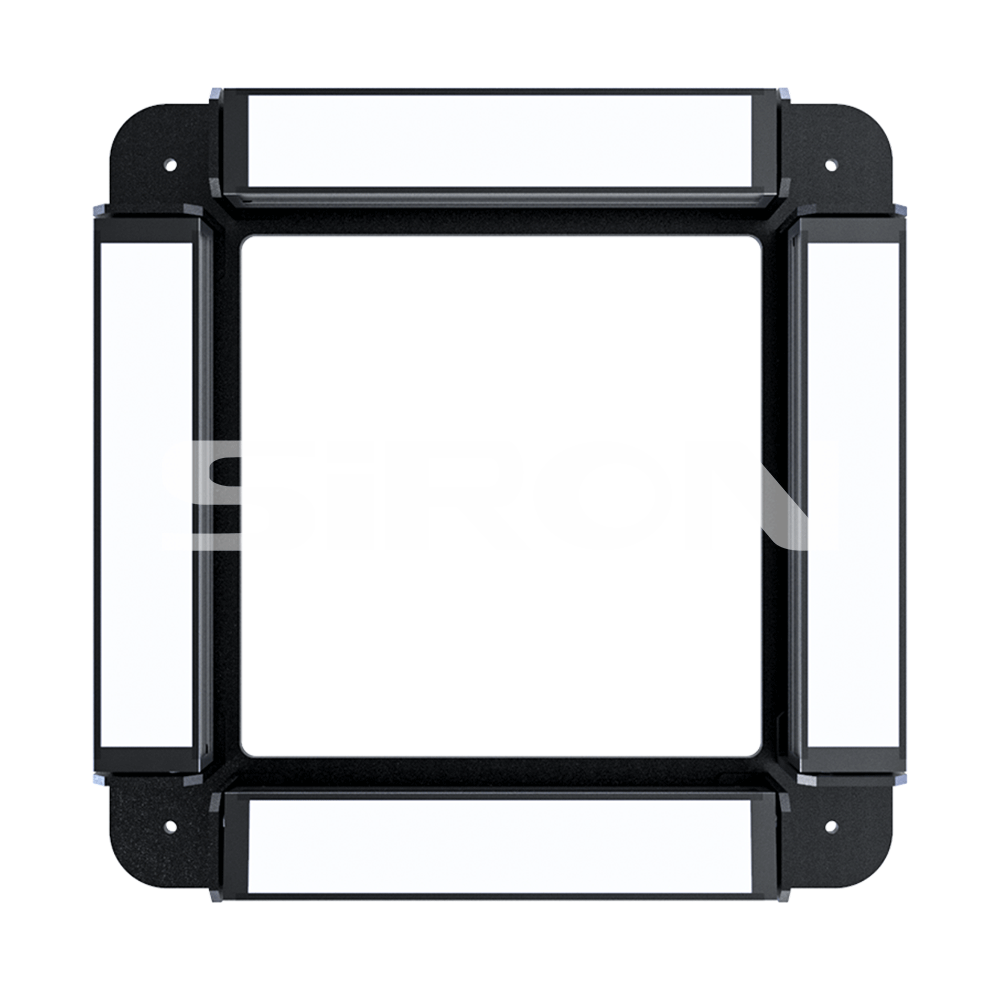

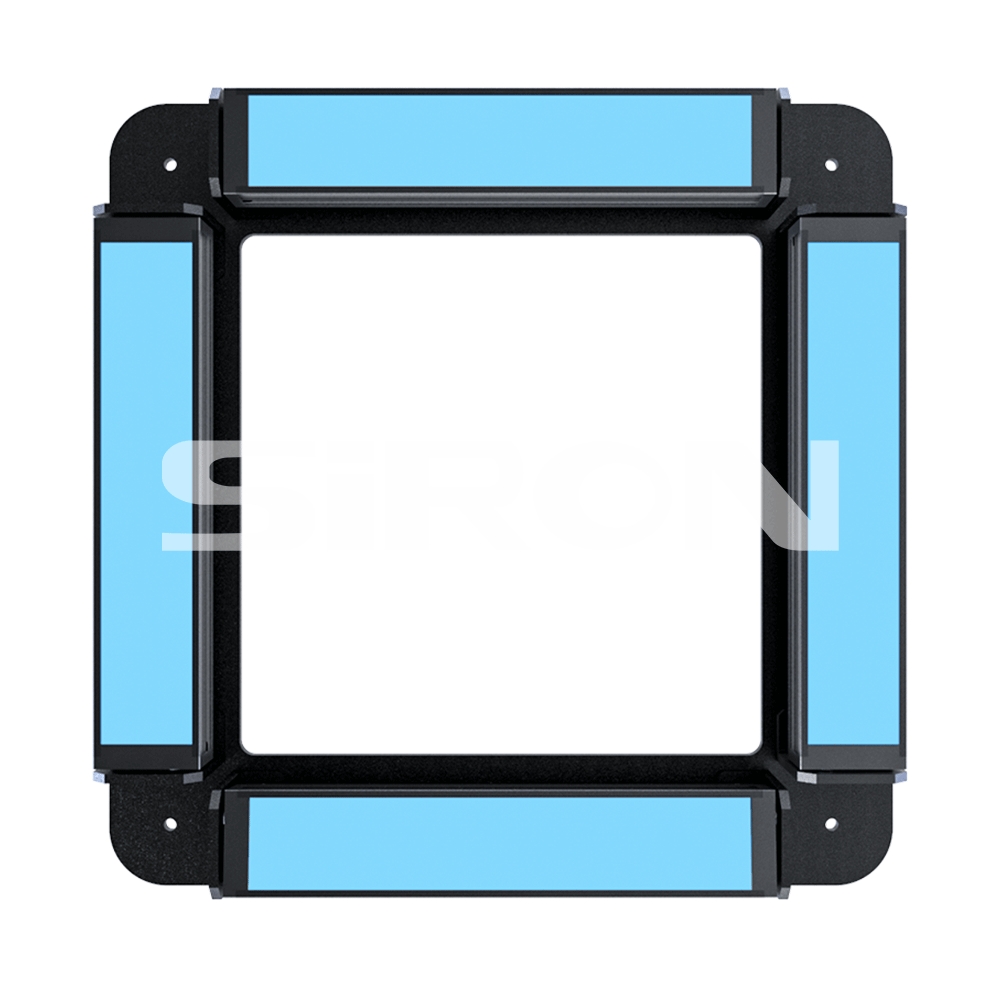

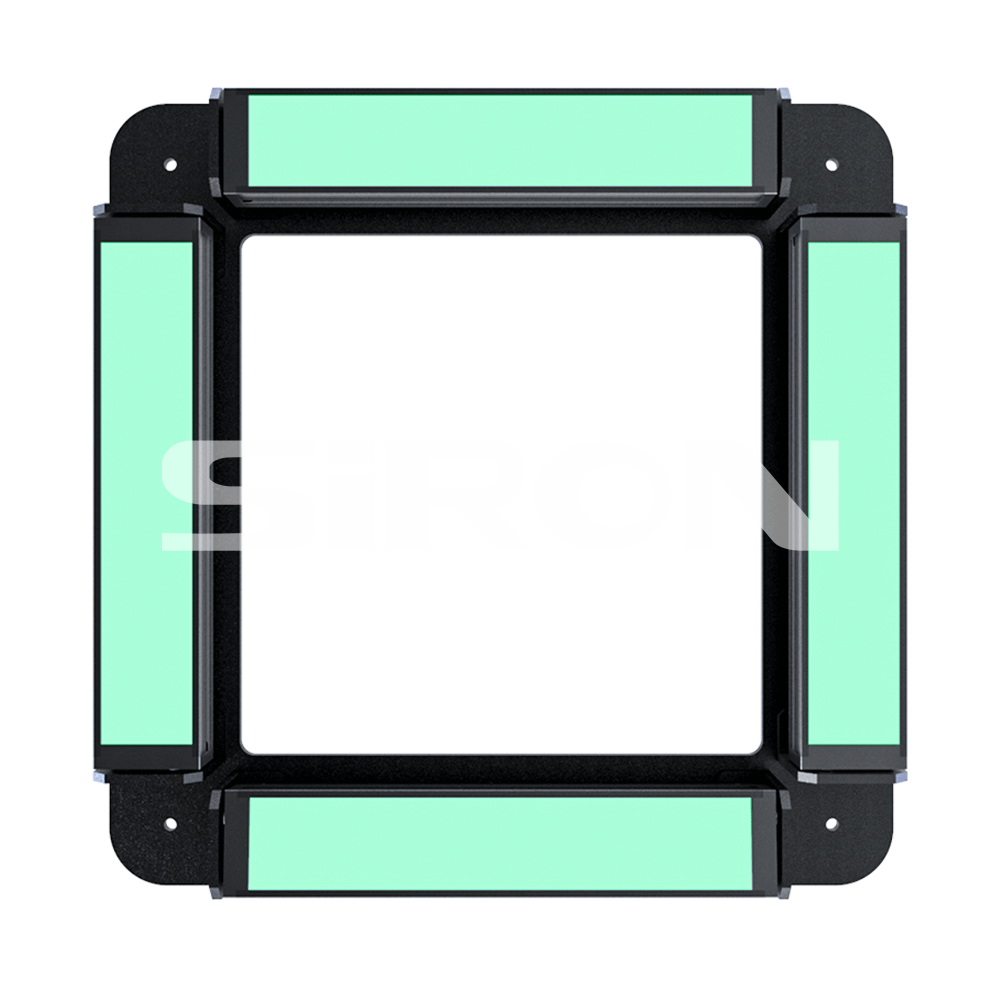

| Name | Combination bar light source |

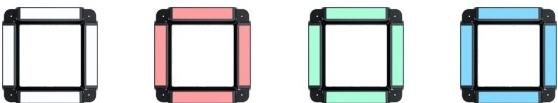

| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | PCB substrate inspection;IC component detection;Large format object surface detection. |
| Wavelength and color temperature | W:6500K B:465~470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example

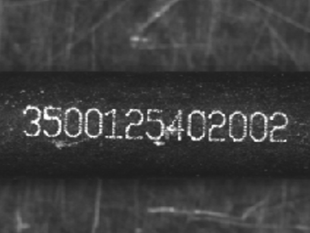

Steel column character detection Instant noodle box pattern detection
Adjust low-angle illumination. The characters Uniform illumination at a long working
appear white with a black background, distance ensures clear visibility
achieving high contrast. of the box pattern.
Uniformity distribution map
LWD=200, Vertical 90°, Field of view: 140×140 mm LWD=20, Horizontal 0°, Field of view: 140×140 mm
LWD=100, Inclined 45°, Field of view: 140×140 mm
Related products
| Controller |  |  |  | Extension cord |  |

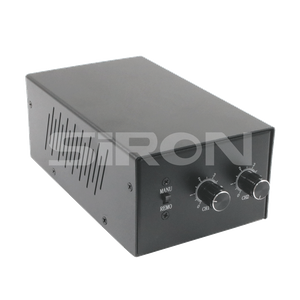

Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

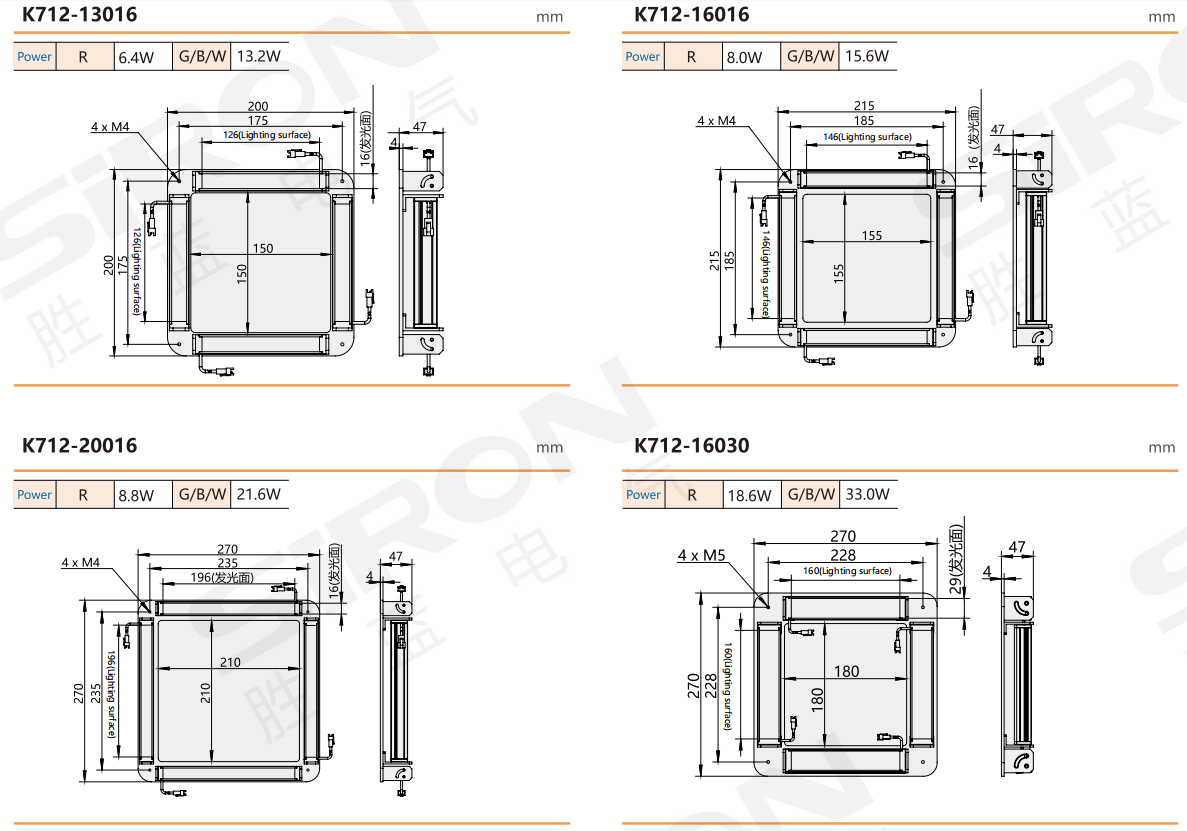

Dimension
