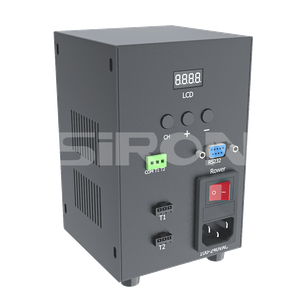

SiRON K792 Series Strobe Controller

Name: SiRON K792 Series Strobe Controller
Brand: SiRON
Rating: 5.0 (38 reviews)

Features:

*The high and low frequency of the outgoing signal can be selected;
*The width of the output voltage pulse (that is, the lighting time of the light source) can be set to 0-999μs;
*It can work in external trigger mode, and set the light source time as needed;
*It can also work in internal trigger mode, lighting the light source time according to the set frequency;
*When the load is over-current and short-circuited, the controller will automatically protect it, stop the output, and restore it after troubleshooting and re-powering.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K792 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Automatically protect Ethernet port High/Low frequency selectable Key operation

Product Description

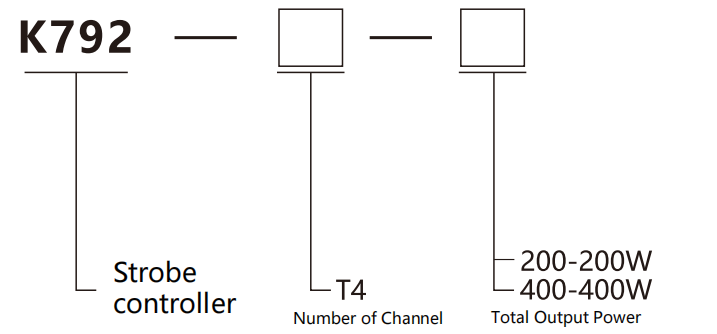

About selection

Selection example: K792-T4-400 represents the K792 series, with 4 channels and a total output power of 400W.

Specifications

Name	Strobe controller
Model	K792-T4-200	K792-T4-400

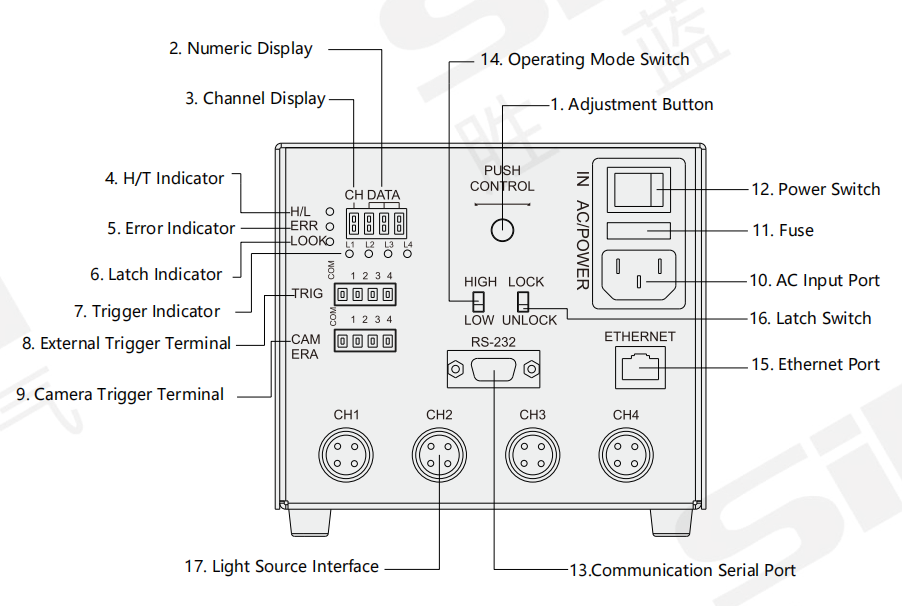

Appearance
The output voltage	24V
Total output current	2.5A
Externaltrigger voltage	5～24V
Output Power	200W/400W
Over current protection	>2.5A
The most electric current on the single road	2.5A
nput power	100～240VAC
Trigger delay time	<7μs
Adjustable brightness level	0～999μs adjustable
communication method	R S 2 3 2 / Ethernet
Environment humidityn	0～40℃

Communication parameters

Baud rate	19200
Data bit	8
Stop bit	1
Check Digit	NO
Communication protocol	R S 2 3 2 / Ethernet

Commands can be sent via the communication serial port, and the communication protocol is as follows:
Commands for each channel can be sent individually or simultaneously.
Example:
Sending the command SA0100# will set the lighting time of the 1st channel light source to 100μs.
Sending the command SA0150# SB0320# SC0280# SD0999# will set:
1st channel lighting time: 150μs
2nd channel lighting time: 320μs
3rd channel lighting time: 280μs
4th channel lighting time: 999μs
Note:
A = Channel 1
B = Channel 2
C = Channel 3
D = Channel 4
