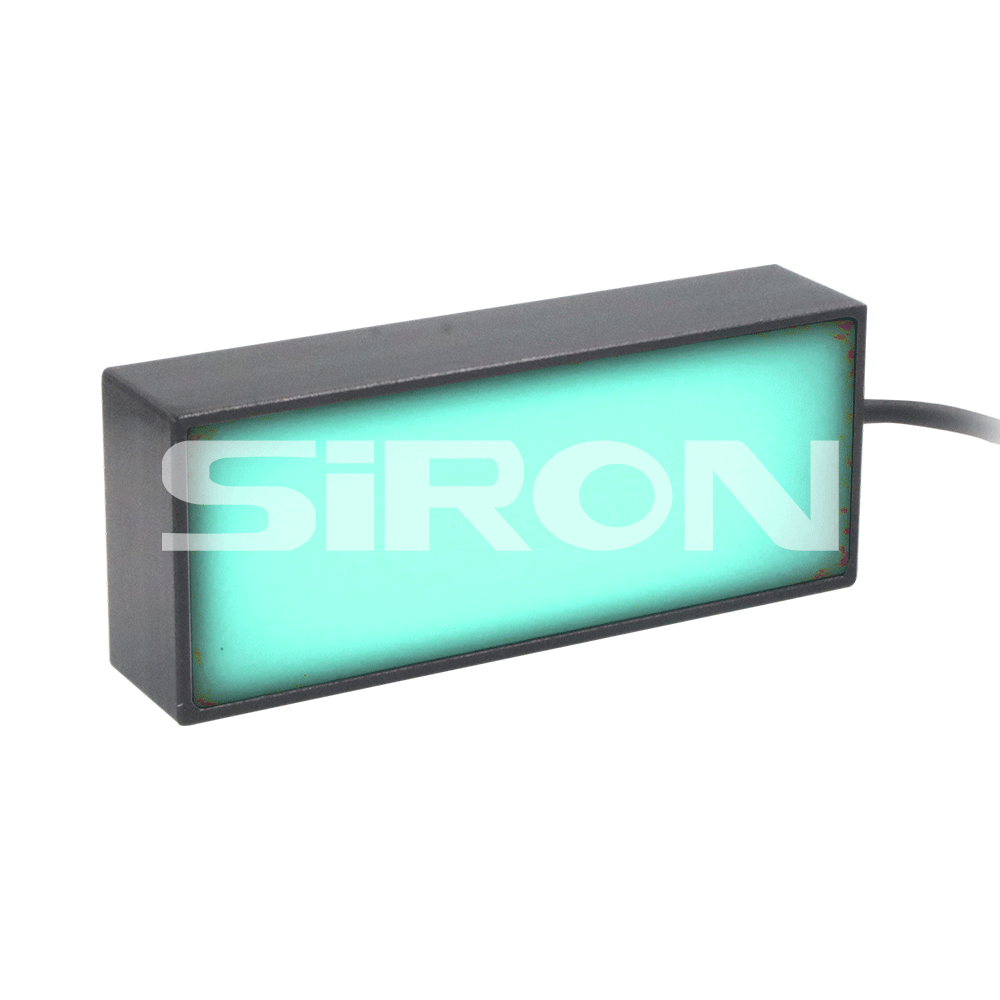

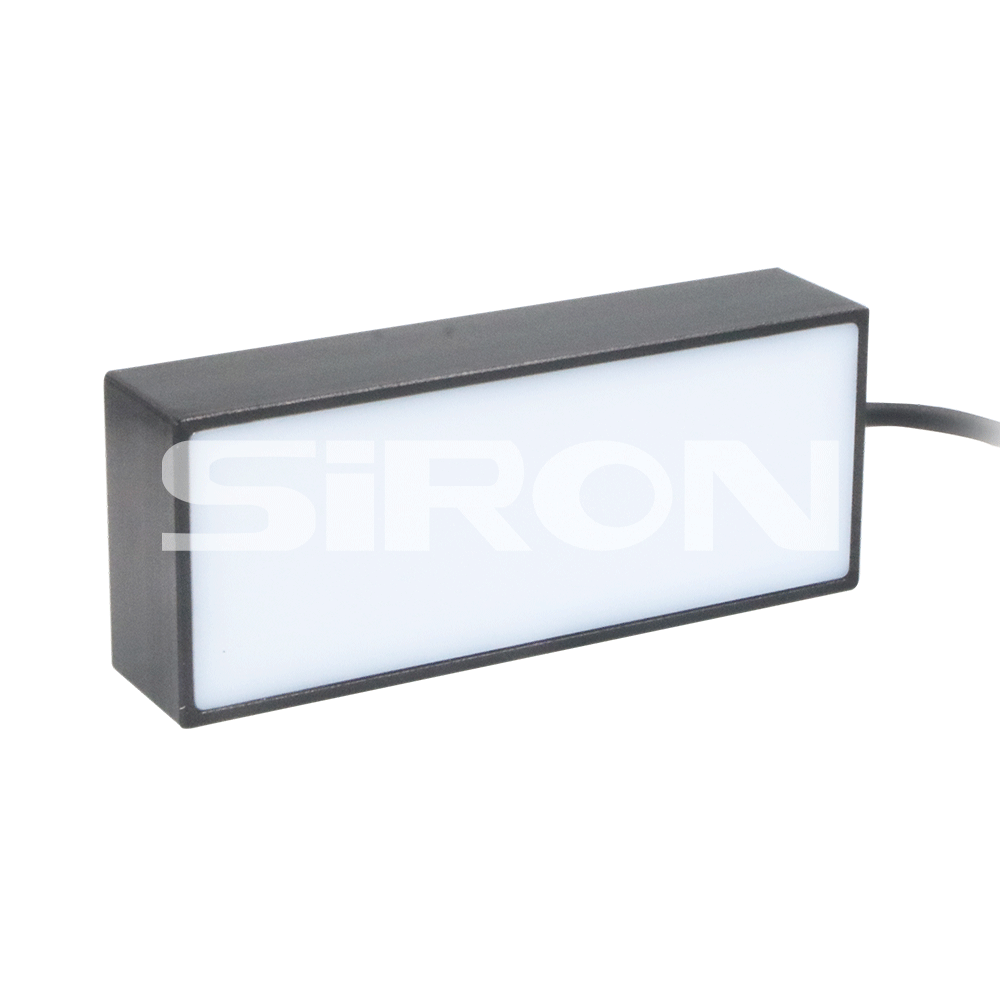

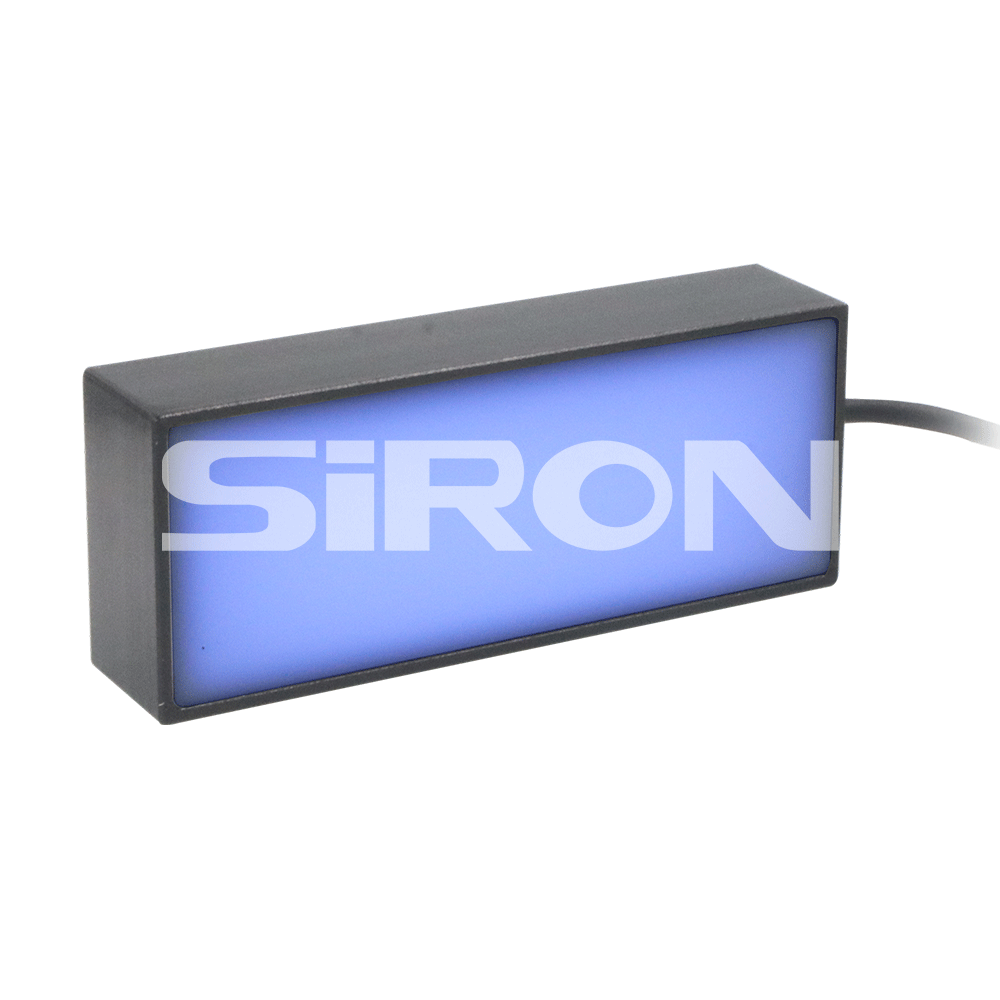

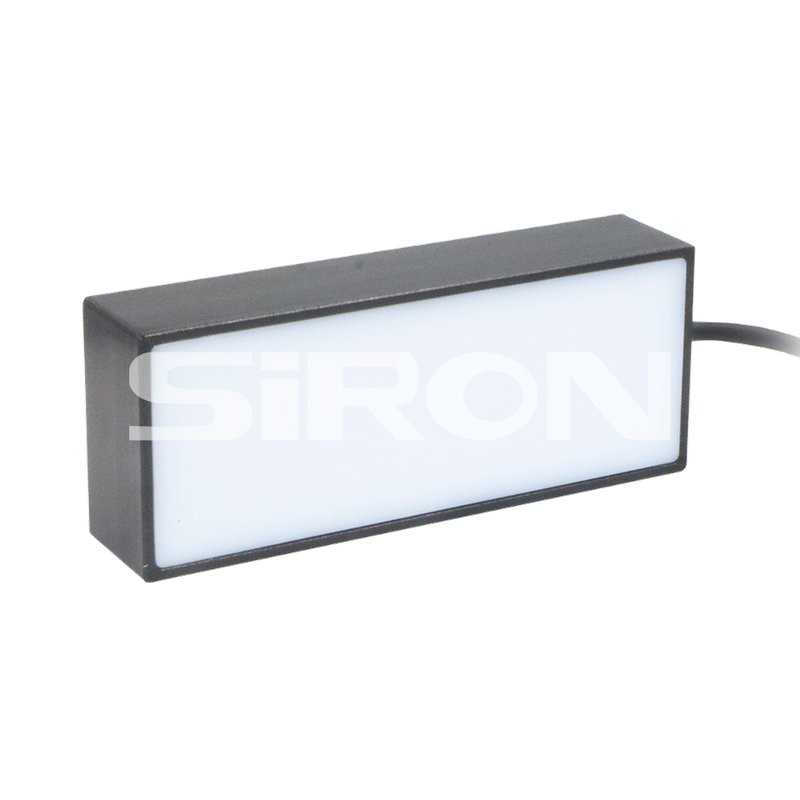

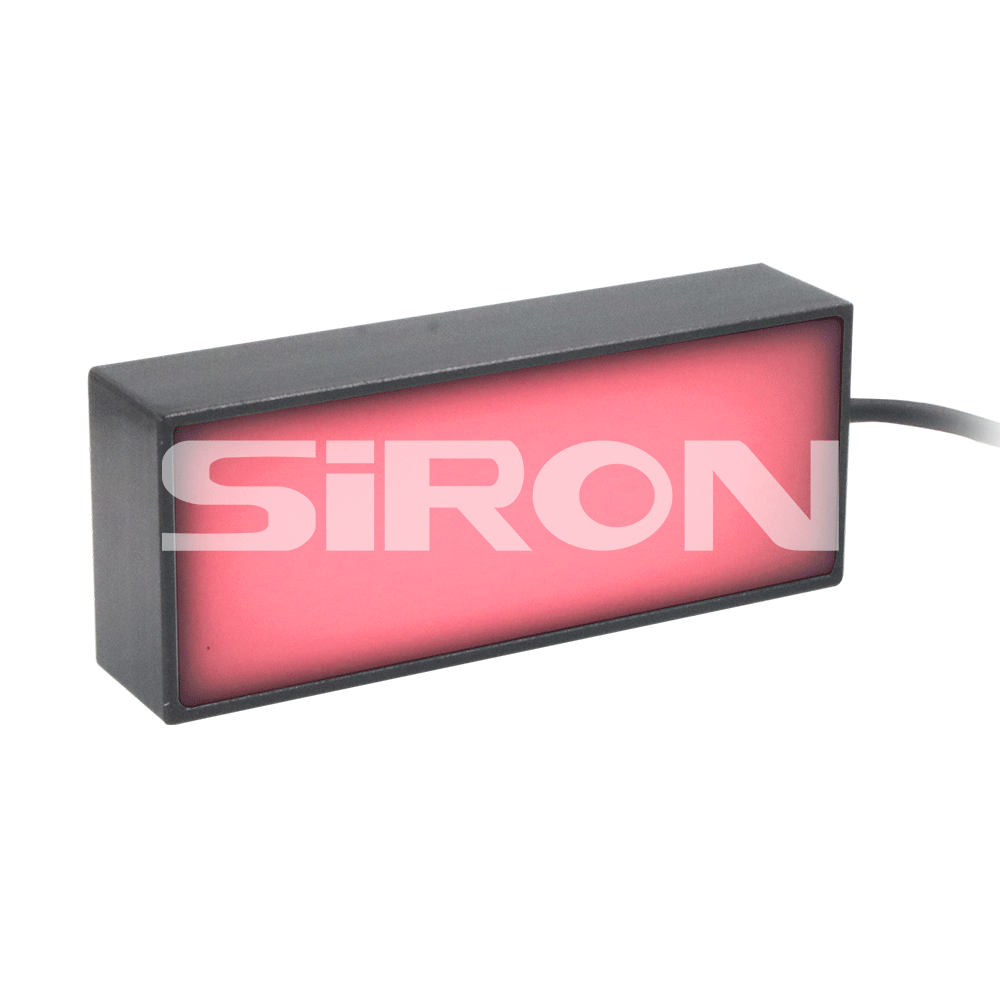

K710A Series
SiRON
8479909090

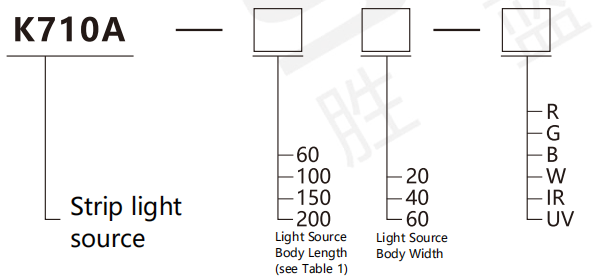

About selection

Note:
1. Cable length: 1M
2. Color code: R- Red, G- Green, B- Blue, W- White, IR-Infrared, UV- Ultraviolet mm
| Length of light-emitting area | 60, 100, 150, 200 | 100, 150, 200, 300 | 150, 250, 350, 450 | ||
| Width of light-emitting area | 20 | 40 | 60 | ||
Specifications
| Name | Strip light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Life span | 50000h |
| Operating temperature | -20~+55℃ |
| Working humidity | 10~90% (non-condensing) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Detect the date on product packaging bags; detect objects with high-brightness and reflective surfaces, etc. |
Wavelength and color temperature | W:6500K B:465~470nm R:620~630nm IR:850~940nm G:525~530nm UV:365~395nm |
Example

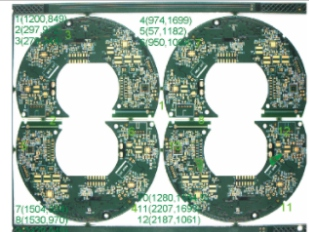

Metal Contour Inspection PCB Board Positioning Detection
Highlighted structured light source with Adopt bar light sources for opposite uniform
oblique illumination to clearly visualize illumination to make the outline of the PCB
the metal contour. board clearly visible.
Related products
| Controller | ![]() | ![]() | ![]() | Extension cord | ![]() |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

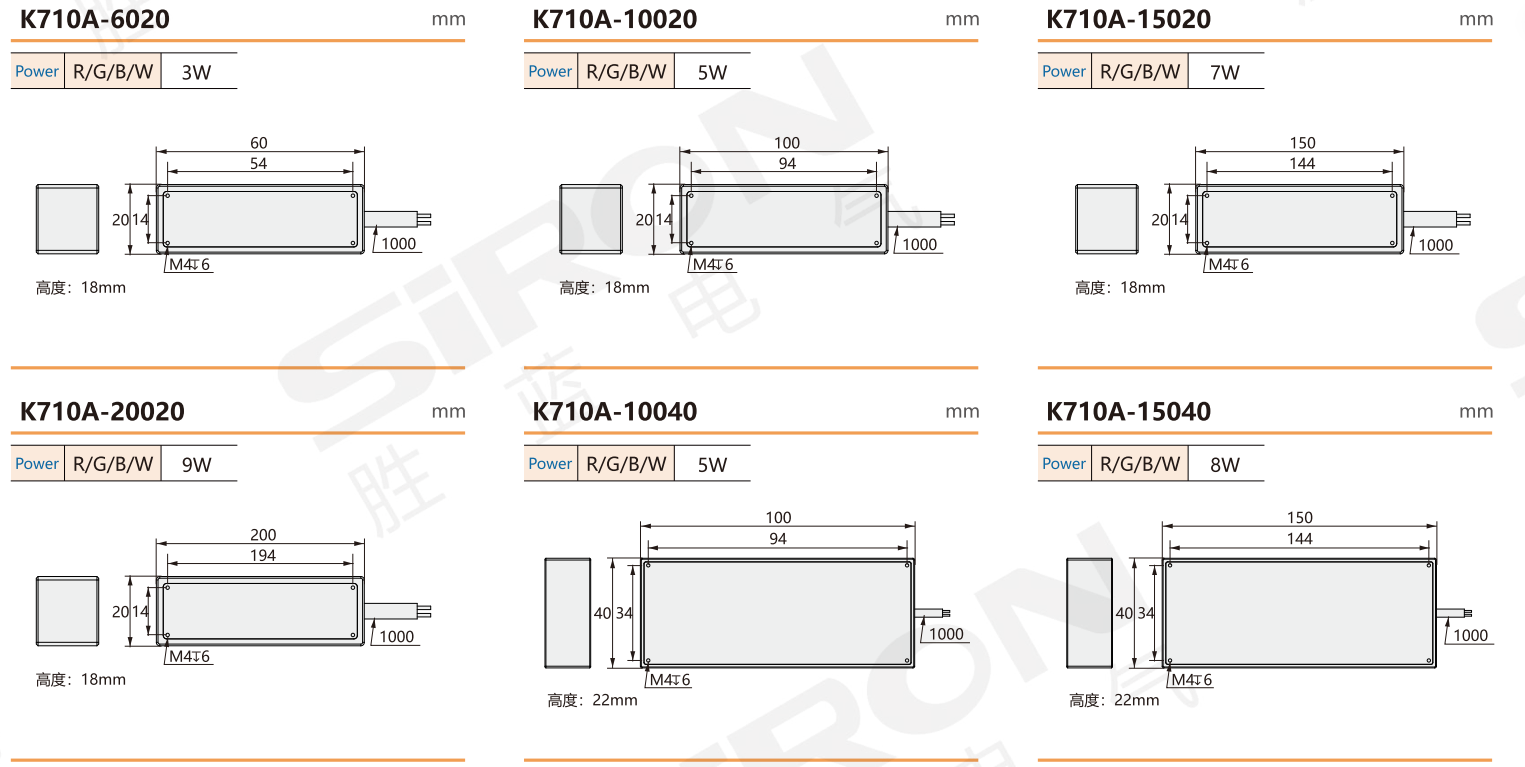

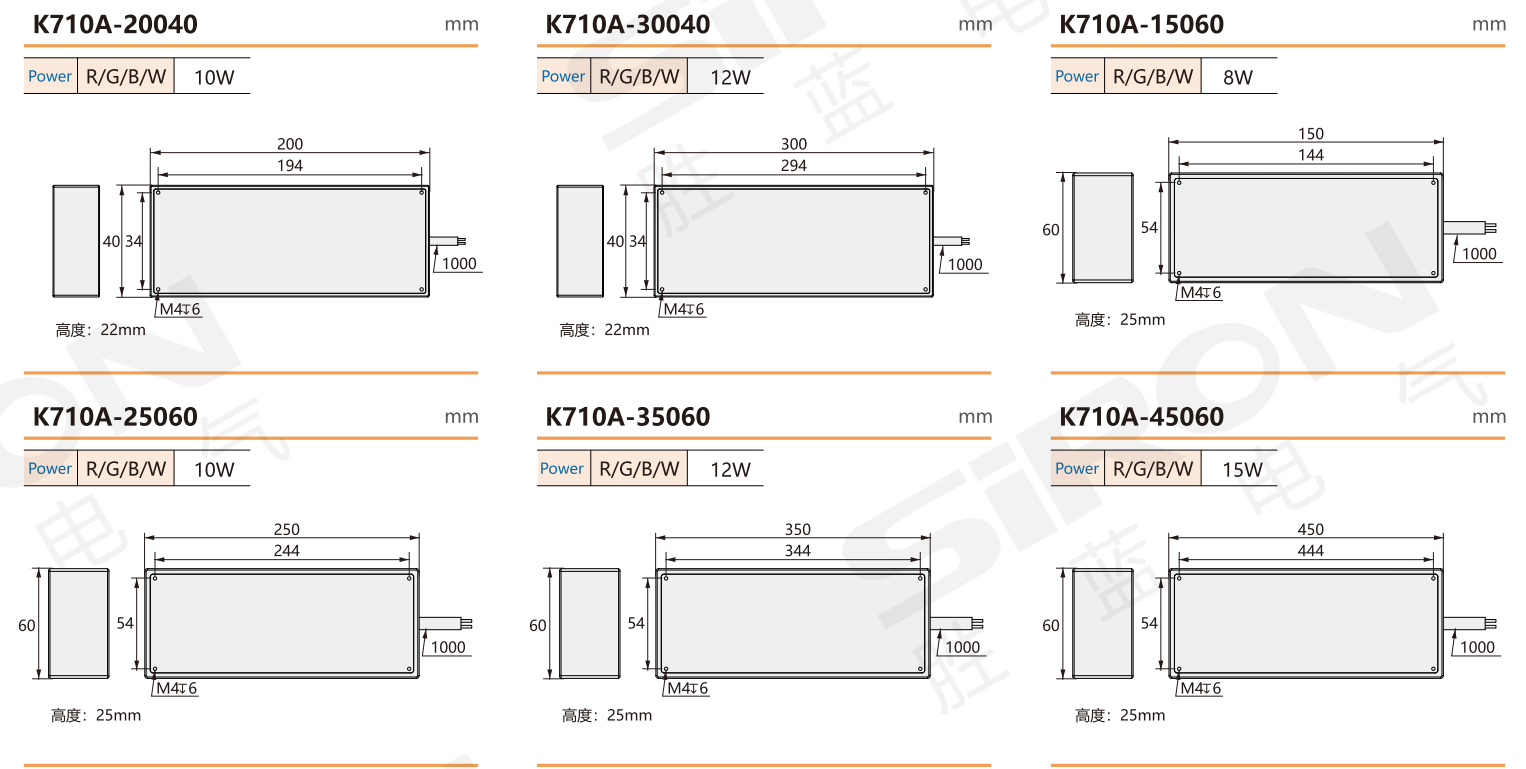

Dimension
