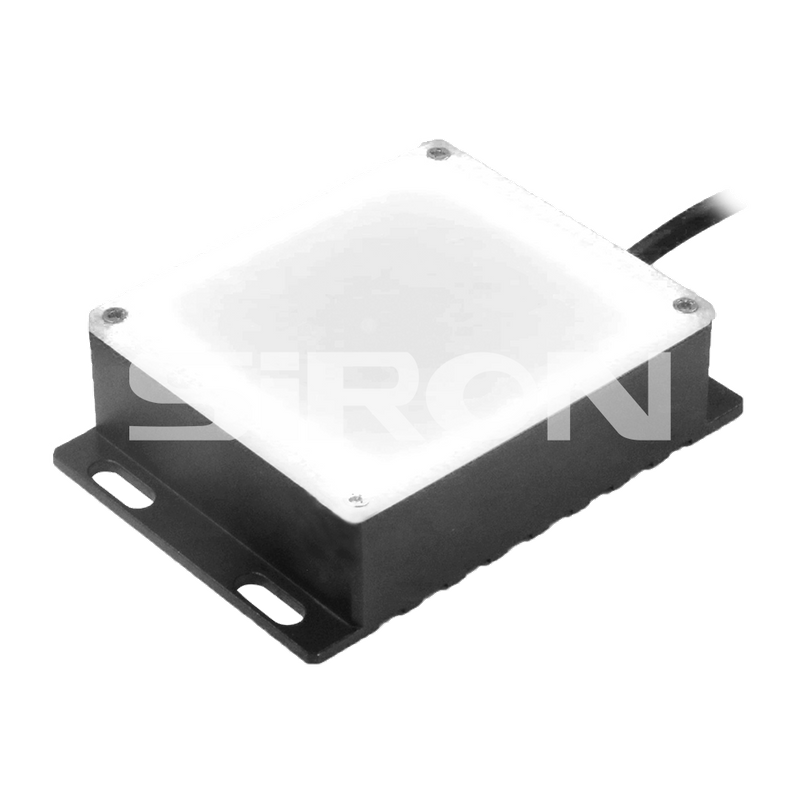

K716 Series
SiRON
8479909090

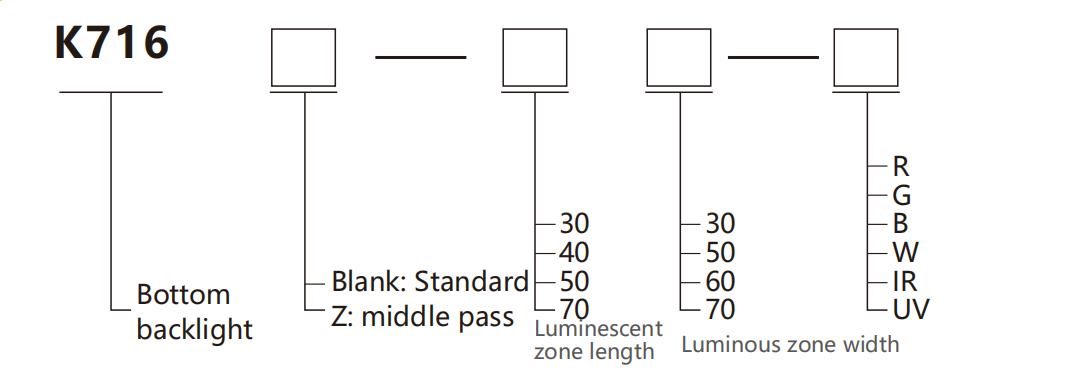

About selection
Selection example:
K716-5050-R indicates K716 series,standard type, the length of the luminous zone is 50mm, the width of the luminous zone is 50mm,and the color of the light source is red.
Standard Type
mm
Light Emitting Area Length | 30 | 30 | 40 | 50 | 50 | 70 | 80 | 100 | 120 | 130 | 150 | 160 | 180 | 200 | 200 | 200 | 250 | 297 | 300 | 300 |
| Light Emitting Area Width | 30 | 60 | 30 | 50 | 80 | 70 | 80 | 100 | 120 | 130 | 150 | 100 | 180 | 120 | 160 | 200 | 250 | 182 | 250 | 300 |
Center Hole Type
mm
| Light Emitting Area Length | 88 | 120 | 150 | 200 | 200 | 200 | 250 | 300 | 300 | 400 | 400 |
| Light Emitting Area Width | 88 | 80 | 100 | 120 | 160 | 200 | 190 | 250 | 300 | 300 | 400 |
Specifications
| Name | Bottom backlight |
| Appearance |

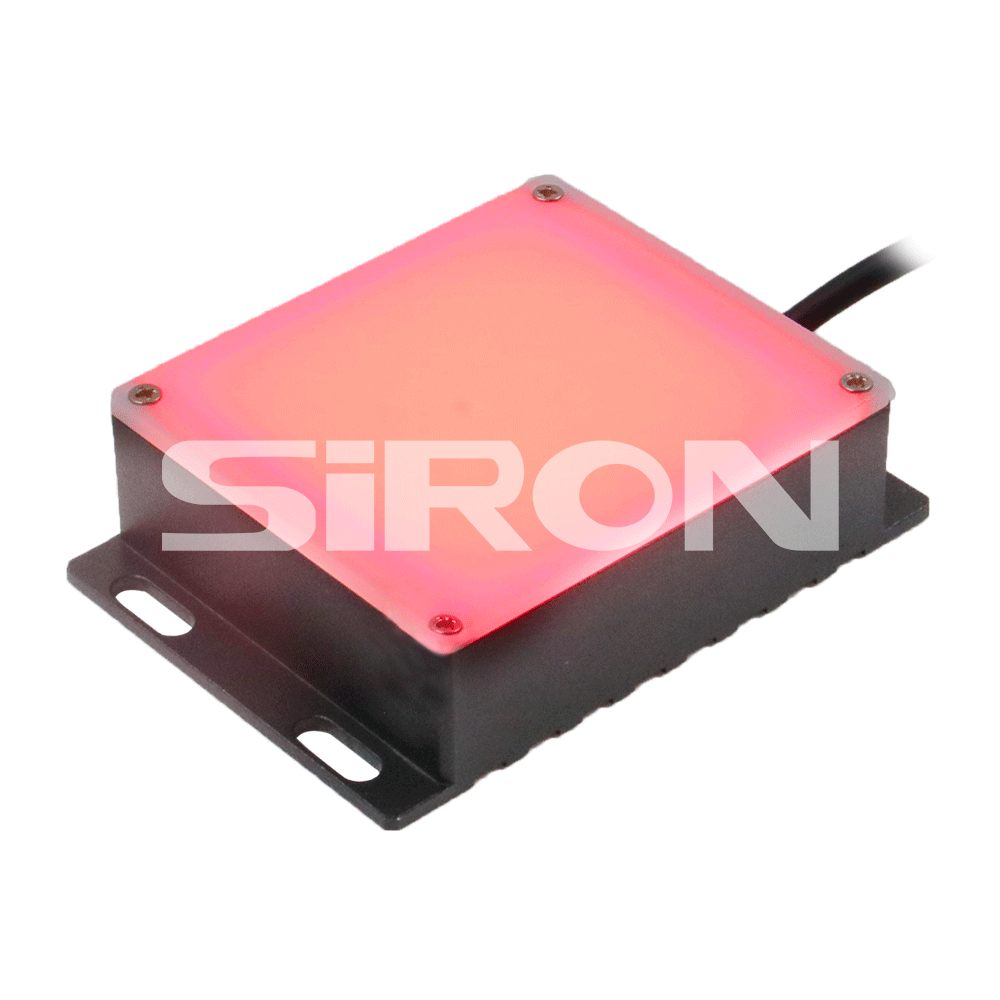

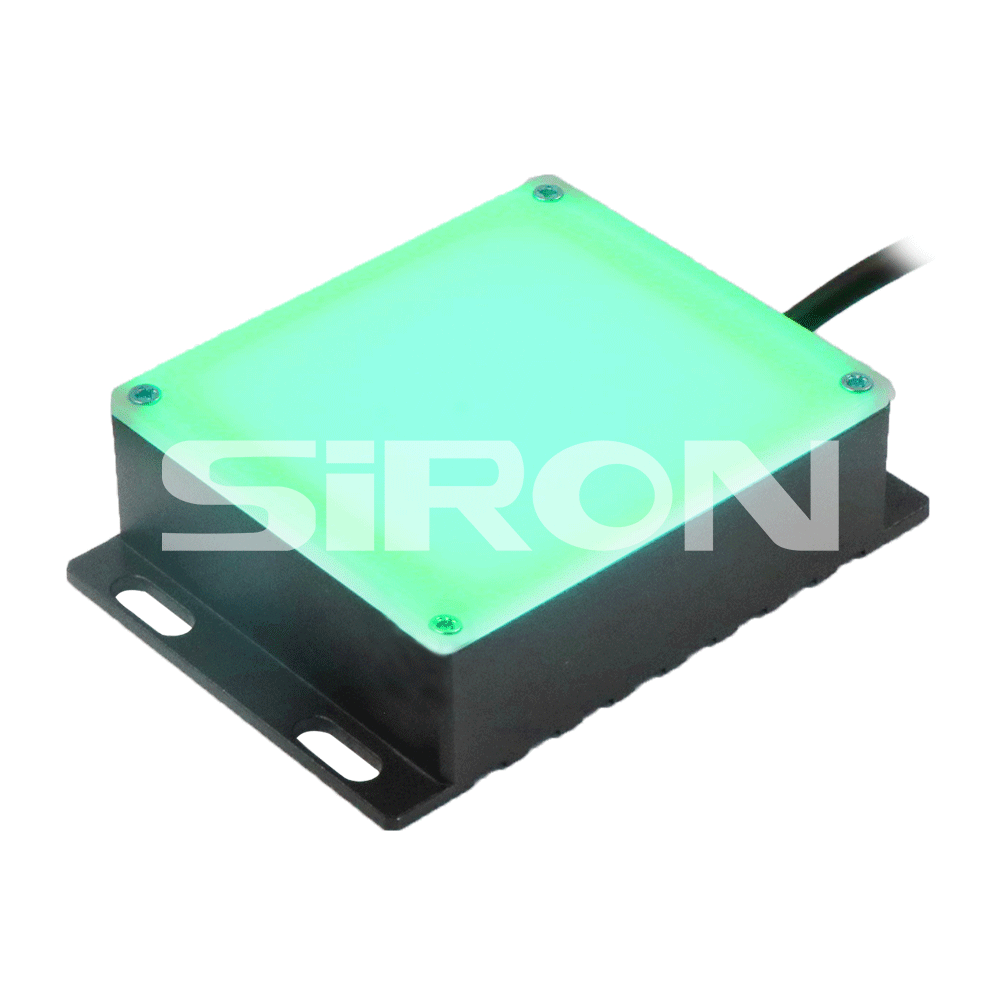

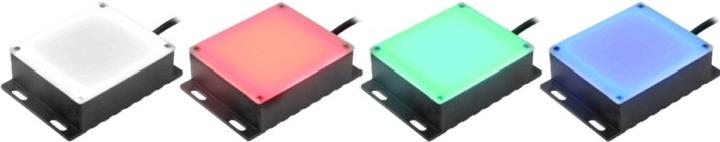

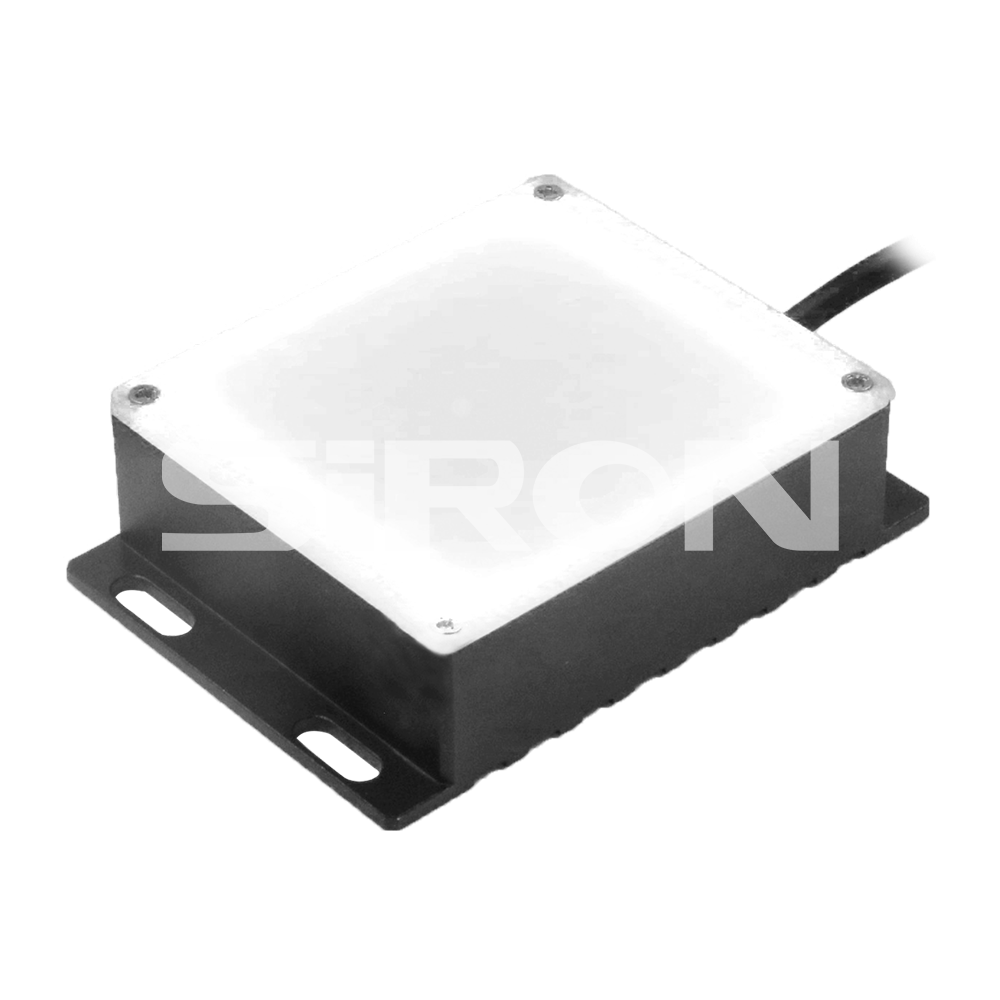

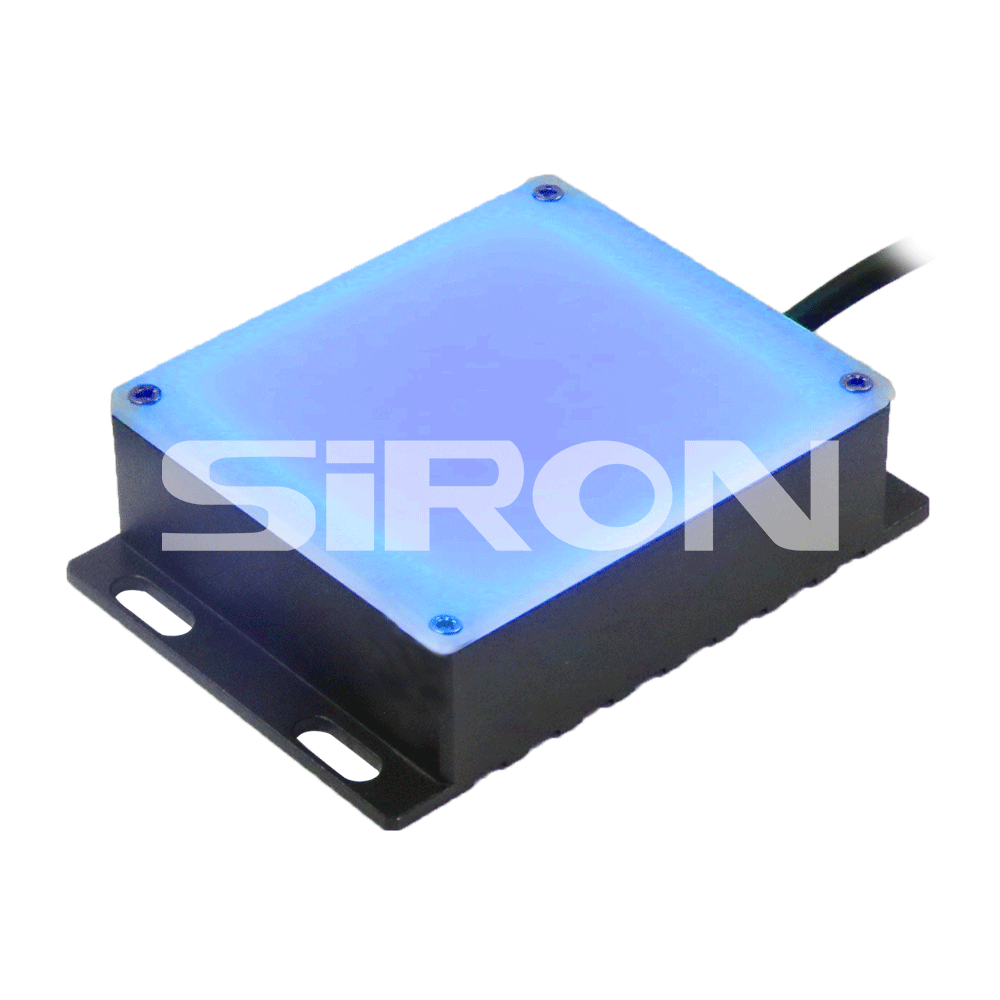

White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Product size inspection;Product profile detection; Pharmaceutical beverage liquid level detection |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example
Metal component counting Beverage liquid level detection
Backlight illumination with polarizing film Backlight illumination is adopted to make
is used to highlight the edges and the liquid level profile clear and distinct.
improve background contrast
Uniformity distribution map
Dark Field: 100×100 mm Bright Field: 100×100 mm
Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |
Dimension
