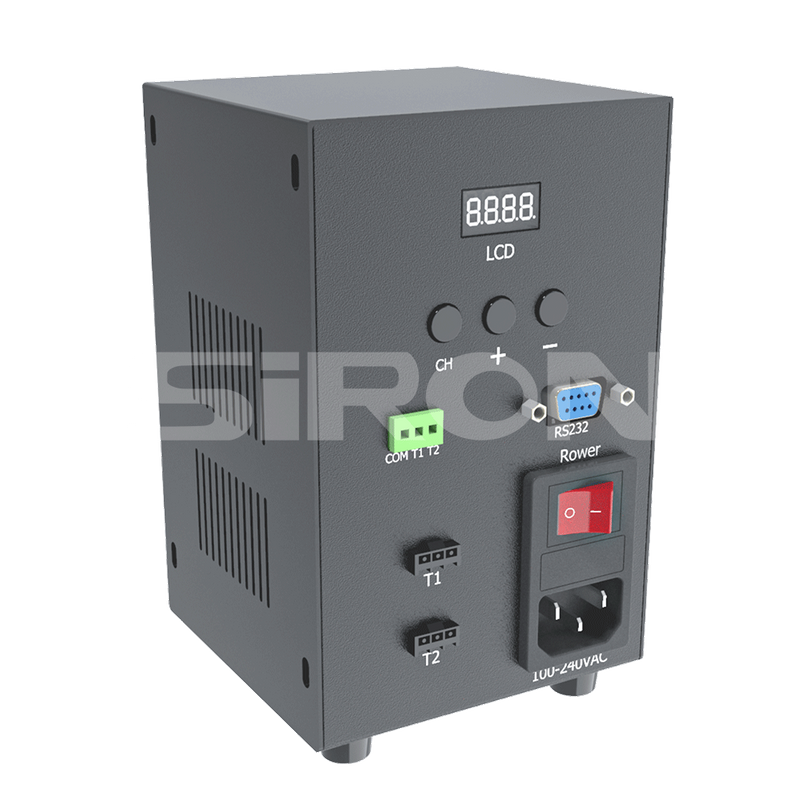

SiRON K791 series Digital controller

Name: SiRON K791 series Digital controller
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

*The digital tube displays the channel value and brightness value, which is easy to understand by pressing the key operation;
*It can be connected to the computer through the RS232 communication serial port for remote control;
*External trigger high and low frequency optional, high-speed optocoupler isolation, fast response, high reliability;
*Simple operation, can be adjusted by keys or PC, each channel is individually adjustable, with 256-level precision changes, The brightness of the light source can be precisely controlled.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K791 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Digital controller Simple Operation RS232 communication 256-level precision changes

Product Description

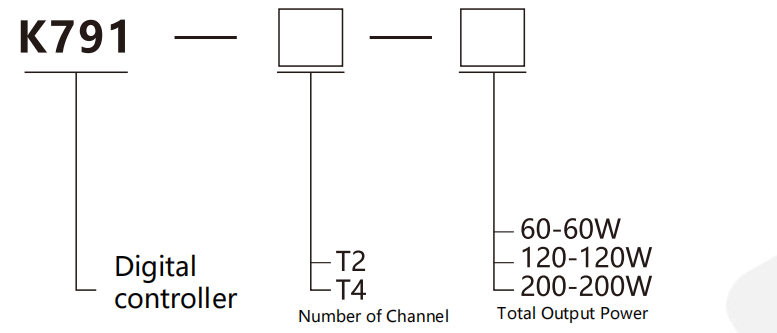

About selection

Selection example:K791-T2-120 represents the K791 series, with 2 channels and a total output power of 120W.

Note:

For T2/T4 channel models, the total output power can be selected as 60W or 120W.

For T6/T8 channel models, the total output power can be selected as 120W or 200W.

Specifications

Name	Digital controller
Model	K791-T2-60	K791-T4-60	K791-T6-120	K791-T8-120
	K791-T2-120	K791-T4-120	K791-T6-200	K791-T8-200

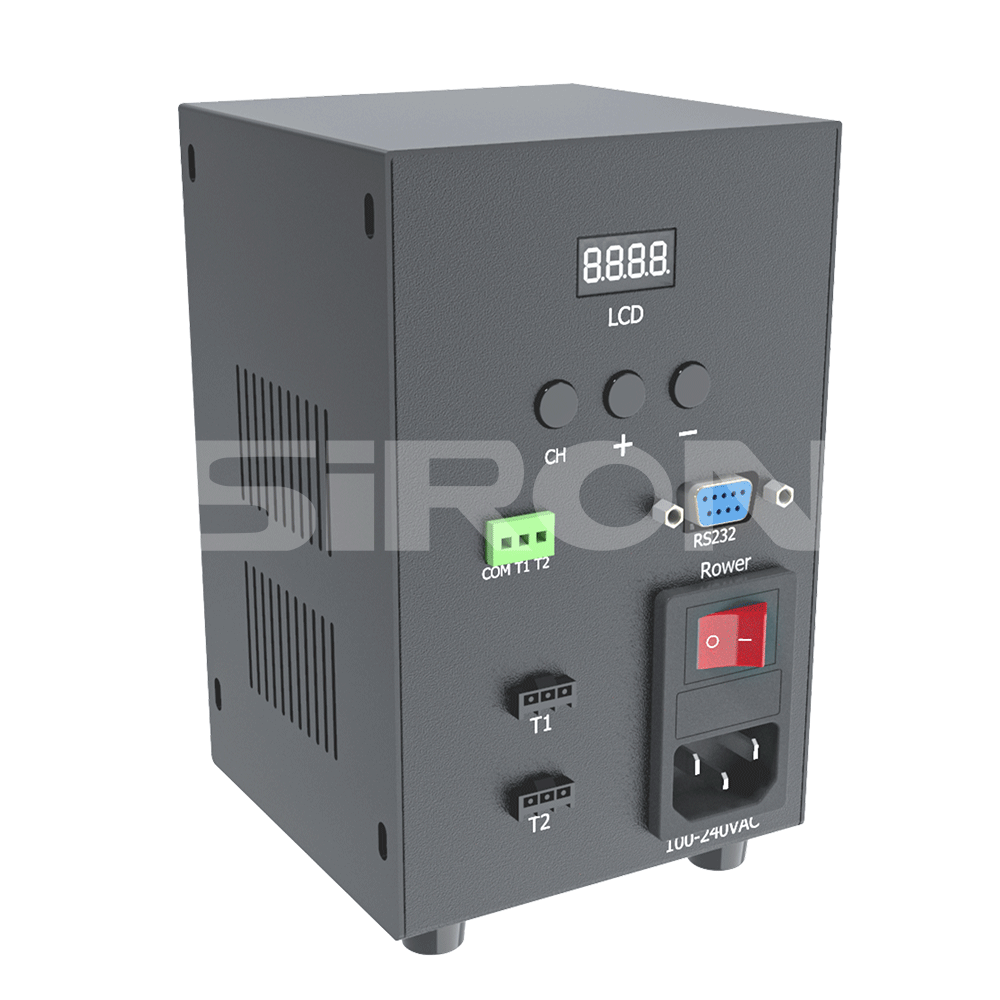

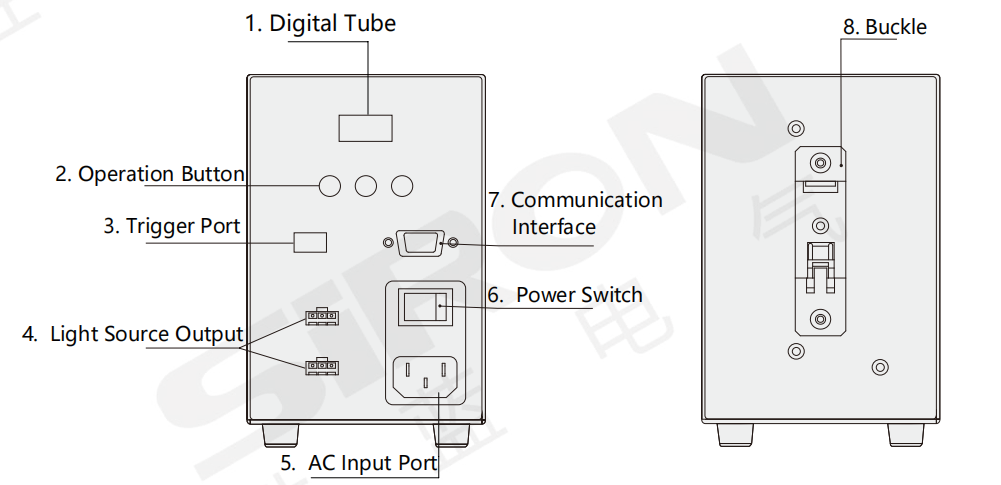

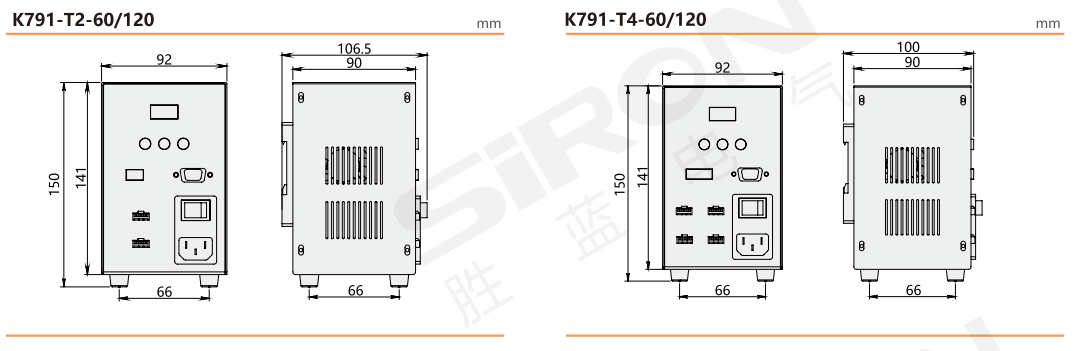

Appearance
The output voltage	Max. 24V DC
External trigger voltage	5～24V DC
Output Power	60W/120W	60W/120W	120W/200W	120W/200W
nput power	100～200VAC50Hz
Trigger delay time	<50μs
Adjustable brightness level	0~255 level adjustable
communication method	RS232
Control state	Switchable between always-on / always-off mode
Ambient temperature	20～85%RH
Environment humidityn	0～60℃
