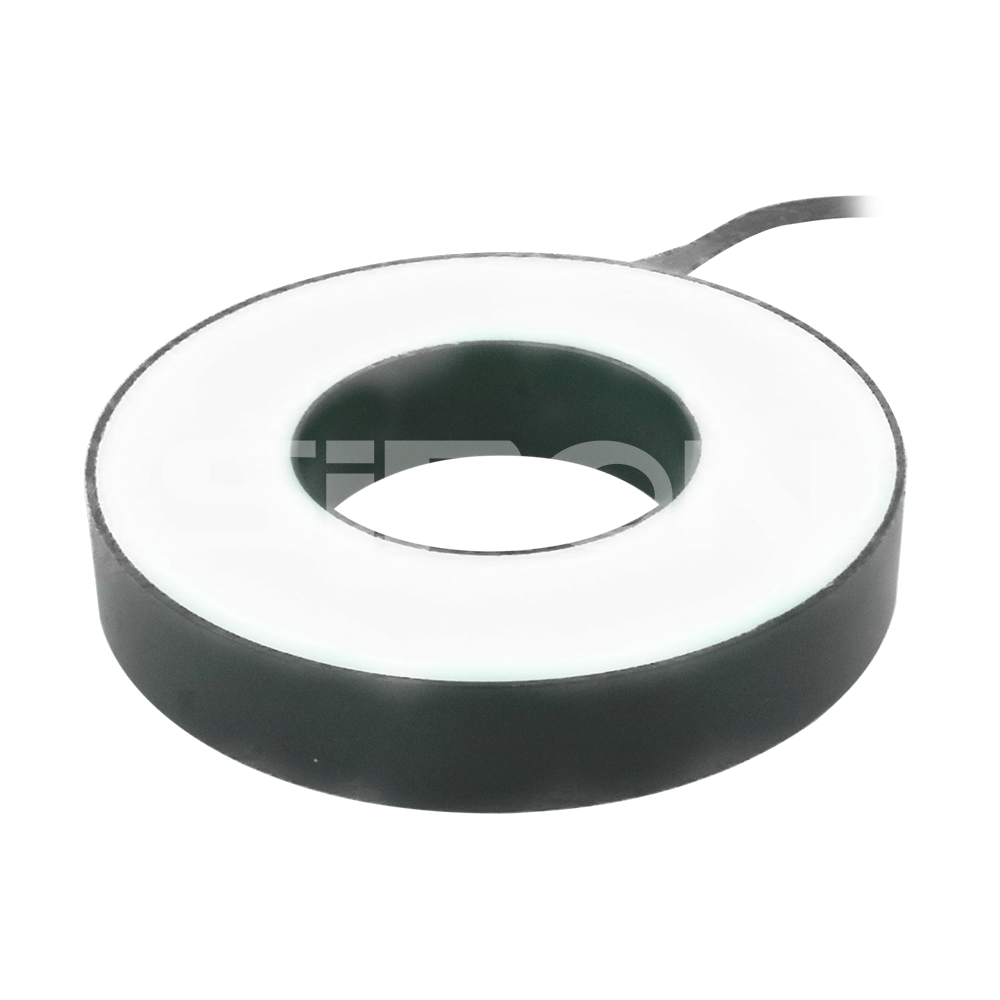

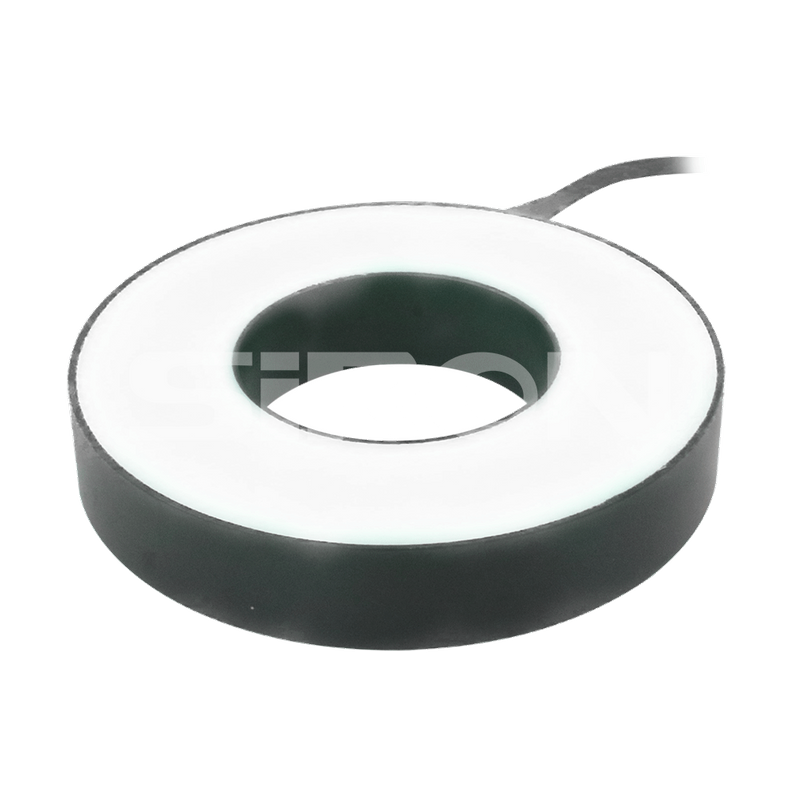

SiRON K700A Series Ring Light

Name: SiRON K700A Series Ring Light
Brand: SiRON
Rating: 5.0 (28 reviews)

Features:

*Check the date on the package;
*Detect objects with bright, reflective surfaces;
*Detect the external dimensions of IPA high precision components;
*Test packaging and labels.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K700A Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Ring Light uniform light distribution gentle light high brightness

Product Description

About selection

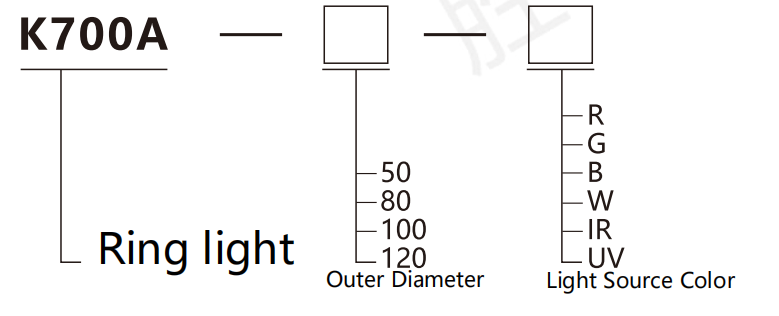

Selection example :

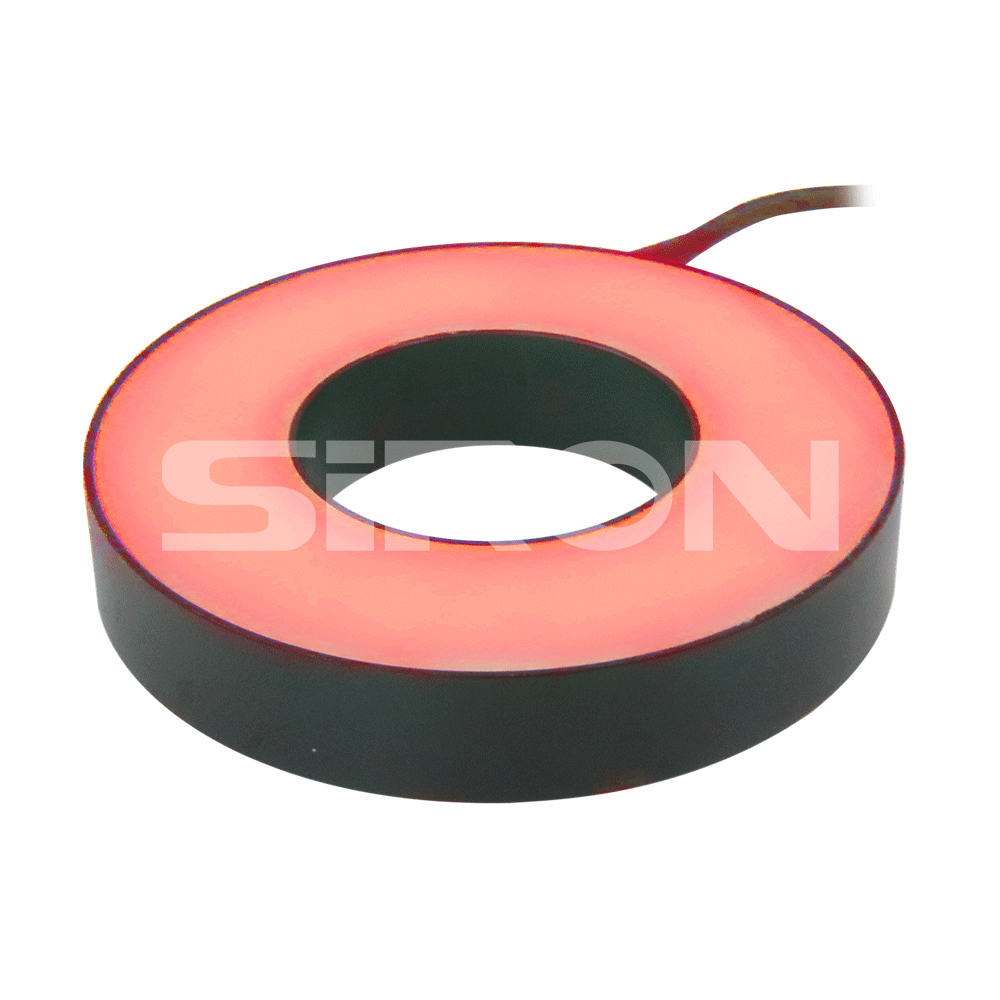

K700A-100-R represents the K700A series, with an outer diameter of 100mm and a red light source color.

Note:

1. Cable length: 1M

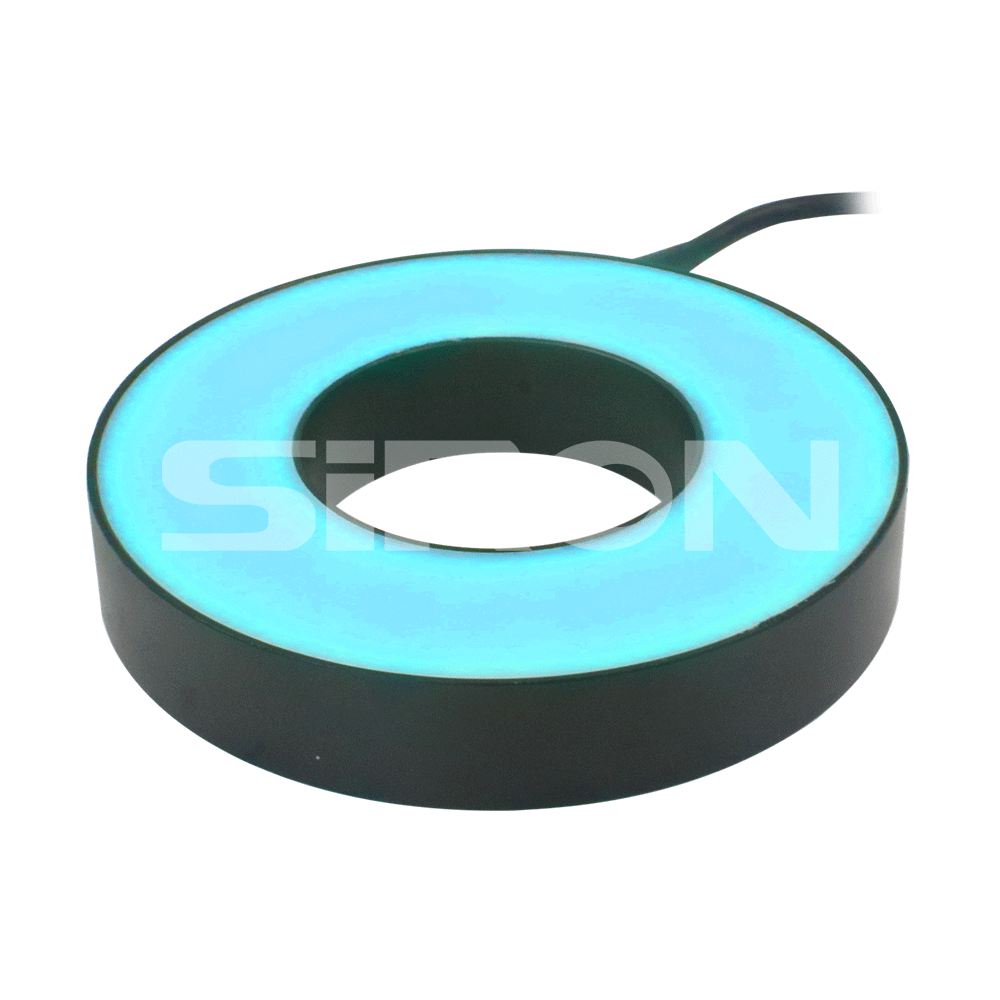

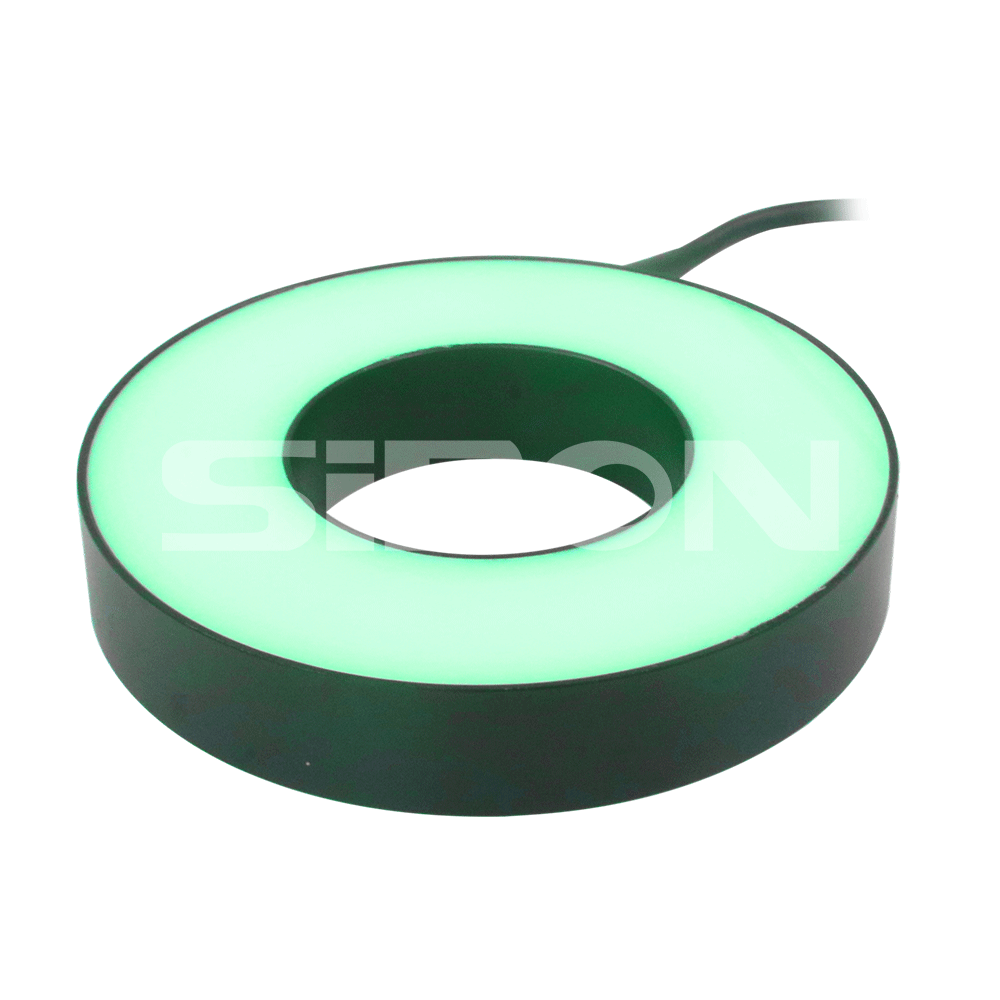

2. Color code: R = Red, G = Green, B = Blue, W = White, IR = Infrared, UV = Ultraviolet.

Specifications

Name	Ring light
Appearance	White Red Green Blue
Voltage	24V DC
Bean Angle	≥120°
Operating temperature	-20～+55℃
Working humidity	10~90% (non-condensing)
Controler	Analog Controller; Digital Controller; Strobe Controller
Scope of application	Detect dates on product packaging; detect high-brightness, reflective objects, etc.
Wavelength and color temperature	White : 6 5 0 0 K Blue:465～470nm Red : 6 2 0 ～ 6 3 0 n m Infrared:850～940nm Green : 5 2 5 ～ 5 3 0 n m Ultraviolet : 3 6 5 ～ 3 9 5 n m
